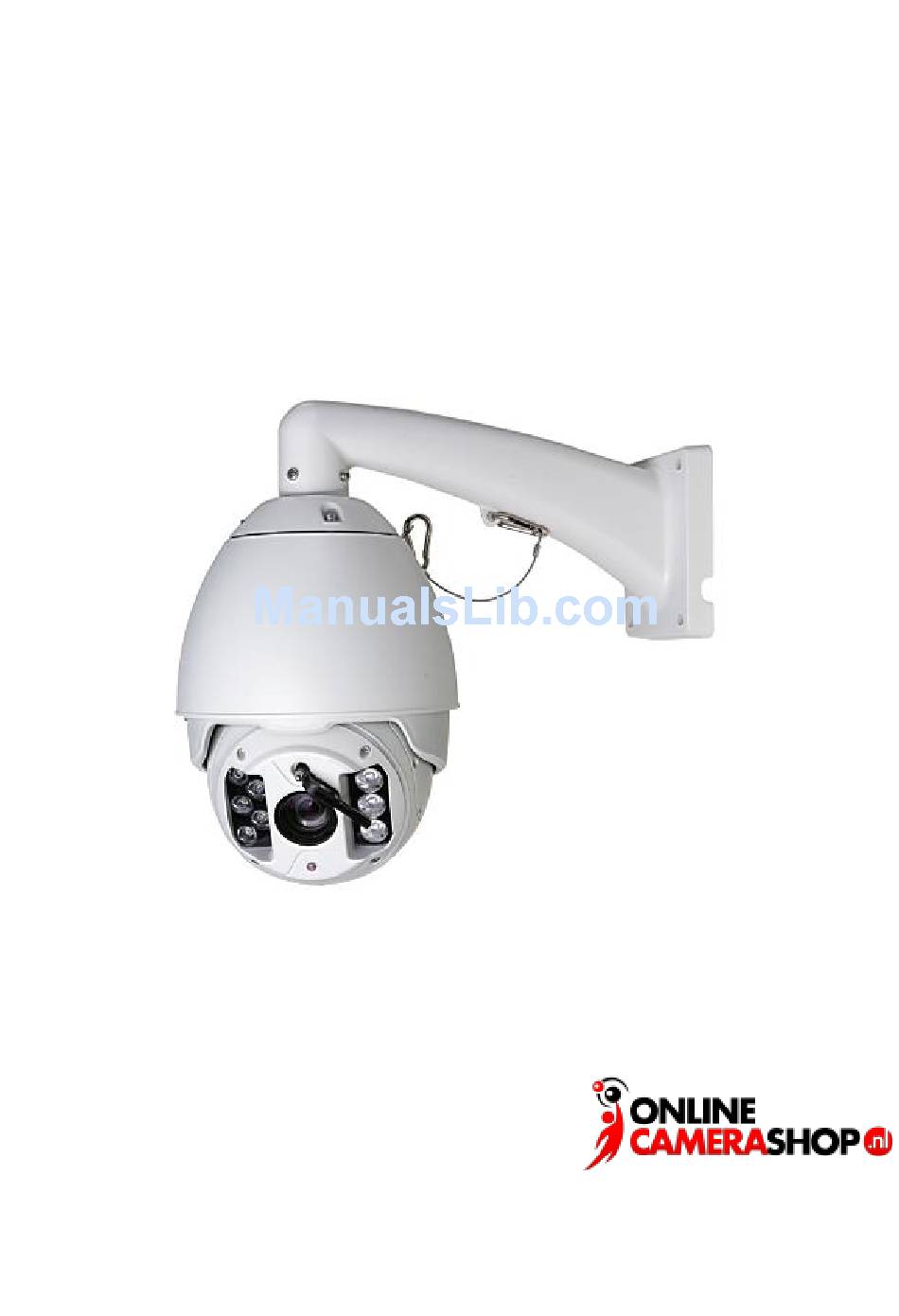

HD IP IR
High Speed Dome Camera

User Manual

SST-AV-ARYA
Read the user manual carefully before using this product
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SST-AV-ARYA and is the answer not in the manual?

Questions and answers

Summary of Contents for Online Camera Shop SST-AV-ARYA

  • Page 1: User Manual

    HD IP IR High Speed Dome Camera User Manual SST-AV-ARYA Read the user manual carefully before using this product - 1 -...

  • Page 2: Important Safeguards

    Important Safeguards 1. During the course of transportation and storage, the product should be avoided from incorrect operations such as heavy pressing, strong vibration, soaking etc, which may cause damage to the unit. 2. The product is designed for wall-mount and pendant-mount installation, it can not be installed upside-down.
  • Page 3 Table of Content 1.Technical Data ................. - 6 - 1.1 Dome Camera Technical Data ..........- 6 - 1.2 Internal Camera Technical Parameters ......... - 7 - 1.3 Internet Technical Parameters ..........- 10 - 2. Characteristics ................- 12 - 2.1 Dome Camera Characteristics ..........
  • Page 4 5.2.3 Serial Port ............. - 37 - 5.2.4 Device Record ............- 38 - 5.2.5 Net Record ............- 40 - 5.2.6 Time Setting ............- 41 - 5.2.7 Multiple Device ............ - 42 - 5.2.8 System Status ............- 43 - 5.2.9 IR Sensor ..............
  • Page 5 6.1 Preset Setting and Calling ........... - 62 - 6.1.1 Preset Setting ............- 62 - 6.1.2 Calling for Preset Position ........- 62 - 6.2 Special Function Setting and Calling ........- 63 - 6.2.1 Left/Right Scan Setting ......... - 63 - 6.2.2 360º...

  • Page 6: Technical Data

    1.Technical Data 1.1 Dome Camera Technical Data Power Supply DC15V±10％（4A） Power 25W(Open high light IR) Consumption Communication 4800bps（Fix） Baudrate Manually Horizontal 0.5º～120º/S，max 350º/S when rotate to preset position Rotate Speed Manually Vertical Rotate 0.5º～60º/S，max 120º/S when rotate to preset position Speed Horizontal 360º...

  • Page 7: Internal Camera Technical Parameters

    Preset Position Number Tour Group Number Tour Group Preset Position 16 for each tour group Number Guard Function Wiper Manually open or close Alarm Interface 4 ways in, 1 way out(optional) IR Lamp High-power IR IR Lamp Control Sensor mode and camera mode Brightness Auto/Manual, can open the low, medium, high model control for IR...
  • Page 8 Valid Pixel 3.27 Million Minimum 0.095lux (ICR 开，F1.6，50IRE) Illuminance close-up camera shooting 10mm(W)～1000mm(T)（default 300 mm) distance Aperture value F1.6(W)～F3.5(T) Focus Auto/Manual/Trigger 20 times Optical variable times, 12 times digital varible zooming rate times f=4.7mm(Wide-angle end) ～94mm(long distance) focal distance 55.4°(Wide-angle end) ～2.9°(long distance) image angle electronic 1/1 to 1/10，000 s，22 step...
  • Page 9 Communication VISCA protocol (CMOS 5V) Interface 0.04lx (ICR 开， 1/30sec) Min Lightness Working 10mm(W) ～ 1000mm(T) Distance Synchronize Internal synchronize Method Scan Method 2：1 progressive scanning Aperture Auto Aperture Value F1.6(W)～F3.5(T) Focus Auto/Manual 20 times Optical variable times, 12 times digital varible Zooming Rate times f=4.7mm(Wide-angle end) ～94mm(long distance)

  • Page 10: Internet Technical Parameters

    temperature power 3.4W consumption 1.3 Internet Technical Parameters Processor DavinciTMS320DM368 Switch Ethernet method Video H.264 Compression Standard Audio AMR，G.711 Compression Standard Frame 25 Frame/S Rate 1920*1080(1080P) ， 720*576(D1) ， 352*288(CIF) ， Video Resolution 176*144(QCIF) Stream Dual stream. Main stream can choose 1080P/D1, sub stream can choose D1/CIF/QCIF Video 16Kbps～8Mbps...
  • Page 11 Image Delay <200MS Net Interface RJ-45 10/100M Network adaptive Internet RTSP/HTTP/HTTPS//FTP/DHCP/MUDP/SMTP/CIFS/UPN Protocol P/PPPOE/NTP/DDNS Front USB storage device can support maximum 500G, TF card Storage Device support maximum 16G(optional) Talkback 1 way MIC In input, 1 way Line out output(optional) Function Alarm 4 way in, 1 way out(optional) Interface...

  • Page 12: Characteristics

    2. Characteristics 2.1 Dome Camera Characteristics  The cover is constructed with aluminum alloy, which ensures compact structure, high shielding strength and excellent heat-dispersion effect. The lower part of the unit is designed as exposed, which effectively solve the heat-dispersion problem for the camera module and the IR lamps etc parts.

  • Page 13: Device Installation And Internet Connection

    3、 Built-in Web Server, fully support browser to surveillance, configure and mange device, simple and convenience to operate. 4、 Dynamic bit rate control to ensure real time video transportation in internet 5 、 Support multiple users to view video and can set log in authorization.
  • Page 14 Including hanging bracket unity machine appearance dimension(unit:mm) Hoisting bracket installation hole dimension(unit:mm) - 14 -...

  • Page 15: Wall-Mounted Dome Camera Installation

    Including hoisting bracket unity dimension(unit:mm) 3.2 Wall-mounted Dome Camera Installation Step 1: get M5 die nut from seal pocket, screw off the knurled screw and take off installation head, then take off the integrated line(as Fig 1) Camera I ntegrated Line Three K nurled Screws Installation Head Camera...
  • Page 16 Step 2: through the integrated line across wall-mounted bracket, and fix the wall-mounted bracket to wall(as Fig 2) Wall-mounted Bracket Fig 2 Step 3: install the anti-falling steel wire rope to dome camera and connect with wall-mounted bracket, hold the camera in both hand by 45˚, fix the rotate pendant on the camera to the rotate hook on bracket(as Fig Zoom In Bracket R otate Hook...

  • Page 17: Installation For Pendant-Mount Camera

    Step 4: connect the integrated line on camera to the socket on the top of camera, hold the camera in both hand after confirmation, follow the arrow direction and rotate the camera to vertical angle, screw down the knurled screw by using die nut(as Fig 4) Three K nurled Screws Fig 4 3.3 Installation for Pendant-mount Camera...
  • Page 18 Fig 1 Step 2: through the integrated line across anti-falling boom bracket, and fix the anti-falling boom to wall(as Fig 2) A nti-falling Boom Bracket Fig 2 Step 3: install the anti-falling steel wire rope to dome camera and connect anti-falling boom bracket, hold the camera in both hand by 45˚, fix the rotate pendant on the camera to the rotate hook on bracket(as Fig Zoom In Bracket R otate Hook...
  • Page 19 Step 4: connect the integrated line on camera to the socket on the top of camera, hold the camera in both hand after confirmation, follow the arrow direction and rotate the camera to vertical angle, screw down the knurled screw by using die nut(as Fig 4) Three Knurled Screw Fig 4 - 19 -...

  • Page 20: Sketch Map For Inside Camera

    3.4 Sketch Map For Inside Camera OUT 12 Alarm Output OUT 11 Alarm Input RJ45 Power Supply USB- USB+ Audio LOUT 3.5 Main External Interface For High Speed Camera Functio Interface Function Interface Video power Blac output(o interface ptional) RJ45 Blac interface(optional interface...

  • Page 21: Alarm Input/Output Connection And Installation

    Alarm input/output(opti onal) GND: Ground IN1：Alarm input IN2：Alarm input IN3：Alarm input IN4：Alarm input OUT11， OUT12： Alarm output interface Attention: USB and BNC interface can't exist in HD IR IP camera at the same time, only one can be chose. 3.6 Alarm Input/Output Connection And Installation Alarm input/output connection and installation can refer to below figure.
  • Page 22 3. After start the alarm function, any input end without alarm probe should be insert 2.2k resistance, or camera system will consider alarm signal is triggered and open alarm function. sketch for Series Connection Alarm input (with Constant-closed detector) Probe Probe Probe Probe...

  • Page 23: Network Connection Method

    sketch for Alarm output connection 1 Way Alarm Output 3.7 Network Connection Method 3.7.1 Direct Connect Mode Connect the camera to PC by network directly. 3.7.2 Network Connect Mode Can connect the camera to internet, user can log in the device through client side software of browser.

  • Page 24: Power On

    Network Connection Diagram Attention: do not put the wire and network cable to places that will be easily touched by people, to avoid signal unstable caused by bad connection of lines and effect the quality of video. 3.8 Power On 1.

  • Page 25: Camera Function Setting

    4. Camera Function Setting 4.1 Camera Protocol, Bit Rate, Address Setting The setting for HD IP IR camera protocol, baud rate and address is fix and can't be changed. After sefl-checking, the system information for camera is as below: Protocol： PELCO-D BaudRate：4800bps Address：...
  • Page 26 Start left/right scan(low The fourth tour group speed) setting over Start left/right Start the fourth tour scan(medium speed) group first group Start left/right scan(high setting for pattern speed) scan begin first group Start PTZ 360º scan(low setting for pattern speed) scan over Start Start the frist group...

  • Page 27: Ie Log In Interface

    fourth group The second tour group setting for pattern setting over scan begin fourth group Start the second tour setting for pattern group scan over The third tour group Start the fourth group setting begin pattern scan The third tour group Restart of camera setting over 5.
  • Page 28 Fig5- 1-1 Log In Interface Original Status: Default 192.168.1.217 Address User admin operator user Name Password admin operator user Attention: use default user name to login successfully, then the user will have authorization for all kinds of operations. It's suggested that user to modify password after first log in for security.
  • Page 29 Fig5- 1-2 Click 'Install' and below page will be shown up. - 29 -...

  • Page 30: Home Page Instruction

    Fig5- 1-3 Click 'Finish' to complete the installation of OCX Input user name and password to enter IE home page. 5.1.2 Home Page Instruction After log in will enter the IE homepage, as Fig 1-2: Fig5- 1-4 Home Page - 30 -...

  • Page 31: Home Page Instruction

    5.1.3 Home Page Instruction 1、Tool Bar Instruction Fig 5-1-5 Tool Bar ：Disconnect/Connect with device ： Snap the current image and save to local PC(default path C:\IPCamera, user can modify it by local setting) ：Save the current video to local PC ：Record playback ：User and controller talkback ：Volume on/off...
  • Page 32 Fig 5-1-6 Record Playback Playback function includes search and play record:  Search record: user can search record by record time and type. Select the begin and end time you want to search and choose record type, including local record and front end record, under each type there are alarm, schedule(PC doesn't have schedule record function), manual record.
  • Page 33 faster the record,you can also do snap, play by sequence, open/close volume. 2、Video Format Instruction Fig 5-1-7 Video Image Format HD IP Camera support dual stream, main stream supports 1080P and D1, sub stream supports D1, CIF, QCIF. In normal situation, 1080P and D1 suit for LAN, CIF suits for WAN, QCIF suits for mobile phone network.
  • Page 34 mouse to adjust PTZ rotate speed. 4、Preset Position Through setting of preset position, user can make the PTZ to certain position easily. Click 'Preset' button as Fig 5-1-9. Fig 5-1-9 Preset Position Setting Add preset position: input the preset title and num, click 'Add', the system will inform 'Preset add ok!'.

  • Page 35: System Setting

    Fig 5-1-10 Preset Guard Preset guard function: if user set a preset guard(a special preset position) and enable this function, when the device is in no operation status, it will execute guard position function after a period of time, PTZ will move to the guard position.

  • Page 36: User Manage

    Fig5- 2-1 Basic Information System Information: display current device name, device SN, kernel version, server version, web version and OCX version. Auto Reboot: user can set the time for auto reboot. The method is, firstly click the 'Enable' check box and set the reboot time, can set to everyday or one certain day, save it after finish setting.

  • Page 37: Serial Port

    1.Device Authentication When enable the device authentication, user should input the right name and password to log in the software; disable this function then user doesn’t need to input password, only need to input the right user name to log in. 2.User Password Setting User can create new user and set the group for new user.

  • Page 38: Device Record

    Fig5- 2-3 Serial Port 5.2.4 Device Record Attention: this function will be validated when the camera has internal TF card or connect with U disk. 1.Schedule Record Time Setting User can set the front end record time through time setting. Click the white box to select coordinate time, the color of the selected box will changed to orange.
  • Page 39 Fig 5-2-4 Device Record 2.Record manage User can set the disk strategy in case of the space of disk is not enough, it can be set to stop record of delete old file. Set the size of record, the range is 1 to 15 minutes. Set the length of alarm record when alarm occurs.

  • Page 40: Net Record

     During the time of recording, user can select ‘Auto Flush’, system will do auto flush for the status of storage device automatically based on the time you set.  When the storage device is connected with device, there are two ways to download documents from storage device: HTTP Download: can use HTTP method to download document to local disk...

  • Page 41: Time Setting

    Network path: input address for remote NFS Username: the user name to log in NFS Password: password for the username 2.SAMBA Setting Record Switch: to open or close SAMBA record function. Network path: input address for SAMBA Username: the user name to log in SAMBA Password: password for the username 5.2.6 Time Setting User can select time zone and adjust date and time.

  • Page 42: Multiple Device

    the server and save, then system time will synchronize with the selected internet clock. 5.2.7 Multiple Device Fig5- 2-7 Multiple Device Here user can add multiple devices, after that, user can operate multiple devices in home page. Setting method: input the IP address, port, username, password and related information in the column, select the right channel, click ‘Add’and return back to home page, then you can view and operate several devices by only log in one of them.

  • Page 43: System Status

    5.2.8 System Status System status display the system status currently. Fig 5-2-8 System Status Select the time interval for flush, or click ‘Auto flush’, it can flush the system status automatically. Below is the information that system status will display: ...

  • Page 44: Ir Sensor

    5.2.9 IR Sensor Click ‘IR Sensor’ will switch to below page. Fig5- 2-9 IR Sensor Here user can drag the mouse to set IR lux, the range is 1-100, when the environment brightness is lower than lux, IR lamp will be open.

  • Page 45: Auto Update

    Fig 5-2-10 IR Info IR setting menu has IR lamp switch and IR lamp light model. IR lamp switch mode: user can select 'Sensor Model' or 'Camera Model' to open IR lamp. When user select 'Sensor Model', the camera sensor will determine whether to open IR lamp. When user select 'Camera Model', the inside camera will determine whether to open IR lamp.

  • Page 46: System Log

    Fig5- 2-11 Auto Update In this page, click ‘open’ can begin to set the related parameters. Setting the right server URL, port, username, password and inquire time interval, system will do auto updated accordingly. 5.2.12 System Log Click ‘SysLog’ to enter below page. - 46 -...

  • Page 47: Auto Update

    Fig5- 2-12 System Log User can view system log here. 5.2.13 Auto Update When device needs real time update, it can use auto update function, as below figure: Firstly select to 'open' the auto update function, parameters introduce as below: ServerUrl: input auto update server address ServerPort: input auto update server port Username: input auto update username...

  • Page 48: Audio Video

    5.3 Audio Video 5.3.1 Video Channel Select Audio Video and enter video channel page as Fig 5-3-1. Fig5- 3-1 Video Channel For different network status, user can select different video channel. HD IT IP High Speed Dome Camera support dual stream, main stream support 1080P and D1 video format, sub stream support D1, CIF,QCIF video format, user can open or close stream according to actual use and set related parameters.

  • Page 49: Video Mask

    Fig 5-3-2 Video Parameters User can select show or hide the device name, time and BPS. If user wants to show device name, he needs to input the name. Click ‘Save’ after setting finish. Attention: device name can’t exceed 12 characters. 5.3.3 Video Mask Through area mask, you can protect personal privacy from not display certain area in supervision video.
  • Page 50 Fig5- 3-4 Fig 5-3-5 Video Mask Setting - 50 -...

  • Page 51: Audio Settings

    5.3.4 Audio Settings User can adjust the volume input and output based on actual situation, as Fig 3-4. Fig 5-3-6 Audio Settings Click ‘Save’ after the setting finish. If user wants to return to default value, select ‘Default’ and save. 5.3.5 Extend Configuration...

  • Page 52: Network Settings

    Fig 5-3-7 Extend Configuration In ‘Extend Configuration’, user can select code size, code profile and code level. User can also enable or disable the BNC function. Click ‘Save’ after setting is finished. 5.4 Network Settings 5.4.1 Ethernet Through Ethernet setting, user can set related parameters for Ethernet.

  • Page 53: Pppoe

    Fig 5-4-1 Ethernet User can set network parameter based on actual situation, including DNS address, IP address, Subnet mask, gateway and so on. ‘Save’ after the setting is finished. Mac address is the physical address for device, it can’t be changed. DHCP setting: can open this function and get network parameters automatically from local network, to enable this function needs the support of DHCP server, please confirm with network administrator.

  • Page 54: Port

    username and password and other parameters, save after finish setting. As Fig 5-4-3. Fig 5-4-3 DDNS Setting 5.4.4 Port Select NetSetting and select Port to enter below page. Fig5- 4-4 Port - 54 -...

  • Page 55: Network Check

    WEB Port：the port use for log in device in IE FTP Port：the port use for FTP upload and download RTSP Port：real stream port, use for video stream transportation Speak Port：the port use for speak talkback Update Port：the port use for software update UPNP Switch：Auto port mapping switch(need the support of router) 5.4.5 Network Check...

  • Page 56: Alarm Setting

    Fig5- 4-6 Docking Platform Enter the server page, as above Fig 4-6, select to enable or disable the accessing of server. Add the server address that coordinate with platform, port and heartbeat period and save. After saving the right parameter, server status will be displayed on the right, which can view real time connection status for each server.

  • Page 57: Motion Detect

    Fig 5-5-1 Alarm In Attention：  Click white column in time table, it will change to orange color  Click the day on the left, the whole day will change to orange color  Click ‘All’ will select all, the whole time table will change to orange color.
  • Page 58 Fig 5-2-2 Motion Detect 1.Motion detect time schedule: set the motion detect front end time schedule can linkage motion detect alarm during selecting time(including front end record, email sending, FTP uploading and so Attention：  Click white column in time table, it will change to orange color ...

  • Page 59: Linkage Setting

    5.5.3 Linkage Setting Select ‘Alarm Setting’ and select ‘LinkAttr’, as Fig 5-5-3. Fig 5-5-3 Linkage Setting Alarm center parameters: set alarm center address and port, save after setting finish. Email Parameters: set the email server, username and password and save, then system will send the alarm information to coordinate email. FTP Client Parameter: firstly input the FTP server name, username and password, FTP path and upload type, save after setting finish.

  • Page 60: Local Setting

    Fig 5-5-4 Alarm Linkage Alarm input linkage: select input channel, alarm interval and linkage option such as alarm center, Email, playsound and so on. Motion Detect: set motion detect alarm time interval, select linkage options, including alarm center, Email, record, FTPsend, play sound, capture and so on.
  • Page 61 Fig 5-6-1 Local Setting Local Storage Setting: firstly set the manual record time and then storage path. Pre Record Setting: open the pre record function for alarm record in IE. Alarm Linkage Record: click ‘Alarm Linkage Record’ can do linkage record when have alarm. Set the record size and save is ok. - 61 -...

  • Page 62: Ptz Control Basic Function

    6.PTZ Control Basic Function Fig 6-1Preset Position Setting 6.1 Preset Setting and Calling 6.1.1 Preset Setting Camera can set 128 preset position. User can move the PTZ to surveillance place and zoom+ or zoom- to adjust the image size. Input a number to represent for this preset position, and press ‘Add’ button to save the setting.

  • Page 63: Special Function Setting And Calling

    then press ‘Call’ button, PTZ will move to coordinate position accurately based on the parameters set before(including PTZ horizontal, vertical angle and lens variable value). For instance: call No.1 preset position Input 1 in the text box after ‘Preset Num’ or select one from ‘Preset Select’...

  • Page 64: Pattern Scan Setting

    from ‘Play Select’, and press ‘Call’, then this preset position will be added to tour group, for each tour group can add 16 preset positions, after the adding finished, input 141 and the adding will be over, input 142 to operate the first tour group. 6.2.3.2 The Second Tour Group Setting Input 190 in the text box after ‘Preset Num’, press ‘Call’...
  • Page 65 operate the camera(camera control, lens control) to execute the first pattern scan;track record;Input 181 in the text box after ‘Preset Num’, press ‘Call’ button, operate the camera(camera control, lens control) to execute the first pattern scan;track record;Input 182 in the text box after ‘Preset Num’, press ‘Call’...
  • Page 66 7. FAQ Can Not Visit Via Browser Possible Reason（1） ： Internet is not connected Solving Method： connect the PC to internet and check if it can normal work, get rid of cable and virus problem, till PCs can ping to each other. Possible Reason（2）...
