Summary of Contents for Apia CIWI

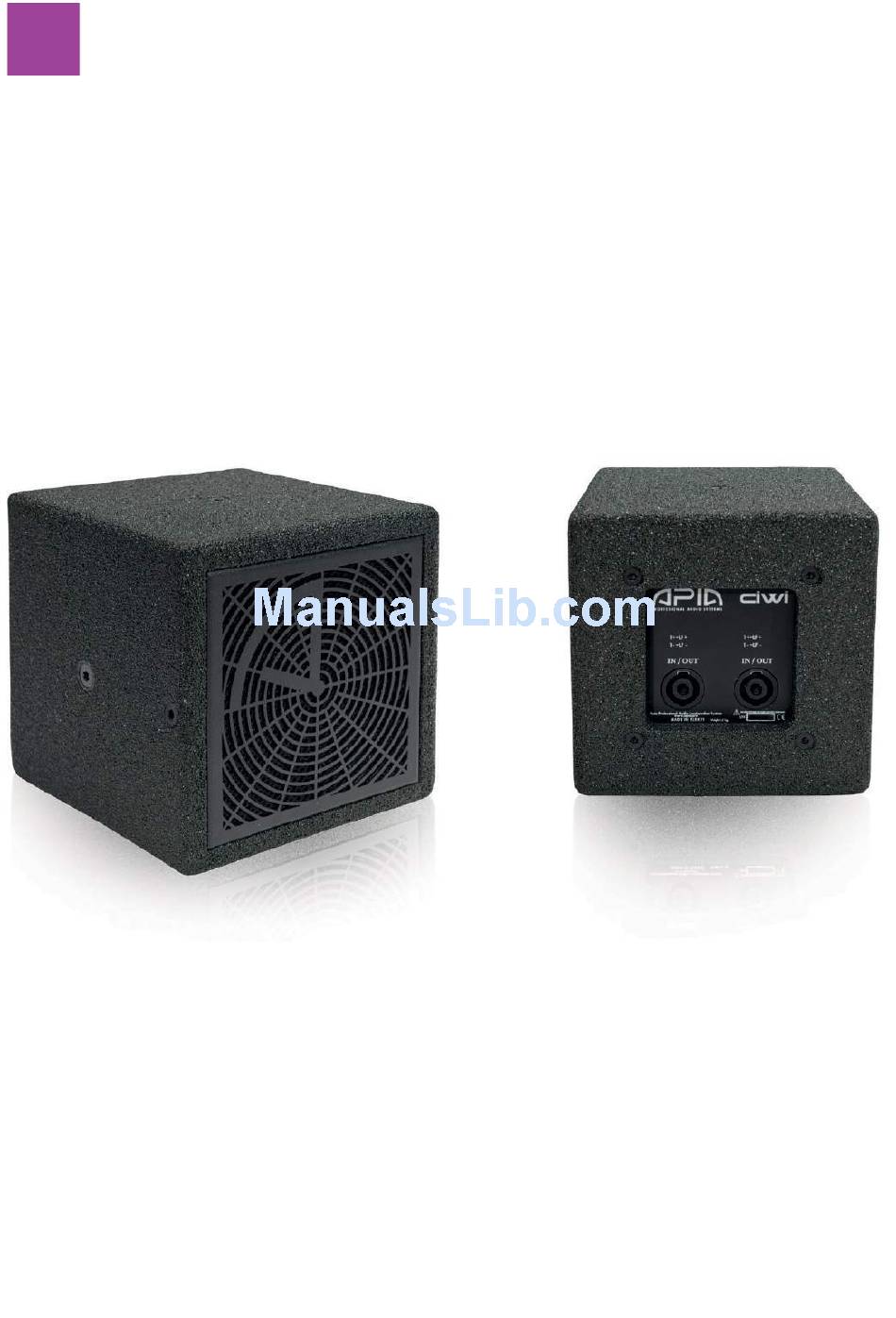

  • Page 1 CIWI USER MANUAL...

  • Page 2: User Manual

    Read this manual Heed all SAFETY INSTRUCTIONS as well as DANGER and OBLIGATION warnings N ever incorporate equipment or accessories not approved by APIA PRO AUDIO Read all the related PRODUCT INFORMATION documents before exploiting the system The product information document is included in the shipping carton of the related system component.
  • Page 3 CIWI USER MANUAL C O N T E N T S CIWI SERIES SYSTEM COMPONENTS Loudspeaker enclosures Powering and driving system Rigging element Software application LOUDSPEAKER CONFIGURATIONS Point source Point source with low-frequency element LOUDSPEAKER CONNECTION Connectors Connection to QDX-13...

  • Page 4: System Components

    1 S Y S T E M C O M P O N E N T S The CIWI is a 2 way passive loudspeaker with a high power,clear sound and precıse output. Its coaxıal speaker gives the CIWI a conical sonic dispersion of 90°.

  • Page 5: Loudspeaker Configurations

    2 L O U D S P E A K E R C O N F I G U R A T I O N S Point source In this con guration the CIWI system operates over the nominal frequency range of the enclosure. The CIWI enclosure is driven by the C-SUB,C-INFRA or QDX-13 ampli ed controller with a factory preset. Ciwi Preset C-SUB...

  • Page 6: Point Source With Low-Frequency Element

    In this con guration , the frequency range of the CIWI system is extended in the low end. Each enclosure type is driven by the C-SUB ,C-INFRA or QDX-13 ampli ed controller with factory presets. The CIWI enclosure is driven with the same preset as in point source con guration. The C-SUB or C-INFRA subwoofer is driven with a preset featuring an upper frequency limit at 100 Hz, for an optimal acoustic coupling with the enclosure.

  • Page 7: Loudspeaker Connection

    SpeakON connectors wired in parallel and 2 screw terminals. The IN connector allows receiving the audio signals. The LINK connector allows routing them to another CIWI enclosure in parallel. Each screw terminal acts as IN and LINK. ELECTRICAL HAZARD Risk of electrical injuries.

  • Page 8: Connection To Qdx-13

    To connect the CIWI to the QDX-13 options. Maximum of 32 enclosures per QDX-13 8 CIWI enclosures can be connected to each output channel on the QDX-13 . There fore, a single QDX-13 ampli ed controller can drive up to 32 enclosures.

  • Page 9: Technical Views

    Nominal dispersion angle ( HxV) +90° Axi-symmetric CO MPONENTS 1 x 5” driver with neodymium magnet 0.8” exit neodymium compression driver Ciwi Sub, Ciwi Infra or QDX -13 amplifier network PHYSICAL DATA Connections 2 x NL4 Finish Fir-green RAL 6009® Polyurea coating...
