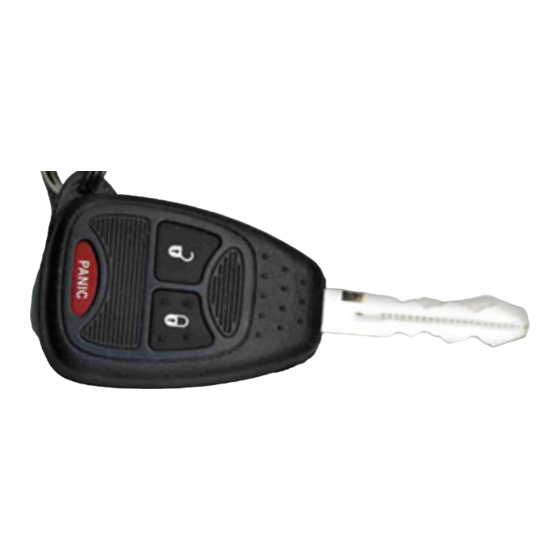

Summary of Contents for Solectron Invotronics DCX KeyFob

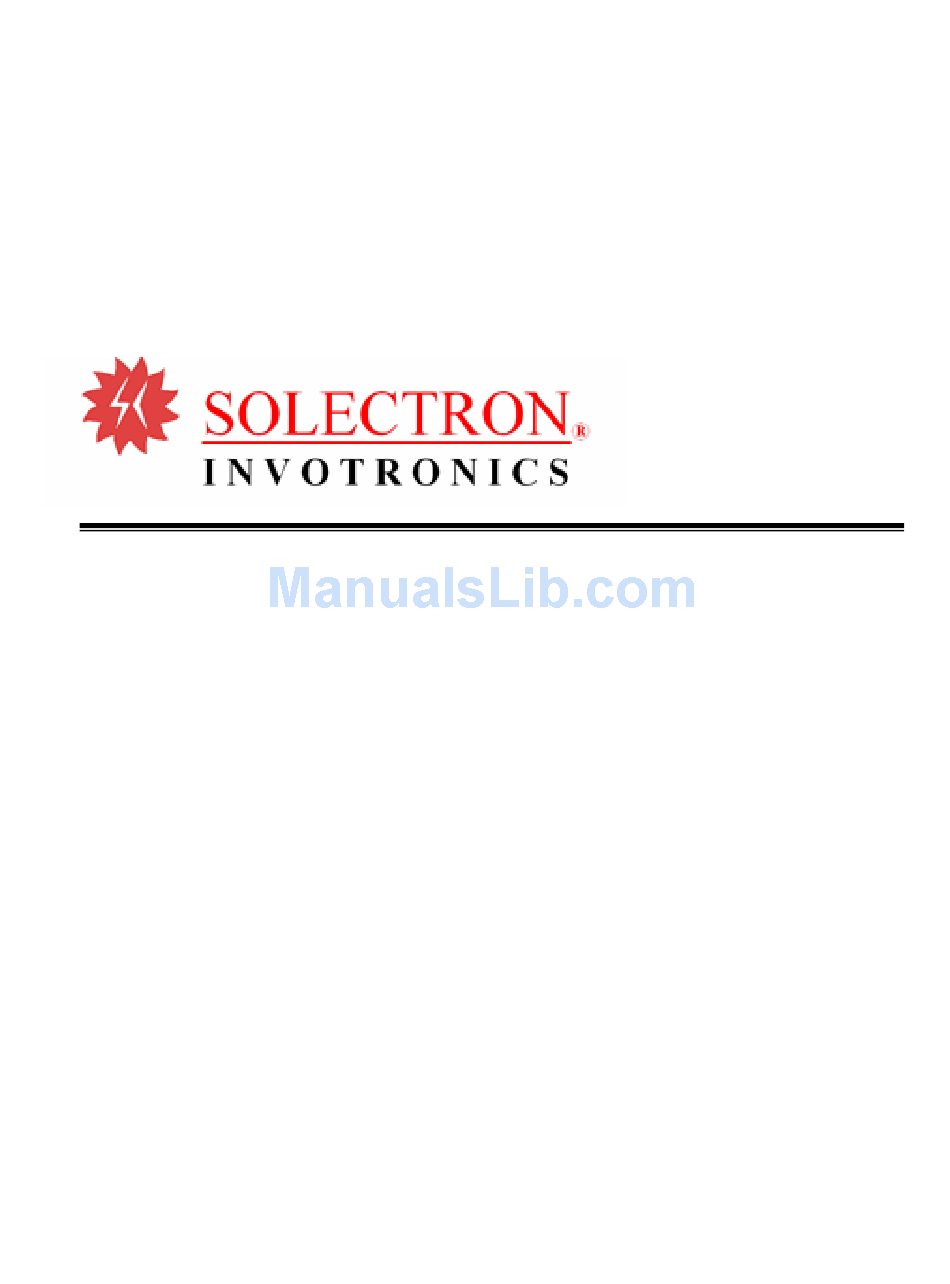

- Page 1 365 Passmore Avenue Scarborough, Ontario M1V 4B3 TEL: 416-321-8822 FAX: 416-321-8823 DCX KeyFob Operations Manual Prepared by: Sam Baruco Michael Ahrens Yarko Matkiwsky Date: April 2, 2007 Revision: 1.45...
-
Page 2: Table Of Contents
DCX KeyFob Module Operations Manual NOTICE TO USER............................1 PURPOSE ..............................1 SKIM IMMOBILIZER ..........................1 REMOTE KEYLESS ENTRY........................2 : ........................... 2 NLOCK DOORS :............................2 OCK DOORS : ............................2 ANIC LARM : ............................2 EMOTE TART : ............................... 2 OTES KEYFOB POWER SUPPLY........................3 TECHNICAL SPECIFICATIONS ......................4... -
Page 3: Notice To User
(2) this device must accept any interference received, including interference that may cause undesired operation. Purpose The DCX KeyFob Module interfaces with the vehicle WCM (Wireless Control Module). The KeyFob houses a RKE (Remote Keyless Entry) transmitter and SKIM (Sentry Key Immobilizer Module) transceiver. -
Page 4: Remote Keyless Entry
DCX KeyFob Module Operations Manual Remote Keyless Entry This hand-held radio transmitter allows you to lock/unlock the doors, remotely start and activate the panic alarm within a 30meter range of the vehicle. To Unlock doors: Press and release the UNLOCK button on the RKE Transmitter once to unlock. -
Page 5: Keyfob Power Supply
DCX KeyFob Module Operations Manual KeyFob Power Supply The KeyFob operates on a 3V Manganese Dioxide Lithium Coin Battery (CR2032). Minimum operating voltage is approximately 2.6V, if the voltage drops below this level the transmitter will cease operation, and the battery will need to be replaced. Please replace battery with the aforementioned part number. -
Page 6: Technical Specifications
DCX KeyFob Module Operations Manual Technical Specifications KeyFob Mechanical Design The KeyFob has six mechanical components. 1. Component Mounted PCB. 2. Elastomer Buttons. 3. Battery Clip. 4. Plastic Housing (Top & Bottom Halves). 5. Metal Key-Blade. 6. Key Ring. RKE Wireless Specifications Stabilized by a SAW resonator, the resonant frequency is generated by an oscillator transmitting on a frequency of 315MHZ, within an accuracy of +/-75kHz. -
Page 7: Output Power Limits And Stability
DCX KeyFob Module Operations Manual RKE Transmitter -- General Wireless Specifications Parameter Specification Units Output Power Limits and Stability Output Power dB μV/m <= 81.0 (peak) Output Power Stability +/- 3 Modulation Index (ASK Mode) ON-OFF Ratio Intra-Transmission Stability Output Power... - Page 8 DCX KeyFob Module Operations Manual Nominal System Range Requirement Reliability Distance Units 100% (0% Failure) > 90% (<10% Failure) > 75% (<25% Failure) > 25% (<75% Failure) Null Control Range Control Range Region Measurment Measurement Response Region Vehicle DCX_KeyFob_UserManual_1.45_2007Apr2.doc...
