Page 1: User Manual

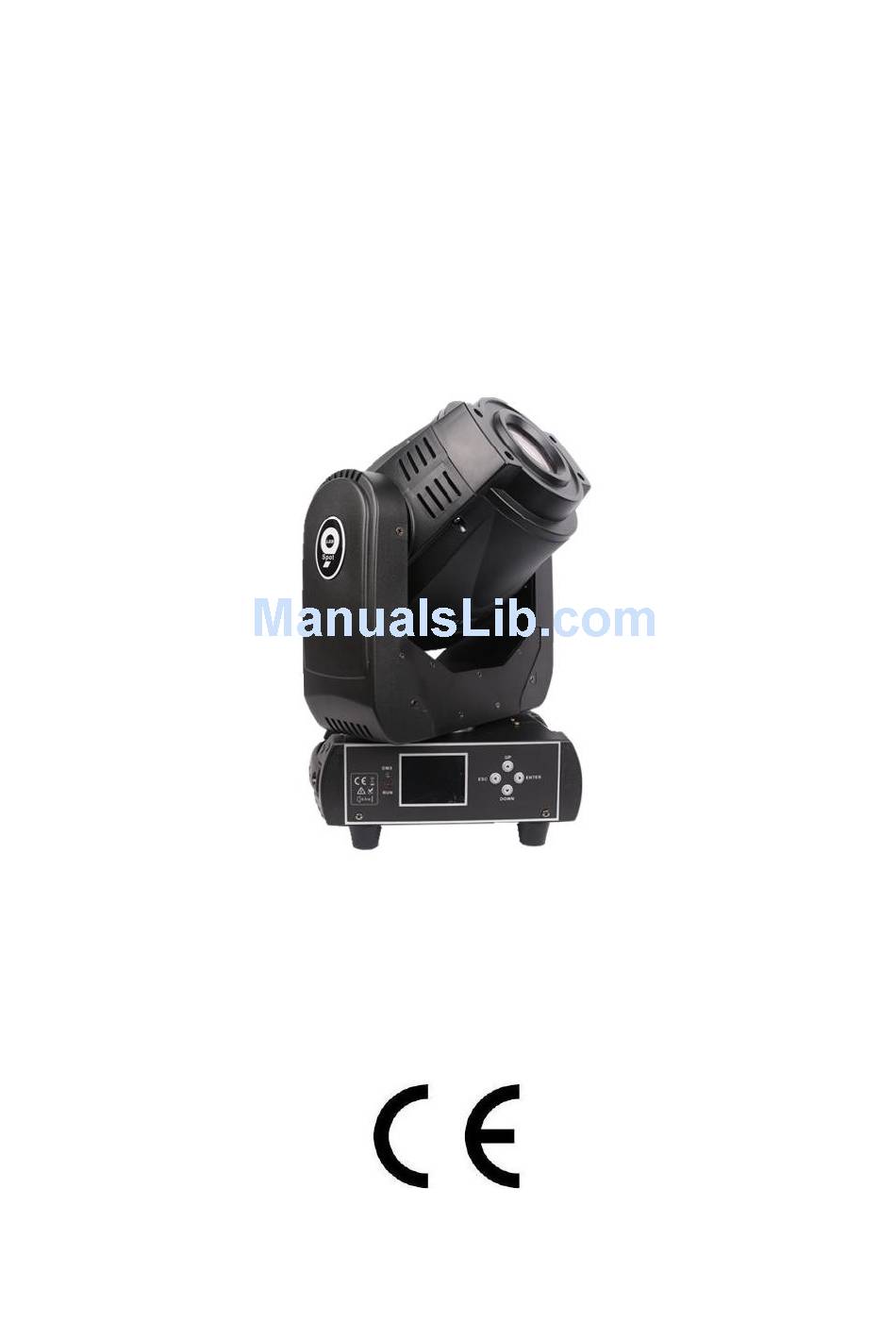

KXD-Q3 90W SPOT LED Moving Head USER MANUAL USER MANUAL KEEP THIS MANUAL FOR FUTURE NEEDS... - Page 2 Thank you for your patronage. We are confident that our excellent products and service can satisfy you. For your own safety, please read this user manual carefully before installing the device. In order to install, operate, and maintain the lighting safety correctly. We suggest that the installation and operation should be done by the verified technician and follow the instruction strictly.
-
Page 3: Mounting And Installation
Please check carefully that there is no damage caused by transportation. Should there be any, please consult your dealer and don’t install this device. 2 Mounting and installation 2.1 Cautions: for added protection mount the fixtures in areas outside walking paths ,seating areas,or in areas were the fixture might be reached by unauthorized personnel. - Page 4 installation material being used ,and periodic safety inspection of all installation material and the fixture. If you lack these qualifications , Do not attempt the installation yourself ,improper installation can result in bodily injury. Be sure to complete all rigging and installation procedures before connecting the main power cord to the appropriate wall outlet.
- Page 5 2.4 DMX-512 control connection Connect the provided XLR cable to the female 3-pin XLR output of your controller and the other side to the male 3-pin XLR input of the moving head. You can chain multiple Moving head together through serial linking.
- Page 6 recommended to use a DMX terminator. This helps in preventing corruption of the digital control signal by electrical noise. The DMX terminator is simply an XLR plug with a 120 resistor connected between pins 2 and 3,which is then plugged into the output XLR socket of the last fixture in the chain.
- Page 7 4 :MENU FUNCTION DMX Address 001~512 DMX 6 Ch DMX 16 Ch Perform Mode 1 Perform Mode 2 Perform Mode 3 Perform Mode 4 Perform Mode 5 Perform Mode 6 Perform Mode 7 Auto Perform Mode 8 Operating Mode Sound Perform Mode 1 Perform Mode 2 Perform Mode 3...
- Page 8 Prism Current Time Total Time System Info Current Mode Temperature Software Version =000 PAN-FINE PAN-Fine =000 TILT TILT =000 TILT-FINE TILT-Fine =000 Pan/Tilt Speed Move Speed =000 Dimmer Dimmer =000 Strobe Strobe =000 Manual Control Color fixed Gobo Wheel Gobo Wheel Gobo Rotation Focus...
- Page 9 With this function you can display the DMX 512 value of each channel. The display automatically shows the channel with a value changing. 5.2 Run Mode The LED moving head have 6CH and 15CH, can receive the International DMX signal. In the【Run】mode，you can chose【Master】mode [ Sound Control ] [Master Auto Run ] [Master Sound Control ] and【Slave】mode.
- Page 10 default is OFF. 5.5System State With this function, you can know the On Time ,Accumulative Time, Current Run Mode ,Temperature and Software Version. 5.6 Manual Control With this function ,you can adjust the pan and tilt and the move speed, also adjust the dimmer ,strobe and color.
- Page 11 059-084 X/Y auto run 3 085-110 X/Y auto run 4 111-136 X/Y auto run 5 137-162 X/Y auto run 6 163-188 X/Y auto run 7 189-214 X/Y auto run 8 215-240 X/Y auto run 9 241-255 X/Y Sound Control 16 channel definition table Channel DMX Value Function...
- Page 12 200-255 Backward rainbow effect from slow to fast 000-005 Open(White) 006-021 Gobo1 022-037 Gobo2 038-053 Gobo3 054-069 Gobo4 070-085 Gobo5 086-101 Gobo6 102-117 Gobo7 118-133 Gobo8 134-194 Forward rainbow effect from fast to slow 195-255 Backward rainbow effect from slow to fast 000-007 Open(White) 008-028...
- Page 13 033-058 X/Y auto run 2 059-084 X/Y auto run 3 085-110 X/Y auto run 4 111-136 X/Y auto run 5 137-162 X/Y auto run 6 163-188 X/Y auto run 7 189-214 X/Y auto run 8 215-240 X/Y auto run 9 241-255 X/Y Sound Control 250-255...
