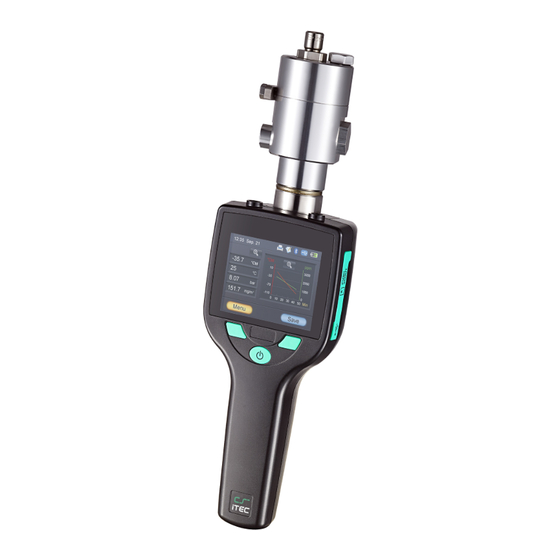

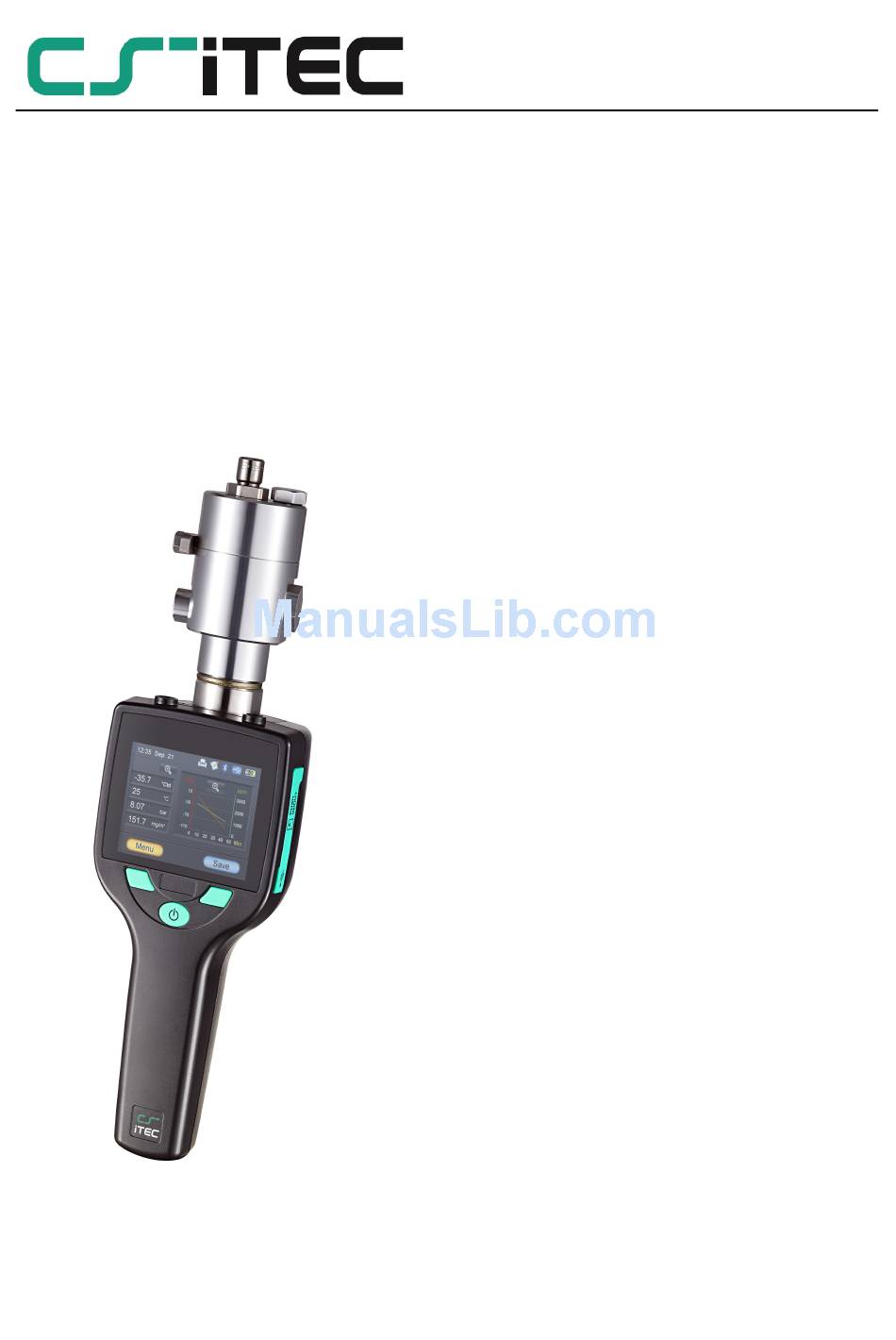

- Page 1 English Instruction and operation manual S 505 Dew point meter (portable)
- Page 2 The device is destined exclusively for the described application. CS-iTEC offers no guarantee for the suitability for any other purpose. CS-iTEC is also not liable for consequential damage resulting from the delivery, capability or use of this device.
- Page 3 9. Optional extra accessories............20 9.1 Portable bluetooth printer HDT 312.........20 9.2 Parking measuring chamber by-pass type........21 9.3 SD card 4G................22 10. Calibration................22 10.1 Dew point calibration............22 10.2 Pressure calibration ............23 11. Maintenance................24 12. Disposal or waste..............24 13. Warranty................24 S 505...
-
Page 4: Safety Instructions
• Consider all regulations for electrical installations. • The system must be disconnected from any power supply during maintenance work. • Any electrical work on the system is only allowed by authorized qualified personal. S 505... - Page 5 • For transportation it is recommended to use the packaging which comes with the sensor. • Please make sure that the storage temperature of the sensor is between -40°C... 65°C. • Avoid direct UV and solar radiation during storage. S 505...
- Page 6 1. Safety instructions • For the storage the humidity has to be <90%, no condensation. S 505...
-
Page 7: Application
2. Application 2. Application The S 505 is a dew point meter which is designed to monitor the dew point in industrial application within the permissible operating parameters. These parameters can be found in the technical data section. The S 505 can measure and display the following values: •... -
Page 8: Technical Data
Protection class IP65 Dimensions See dimensional drawing on the next page Display 2.8” colour graphic display Weight 0.7 kg (with measuring chamber), 0.45 kg (without measuring chamber) 4.2 Electrical Data Power supply USB charger: 5 V, 2 A S 505... -
Page 9: Accuracy
4. Technical Data 4.3 Accuracy Accuracy Dew point: ± 2°Ctd @ -50°C Temperature:± 0.3°C Pressure:± 0.005 MPa Repeatability ± 0.5°C Stated accuracy at Ambient process temperature of 23°C ± 3°C and ambient humidity of < 90%, no condensation S 505... -
Page 10: Dimensional Drawing
5. Dimensional drawing 5. Dimensional drawing 6. Installation Please make sure that all components listed below are included in your package. Qty Description Item No. Handheld meter with data logger and S4M-S P560 0505 software S 505... -
Page 11: Installation Procedure
• Use the sensor module A for expected dew point below -50 °Ctd. • Use the sensor module B for expected dew point above -50°Ctd. 2. To change the sensor modules just open the 2 screws at the back of the instrument S 505... - Page 12 The parking measuring chamber is mounted permanently on the sensor head to keep the sensor try. For measuring the handle on the chamber has to be turned into measuring position. After finishing the measurement, please return to the park position. Measuring position Parking position S 505...
- Page 13 Remark • Please ensure that the teflon hose remains dry and clean. Wet and contaminated hoses can effect the measurement and should be S 505...
-
Page 14: Electrical Connection
6. Installation exchanged. 6.2 Electrical connection Please recharge the dew point meter if the battery is empty. For this use the charger which is included in your delivered package. 7. Operation 7.1 Buttons and connectors S 505... -
Page 15: Symbols On Screen
The calibration is experted. It is recommended to re- calibrate the sensor unit. For this pleas contact the manufacturer. General error indication. Please note down the error code and contact the manufacturer. Bluetooth is active and ready to connect. S 505... -
Page 16: Main Screen
The operation is easy and similar. Please try the functions through the touch screen and experience the features of this production. On the left side of the screen the menu is shown. It includes the follow menu items: S 505... -
Page 17: Data Logger
User input for additional information about the person performing the measurement. Location A location description can either be selected from a list or entered. Company Company name and address that should appear on print name (usually the customer). S 505... -
Page 18: File Menu
7.8 Bluetooth menu The BT menu is used to establish the connection with the portable printer or the PC. In order to establish a connection The S 505 and the printer need to be paired. 1. Switch on the portable printer and check the small screen on the printer. -
Page 19: Application Software
3. Remove the lock by pressing the setting button on the printer until “BT clear binding” is shown. 4. Press the “paper feed” button. 5. Now select on S 505 the menu “Bluetooth” and tick “Connect to printer”. 6. After a few seconds the spinning wheels on the screen should disappear and the printer symbol should be shown at the top of the screen. -
Page 20: Optional Extra Accessories
• Firmware update in S 505: please download the latest firmware from our web page. Remark The full set of software is included on the SD card of S 505; S4M-S, S4C-Handheld, instruction manual S 505 as pdf. 9. Optional extra accessories 9.1 Portable bluetooth printer HDT 312... -
Page 21: Parking Measuring Chamber By-Pass Type
30 m Language English / Chinese 9.2 Parking measuring chamber by-pass type This chamber can be used in applications where the measured gas is by-passed through the chamber. For more information please contact your retailer or the manufacturer. S 505... -
Page 22: Calibration
-40°Ctd do the calibration at that point. • Do not perform calibration at too high dew points, as it will cause big errors at low dew points! • We recommend calibration between -40°Ctd and -55°Ctd. S 505... -
Page 23: Pressure Calibration
If the instrument is not showing 0 pressure at ambient condition, it is recommended to perform a fast zero calibration. For that purpose please use the calibration function and select “pressure calibration”. Follow the steps on the screen. S 505... -
Page 24: Maintenance
13. Warranty CS-iTEC provides a warranty for this product of 24 months covering the material and workmanship under the stated operating conditions from the date of delivery. Please report any findings immediately and within the warranty time. - Page 25 • If the serial number has been changed, damaged or removed. Other claims, especially those for damage occurring outside the instrument are not included unless responsibility is legally binding. Warranty repairs do not extend the period of warranty. ATTENTION! Batteries have a reduced warranty time of 12 month. S 505...
- Page 26 S 505...
- Page 27 S 505...
- Page 28 SUTO iTEC GmbH CS-iTEC Co., Ltd. Werkstr. 2 Room 10, 6/F, Block B, Cambridge Plaza 79426 Buggingen 188 San Wan Road, Sheung Shui, N.T. Germany Hong Kong Tel: +49 (0) 7631 936889-0 Tel: +86 (0) 755 8619 3164 Fax: +49 (0) 7631 936889-19...
