Formosa RC202 User Manual

Bluetooth presenter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Bluetooth Presenter
RC202 USER GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RC202 and is the answer not in the manual?

Questions and answers

Summary of Contents for Formosa RC202

  • Page 1 Bluetooth Presenter RC202 USER GUIDE...
  • Page 2 Bluetooth Presenter RC202 BM-RC202/LF INDEX 1. Introduction…………………………………………………………………………2 2. Appearance…………………….……………………………………………………2 3. Features…………..…………………………………………………………………3 4. Package contents……………………………………………………………………3 5. System Requirements..……………………………………………………………3 6. Bluetooth Mode Feature……………………………… ……………………………3 7. Installation and Operation……..…...…………………………………………….…4 8. Specifications……………….………….….………………………………………16 9. Troubleshooting………………..…………………………………………………18 Caution! No part of manual may be reproduced or modified without our express written permission; otherwise the right of using the device will be cancelled.

  • Page 3: Introduction

    RC202 Introduction： Bluetooth Presenter RC202 is more than a normal presenter. Its stylish shape makes it more like an art piece to enhance users’ use experiences and enjoyments. Bluetooth technology application make RC202 can transmit data up to 30 feet (10 meters).

  • Page 4: Features

    Bluetooth Presenter RC202 Features： 1. Innovative design of omni-directional Bluetooth Presenter RC202 for performing a perfect presentation 2. Presentation hotkey allows you to start the prepared PowerPoint file conveniently 3. Laser point helps you to catch audience attention 4. Working with the value software “Remote Master”...

  • Page 5: Installation And Operation

    Bluetooth function if your NB build in Bluetooth receiver, or insert your Bluetooth dongle and power on the Bluetooth function 2. Searching Bluetooth Device RC202 2-1 With the AP of Windows 2000 / XP (for BT Dongle) 1) Right click the Bluetooth Devices button on the toolbar.
  • Page 6 Bluetooth Presenter RC202 5) The system is searching the device.
  • Page 7 Bluetooth Presenter RC202 6) Select the “Formosa Remote Control”. Then click “Next”. 7) Please click “Don’t use a passkey”. Then click “Next”.
  • Page 8 Bluetooth Presenter RC202 8) The system is installing the device. 9) Click “Finish” when completing the add Bluetooth Device.
  • Page 9 Bluetooth Presenter RC202 2-2 Searching Bluetooth Device RC202 with a built in Bluetooth AP 1) Run IVT Corporation BlueSoleil Application 2) Double click ”my Bluetooth\ searching Bluetooth device”, or click the “sun” icon in the window to search for Bluetooth device.
  • Page 10 Bluetooth Presenter RC202 3) Move your cursor to the icon of your Bluetooth device and double click to run “update service record” 4) Move your cursor to the icon of your Bluetooth device and double click to choose “link\ Bluetooth device input service”...
  • Page 11 Bluetooth Presenter RC202 5) Building a link with your Bluetooth device 6) Install RC202 AP 7) AP is active and the device is linked...
  • Page 12 Bluetooth Presenter RC202 2-3. Searching Bluetooth Device RC202 in Mac 1) Right Click the Bluetooth icon on the toolbar. Choose “Set up Bluetooth Device”. 2) Click the button on the remote control. 3) Click the button on the remote control for 3-5 seconds.
  • Page 13 Bluetooth Presenter RC202 5) Please select “Mouse” and continue.
  • Page 14 Bluetooth Presenter RC202 6) Searching device. 7) Formosa Remote Control will be shown. Please click continue.
  • Page 15 4. Start to use remote control RC202 -- The application of RC202 will execute automatically after restart your computer. Then RC202 is on working condition; If you close automatic execute file, while you are using RC202, please press “Start” and “Program Files”, and then click “BTRC202”.
  • Page 16 Bluetooth Presenter RC202 3) Then press Open button for program location setting. (The path & file name were an example, for your reference only.) 4) Next time you press the key on remote control. The file in the program location you select will be opened directly.

  • Page 17: Specifications

    Bluetooth Presenter RC202 Specifications： Item Description Standard Bluetooth 2.0 specification Main Chip Broadcom BCM2042 Frequency Band 2.4GHz~2.4835GHz unlicensed ISM Band Sensitivity -85dBm at 0.1% Bit Error Rate (Typical) Output Power 0.25mW ~ 2.5mW (Bluetooth Power Class II) Range >10 meters (free space)

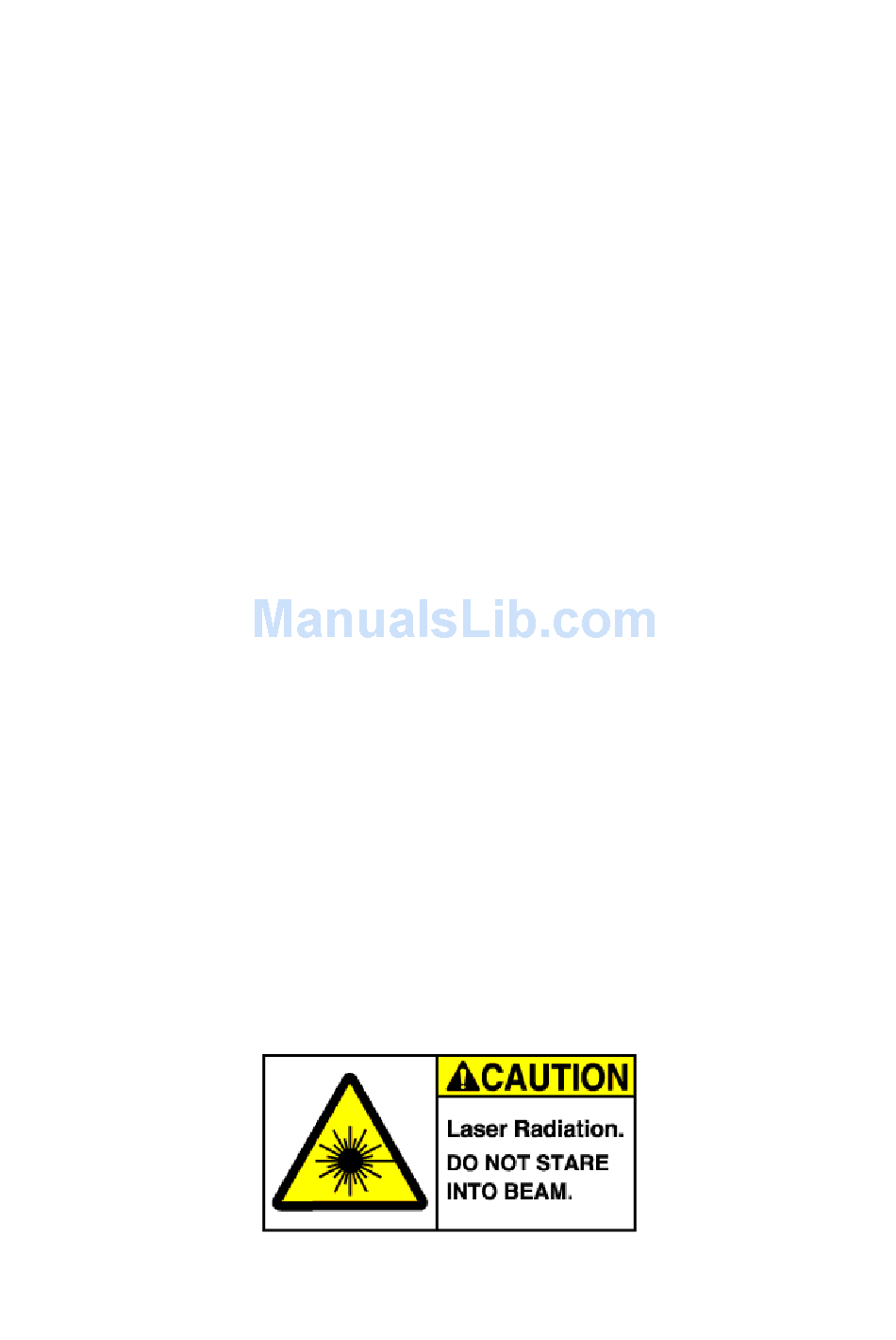

  • Page 18 Bluetooth Presenter RC202 !!! Attention!!! • Do not allow minors to use the laser pointer unsupervised. Laser pointers are not toys. • Avoid direct eye exposure. • Never shine the laser pointer at anyone. The laser pointer is designed to illustrate inanimate objects.

  • Page 19: Troubleshooting

    RC202 Remote Control. Notice: Please activate software by RC202 Bluetooth Presenter first before you use it. Status：Changing the battery doesn’t effect the pairing of Bluetooth device. If you want to pair the Bluetooth device, you have to push the Bluetooth...
  • Page 20 Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
