Sky Dragon HTB017B User Manual

User s' Manual
Pictures should be used only as reference. If there is any offset with the actual device, please
refer to the actual device!
1. Preface
Dear users,
Welcome to join the CKY family! Your buying of our products is much appreciated!
For full use of your player, please read this manual carefully before use, so as to grasp
connection methods and operational key points of this system. You will also find our various
explorations in design, manufacturing process and operational humanization, all to meet your
requirements.
Please keep this manual well for future reference.
Open the package
Please open the package carefully, confirm the following accessories, and put them in one
place in case of loss.
2. Accessories
-Device
-Users' manual
3. Product introduction
This product is a sound blaster audio, which adapts digital signal processing technologies
and supports Bluetooth playback, optical decoding and external audio source amplification. It
is suitable for music playback in different environments such as office, home etc.
4. Attentions
First, thanks for your use of our digital audio products!
Before use, please read this manual for correct use of this product. For better services,
contents of this manual may change due to variation of product performance and functions
without further notice.
To maintain better performance, DO NOT use in places where is too cold, too hot, dusty or
damp, more attention should be paid to the following circumstances:
1, moisture or underwater environment
2, heater or high-temp work environment
3, exposure directly to sunlight
4, easy to drop
5, DO NOT detach the combined audio by yourself, or the warranty would be void
Warning
1, Please pay attention to waterproof of the product without water dropping or splashing.
Objects filled with liquids, such as vases, cannot be placed on the top of device in case of
accidents.
2, To avoid accidents such as fire or electric shock, please check whether the grid voltage is
exactly the same as required by this device

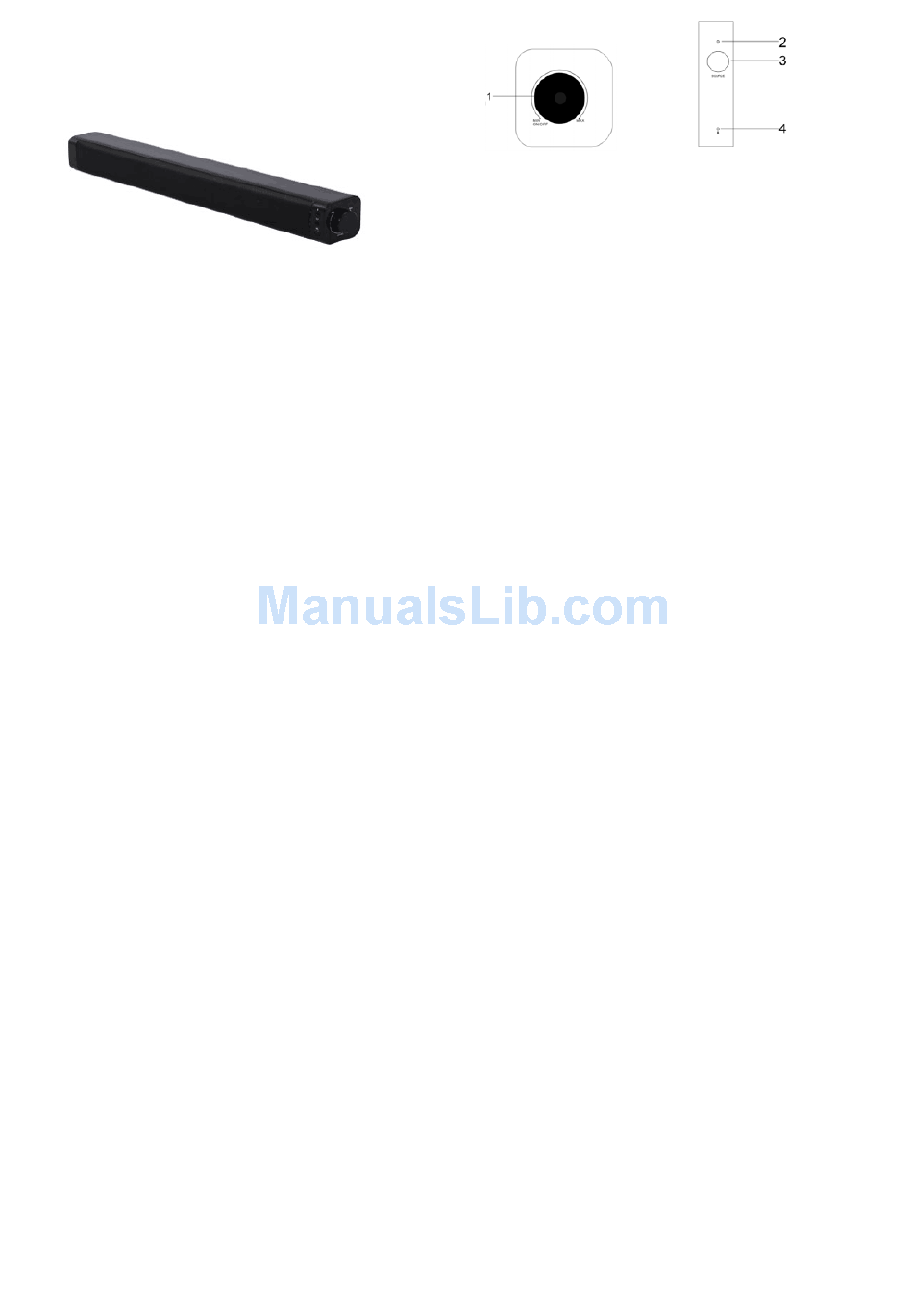

5. Panel introduction
1
1
1、 Power & Volume Knob (control on/off and control volume)
2、 LED indicator
3、 Source: Press to switch between Bluetooth and Line in modes
4、 Microphone
LED indicator:
LED(Red): for AUX function (red lantern is on).
LED(Blue): for Bluetooth function (blue lantern flashes without Bluetooth connection as the device
is on and goes on after Bluetooth connection).
6. Operational instructions
Using the Soundbar:
1. Use the USB charging cable included to connect a USB port charger;
2. Switch the speaker on using the on/off Power Knob.
3. The blue LED indicator will be flash quickly.
4. Use the controls on your Bluetooth device to select SR110 in your Bluetooth settings to
pair. If your device requests a password, enter the default password 0000.
5. When successfully paired and connected, a beep will isse from the soundbar and the
Pairing indicator will display a solid blue light.
Playing Audio Wirelessly:
1. After pairing to a Bluetooth device, use the controls on the connected Bluetooth Device to
select a track.
2. Play,pause or skip a selected track using the controls on the connected Bluetooth Device.
3. Audio played through the connected Bluetooth device will now be heard throught the
speakers.
Line in :
1. Plug one end of the 3.5mm audio included into the audio output/headphone output on a
MP3 player or other audio source.
2. Switch the speaker on using the on/off Power Knob.
3. Press the Source button on the unit to select Line in, indicated by a red light.
4. Audio played throught the connected device will now be heard through the speakers. Use
the controls on the connected device to play, pause, or skip selected tracks.
Microphone in:
1. Plug one end of the 3.5mm microphone cable included into the microphone input on a
computer during the line in mode
7. Device compatibility
This device theoretically supports all mobile mobiles and related devices with Bluetooth function
to connect in Bluetooth and play music!
8. Main technical parameters
1，Bluetooth specification: Bluetooth V4.0
2，Output power: Output level 2, Maximum connection distance ≥ 10 m
3，Output power: L：3W
4，Operational frequency range:
5，Supporting Profiles: A2DP AVRCP GAVDP AVDTP
6，Speaker impedance: L 、R ：4Ω
The product specifications and design may change without further notice!
9. Simple trouble solutions
1／4
R：3W
2.4 GHz-2.480 GHz
