Summary of Contents for PRAGMATIC COMMUNICATIONS SYSTEMS CATS-VGA-16B
Page 1

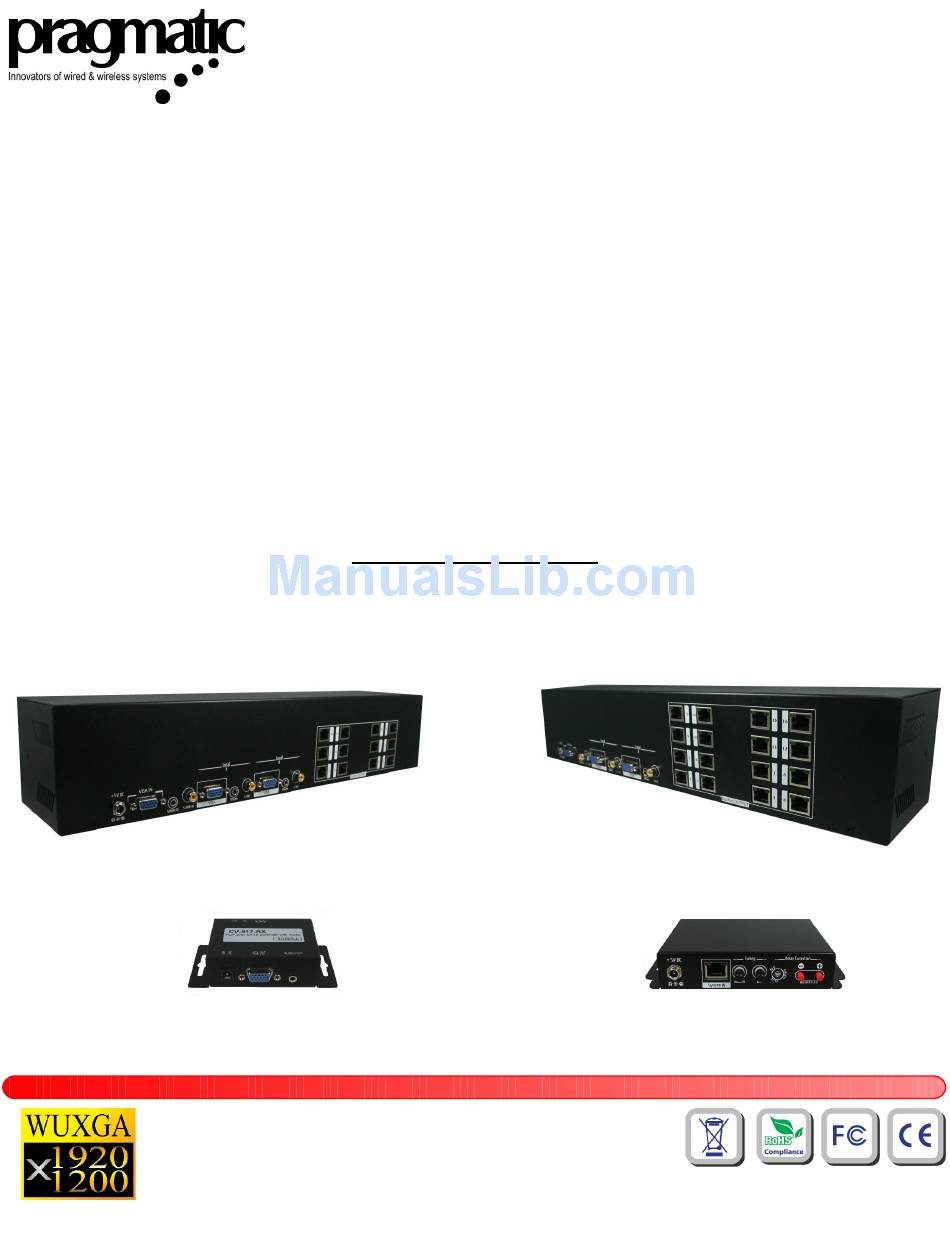

CATS-VGA-12B/CATS-VGA-16B CATS-VGA-RX1/CATS-VGA-RX1D VGA & Audio over CAT5 Distribution Series User Manual CATS-VGA-16B CATS-VGA-12B CATS-VGA-RX1 CATS-VGA-RX1D...
Page 2
The VGA & Audio over CAT5 Distribution Series , including: CATS-VGA-12B 1x12 VGA & Audio over CAT5 Distribution Amplifier, CATS-VGA-16B 1x16 VGA & Audio over CAT5 Distribution Amplifier, CATS-VGA-RX1 VGA & Audio over CAT5 Receiver, and CATS-VGA-RX1D VGA & Audio over CAT5 Receiver with RGB Delay Control has been tested for conformance to safety regulations and requirements, and has been certified for international use.
Page 3
VGA splitters on the market. Features CATS-VGA-12B & CATS-VGA-16B supports up to 1280x1024@60 to 330m (1,000ft) Supports analog stereo audio Supports digital S/PDIF stereo audio ...
Page 5
Technical Specifications and Package Contents Model Name CATS-VGA-12B CATS-VGA-16B Technical Role of usage 1x12 distribution 1x16 distribution amplifier amplifier Transmitter [TX] Video bandwidth 350MHz Video support VESA Transmission 1280x1024 — 330m (1,000ft) [CAT5e] Audio support Stereo Equalization Continuous analog control Input video signal 1.2 Volts [peak-to-peak]...
Page 6
Model Name CATS-VGA-RX1 CATS-VGA-RX1D Technical Role of usage Receiver [RX] Video bandwidth 350MHz Video support VESA Transmission WUXGA [1920x1200] — 330m (1,000ft) [CAT5e] Audio support Stereo Equalization Continuous analog control RGB delay control Input video signal 1.2 Volts [peak-to-peak] ESD protection [CV- [1] Human body model —...
Page 7
7. RJ-45 Out: Link to CATS-VGA-RX1 or CATS-VGA-RX1D to another PC display with a Cat-5e/6 LAN cable CATS-VGA-16B 1. +5V DC: Connect to 5V 4A DC power supply 2. VGA Input: Connect to a VGA source with a VGA male-male cable here 3.
Page 8
7. RJ-45 Out: Link to CATS-VGA-RX1 or CATS-VGA-RX1D to another PC display with a Cat- 5e/6 LAN cable CATS-VGA-RX1 1. +5V DC power jack: Connect to 5V DC power supply 2. VGA OUT: VGA output to a monitor 3. Audio OUT: Connect to an analog audio output 4.
Page 9
respectively 8. Rotary control: For de-skew compensation on respective color channel (for RGB delay control) 9. –: Push-in button for decrease a 2ns level of de-skew compensation (for RGB delay control) 10. +: Push-in button for increase a 2ns level of de-skew compensation (for RGB delay control)
Page 10
Hardware Installation Broadcasts PC A/V signals to 4/8/12/16 remote displays and two local receivers Switch off all devices, including monitors. Connect a VGA and audio source (such as a PC) to the VGA and audio In. Connect to the receivers (such as CATS-VGA-RX1 or CATS-VGA-RX1D) via RJ-45 connectors by a Cat-5/5e/6 cable.
Page 11
Notice 1.All the transmission distances are measured using Belden 1583A Cat-5e 125MHz Solid LAN cable and ASTRODESIGN Video Signal Generator VG-859C. The transmission distance is defined as the distance between the video source and the remote VGA display. 2.The transmission length is largely affected by the type of LAN cables, the type of VGA sources, and the type of VGA display.
Page 12
Limited Warranty The SELLER warrants the VGA & Audio over CAT5 Distribution Series to be free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good working order within 1 year warranty period, The SELLER, at its option, repair or replace the unit, provided that the unit has not been subjected to accident, disaster, abuse or any unauthorized modifications including static discharge and power surge.
