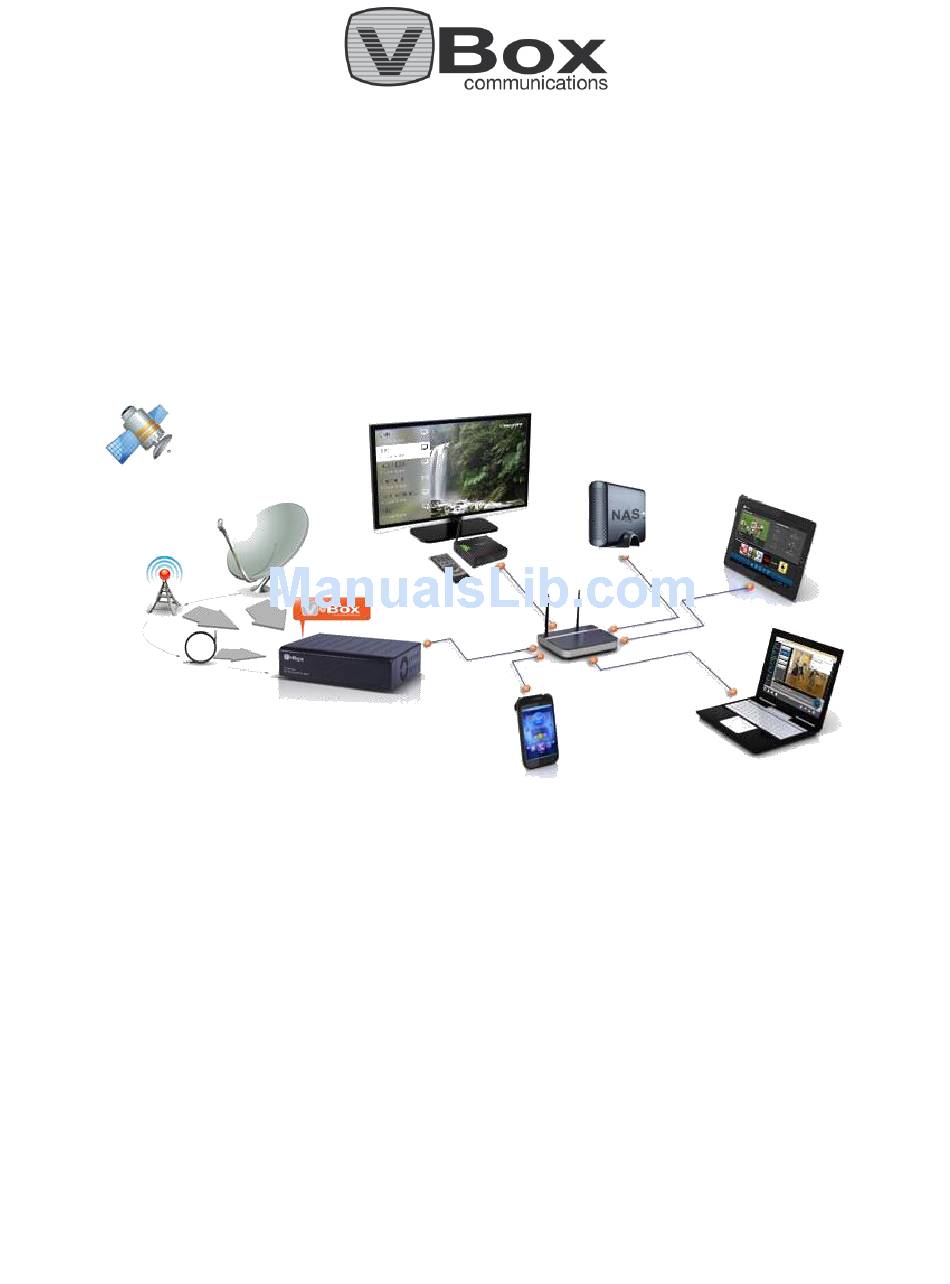

VBox Home TV Gateway
XTi Product Family:

User Manual

Product Version: 2.57
Release Date: April 2017
Document Revision: 2.02
