- Page 1 BellAire™ Model 7000 Tire Inflator Instructions 37000 BellAire 7000 Tire Inflator PURE•PSI INSTRUCTIONS FOR USE INFLATES ALMOST ANYTHING Car Tires, Sports Balls, Airbeds, Boats & Towables ATTENTION! READ ALL INSTRUCTIONS AND WARNINGS CAREFULLY BEFORE USE...
- Page 2 Your new inflator provides up to 150 PSI and may be operated while connected to a 15 amp 12 Volt DC power outlet or in portable mode using its internal rechargeable battery. The BellAire™ 7000 includes a high pressure inflator for vehicle tires and sports balls and a high volume low pressure raft inflator for inflating and deflating air mattresses, rafts and floats.

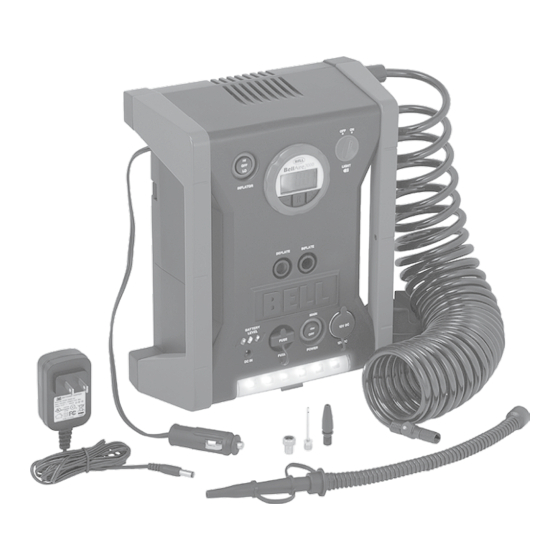

- Page 3 37000 PRODUCT ILLUSTRATIONS FIGURE 1 — BellAire™7000 Tire Inflator FIGURE 2 — Digital Pressure Gauge BellAire 7000 FIGURE 3 — High Pressure Inflator Needle Kit Presta Valve Adapter Toy Inflator Adapter Sports Ball Adapter FIGURE 4 — Low Pressure Raft Hose Adapters FIGURE 5 —...
-
Page 4: General Safety Rules And Warnings
BellAire™ Model 7000 Tire Inflator Instructions GENERAL SAFETY RULES and WARNINGS • Keep children and others away while operating inflator. • Keep the inflator dry, clean and free from oil and grease. Always use a clean cloth when cleaning. Never use typical vehicle fluids such as brake fluid, gasoline, any petroleum products or strong solvents to clean inflator. -
Page 5: Inflator Operation
12 Volt cigarette lighter socket. The inflator will only draw power from the vehicle 12 Volt cigarette lighter when the 12 Volt cord is plugged in. For the safety of your vehicle and your new BellAire™ 7000 tire inflator, set your vehicle emergency brake and follow instructions for use as provided. - Page 6 10. Turn on inflator power switch to the HI position. See #2 in figure 1. The BellAire™ 7000 will now inflate your tire to the pre-set pressure level and then shut off automatically.
- Page 7 37000 WALL MOUNTING TEMPLATE (Remove insert from instruction manual)
- Page 8 BellAire™ Model 7000 Tire Inflator Instructions...
- Page 9 37000...
- Page 10 BellAire™ Model 7000 Tire Inflator Instructions WALL MOUNTING TEMPLATE (Remove insert from instruction manual)
- Page 11 12. Turn on inflator power switch to the HI position. See #2 in figure 1. The BellAire™ 7000 will now inflate your inflat- able item to the pre-set pressure level and then shut off automatically. After pre-set auto shut-off has taken place, turn inflator power switch to the off (middle) position.
-
Page 12: Using The High Volume/Low Pressure Raft Inflator
Turn on the main power switch only. See #1 in figure 1. Check manufacturer’s recommended pressure specifications for inflatable. 10. Turn on inflator power switch to the LO position. See #2 in figure 1. The BellAire™ 7000 will now inflate your inflat- able using the high volume/low pressure inflator. - Page 13 Turn on the main power switch. See #1 in figure 1. Turn on inflator power switch to the LO position. See #2 in figure 1. The BellAire™ 7000 will now deflate your inflat- able using the high volume/low pressure inflator.
-
Page 14: Work Light
The work light rotates for best directional lighting of your work area. MAINTENANCE Your BellAire™ 7000 has two replaceable fuses providing maximum protection for the inflator and/or your vehicle. See figures 6 and 7 for fuse replacement instructions. FIGURE 6 — Main Fuse Replacement FIGURE 7 —... -
Page 15: Warranty
37000 Pressure gauge appears to read incorrectly or is unreadable: • Make certain when you attach the air hose nozzle to the tire stem that the gauge is reading the current tire pressure before turning on the inflator switch. Main power switch must be on for pressure gauge to be on. See #1 in figure 1. •... - Page 16 BellAire™ Model 7000 Tire Inflator Instructions 37000 CONTACT INFORMATION Bell Automotive® Products, Inc. Attn: Customer Service 18940 N. Pima Road, Suite 200 Scottsdale, AZ 85255 www.bellautomotive.com...
