Always read the manual prior to operating this equipment. Also, please follow all safety signs and precautions.
See the AGCO Dakota Micro, Inc. website for installation training videos at www.agcocameras.com.

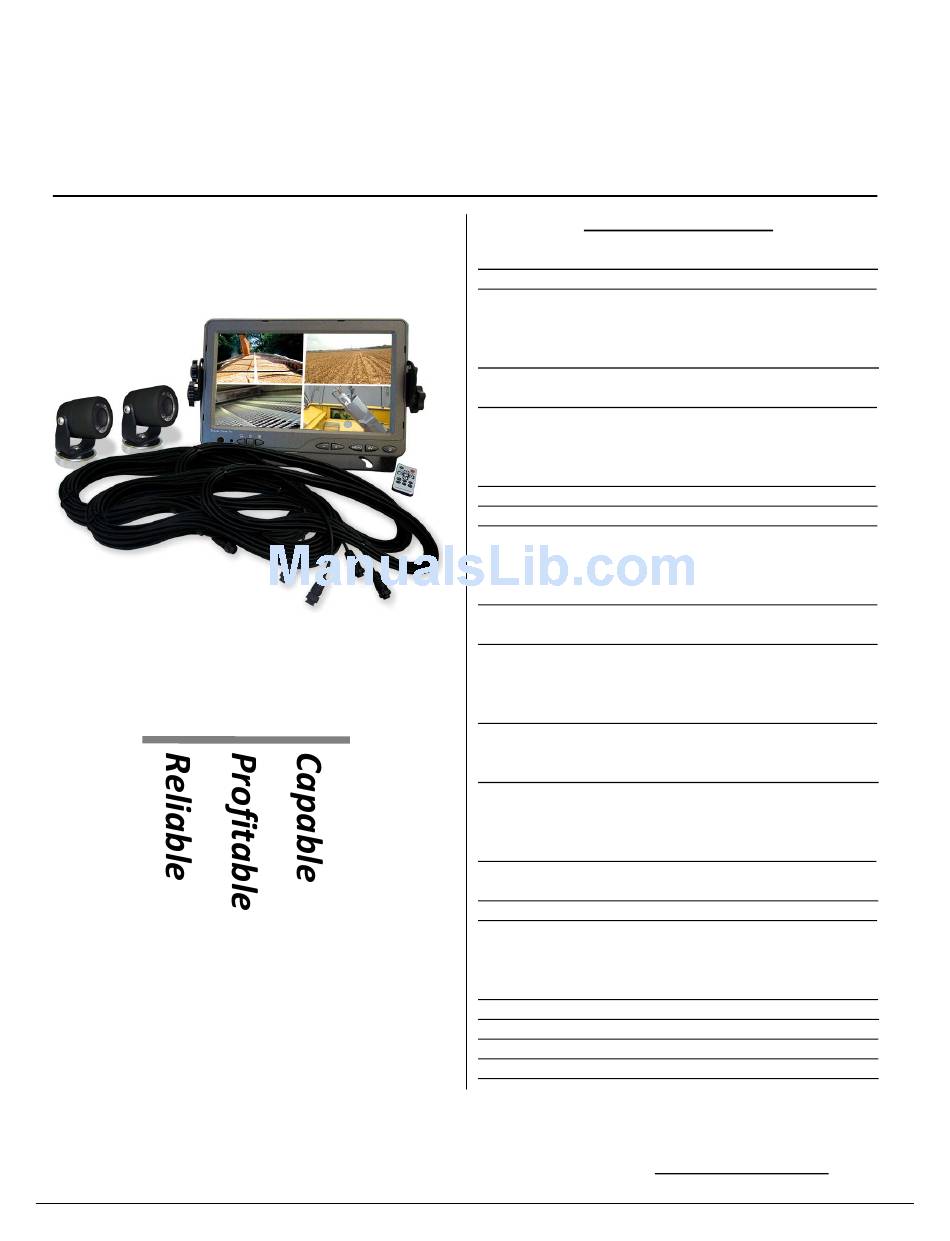

Rev: 06/26/17                                           Page 1 of 12
Dakota Micro, Inc.
Users Manual
AGCO AgCam®
Part Number: AC‐9MQ (‐C2)



Table of Contents
I.   Included Monitor & Camera Kit Components                      2
II.    Standard Features                                                               2‐3

A. Cameras

B. Monitors

C. Cables
III.   Parts of an AgCam                                                                   3

A. Camera
IV.   Camera Mounting                                                               3‐4

A. Temporary Mounting

B. Permanent Mounting

C. Suggestions for Camera Mounting
V.   Camera Warnings                                                                    4
VI.   Cable Routing Tips & Warnings                                            4
VII.   Monitor Installation & Mounting                                    4‐5

A. Mounting Precautions

B. Universal Bracket Mounting

C. Finalizing Universal Bracket Installation
VIII.   Installation                                                                             5

A. Monitor Wire Harness Details
IX.   Power                                                                                        5

A. Supplying Power with 12v Power Adaptor

B. Hardwire Power Adaptor

C. Fuses
X.   Event Trigger Wire Operations                                              6

A. Event Trigger Wire Color Guide

B. Event Trigger Wires Explained
XI.   Monitor, Quad, & Remote Operation                              6‐7

A. Quad Monitor Operations ‐ Front

B. Quad Monitor Operations ‐ Back

C. Remote Operations
XII.   Standard Monitor Menu Settings                                       8

A. Standard Monitor Menu Settings Navigation
XIII.   Quad Menu Settings                                                       9‐10
XIV.   Specifications                                                                      10

A. Camera

B. LCD Monitor

C. Quad Processor
XV.   Warnings                                                                               11
XVI.   Product Warranty/Repair Process                                   12
XVII.   Consumer Limited Warranty                                           12
XVIII.   Disclaimer                                                                          12

XVIV.   Contact Us                                                                         12





Author: CNR


Advertisement

loading
Need help?

Need help?

Do you have a question about the AC-9MQ and is the answer not in the manual?

Questions and answers

Summary of Contents for Dakota Micro AC-9MQ

  • Page 1 Dakota Micro, Inc. Users Manual  AGCO AgCam®  Part Number: AC‐9MQ (‐C2)              Table of Contents          I.   Included Monitor & Camera Kit Components                      2    II.    Standard Features                                                               2‐3      A. Cameras      B. Monitors    C. Cables  III.   Parts of an AgCam                                                                   3    A. Camera  IV.   Camera Mounting                                                               3‐4    A. Temporary Mounting    B. Permanent Mounting    C. Suggestions for Camera Mounting  V.   Camera Warnings                                                                    4  VI.   Cable Routing Tips & Warnings                                            4  VII.   Monitor Installation & Mounting                                    4‐5    A. Mounting Precautions     B. Universal Bracket Mounting   ...
  • Page 2 Dakota Micro, Inc. AC-9MQ(‐C2) User Manual I.                                    INCLUDED MONITOR KIT COMPONENTS                             INCLUDED CAMERA KIT COMPONENETS                                                             (PER PN: AC‐9MQ)                          (PER PN: AC‐C1)    Description  Picture    Description  Picture  AgCam® Camera  Dakota Micro, Inc.         9” Quad Monitor    (Elite Camera Pictured)   Monitor  Camera Bracket with  Wire Harness  Attached Magnetic    Base      AGCO PN: DMAC‐CBM  AGCO PN: AC‐MWH Camera component  Monitor Remote  bag: Allen wrench,    (x2) nylon washers,  AGCO PN: ACREMOTE  (x2) retaining screws ...
  • Page 3 Dakota Micro, Inc. AC-9MQ(‐C2) User Manual B.   Monitors   Feature the latest in LCD technology.    View 1, 2, or 4 cameras at the same time; also includes two (2) different Quad views.    Include event triggers for each camera input.   Color, brightness, contrast and volume controls that allow compensation for use in different environments.   Remote control, sun shield, and metal U‐bracket included.  C.   Cables   Silicone jacket enables high flexibility in all temperatures.   Our durable power/video extension cables come in 20’ and 60’ standard lengths and feature sturdy,  watertight connectors.    Additional power/video cables available in the following lengths: 10’, 30’, 40’, 50’ & 80’.      III.   PARTS OF AN AGCAM  A.   Camera   1. Camera Body  2. IR Function Plug *  3. MIR Function Plug*  4. Retaining Screw (x3)  5. Camera Tail Input  6. Camera Bracket  7. Fiber Washer (x2) ...
  • Page 4 Dakota Micro, Inc. AC-9MQ(‐C2) User Manual When determining the location for the camera, it is always best to use a solid surface to minimize vibration.             Important‐ Ladders are not good mounting choices due to lack of stability.    If you will be using your AgCam® for assisting in visibility for towing, you will want to position the camera so you  can see the desired area and a portion of the vehicle/trailer in tow; this will give you some reference to distance.  You will also want to use the mirrored setting in the monitor menu or remove the magnet in the MIR function  plug on the camera so as to accurately represent left and right.  This will give you the effect of looking in a rear  view mirror.     V.   CAMERA WARNINGS    A. NEVER RELY ON YOUR AGCAM® AS A SAFETY FEATURE.  It is up to your discretion to keep your road travel and other operations safe. Your AgCam® will provide you with  information only based on what it sees. Operation of machinery safety guidelines still apply.    B. The AgCam® is equipped with an array of infrared light emitters which are invisible to the human eye. This feature will  aid in low light conditions but has limitations. The effective range of the night vision feature is 1 to 45+ feet and will  produce a monochrome image only.   DO NOT ATTEMPT TO DRIVE MACHINERY USING THIS FEATURE.    VI.   CABLE ROUTING TIPS & WARNINGS    There are two (2) lengths of cable that come standard with our AgCam® camera kits: One (1) 20’ and one (1) 60’. If you would like  to purchase different, or additional, cable lengths, please contact your local AgCam® dealer.     A. Cable routing is important; where you choose to run the cables should not interfere with the normal operation of the  machine or any safety equipment.    B. ALWAYS be aware of any “pinch points” or other potential hazards to the cable(s).    C. Secure all cables to vehicle/equipment using cable clips, zip ties or other style fasteners. ...
  • Page 5 Dakota Micro, Inc. AC-9MQ(‐C2) User Manual Dakota Micro, Inc. is not responsible for any damages caused to your monitor, or yourself, due to the improper installation  or use of a suction cup monitor mount, whether it be product sold by DM or product purchased from another source.  B.   Universal Bracket Mounting  1.    Hold monitors U‐bracket in place on monitor.  2.    Attach bracket with included wing bolts.    C.   Finalizing Universal Bracket Installation    1. With the mount and monitor attached, find and   mark the desired position for the monitor.   2. Remove the monitor from the mount.  3. Attach the monitor to the mount and tighten   the wing nuts.             VIII.    INSTALLATION      A.   Monitor Wire Harness Details    1. Input to Monitor       2. AV1‐4 Event Trigger Wires     (Pg. 6)     ...
  • Page 6 Dakota Micro, Inc. AC-9MQ(‐C2) User Manual   X.   EVENT TRIGGER WIRE OPERATIONS  A.   Event Trigger Wire Color Guide  1. Camera 1 – Green  2. Camera 2 – Purple  3. Camera 3 – Gray  4. Camera 4 – White    B.   Event Trigger Wires Explained    Event trigger wires can be attached to any 12v positive event.  This will cause the monitor to change to that  camera, regardless of the state of the monitor (i.e. ON/OFF or channel selection). The most recent event will be  the primary display. So, if two (2) video channels (AV1 & AV2) are attached to an event output, the event that  happens last will change the monitor to its respective camera view.     The wires can be attached to any positive output 10.5v to 16.9v switch or supply to cause the monitor to  automatically switch the unit to its respective channel camera. Example: if you were to attach the AV1 wire to a  positive output from an unloading auger on a combine, the monitor would switch from channel 2, 3, or 4 to  channel 1 when the auger is extended. The event circuit should be neutral in its normal state and change to  HIGH (+12v) when the event is considered to be active.     XI.   REMOTE & MONITOR OPERATION      A. Quad Monitor Operations ‐ Front      Headphone  1  Output for audio (if using monitor with 3rd party products).  Jack   ...
  • Page 7 Dakota Micro, Inc. AC-9MQ(‐C2) User Manual NOTE: Turn the monitor on only after it has been securely mounted, supplied with power, and the cameras are connected.    B.  Quad Monitor Operations ‐ Back            and      Move up and down through individual menu options        and      Move left and right through individual menu options    ENTER  Allows users to select a chosen Quad option      MENU  Button displays Quad menu options on monitor        C. Remote Operations    POWER ON/OFF    Mute Enable/Disable sound    Flip image Left/Right        Flip image Up/Down    Navigation Arrows    MENU ‐ Enters the menu ...
  • Page 8 Dakota Micro, Inc. AC-9MQ(‐C2) User Manual XII.    STANDARD MONITOR MENU SETTINGS    1. Press the MENU key on the face of monitor or remote.  Use the – and + keys on the monitor or the LEFT and  RIGHT arrow keys on the remote to move through the icons at the top of the screen.  2. Use the MENU key on the monitor (up and down arrows on remote) to select an item under each section.  Selected menu items turn red.   3. Use – or + on the monitor (left and right arrows on remote) to change the value of the highlighted item.    4. To exit: Press the – or + key on the monitor (left or right arrow on remote) multiple times until the menu goes  away. Allow monitor to time out (approximately 5 seconds).           PICTURE  BRIGHT:        Adjusts the brightness of the image.  CONTRAST:  Adjusts the contrast of the image.  COLOR:         Adjusts the color of the image.  TINT:             Adjusts the tint of the image.                                                   (Appears only when camera is plugged in.)   RESET:          Returns settings to factory default.      VOLUME    VOLUME:  Adjusts the volume level   OPTION  ROTATE:  Invert image on screen    SYSTEM  LANG:               Select your language (English            default)  SOURCE:            Adjusts the AV input source (AV1  default).    ...
  • Page 9 Dakota Micro, Inc. AC-9MQ(‐C2) User Manual XIII.    QUAD MENU SETTINGS  1. Press and hold the MENU button on REAR of monitor (Refer to “Quad  Monitor Operations – Back” pg. 7) for 3 seconds  2. Use REAR arrow buttons (Refer to pg. 7) to select desired menu to adjust.  3. Use ENTER button on REA (Refer to pg. 7) to select desired option on any  menu screen.  4. Use REAR MENU button to exit out of any menu option.  5. Use and to move up and down through individual menu options.  6. Use  and  to change information on individual line items.  7. Press and hold REAR MENU button for 3 seconds to exit menu setup.    SYSTEM SETUP    DATE: Set your current date. MONTH:DAY: YEAR   TIME: Set your current time. HOUR:MINUTE:SECOND  SYSTEM FORMAT: Video system. NTSC/PAL selectable.  SYSTEM ID NUMBER: Select unique ID # for quad.  KEY LOCK: When set to ON position, only individual camera views available.  When set to OFF position, all functions available  CAMERA PRIORITY: Function not available on this model.  VCR OUT: Function not available on this model.    POWER ON OUTPUT: Selects the type of display image shown on power on.  FACTORY RESET: Restores unit to factory preset options.  DISPLAY SETUP    DISPLAY ON SCREEN: Press ENTER to select what information is displayed on  screen.  SCREEN POSITION: X ‐ Use the ...
  • Page 10 Dakota Micro, Inc. AC-9MQ(‐C2) User Manual XIV.    SPECIFICATIONS     A. Camera  Video System  PAL (Black Cameras) Effective Picture Elements  510*492 Image Pick‐up Device  SONY 1/3” Super HAD II CCD Sensor Horizontal Resolution  700 Horizontal lines Minimum Illumination  0.02 LUX @ F1.2 S/N Ration  More than 48dB Auto Electronic Shutter  1/60s~1/100,000s Auto White Balance  Color Temperature: 2500K~9500K Auto Gain Control  High/Low Auto Switchable Auto Iris Control  Video‐Drive Iris Control Scanning System  Interlace 2:1 Gamma Characteristic  0.45 Camera Board Lens  Board Lens 3.6mm/F2.0 Camera Body Lens  Photogray Triple Hardened Glass Synchronous System  Internal, Negative sync. Back Light Compensation  Auto On/Off ...
  • Page 11 Dakota Micro, Inc. AC-9MQ(‐C2) User Manual XV.    WARNINGS   When selecting a camera system from Dakota Micro, be sure to utilize the appropriate system for your use. AgCam and  EnduraCam cameras are designed for high impact, moisture, vibration and a variety of other rough conditions. OverView  cameras and kit components are designed for light use, low vibration and low moisture. OverView equipment is not warranted  when used in situations outside of the above mentioned parameters.  We always request that customers keep in mind that our  less expensive OverView product line is cheaper because it does not feature the reliability and durability of our AgCam and  EnduraCam lines. The warranty available on these products reflect that durability.   To avoid electrical shock and maintain optimal functionality, do not open the enclosures. High voltage may be present and  there are no user serviceable parts inside. All warranties will be void should any enclosures be tampered with in any way.   Do not use any harsh chemical solvents, cleaning agents or corrosive detergent to clean away dirt on the surface of the screen  or lens.    On AgCam and EnduraCam products, the photo‐chromic camera lenses have been made impact‐resistant and have been drop‐ ball tested according to Sec. 3.84,21 CRF BUT ARE NOT UNBREAKABLE. Because they have been hardened chemically, they  show no stress pattern. Inspect your lenses frequently. Chipped or scratched surfaces will reduce protection. Such lenses  should be replaced only by the manufacturer.   Power to cameras is not interrupted by turning off monitor; 12v power source must be terminated when not in use to avoid  battery drain. To avoid this problem be sure when hard wiring a unit, use a fused circuit.   Do not use your Dakota Micro camera system for anything other than legal surveillance and observation uses. Dakota Micro,  Inc. is not liable for any illegal or nefarious usage.        XVI. PRODUCT WARRANTY/REPAIR PROCESS  1. For Technical Support call 701 538‐4403 OR email techsupport@dakotamicro.com  2. Technician will assist in troubleshooting product malfunction.  3. If product malfunction cannot be remedied and a repair is deemed necessary, Technician will issue a Repair Authorization  (RA) number. ...
  • Page 12 Dakota Micro, Inc. AC-9MQ(‐C2) User Manual     XVII.    CONSUMER LIMITED WARRANTY       LIMITED WARRANTY  Subject to the disclaimer, limitations and other directions stated hereafter, Dakota Micro, Inc. warrants that the Product will be free from defects in  material and workmanship for periods as stated hereafter from the date of original purchase.  THIS WARRANTY IS EXPRESSLY MADE IN LIEU OF  ANY AND ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS.  THE  EXCLUSIVE REMEDY OF THE BUYER IS LIMITED TO REPAIR OR REPLACEMENT OF THE PRODUCT.  EXCEPT AS STATED IN THIS WARRANTY,  DAKOTA MICRO SHALL NOT BE LIABLE FOR ANY LOSS, INCONVENIENCE, OR DAMAGE, INCLUDING DIRECT, SPECIAL, INCIDENTAL, OR  CONSEQUENTIAL DAMAGES, RESULTING FROM THE USE OR INABILITY TO USE THE PRODUCT, WHETHER RESULTING FROM BREACH OF  WARRANTY, NEGLIGENCE, STRICT LIABILITY OF ANY OTHER LEGAL THEORY.  Any oral statements or representations made by anyone which are  contrary to or at variance with the terms stated in this LIMITED WARRANTY are void.    Dakota Micro will, at its option, either repair the defect or replace the defective Product or part thereof with a new or remanufactured equivalent  at no charge to the purchaser for parts or labor for the period of three (3) years for AgCam® /EnduraCam® and InnoPro® cameras; two (2) years for  AgCam®/ EnduraCam® monitors, and Wireless components; Twelve Months (12) for all Overview Cameras & Monitors, cables and all other  accessories.  The Dakota Micro limited warranty periods outlined above apply throughout the United States and Canada only.  A one (1) year maximum limited  warranty for all Products applies to all other geographic locations unless otherwise stated in writing by Dakota Micro.  This limited warranty does not apply to any issues connected with appearance that have no relation to the performance of the Product nor to any  Product the exterior of which has been damaged or defaced, which has been subjected to improper voltage or other misuse, abnormal service or  handling, or which has been altered or modified in design or construction.  In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth in the complete Dakota Micro “Warranty  & Repair Policy” listed on page 11 ‐ section XVI , and provide proof of purchase to Dakota Micro.  Neither the sales personnel of Dakota Micro nor any dealer or any other person is authorized to make any warranties other than those described  herein, or to extend the duration of any warranties beyond the time periods described herein.   The warranties described herein shall be the sole and exclusive warranties and remedies provided by Dakota Micro.  Correction of defects, in the  manner and for the period of time described herein, shall constitute complete fulfillment of all liabilities and responsibilities of Dakota Micro to the  purchaser with respect to the Product, and shall constitute full satisfaction of all claims.  In no event shall Dakota Micro be liable or in any way  responsible for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than Dakota  Micro.   Some states do not allow the limitation or exclusion of incidental or consequential damages, so said limitation may not apply to you.  Any action at law, suit in equity, or other judicial proceeding for the enforcement of any right provided for herein or otherwise, or with respect to  any claim that a purchaser may have against Dakota Micro shall be instituted only in the Courts of the State of North Dakota, either in the state  district court located in Wahpeton, North Dakota or in Federal District Court location in Fargo, North Dakota.  Without regard to conflicts of law ...
