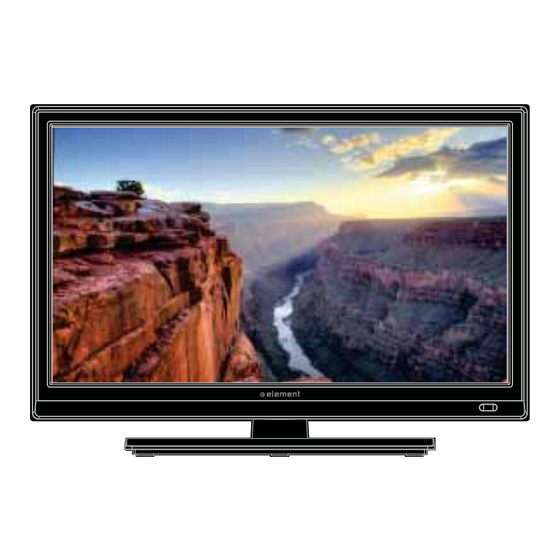

- Page 2 ELEF-19 19 HD Digital LED TV INSTRUCTION MANUAL Please read all the instructions carefully before using this TV, and keep the manual for future reference.
- Page 4 CONTENTS Important Safety Instructions Additional Safety Information Preparations What is Included Front / Rear View Wall Mounting Remote Control Connecting External Devices Operating Your TV Turning On/Off Your TV Setup Wizard Selecting the Input Source Channel Selection Volume Adjustment Customizing TV Settings Navigating the On-screen Display Picture Settings Audio Settings...
-
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS – All the safety and operating instructions should be read personnel. Servicing is required when the before this product is operated. apparatus has been damaged in any way, such – The safety and as the power－supply cord or plug is damaged, operating instructions should be retained for liquid has been spilled or objects have fallen future reference. -
Page 6: Additional Safety Information
ADDITIONAL SAFETY INFORMATION To ensure reliable and safe operation of this equipment, please read carefully all the instructions in this user guide, especially the safety information below. Electrical Safety matches the label at the rear of the product. electronic components. turn off the power switch on the back of the television. -
Page 7: Remote Control
The Cable or Satellite providers’ User’s Manuals should include instructions on how to program their remote to your television. Below is a list of Element Electronics codes for the most common Cable and Satellite providers. Use the Element Electronics code that is associated with your Cable or Satellite provider (if applicable). -
Page 8: Preparations
PREPARATIONS Front View Switch the TV between On / Standby mode. Press to select among different input signal sources. Display the OSD (on screen display) menu. Press to select a channel. Press to adjust the volume. -
Page 9: Wall Mounting
PREPARATIONS Rear View VGA Input 1. AC Connect to a computer or other devices Connect to AC power outlet. with a VGA interface. Headphone Socket PC AUDIO Input Connect to the Headphones. Connect to a computer audio output. 3. OPTICAL 7. -
Page 10: Remote Control
PREPARATIONS Remote Control Power Button USB Button Picture Mode Button ASPECT Button Sound Mode Button Sleep Button Numeric Buttons Channel Setup Button Return Button Mute Button Volume Adjust Button Channel Selection Button Signal Source Button MTS Button FREEZE Button TV Setup Menu Button Menu Return Button Information Button Navigation Button... -
Page 11: Remote Control
PREPARATIONS Remote Control TV Operation Switch the TV between on and standby mode. Press USB source. P.MODE Select picture mode: Dynamic/Movie/Energy Saving/User/Standard/Natural. ASPECT Select the aspect ratio settings:Wide/Zoom/Cinema/Normal. S.MODE Select sound mode: Standard/Music/Movie/User. Set the TV sleep timer: off/5/10…/180/240 min. SLEEP Select a program (ATV/DTV mode). -
Page 12: Connecting External Devices
CONNECTING EXTERNAL DEVICES... -
Page 13: Operating Your Tv
OPERATING YOUR TV Turning On/Off Your TV POWER Setup Wizard Setup Wizard Choose your Picture Mode Home Mode(Energy Saving) Retail Mode Move Select Exit MENU ® ® ® ® 17.2... -
Page 14: Setup Wizard
OPERATING YOUR TV buttons to select your desired mode and press OK button to Setup Wizard Menu Language English Air/Cable Cable Cable System AUTO Auto Scan Select MENU Move Select your desired language to be displayed on the Menu Language menu. -
Page 15: Customizing Tv Settings
CUSTOMIZING TV SETTINGS Navigating the On-screen Display MENU Picture Picture Picture Mode Energy Saving Contrast Sound Mode Standard Brightness Bass Audio Audio Color Treble Time Tint Time Balance Sharpness Surround Sound Color Temp. Normal Auto Volume Setup Setup Blue Screen SPDIF Type Audio Language English... -
Page 16: Picture Settings
CUSTOMIZING TV SETTINGS Picture Settings MENU Picture Picture Mode Energy Saving PICTURE Contrast Brightness Audio Color Time Tint Sharpness Color Temp. Normal Setup Blue Screen Lock Channel Select Exit Move MENU Dynamic/Movie/Natural/User. Picture Mode Alternative: P.MODE Contrast (For User mode) Brightness Color Tint... -
Page 17: Audio Settings
CUSTOMIZING TV SETTINGS Audio Settings MENU button on the main unit or on the remote control then Picture press the buttons to select AUDIO menu and then press the Sound Mode Standard Audio Bass the OK button to enter. Treble buttons to select Balance Time... -
Page 18: Time Settings
CUSTOMIZING TV SETTINGS Time Settings MENU Picture TIME Sleep Timer Audio Time Zone Pacific Daylight Saving Time Time Clock 1980/01/06 10:55AM Setup Lock Channel Move Select Exit MENU Sleep Timer Alternative: SLEEP Time Zone Daylight Saving Time On/Off Clock (DTV mode) -
Page 19: Setup Menu
CUSTOMIZING TV SETTINGS Setup Menu MENU button on the main unit or on the remote control then Picture press the buttons to select Menu Language English SETUP menu and then press the Transparency Audio Zoom Mode Wide the OK button to enter. Noise Reduction Middle buttons to select... -
Page 20: Lock Settings
CUSTOMIZING TV SETTINGS Lock Settings MENU button on the main unit or on the remote control and then press buttons to select LOCK menu. 0-9 buttons to input 4-digit password to enter the LOCK menu. buttons to select the following options and then press the buttons to adjust each option’s setting. -
Page 21: Parental Control
CUSTOMIZING TV SETTINGS Parental Control Press the MENU button on the main unit or on the remote control and then press the buttons to select LOCK menu. Use the 0-9 buttons to input 4-digit password to enter the LOCK menu. If used, this option feature can "block'' undesirable programming from appearing on the TV. - Page 22 PG-13 greater degree of offensive material suggested Cautioned than a PG rated program. Not for children under 17, strong element of Restricted sex and/or violence. No children under N o t f o r c h i l d r e n u n d e r 1 7 u n d e r a n y...
-
Page 23: Channel Settings
CUSTOMIZING TV SETTINGS Channel Settings MENU button on the main unit or on the remote control and Picture then press the buttons to select CHANNEL menu. Air/Cable Cable Auto Scan Audio buttons to select the Favorite following channel options and then Time Show/Hide Channel No. -
Page 24: Viewing Pictures
USB MULTIMEDIA Viewing Pictures SOURCE C:\PICTURE\ Phot 2010100.jpg 2010100.jpg 2010101.jpg button. 2010102.jpg 2010103.jpg PHOTO 002/005 1024 x686 229.0KB Play File :0 Total size:3.8 GB Select Move Repeat Unused size:3.7 GB Operation Tips REPEAT... -
Page 25: Troubleshooting
TROUBLESHOOTING If your TV does not operate normally or cannot be turned on, please check the following troubleshooting questions. Remember also to check any other connected electronic device, such as DVD or blu-ray player to pinpoint the problem. If the TV still fails to operate normally, please contact technical support SYMPTOM POSSIBLE CAUSE REMEDY... - Page 26 TROUBLESHOOTING Before contacting the service technician, perform the following simple checks. If any problem still persists, unplug the LED TV and call for assistance. PROBLEM POSSIBLE SOLUTIONS wall outlet. No sound and picture front of the TV set. setting. Red LED indicator lights or the Standby button on the remote control.
- Page 27 TROUBLESHOOTING PROBLEM POSSIBLE SOLUTIONS frequency. The signal is out of range loose. Ve r tic al ba r or strip on the background, horizontal noise H/V position. and incorrect position Screen color is unstable or is a single color Maintenance Early malfunction can be prevented.
-
Page 28: Fcc Notes
Canadian DOC Statement Standard Television Receiving Apparatus Canada BETS-7 CAN ICES-3(B) Please send all correspondence to: Element Electronics Corp. Customer Service customerservice@elementelectronics.com SPECIFICATIONS y l l Panel Technology Panel 60 Hz Vs. - Page 29 This product contains electrical or electronic materials. The presence of these materials may, if not disposed of properly, have potential adverse effects on the environment and human health. Presence of this label on the product means it should not be disposed of as unsorted waste and must be collected separately.
