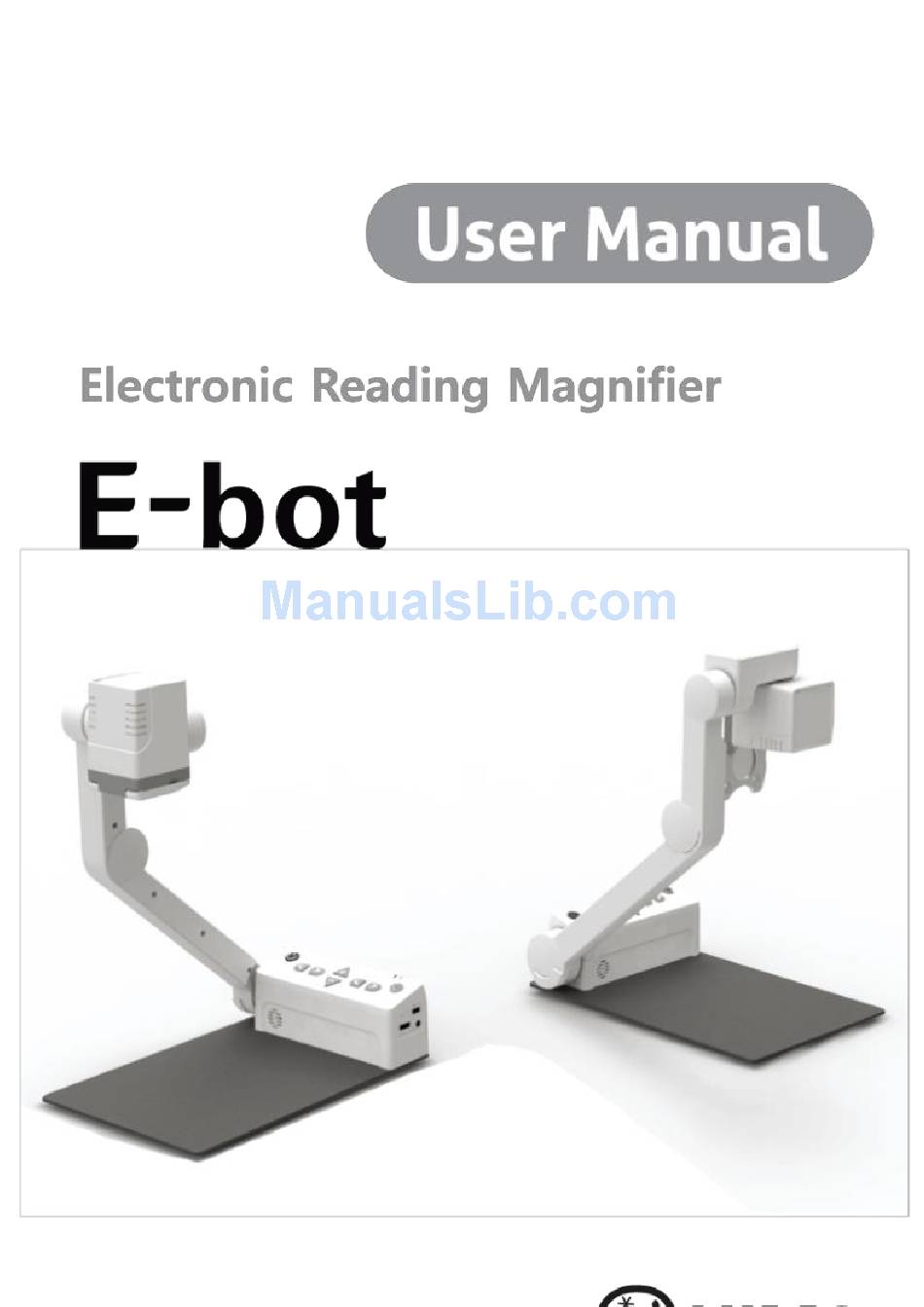

Jawon e-bot User Manual

Electronic reading magnifier
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the e-bot and is the answer not in the manual?

Questions and answers

Summary of Contents for Jawon e-bot

  • Page 2 P a g e E-bot offers a variety of powerful features for low vision students and users of all ages including the following: 1) Easy To Use  Easily set up and transport from classroom to classroom, work to home, etc. ▶ page 10 ~ 13 2) HD Quality ...

  • Page 3: Safety Precautions

    P a g e Safety Precautions For your safety and protection of the E-bot, please read and abide by the following important safety precautions. Do not plug the AC adapter into a faulty electrical outlet. This is to prevent electrical shock or fire.
  • Page 4 1. Package Contents ............................6 2. E-bot Orientation ............................7 2.1 Overview of E-bot ..........................7 2.2 Back Side of E-bot ........................... 7 2.3 Right Side of E-bot ......................... 8 2.4 Front of E-bot ............................ 9 3. Setup E-bot ..............................9 3.1 Unfolding the E-bot .........................
  • Page 5 P a g e 6.5 Finding your current Reading Position ................31 6.6 Focus Lock ............................32 6.7 Light On/Off ............................32 6.8 Information ............................33 6.9 Pairing the Main Body with the Wireless Controller ..........34 6.10 Volume Up/Down ..........................35 6.11 Turning Wi-Fi On/Off .........................

  • Page 6: Package Contents

    P a g e 1. Package Contents When you receive your E-bot, please make sure that the following items are included with your package. E-bot E-bot Battery AC Adapter Cables (USB 3.0, HDMI) HDMI to DVI Gender Adapter Carrying Case...

  • Page 7: E-Bot Orientation

    P a g e 2. E-bot Orientation 2.1 Overview of E-bot Camera Close-up Lens Control Panel Camera Arm Reading Table Arm Lock Button 2.2 Back Side of E-bot...

  • Page 8: Right Side Of E-Bot

    P a g e USB 3.0 Port Channel Switch HDMI Port DC OUT Port DC IN Port Battery Unlock Button 2.3 Right Side of E-bot Wi-Fi Switch Volume Dial Headphones Jack Battery...

  • Page 9: Front Of E-Bot

    Increase) 3. E-bot Setup Unfolding the E-bot Follow the instructions below to unfold the E-bot. ① Press and hold the Arm Lock button on the left side of the E-bot. ② While holding the Arm Lock button, unfold the longer...
  • Page 10 10 | P a g e ③ Then, grip the camera part and unfold it upward as well. ④ The E-bot is ready for use.

  • Page 11: Folding The E-Bot

    P a g e | 11 Folding the E-bot ① Grip the camera part and fold it downward. ② While holding the Arm Lock button, fold the longer camera arm downward.

  • Page 12: Inserting The Battery

    12 | P a g e 3.3 Inserting the Battery ① Grip the E-bot’s Main Body and insert the Battery. ② When the Battery is fully inserted, you will feel and hear it click in to place. 3.4 Removing the Battery ①...

  • Page 13: Charging The E-Bot

    ① 3.5 Charging the E-bot 3.5.1 Charging via the AC Adapter ① The DC jack is located on the back side of the E-bot. ② When E-bot is connected to the AC adapter, the Battery is being charged. ※ Note: if the unit is powered off when the battery status is below 5%, please charge E-bot for more than 4 hours before use.
  • Page 14 14 | P a g e ※ Note: If you connect the E-bot to a computer via USB while E-bot is powered off, the E-bot’s battery is charged. However, USB charging is quite slow. We recommend a minimum of 25 hours or more to charge.

  • Page 15: How To Connect To Display Devices

    P a g e | 15 4. How to Connect to Display Devices E-bot is compatible with various types of display devices, such as desktop video monitors, laptop computers, and iPad or Android tablets. Connecting a Monitor via HDMI ① Plug the monitor's power cord into a power outlet.

  • Page 16: Connecting A Portable Monitor

    4.2 Connecting a Portable monitor ① Connect the portable monitor's USB power cable (USB 2.0) to the DC OUT port on the back of E-bot. ※ An example of potable monitor ② Connect the portable monitor's HDMI cable to E-bot’s HDMI port to display E-bot’s output on the portable...
  • Page 17 Windows RT. ※ Note: PCs using USB 2.0 can display E-bot’s output, however, the display is a low-resolution image. To display E-bot’s output on your PC, you first need to install the PC viewer program. 4.3.1 Installing the PC Viewer Program ①...
  • Page 18 18 | P a g e ⑥ When you click the “I Agree” button, a window will pop up for selecting the installation path. ⑦ In the installation path window, select the path and click “Install”.
  • Page 19 P a g e | 19 ⑧ Disconnect the E-bot from the PC, and proceed with the installation. ⑨ The installation is in progress. ⑩ Installation is successfully completed. ⑪ A PC Viewer icon will be generated on the desktop of your PC.
  • Page 20 ③ Open the “Mac Viewer” folder. ④ The folder contains two files. - “E-BOT Driver Package v1.0.0 for MAC OS X.pkg” - “EBotViewerForOSX_v1.2.0.app”. ⑤ Run “E-BOT Driver Package v1.0.0 for MAC OS X.pkg”. ⑥ Check the below window and click the “Continue”.
  • Page 21 P a g e | 21 ⑦ Select “Install for all users of this computer” and click the “Continue”. ⑧ Check the required space on the Mac and click the “Install” button.
  • Page 22 22 | P a g e ⑨ Rebooting is required to finish the installation. Please click the “Continue Installation”. ⑩ Installation begins. It requires around 1 minute. ⑪ After finishing Installation, please click “Restart” to reboot your Mac.
  • Page 23 E-bot 1) Connecting a PC or Mac via USB ① Connect the E-bot’s USB 3.0 port to the USB port of your PC using the included USB 3.0 cable. ② And run the E-bot viewer program on your PC. Select USB as the connection method.
  • Page 24 ※ Note: Wi-Fi connectivity is not supported on the Mac. ① To output to your PC via Wi-Fi, turn on the E-bot. ② Set the E-bot Wi-Fi switch to ON. The Wi-Fi indicator is changed to blue to indicate Wi-Fi is...

  • Page 25: Connecting An Ipad Or Android Tablet Via Wi-Fi

    ※ Note: For information about changing the Wi-Fi password, please refer to section “8.3 Wi-Fi Password Change”. ⑥ Once your PC is connected to the E-bot network, run the E-bot viewer program on your PC, and select Wi- Fi as the connection method.
  • Page 26 E-bot from the Wi-Fi networks list. (For example : Ebot_03XX). ④ Connecting to E-bot requires a network key. By default, it is “00000000”. Enter the network key and connect as you would normally connect to a Wi-Fi network on...
  • Page 27 ※ Note: For information about changing the Wi-Fi password, please refer to section “8.3 Wi-Fi Password Change” ⑤ Run the E-bot Viewer app on your tablet, and make sure that the image is displaying correctly. ※ Note: For instructions on controlling E-bot using an iPad or Android tablet, please refer to the last section “10.Tablet Viewer Gestures”.

  • Page 28: Changing Camera Modes

    5. Changing Camera Modes Near View Mode Distance View Mode E-bot has two camera modes; Near View mode and Distance View mode. Flipping down the close-up lens switches Near View mode to Distance View mode. Flip the close-up lens closed to switch back to Near View mode.

  • Page 29: Using The Control Panel On The Main Body

    6. Using the Control Panel on the Main Body 6.1 Power On/Off ① Press the Power button briefly to turn on the E-bot. It normally takes 6 to 8 seconds to power up. However, when powering on for the first time, or after the battery is completely depleted, booting takes about 30 to 40 seconds and the logo is shown.

  • Page 30: Changing The Color Mode

    30 | P a g e Press the Zoom In button (+) to increase the magnification level. Press the Zoom Out button (-) to decrease the magnification level. As you press and hold either of these buttons, the magnification level is adjusted continuously. The magnification level ranges from 1 to 62.

  • Page 31: Finding Your Current Reading Position

    P a g e | 31 You can adjust contrast by using the Contrast buttons on the Control Panel on the Main. The Contrast level can be adjusted from 1 to 40. The default level is 20. 6.5 Finding your current Reading Position Use the Find location function, to find the position of the magnified text you are currently reading in relation to the document placed on the reading table.

  • Page 32: Focus Lock

    6.7 Light On/Off In the Near View mode, the built-in light is automatically turned on to ensure a clear image. E-bot contains a sensor to detect the amount of illumination in your current surroundings,...

  • Page 33: Information

    ※ Note: In the Distance View mode, the light is not turned ※ Note: In the Near View mode, if the light is turned off when you power off the E-bot, it is automatically turned on when you power on again.

  • Page 34: Pairing The Main Body With The Wireless Controller

    You can check the channel values on the rear of the main body. An arrow is pointing to the currently set value. ※ Note: You can upgrade your E-bot to E-bot ADV by matching channel values between Main Body and the Wireless controller.

  • Page 35: Volume Up/Down

    P a g e | 35 6.10 Volume Up/Down ① E-bot’s volume dial is located on the right side of the Main Body. ② Turn the dial away from you, and the volume is increased, turn the dial toward you, and the volume is decreased.

  • Page 36: Advanced Features

    36 | P a g e 7. Advanced Features 7.1 Color Mode Settings You can set the color mode to best accommodate your visual condition or the material you are reading. You can also disable color modes that are not useful to you. 7.1.1 Setting the color mode You can modify color modes to...
  • Page 37 P a g e | 37 ④ Select the Background color when you have finished selecting the text color. Use the same method as when setting the text color. If Grayscale is chosen when selecting the text color, the Color setting mode is exited without selecting a Background color.

  • Page 38: Preferences

    Apple earbuds, will not work with E- bot. ※ Note: Voice feedback is available only if the E-bot is upgraded to E-bot ADV. For information on upgrading E-bot, please refer to please refer to section “9. Upgrade”.

  • Page 39: Wi-Fi Password Change

    P a g e | 39 8.3 Wi-Fi password change An eight -digit number is needed to connect E-bot to Wi-Fi using an iPad, Android tablet or PC. The default password is “00000000”. change password, follow instructions below: ① Bring up the Wi-Fi Password Dialog by pressing the...
  • Page 40 40 | P a g e press the Contrast Increase button on the Enter key of the virtual keyboard. ※ Note: If you want to exit the Wi-Fi Password Dialog, please press the Previous color button. Right Down ④ A window asking for the new password appears. Input the 8-digit password in the manner described above.

  • Page 41: Information

    - If battery is inserted and power is not supplied, it displays “Charged xx%”  Wi-Fi AP - It is displayed as E-bot_xxxx. “xxxx” is serial number of E-bot. ③ To close the menu, press any button on the top of the main body.

  • Page 42: Upgrade

    42 | P a g e 9. Upgrade Upgrading from E-bot to E-bot ADV : To upgrade to E-bot ADV from E-bot, you must purchase the upgrade and obtain a certification number in order to authenticate the upgrade. Authenticating the Upgrade ①...
  • Page 43 Make sure it is set to the same channel value as the one shown on the main body of your E-bot. If the channel value is different, please use (-) a screw driver or your fingernail to change the setting.

  • Page 44: Tablet Viewer Gestures

    44 | P a g e Tablet Viewer Gestures Tablet Functions Gesture Zoom In Move fingers away from each other Zoom Out Pinch fingers towards each other Open One finger Tap on the right end of the screen and flick to left Control Menu...
  • Page 45 P a g e | 45 Move the focus to the icon One-finger flick to up or down Execute the option One finger double Tap on the screen when focus is on the icon Control Menu Previous/Next color mode One finger Tap on Focus Lock On/Off the icon...

  • Page 46: Quick Guide To Pc Or Mac Operations

    46 | P a g e Quick Guide to PC or Mac operations Function Keyboard Mouse Zoom-in Wheel Upwards Zoom-out Wheel Downwards Find position Next Color Left-Click Previous Color Quick color change Increase Contrast Decrease Contrast Focus Lock Open Set Color Right-Click Mode Close...
  • Page 47 P a g e | 47 ※ Note: When E-bot is connected to Mac viewer, PC viewer, iPad viewer or Android tablet viewer, the Wireless Controller is not able to bring up or control the menus.

  • Page 48: Troubleshooting

    48 | P a g e 12. Troubleshooting 12.1 The E-bot does not turn on when you press the power button a. E-bot's battery may be discharged. Please connect the power cable. b. Please be sure the monitor is powered on.
  • Page 49 P a g e | 49 12.6 Monitor shows flickering image a. This problem can occur on specific types of monitors, mostly found in European countries. Press the Contrast Increase button and Zoom Out button simultaneously. To return to normal operation, please press the Contrast Increase button and Zoom In button simultaneously.

  • Page 50: Warranty

    3) Disassembling of the unit by anyone other than an authorized repair technician will void the warranty. Customer Support Manufacturer: JAWON MEDICAL CO., LTD. Address: 174 Gajeong-ro, Yuseong-gu, Daejeon, Korea 305-350 E-mail: sale@himsintl.com Phone Number: 042-864-4601...

  • Page 51: Fcc Warning

    P a g e | 51 FCC warning NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
