Belshaw Brothers 501572 Assembly Instructions Manual

instruction sheet
#336672
Drawers #501572, 502943, 502946, 502947, 502971 and 502972
insPect contents iMMeDiAteLY AnD FiLe cLAiM With DeLiVerinG cArrier For AnY DAMAGe.
You Are resPonsiBLe For DAMAGe to Your unit iF returneD iMProPerLY PAcKeD.
#1
#3
#2
#4
#4
#2
How to determine if you have a "channel frame" table:
"Channels," indicated in illustration at right,
run left-to-right underneath tabletop.
If your table framing does not resemble the framing above,
turn to page 5 for "Drawers for Tables with Angle Frames."
eagle Foodservice equipment, eagle Mhc, specFAB
Enclosed Drawers for
Tables with Channel Frame

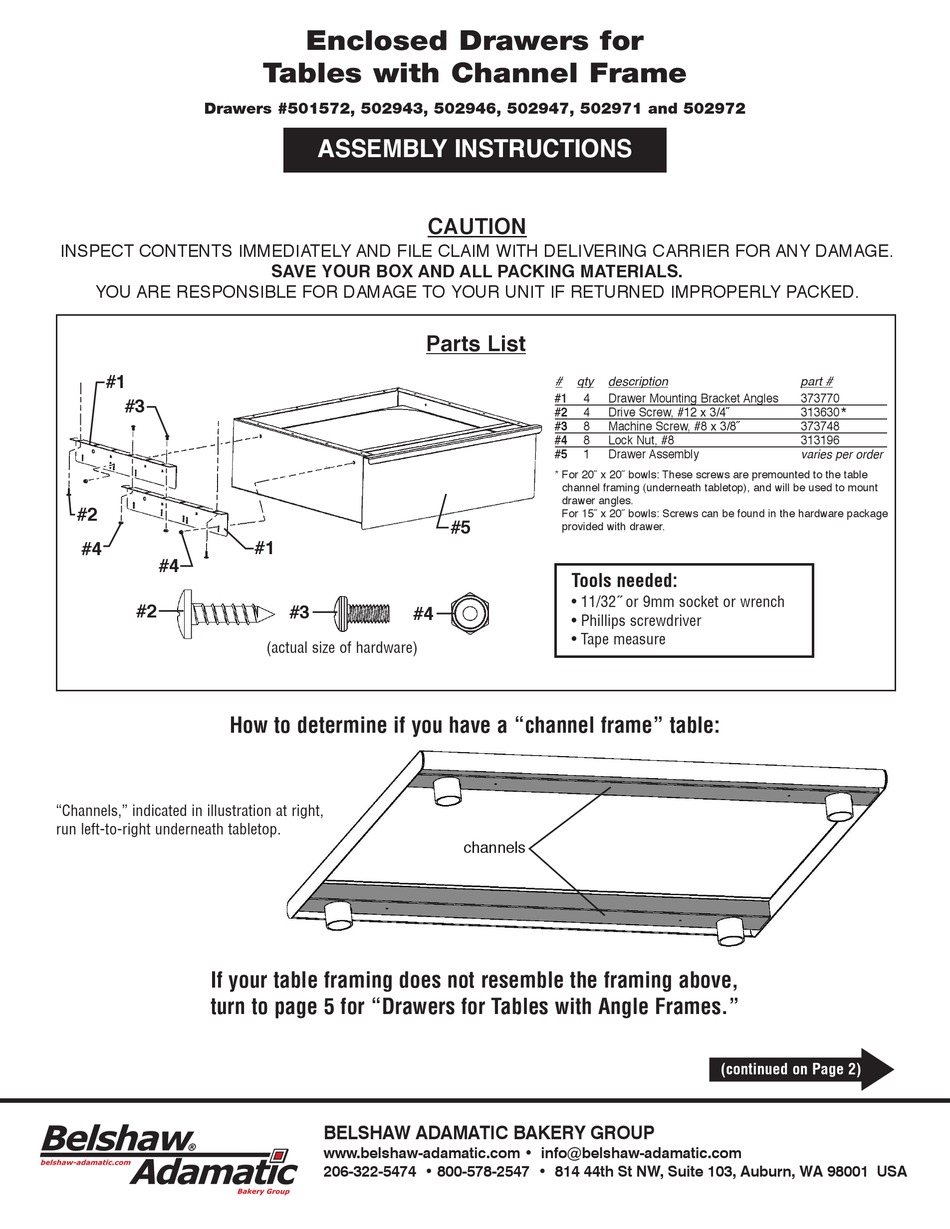

ASSEMBLY INSTRUCTIONS
CAUTION
SAVE YOUR BOX AND ALL PACKING MATERIALS.
Parts List
#1
#3
#4
(actual size of hardware)
• 100 Industrial Boulevard, Clayton, Delaware 19938-8903 U.S.A. • www.eaglegrp.com
BELSHAW ADAMATIC BAKERY GROUP
• Phone: 302/653-3000 • (Foodservice) 800/441-8440 • (MHC/Retail) 800/637-5100
www.belshaw-adamatic.com • info@belshaw-adamatic.com
• Fax: 302/653-2065
206-322-5474 • 800-578-2547 • 814 44th St NW, Suite 103, Auburn, WA 98001 USA
, and retail Display are divisions of eagle Group. ©2012 by the eagle Group
®
# qty description
#1 4 Drawer Mounting Bracket Angles
#2 4 Drive screw, #12 x 3/4˝
#3 8 Machine screw, #8 x 3/8˝
#4 8 Lock nut, #8
#5 1 Drawer Assembly
* For 20˝ x 20˝ bowls: these screws are premounted to the table
channel framing (underneath tabletop), and will be used to mount
drawer angles.
For 15˝ x 20˝ bowls: screws can be found in the hardware package
#5
provided with drawer.
Tools needed:
• 11/32˝ or 9mm socket or wrench
• Phillips screwdriver
• Tape measure
channels
part #
373770
*
313630
373748
313196
varies per order
(continued on Page 2)
eG9834 revised 10/12
