The Telos Alliance Z/IPSTREAM R/2 Quick Start Installation Manual

Multi-channel streaming encoder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

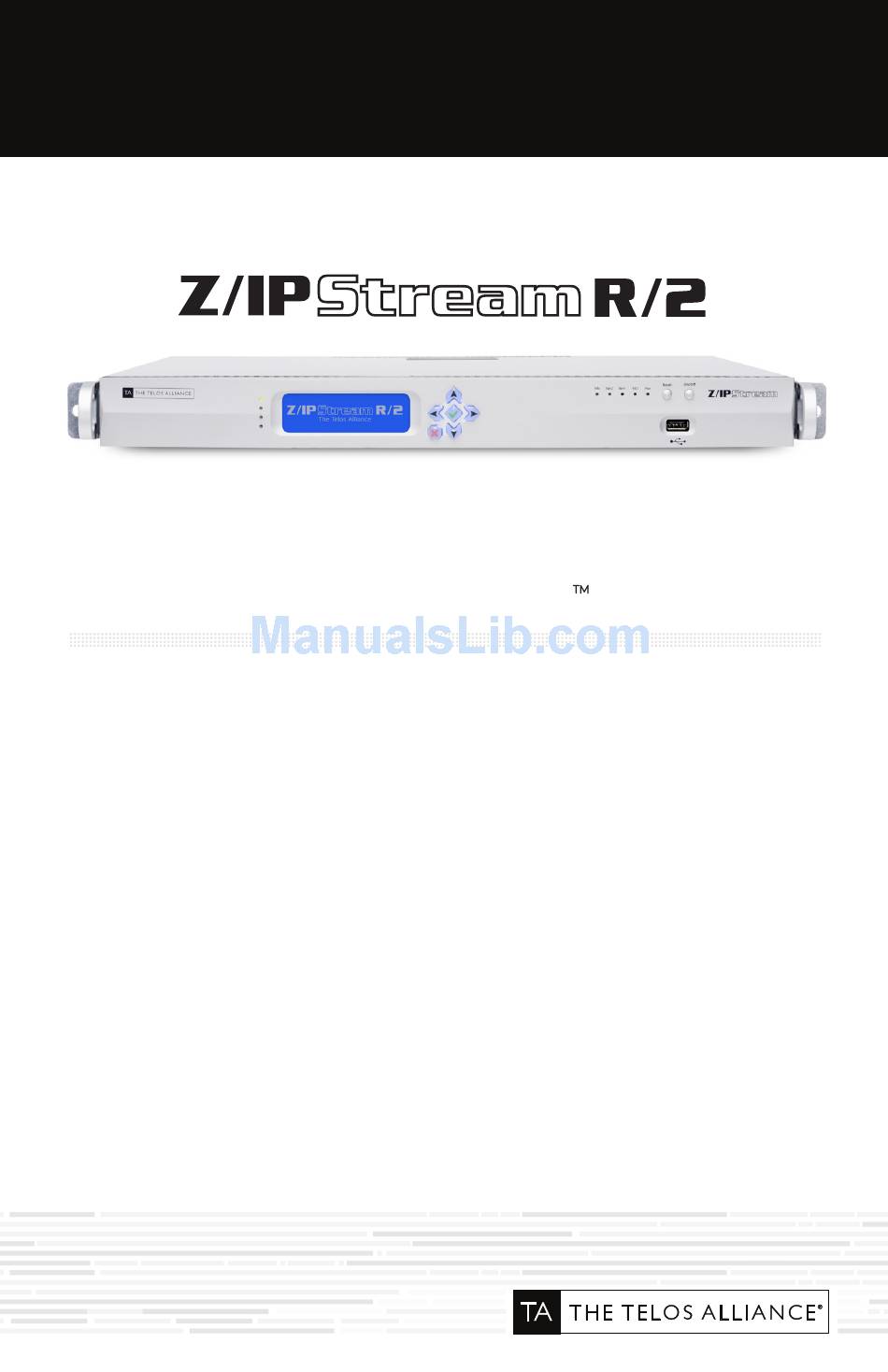

QUICK-START INSTALLATION GUIDE
WELCOME TO Z/IPSTREAM R/2
We know you are excited to start using your new R/2, so let's get
started.... The initial configuration consists of the following steps:
1. Connect to power
2. Connect to network
3. Connect audio
4. Assign IP addresses via the front panel
5. Continue product configuration from a web browser
TM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z/IPSTREAM R/2 and is the answer not in the manual?

Questions and answers

Summary of Contents for The Telos Alliance Z/IPSTREAM R/2

  • Page 1 QUICK-START INSTALLATION GUIDE WELCOME TO Z/IPSTREAM R/2 We know you are excited to start using your new R/2, so let’s get started…. The initial configuration consists of the following steps: 1. Connect to power 2. Connect to network 3. Connect audio 4.

  • Page 2: Connect To Power

    QUICK-START INSTALLATION GUIDE CONNECT TO POWER A. Power E. NIC 1 B. RS232 F. NIC 2 C. Control Port G. Audio 5-8 D. USB Ports H. Audio 1-4 The R/2 comes with a dual power supply (120V - 240V, 50 - 60Hz) for enhanced reliability.

  • Page 3: Connect To Network

    Power up the R/2 ON / OFF Press the On/Off button on the front/right side of the unit to power it up. During the power up process, the front panel will light up and display a splash screen. When the unit is ready, it will display the audio meters screen: CONNECT TO NETWORK The R/2 offers dual network adapters, NIC 1 and 2 (see image above).

  • Page 4: Connect The Audio

    QUICK-START INSTALLATION GUIDE CONNECT THE AUDIO The AES/EBU audio connections are provided through two 26-pin D-sub connectors. Connect the breakout cable(s) to the D-sub connectors. Use the thumbscrews to securely attach the cables in place. ASSIGN IP ADDRESSES The front panel uses four arrow keys along with OK and Cancel keys to navigate and make choices.
  • Page 5 After power up, the front panel will display the audio meters screen: Press the right arrow key to navigate to the Interfaces screen: Select NIC 1 or NIC 2 by using the up/down arrow keys. The display arrow will move to indicate the current selection. Press the OK key to select the desired interface.

  • Page 6: Static Ip Configuration

    QUICK-START INSTALLATION GUIDE If you wish to see the currently assigned IP settings, press the right arrow key. Static IP Configuration You may also assign a static IP address if you do not wish to use DHCP. On the Network Mode screen, press the OK key. You will be asked to switch to static IP mode.
  • Page 7 Use the up arrow key to select Yes, then press the OK key. The IP settings screens will be displayed: Follow the procedures below to update the IP configuration. • Use the up/down arrow keys to select the field you want to change (IP address, Netmask, or Gateway).
  • Page 8 QUICK-START INSTALLATION GUIDE After a few moments, you will be returned to the Network Mode screen: If you’re using both NICs, repeat the steps above to configure NIC 2. CONTINUING THE CONFIGURATION PROCESS At this point, the initial hardware configuration is complete. The rest of the configuration is performed through a web browser, from another computer.
  • Page 9 Enter user as the username, leave the password field blank, then click the Submit button. You should now be logged in to the Z/IPStream R/2. Please refer to the manual for full product configuration information.

  • Page 10: Installation Help

    QUICK-START INSTALLATION GUIDE INSTALLATION HELP If you have more questions, you can access the full manual online at: http:/ /www.telosalliance.com/Telos/ZIPStream-R2- or reach the Telos Alliance 24/7 Support Team via email at support@telosalliance.com or by phone at +1 (216) 622-0247, we’d be happy to help you out.
  • Page 11 THIS PAGE INTENTIONALLY LEFT BLANK...

  • Page 12: Quick Links

    Social Media Facebook: /TelosAlliance Twitter: @TelosAlliance LinkedIn: /TelosAlliance YouTube: TelosAllianceTV Google+: +TelosAlliance Product Catalog TelosAlliance.com/mobile 1241 Superior Ave. • Cleveland, Ohio, 44114, USA • +1.216.241.7225 • TelosAlliance.com p/n: 1490-00133-002 © 2017 TLS Corp. The Telos Alliance®. All Rights Reserved. C17/1/19025...
