Summary of Contents for VELFAC 200
- Page 1 WINDOWS FOR LIFE User guide for VELFAC 200 (extract from VELFAC User Guide)
- Page 2 Masking tape. If using masking tape, we recommend 3M™ Masking Tape 201E. Ensure the tape is removed as soon as pos- sible, and before the paint has dried. Repair paint or lacquer can be purchased from VELFAC After Sales Service Department. To order the original colour please state the order number, see page 27.
- Page 3 • Good air circulation in all rooms should be ensured - leave internal doors between rooms open Condensation between the two glazing panes. If condensation forms between the two glazing panes, the sealed double- glazed unit has been punctured and must be replaced. Please call the VELFAC After Sales Service Department. Did you know that...
- Page 4 Quality standards for the window industry VELFAC manufactures windows to meet the very highest expectations. The quality of our parts and materials, with the best possible standards in manufacturing, combine to provide the VELFAC windows you expect. We have also implemented some simple guidelines for our customers, which identify quality standards, and what is allowable for predominately natural materials - wood, aluminium &...
- Page 5 Impurities, dirt and scratches. Larger scratches or marks within the glazed unit will be considered for replacement under the 12 Year Warranty - please contact VELFAC with details. Scratches or marks on the external face of the glazed units cannot be covered by the warranty, as they are a result of handling after the transport packing has been removed.

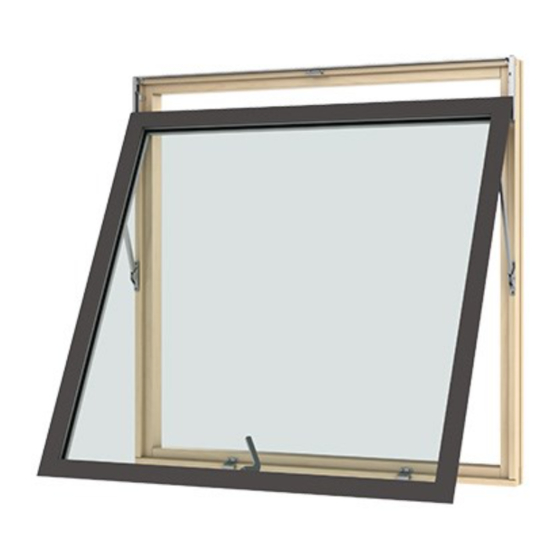

- Page 6 VELFAC 212 Topguided window This window is opened by turning the handle to a vertical position and pushing the sash outwards. Opening the window will provide a ventilation gap at the head. Friction arm adjustment. Friction can be adjusted by turning the friction screws at the sides of the sash using a 4mm hexagon key.
- Page 7 VELFAC 201 Sidehung window This window is opened by turning the handle to a horizontal position and pushing the sash outwards. The window opens to 90º and is equipped with a friction arm which allows the sash to be held in any position between closed and fully open.
- Page 8 A fixed window cannot be opened and therefore requires no maintenance or adjustments of opening fittings. Fixed windows can be converted to opening. Please call VELFAC After Sales Service on 01223 897100 (UK) or 01 450 7984 (IRL) for more...
- Page 9 VELFAC 228 Tophung fully reversible window The window opens by turning the handle to a vertical position and pushing the sash outwards until the safety restrictor engages at an opening of 5-10cm. Cleaning. The external side of the window can be cleaned from inside the building by reversing the sash.
- Page 10 VELFAC 229 Tophung fully reversible window The window opens by turning the handle to a vertical position and pushing the sash outwards until the safety restrictor engages at an opening of 5-10cm. Friction arm adjustment. Friction is adjusted by equally turning the screws at the sides of the sash anti-clockwise using a 3mm hexagon key (1).
- Page 11 Internal sash for VELFAC 200 windows The internal sash of a 2+1 window significantly improves acoustic and thermal properties. In order to constantly maintain this improvement, the internal sash must remain closed. It can be tophung or sidehung and can be equipped with either handles or screws depending on whether the sash will be opened in daily use or only for cleaning purposes.
- Page 12 VELFAC 231 Casement door The patio door is opened by turning the handle to a horizontal position and pushing the door leaf outwards. The door opens to 90º and is equipped with a friction arm which allows it to be held in any position between closed and fully open.
- Page 13 VELFAC 237 Sliding window door The sliding door is opened by turning the handles at the sides of the door leaf to a horizontal position. The door is then pushed outwards approximately 10cm and slid across. The door is closed by sliding across and pulling back toward the frame.
- Page 14 Handles and remote operation for VELFAC 200 windows and patio doors 1. Standard The espagnolette handle is tipped upwards to open the window. A ventilation position is obtained by pushing out the window approx. 1cm and re-engaging the handle. • 2. Espagnolette handles with child-locks can only be opened when the button below the handle is pressed while the handle is turned.
- Page 15 Safety fittings and other accessories for VELFAC 200 windows and patio doors The PN-fitting makes it difficult The safety restrictor automatical- Window stay. The arm is fitted to ly engages when the sash is opened for unwanted guests to enter if the the wood frame and when used, is to approximately 4cm.
- Page 16 2-leaf VELFAC 200 windows and patio doors A fixed mullion cannot be moved when both sashes are open. The French Casement mullion is fixed to the leading edge of the Sash 2. Once Sash 1 has been opened, the mullion can be disconnected and Sash 2 subsequently opened.
- Page 17 Please ask for our FSC-certified products. VELFAC LTD The Old Livery Hildersham Cambridge CB21 6DR T: 01223 897100 F: 01223 897101 service@VELFAC.co.uk www.VELFAC.co.uk VELFAC Ireland Ltd. T: 01 450 7984 F: 01 403 9548 aftersales@VELFAC.ie www.VELFAC.ie WINDOWS FOR LIFE...
