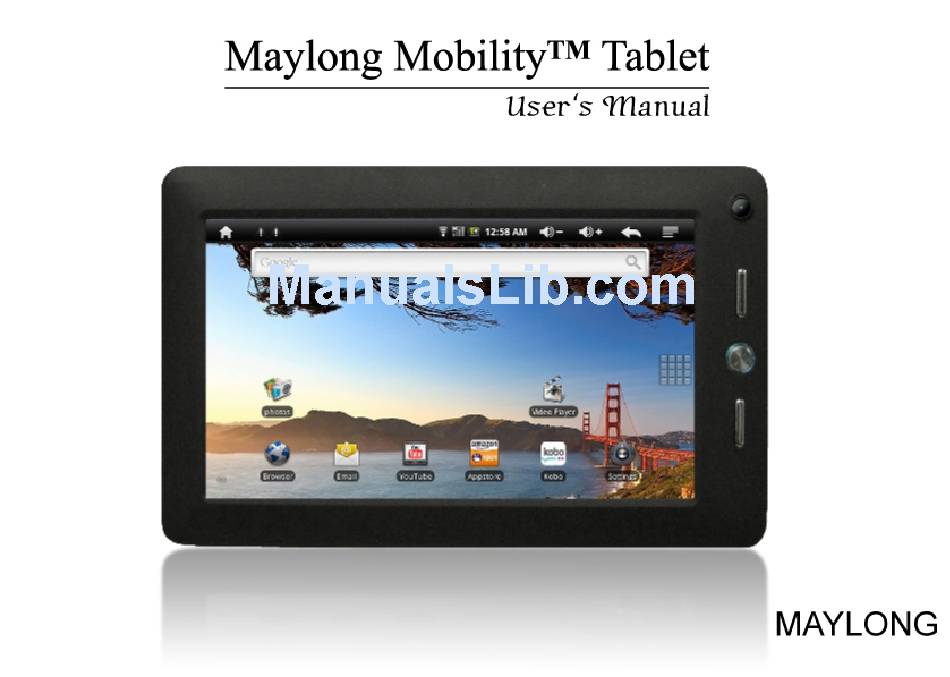

Maylong M-260 User Manual

Mobility tablet
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M-260 and is the answer not in the manual?

Questions and answers

Related Manuals for Maylong M-260

Summary of Contents for Maylong M-260

  • Page 2: Table Of Contents

    Table of Contents 1. Getting Started ........................3 1.1 Power On/Off ......................4 1.2 Battery Charging ....................4 1.3 Desktop Screen....................... 5 1.4 Internet Access with Wi-Fi Interface..............8 1.5 How to Use Micro SD Card ................. 11 1.6 Familiar with Touch Screen ................. 12 2.
  • Page 3 2.7 My Video......................21 2.8 My Music ......................22 3. Adjust M-260 Settings ......23 ................3.1 Wireless controls ....................23 3.2 Sound & display....................24 3.3 Application settings....................27 3.4 Date and Time ...................... 27 3.5 Select Locale ......................27 3.6 Security &...

  • Page 4: Getting Started

    1. Getting Started The first thing you probably want to do when you get Maylong M-260 Mobility™ Tablet is to familiarize yourself with a few basics. Unpack M-260 box and identify the key items included. You should have: 1. M-260 device: The device includes a touch-sensitive LCD screen, a Micro SD memory card slot, a network/USB dongle slot, a power switch button, a MENU button, and speaker volume adjustment buttons etc.

  • Page 5: Battery Charging

    Press and hold the power switch button for 2 seconds to turn on the M-260. You may have to charge the M-260 by using the A/C home adapter before the M-260 can be powered on, if battery power of the M-260 is very low.

  • Page 6: Desktop Screen

    A/C home adapter. M-260 may be damaged if you use incompatible A/C adapter to charge your M-260 Tablet. 1.3 Desktop Screen The desktop screen is displayed after M-260 Android operating system is started.
  • Page 7 The icons on the top of the desktop screen are named below. Home Screen Last Screen Battery Status Wi-Fi Signal Speaker Volume Up Speaker Volume Down Command Menu Touch Home Screen icon from any screen to go back to the Desktop screen. Touch Command Menu icon from some screens to display a command menu on the bottom of the screen.

  • Page 8: Internet Access With Wi-Fi Interface

    1.4 Internet Access with Wi-Fi Interface M-260 has a built-in Wi-Fi interface for accessing the internet. To enable Wi-Fi interface, touch Wi-Fi Settings icon from the Desktop Screen to display the Wi-Fi Settings screen.
  • Page 9 Touch “Turn on Wi-Fi” icon to enable the Wi-Fi interface. After the Wi-Fi interface is enabled, M-260 will automatically scan and list local Wi-Fi networks that if finds. A lock image indicates a secure network that requires a password for access.
  • Page 10 A wireless icon will appear in the toolbar to indicate that you are connected to the wireless network. Touch icon to disable the Wi-Fi interface. It is recommended that you disable Wi-Fi...

  • Page 11: How To Use Micro Sd Card

    M-260 without Internet access. 1.5 How to Use Micro SD Card The Micro SD card is used for transferring files between M-260 and your personal computer, downloading applications, and playing stored media.

  • Page 12: Familiar With Touch Screen

    inserted properly, “Preparing SD card” will show on the left top of the screen next to icon Browsing files in SD card: Browser Touch on the File icon from Desktop screen and then touch icon from the File Browser screen. The File Browser screen will show all the files & folders under the root directory of SD card.

  • Page 13: Pre-Installed Application

    M-260 uses touch screen for you to interface with the device. Using the stylus included in the package would give you a better experience than using your fingers to operate the M-260. If a network/USB dongle is available, you can connect a computer mouse with the dongle to operate the M-260.

  • Page 14: Youtube

    2.2 YouTube View and share popular videos online. Touch YouTube icon from Desktop screen to start YouTube application. Note: Some YouTube video format may not be supported by M-260 YouTube application.

  • Page 15: App Market(Pending, To Be Edited)

    2.3 App Market Application store: Choose great applications to use on your Tablet. Note: Not all applications work for Tablet.

  • Page 16: E-Mail

    Tap Next. This will be your default account unless you add another email address. After you have more than one account set up, you can select a different address as the default account. Note: M-260 uses Google Android operating system which may not support some email services. 2.5 File Browser Manage files stored on the SD card or on local memory.
  • Page 17 Touch icon to go up one level in folder directory. icon to enable selecting multiple files. Touch icon to access files available in SD card. Touch icon to access files available in a USB drive that may be connected Touch with a Network/USB dongle.
  • Page 18 You can transfer files between M-260 internal memory disk and SD card. An example of copying a file from TF card to internal memory disk is provided below. 1. Make sure a SD card is inserted into the SD card slot properly.
  • Page 19 4. Touch Copy command. The command window will be disappeared. 5. Touch internal memory disk icon to switch to LocalDisk folder. 6. Touch & hold a blank area in the File Browser screen to display the command window.
  • Page 20 7. Touch Paste command to copy the file from SD card into the internal memory disk. Delete files from internal memory disk 1. Select the file you want to delete and touch & hold the file to display a command window.

  • Page 21: My Photo

    2. Touch & hold the command window and move up to see the Delete command 3. Touch Delete command to delete the selected file. 2.6 My Photo Touch My Photo icon from Desktop screen to start digital picture viewer application. Press MENU button or touch Command Menu icon to display the command menu on the bottom of the screen.

  • Page 22: My Music

    Press MENU button or touch Command Menu icon to display the command menu on the bottom of the screen. You can select storage device for the digital video content by touching Select Storage Device command from the command menu. 2.8 My Music Touch My Music icon from Desktop screen to start the built-in music player.

  • Page 23: Adjust M-260 Settings

    3.1 Wireless controls Settings for M-260 wireless communication can be configured from the Wireless Controls screen. Wi-Fi interface can be enabled or disabled and Wi-Fi network setting can be managed from the Wireless Controls screen.

  • Page 24: Sound & Display

    Airplane mode is available with M-260. If Airplane mode is enabled, all M-260 wireless communication interfaces are disabled. You should see icon shows up next to the battery icon once airplane mode is turned on. 3.2 Sound & display Touch Sound from Settings screen to manage the settings related to sound.
  • Page 25 You can personalize the M-260 Sound settings as your preference. Under display settings, enabling Orientation setting will allow switch of display orientation (vertical or horizontal) when rotating the M-260 device. When Orientation setting is enabled,...
  • Page 26 Screen Orientation icon Otherwise, the Screen Orientation icon will be displayed on the top of screen.

  • Page 27: Application Settings

    You can select language for M-260 user interface from this setting. 3.6 Security & location Security related settings are configured here. Security settings protect access to your M-260 from unauthorized users. Note: M-260 does not have GPS included. My Location settings can be ignored.

  • Page 28: Install And Uninstall Applications

    3.7 Install and Uninstall Applications Install Application To install third-party applications, touch File Browser icon from Desktop Screen and then find the APK file from the SD card or internal memory disk. Touch the APK file to start the installation.
  • Page 29 Uninstall Application To uninstall or remove an application from M-260, touch Settings icon from Desktop Screen to bring up the Settings screen.
  • Page 30 From Settings screen, touch Applications to display the Application Settings screen and then touch Manage Applications to start the un-installation process.

  • Page 31: Limited Warranty

    Within the one-year period of time, Maylong Group LLC will, at its sole option, repair or replace any components which fail from normal use. Such repairs or replacement will be made at no charge to the customer for parts or labor, provided that the customer shall be responsible for any transportation cost related to the repairs or replacement.
  • Page 32 No person or representative is authorized to assume for Maylong any liability other than expressed herein in connection with the sale of this product. Maylong shall not be liable for any delay, loss, damage or injury caused by Acts of God, governmental order or regulation,...
  • Page 33 (“Force Majeure”). Maylong retains the exclusive right to repair or replace the product at its sole discretion. SUCH REMEDY SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY FOR ANY BREACH OF WARRANTY.
  • Page 34 3. Request for RMA number & return instruction. You may be asked to fill out a RMA form at our Web site. 4. Return product in a secure and durable package to prevent damage during transit 5. Please make sure to include the following information along with the return package: Your name &...
  • Page 35 Wiley Publishing, Inc. Any use of such trademarks by Maylong Group is under license. These trademarks may not be used without the express permission of Wiley. Let’s GO! is a registered trademark of Maylong Group LLC in the United States and/or other countries.
  • Page 36 FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
