RKVM Dslide Series
Models

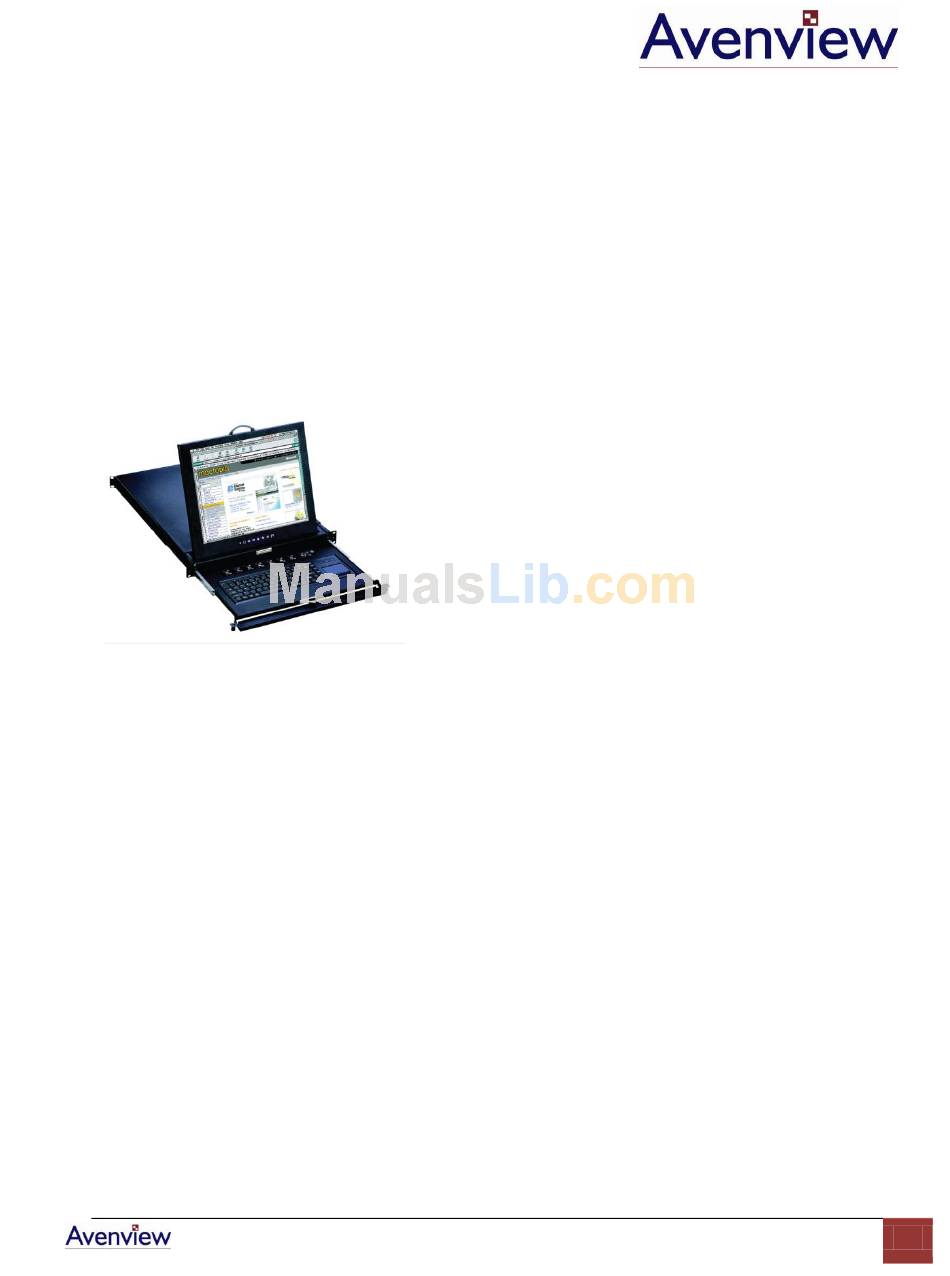

RKVM-17-Dslide
- 1U Dual Slide
- 17" Screen Size
www.avenview.com
User's Guide
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Avenview RKVM-17-Dslide
Summary of Contents for Avenview RKVM-17-Dslide
- Page 1 No license, whether express, implied, or otherwise, to any intellectual property rights is granted by this publication. Except as set forth in Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and disclaims any express or implied warranty, relating to its products including, but not limited to, the implied warranty of merchantability, fitness for a particular purpose, or infringement of any intellectual property right.
-
Page 2: Table Of Contents
Structure Diagram ... 8 1.10 Installation ... 9 1.11 How to Use The Slides ... 10 1.12 Locking Bracket for RKVM-17-Dslide ... 11 1.13 How to use the Dual Slides ... 12 1.14 Connect to Server via USB Interface ... 13 1.15 Connect to KVM via USB Interface ... - Page 3 S-Video + BNC Input Option ... 22 DC Power Option ... 23 Section 5: Troubleshooting ... 24 Section 6: Dimensions ... 24 www.avenview.com...
-
Page 4: Section 1 - Getting Started
Causes external to the product, such as electric power fluctuation or failure. Use of supplies or parts not meeting our specifications. Normal wear and tear. Any other causes which does not relate to a product defect. Removal, installation, and set-up service charges. www.avenview.com... -
Page 5: Safety Instructions
Re-position or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. www.avenview.com... -
Page 6: Package Contents
CB-6 2-in-1 USB keyboard cable x 1 pc or CD-6 3-in-1 PS/2 keyboard cable x 1 pc User manual x 1 pc Power cord x 1 pc Auto Switch power adapter (for external power version ) x 1 pc www.avenview.com... -
Page 7: Before Installation
430mm (16.9") extended rear L-bracket up to 1020mm *Extended rear L-bracket in tailor-made length on request Power Cord IEC power cord NEMA 5-15 power cord (US) BS 1363 power cord (UK) CEE 7/4 power cord (German) AS 3112 power cord (Australia) www.avenview.com... -
Page 8: Peripheral Products
16 / 32-port high density Cat5 KVM IP KVM extender KVM Extender Cat5 PS/2 KVM Extender Cat5 USB KVM Extender Structure Diagram SAMSUNG Class A TFT LCD Panel LCD membrane button Keyboard & mouse Adjustable rear mounting L-bracket Membrane switch (KVM option) www.avenview.com... -
Page 9: Installation
Align each rear L-bracket to a suitable length and tighten the fasteners shown in Figure 2. Fix the LCD keyboard drawer into the rack. * Hardware (screws and cage nuts) for fixing the mounting bracket to the rack is not provided. www.avenview.com... -
Page 10: How To Use The Slides
Avoid pressing the red button located on either side. Hold own the white arrow button until the upper LCD drawer is located in the rack. Push the either side of the lower keyboard drawer until it is located in the rack. www.avenview.com... -
Page 11: Locking Bracket For Rkvm-17-Dslide
1.12 Locking Bracket for RKVM-17-Dslide Figure 8 Figure 9 Figure 10 Release the locking bracket The locking bracket will spring open Flip up the LCD Panel www.avenview.com... -
Page 12: How To Use The Dual Slides
1.13 How to use the Dual Slides Figure 11: Figure 12: Figure 13: Gently pull the handle toward the fron of the lower keyboard drawer Pull the handle toward the front of the upper LCD drawer Flip up the LCD to a suitable angle www.avenview.com... -
Page 13: Connect To Server Via Usb Interface
Operate the LCD keyboard drawer Figure 14: 1.14 Connect to Server via USB Interface Figure 15: Example of connecting CD-6 2-in-1 USB KVM cable to server via USB Interface 1.15 Connect to KVM via USB Interface www.avenview.com... - Page 14 Figure 16: Example of connecting CD-6 2-in-1 USB KVM cable to KVM via USB Interface The above connection is only for the LCD keyboard without KVM switch built-in. For the LCD keyboard drawer with KVM switch built-in, please refer to KVM switch manual. www.avenview.com...
-
Page 15: Connect To Server Via Ps/2 Interface
Figure 18: Example of connecting CD-6 3-in-1 PS/2 KVM cable to KVM via PS/2 Interface The above connection is only for the LCD keyboard without KVM switch built-in. For the LCD keyboard drawer with KVM switch built-in, please refer to KVM switch manual. www.avenview.com... -
Page 16: Section 2: Operations
Display the OSD menu Scrolls through menu options and adjusts the displayed control Exit the OSD screen Shortcut key to auto adjustment by pressing the button for 5 seconds or Toggle analog, digital & video connection (DVI-D and video options only) www.avenview.com... -
Page 17: On-Screen Menu
Select the screen color – 5500K, 65000K & 9500K, The factory default is 9500K Language Select the language in which the OSD menu is displayed: English, Chinese ( 中文 ), Japanese ( 日本語 ), German, French, Spanish, Italian. RESET Restore the settings to factory default www.avenview.com... - Page 18 System Select the language in which the OSD menu is Language display. English, Chinese (中文), Japanese (日本語), German, French, Spanish, Italian Time Function is not supported Power Off Function is not supported Reset Reset all settings to factory default. www.avenview.com...
-
Page 19: Section 3: Specifications
DVI-D, BNC, S-Video & RCA video input DC power input with 12V, 24V, 48V selection Resistive and capacitive type touchscreen selection 0˚ to 50˚C Degree -5˚ to 65˚C Degree 5~90%, non-condensing 10G acceleration (11ms duration) 5~500Hz 1G RMS random vibration www.avenview.com... -
Page 20: Keyboard & Mouse
3.1. Keyboard & Mouse Multiple keyboard language selections with touchpad Trackball is not available Supporting layouts www.avenview.com... -
Page 21: Section 4: Optional Specifications
Our KVM is designed to seamlessly integrate into the rear of our full range of LCD drawer solutions: For KVM operation, please refer to "Integrated LCD KVM Switch" user manual Option with high density Cat5 KVM with either 16 or 32 ports ... -
Page 22: S-Video + Bnc Input Option
S-Video + BNC Input Option Internal power version External power version Remarks: Package includes an extra 6ft S-Video cable S-Video www.avenview.com 3-in-1 VGA KB mouse console port... -
Page 23: Dc Power Option
With DC power option, the depth will be extended from 650mm (25.6”) to 690mm (27.2”) 12 Volt 24 Volt 9 ~ 18V 18 ~ 36V 50 mA 50 mA 4950 mA 2450 mA 12 Volt 12 Volt 4.16A 4.16A www.avenview.com 48 Volt 36 ~ 75V 50 mA 1220 mA 12 Volt 4.16A... -
Page 24: Section 5: Troubleshooting
(W x D x H) (W x D x H) 442 x 650 x 44 mm 589 x 826 x 168 mm 15kg 21kg RKVM-17-Dslide 17.4 x 25.6 x 1.75 in 23.2 x 32.5 x 6.6 in 33lb 46lb www.avenview.com... - Page 25 Disclaimer While every precaution has been taken in the preparation of this document, Avenview Inc. assumes no liability with respect to the operation or use of Avenview hardware, software or other products and documentation described herein, for any act or omission of...
