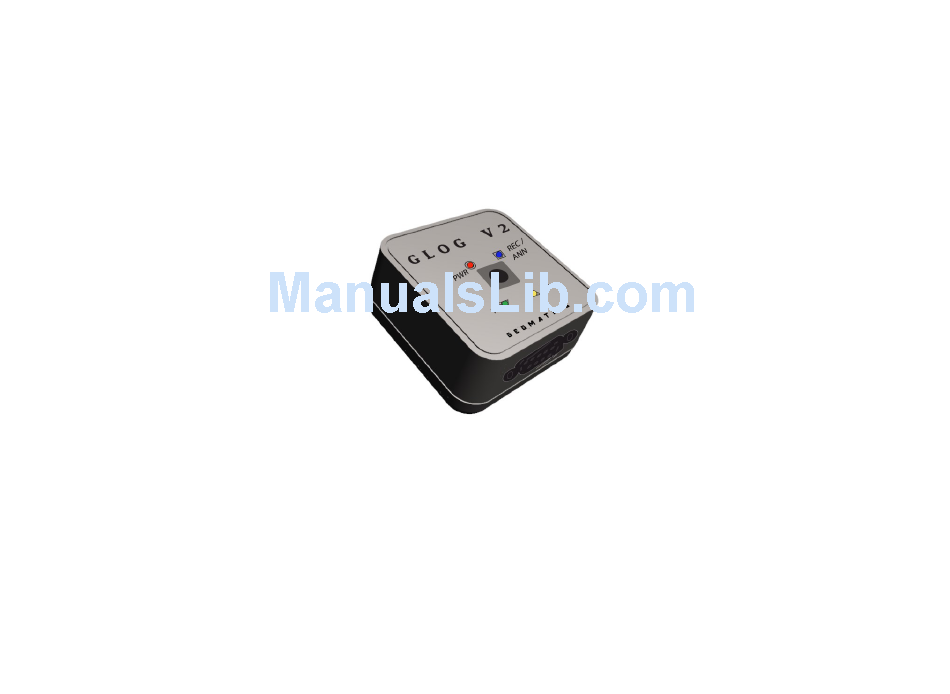

- Page 1 GLOG V2 Portable RS232 Serial Data Logger Quick Guide (c) 2015 - Geomatics USA, LLC...
- Page 2 GLOG V2 is a battery-powered compact device that logs data from RS232 serial devices. It records the logged bytes (in its original form) on a removable storage medium. GLOG V2 Quick Guide...
- Page 3 GLOG V2 Key Features 2” 1. Small (2” x 2” x 1”) and light weight (< 100 gm) 2. Battery operated - internal battery lasts over 20 2” hours 1” 3. Extremely easy to operate; just connect GLOG to the serial device via cable and hit the button;...
- Page 4 Green indicator inside a triangle Orange indicator inside a triangle green blinks for outgoing requests orange blinks for incoming bytes Turn power on and off DATA OUT DATA IN GLOG V2 User Interface GLOG V2 Quick Guide...
- Page 5 Use 5V USB power supply to charge the battery – full charge takes two to four hours Max. charging input current 500 mA The USB* port is also used to update the firmware (see GLOG V2 firmware update) GLOG V2 Quick Guide...
- Page 6 10 seconds on the annunciation (Blue) LED indicate battery voltage lower than 3.5V Charge the unit battery via its USB port either by plugging the cable to into the provided AC adapter or to a portable USB battery Battery Performance (see chart) GLOG V2 Quick Guide...
- Page 7 - Both the orange and the blue LEDs flicker continuously and irregularly to indicate data reception and disk activities - When done logging, switch the GLOG unit off and remove the memory card to download the data onto your PC! NOTE: Logged data is stored in chronologically numbered files! GLOG V2 Quick Guide...
- Page 8 Gar2Rnx creates the RINEX observation file (.OBS) in the same <GAR File path> folder NOTE: Gar2Rnx utility generates satellite navigation information (.NAV) file in RINEX format if it is recorded. Nevertheless, the NAV information is receiver independent and can be independently downloaded from several online services such as http://geodesy.noaa.gov/CORS/standard1.shtml GLOG V2 Quick Guide...
- Page 9 - When done logging, switch the GLOG unit off and remove the memory card to download the data onto your PC! NOTE: - Use NULL MODEM connector/adapter when logging data from a computer - Logged data is stored in chronologically numbered files! GLOG V2 Quick Guide...
- Page 10 NOTES: - Long orange flickers without blue flickers are indications that the serial device and GLOG are out of synch because of wrong baud rate! - Use NULL MODEM connector/adapter when logging data from a computer GLOG V2 Quick Guide...
- Page 11 GLOG V2 Firmware Update Xloader: Windows application to update GLOG V2 firmware PREPARATION: - Download and install FTDI USB VCP driver from http://www.ftdichip.com/Drivers/VCP.htm - Download the latest version of the GLOG firmware (hex file) from http://www.geomatics.us/products/glog/ PROCEDURES: - Switch ON GLOG first* - Connect GLOG to the computer via a USB cable;...
- Page 12 Manually install the serial port and/or the serial bus. PROCEDURES: 1. If not already plugged, plug in GLOG V2 and open device manager under My Computer 2. Right click the ‘USB Serial Port’ and click ‘Update Driver Software…’ from the speed menu 3.
- Page 13 GLOG V2 Real-Time Clock (RTC) Reset TIME.TXT: A text file containing the correct date and time PREPARATION: - use a PC text editor to create a text file; name it TIME.TXT - type the correct date and time in the first line of the file as follows YYYY/MM/DD HH:MM:SS e.g.
