Summary of Contents for IOT CPT-7

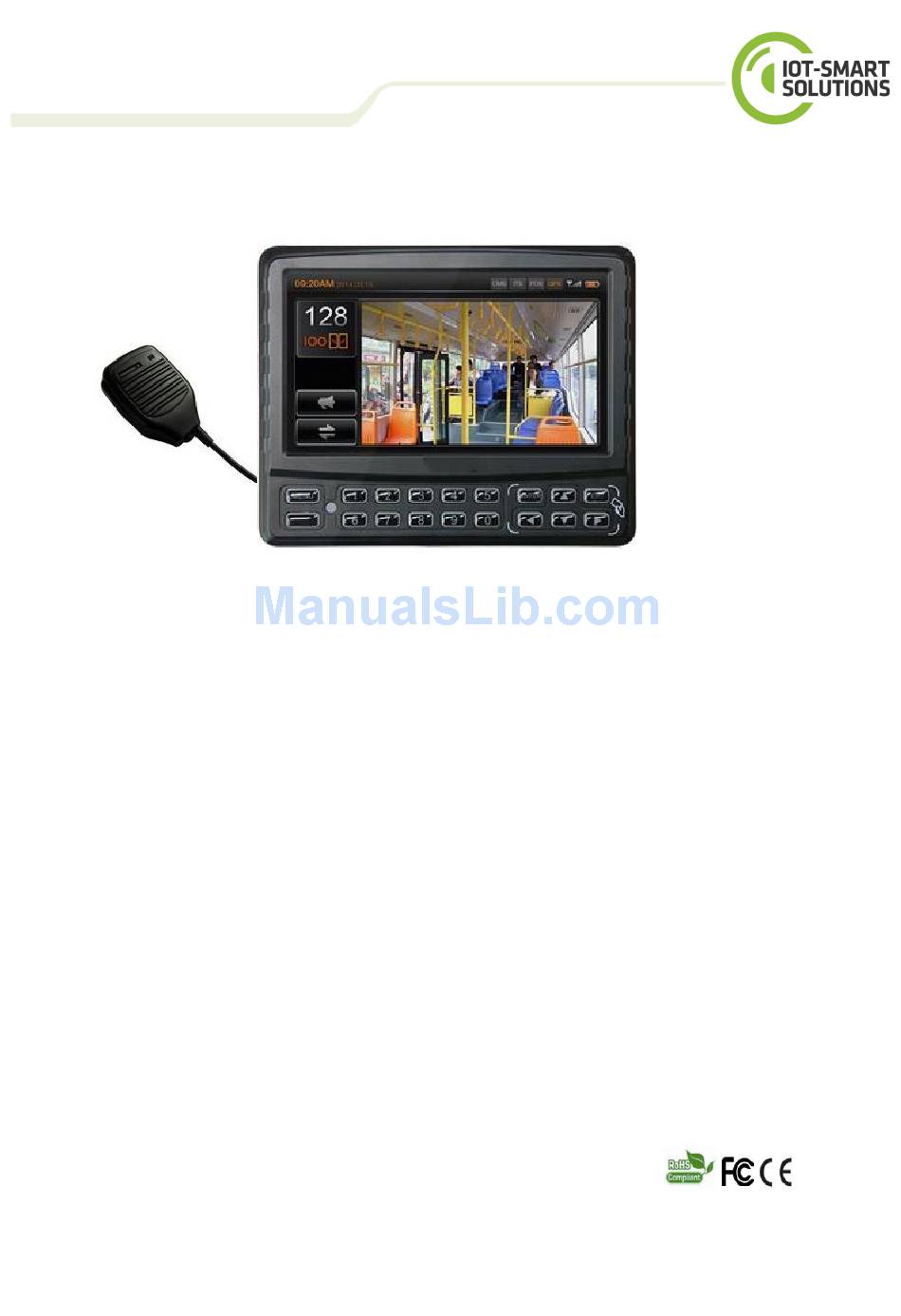

- Page 1 User Manual CP T-7 Copyright 2015-2016, IOT Smart Solutions, LLC All Rights Reserved...
-
Page 2: Product Characteristic
I\O signal, which is to switch the pictures of camera. 1.2.5 Drivers Swipe Card There is a built-in RFID module in CPT-7, which is used for drivers to sign in and sign out. The informationwill be uploaded to platform via MDVR network. 1.2.6... -
Page 3: Product Structure
1.3.2 Button Introduction CPT-7 applies with 18 buttons, including 1-0 number buttons, 4 function buttons and 4 arrow buttons forbus control and scheduling application. When drivers press number 1-5, it broadcasts the messages set before and if there is no message, it would not broadcast anything. - Page 4 User Manual for CP T-7 Example : If the speaker says we are arriving XX, and it will turn to we are leaving XX when pressing Next Stop. Press Enter to view system information and open the selected menu. Press Exit to exit current interface and switch from the main interface to the live-view interface. Press 【...
-
Page 5: Lcd Specification
Maximum Number of Display 262K/16.7M(6bit/6bit+Dithe Color ring) Scale 16:9 Back-light Type White LED 1.3.5 Bracket Installation CPT-7 supports bracket installation, and there are three brackets to be chosen: Suitable for relatively flat console Suitable for curved console Suitable for hanging... - Page 6 User Manual for CPT-7 1.3.6 Interface To ensure the waterproof, the external interface of CPT-7 uses harness, which leads a bunch of buses from CPT-7, and then the joint distributes according to their functions, details are as following: Definition： Connector Name...
-
Page 7: Product Performance
User Manual for CPT-7 2 Product Performance Environmental Performance Serial No. Experiment Items Test Methods Test equipment applies to GB/T 2423.1—2008 Put into the cryogenic chamber at -20℃±2℃ for 72 hours at 0.85 times rated voltage. During this time, cut... - Page 8 User Manual for CP T-7 2.2 Mechanical Environmental Performance Serial No. Experiment Items Test methods Test equipment and method apply to GB/T 2423.5—2008 Normal installation and without power supply, the peak acceleration is 490 m/s² and pulse duration is 11 ms. Six sides Impact do these steps 3 times.
