Summary of Contents for Huf Hulsbeck & Furst HUF7059

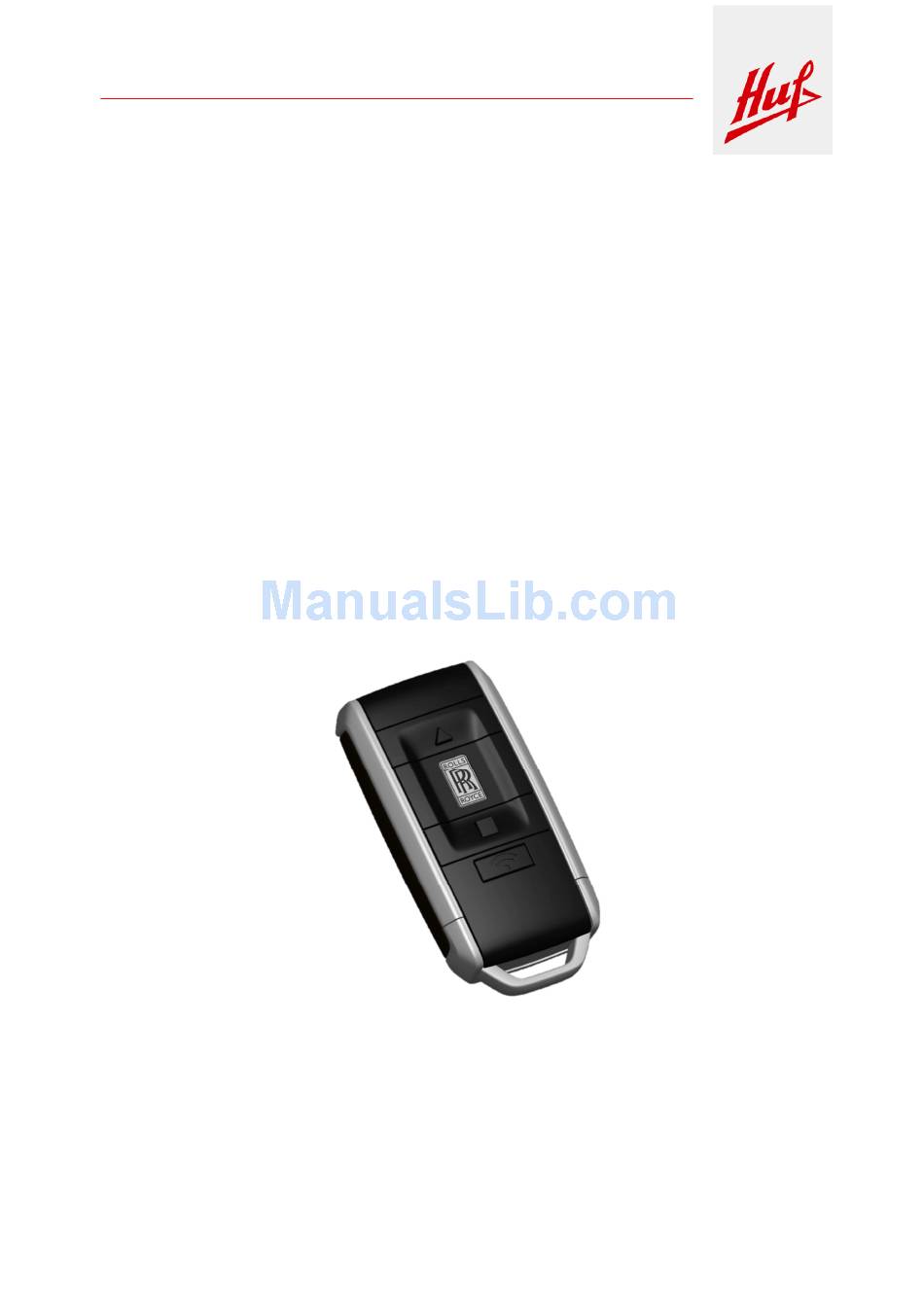

- Page 1 Huf Hülsbeck & Fürst Technical Description and User’s Manual of the RRNM-IDG Technical Description User’s Manual of the HUF7059 PDSCA1 - S. van den Boom Page 1 of 6 09.12.16...
- Page 2 Huf Hülsbeck & Fürst Technical Description and User’s Manual of the RRNM-IDG Contents 1 General operation of the HUF7059 ......................3 2 Operating frequencies of RF transmission ....................3 3 Block diagram ............................3 4 Technical data ............................4 4.1 Electrical characteristics ........................4 4.2 General RF specification ........................
- Page 3 Unlock the vehicle’s trunk Activate special function Engine start of the car (via passive function) For emergency start – when the battery power is too low – the HUF7059 has a bi-directional LF- Transponder interface. 2 Operating frequencies of RF transmission...
- Page 4 Huf Hülsbeck & Fürst Technical Description and User’s Manual of the RRNM-IDG 4 Technical data Dimensions (with inserted emergency key): ca. 83 mm x 43 mm x 17 mm Weight (including emergency key): ca. 89 g 4.1 Electrical characteristics Power supply: Battery type CR2032 Supply voltage: Maximum...
- Page 5 5.2 Radio equipment authorization to RSS-210 in Canada IC ID: 4008C-HUF7059 According to RSS-210 (labelling requirements) the car manufacturer will print the following text in the appropriate User’s Manual of the car: This device complies with Industry Canada licence-exempt RSS standard(s).
- Page 6 Huf Hülsbeck & Fürst Technical Description and User’s Manual of the RRNM-IDG 5.4 Examples for homologation marking Homologation Marking PDSCA1 - S. van den Boom Page 6 of 6 09.12.16...
