Instruction
Manual
for
HYE
Bluetooth Acoustic Equipment
Model：WL-A106
Dongguan Winlex Electronics Co., Ltd
I.
Technical Specification
1.Bluetooth specification
In line with Bluetooth RDA V2.0
2. Working frequency
2.402-2.480GHZ
ISM frequency band;
GFSK, π/4DQPSK, 8DPSK
3.Modulation mode
4. Operating range
Within 10 meters
Advertisement
Table of Contents
Summary of Contents for Dongguan Winlex Electronics WL-A106
- Page 1 Instruction Manual Bluetooth Acoustic Equipment Model：WL-A106 Dongguan Winlex Electronics Co., Ltd Technical Specification 1.Bluetooth specification In line with Bluetooth RDA V2.0 2. Working frequency 2.402-2.480GHZ ISM frequency band; GFSK, π/4DQPSK, 8DPSK 3.Modulation mode 4. Operating range Within 10 meters...
- Page 2 5. Connection mode Point-to-point 6 Compatibility Support the mobile phone with Bluetooth 4 and downward versions 7.Environmental temperature Normal: 15 to 35℃ Special: 0 ~ 40℃ 8.Humidity 0%～90% II. Basic Functions and Features 1、 Supported platform: computer/mobile phone/tablet PC with Bluetooth and other Bluetooth devices;...

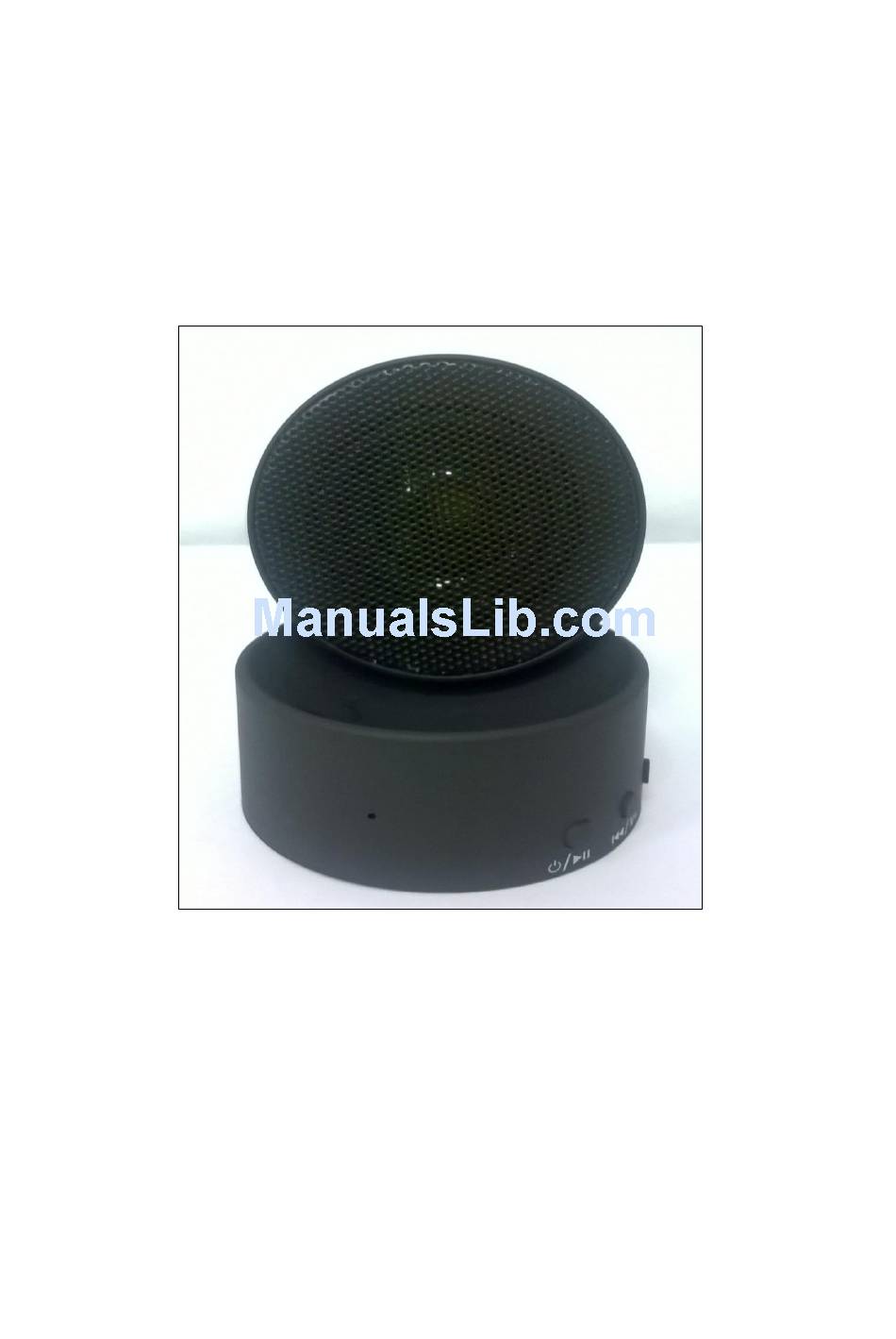

- Page 3 Headset hole MICRO MFB/multi-fu Sound +/previous charging socket nctional keys song key Sound -/next song key • Please make sure that your acoustic equipment is provided with the following items: one (1) unit of acoustic equipment, charging data line with the convertibility from USB 2.0 to micro USB, instruction manual.
-
Page 4: Bluetooth Pairing
{2} Bluetooth will search the pairing state (alternate flashing of red/blue lights) {3}If the paired devices have been found, the name will be WL-A106 {4} After the connection is successful, you will hear the default (the beep sound of prompt tone) and the blue light flashes, while the red light is out;... - Page 5 {1}■play/pause Press MFB key for once to play music, and pause the music if MFB is pressed once again. {2}■Previous song /next song Press the previous song/volume + key at a time, you can go back or return to the previous music.
-
Page 6: Safety Information
Safety information Note: please carefully read this information before using the acoustic equipment. • To ensure your personal safety, please do not wear or place the acoustic equipment at the location which is too near to the cardiac pacemaker. • Please do not insert the USB plug into the power socket. •... - Page 7 changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
