18 in./24 in. vent-free gas log
Hide thumbs
Table of Contents

Advertisement

Quick Links

WARNING: This appliance
is equipped for (Natural and
Propane) gas. Field conver-
sion is not permitted other
than between natural or pro-
pane gases.
WARNING: IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED
EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY
DAMAGE, PERSONAL INJURY, OR LOSS OF LIFE.
-- Do not store or use gasoline or other flammable vapors and liquids in vicinity
of this or any other appliance.

WHAT TO DO IF YOU SMELL GAS

Do not try to light any appliance.
Do not touch any electrical switch; do not use any phone in your building.
Immediately call your gas supplier from a neighbor's phone. Follow the
gas supplier's instructions.
If you cannot reach your gas supplier, call the fire department.
-- Installation and service must be performed by a qualified installer, service
agency or the gas supplier.
This is an unvented gas-fired heater. It uses air (oxygen) from the room in which it is
installed. Provisions for adequate combustion and ventilation air must be provided.
Refer to Air For Combustion and Ventilation section on page 8 of this manual.
INSTALLER: DO NO DISCARD THIS MANUAL – LEAVE FOR HOMEOWNER'S
FUTURE REFERENCE
This appliance may be installed in an aftermarket, permanently located manufactured
(mobile) home, where not prohibited by local codes. This appliance is for use with
the type of gas indicated on the rating plate only. This appliance is not convertible for
use with other gases.
Questions about installation, operation, or troubleshooting? Before
returning to your retailer, contact our customer service department at
 -866-573-0674, 8:00 a.m.- 4:30 p.m., EST, Monday-Friday, or e-mail
customerservice@usaprocom.com.

CAUTION - FOR YOUR SAFETY


VENT-FREE GAS LOG
MODEL NO.
ITEM NO.
SSD18TB
049699
SSD24TA
049801
SSD24TR
050092
SSD30TR
050409
LS-WYL060-0-0805

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SSD18TB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Style selections SSD18TB

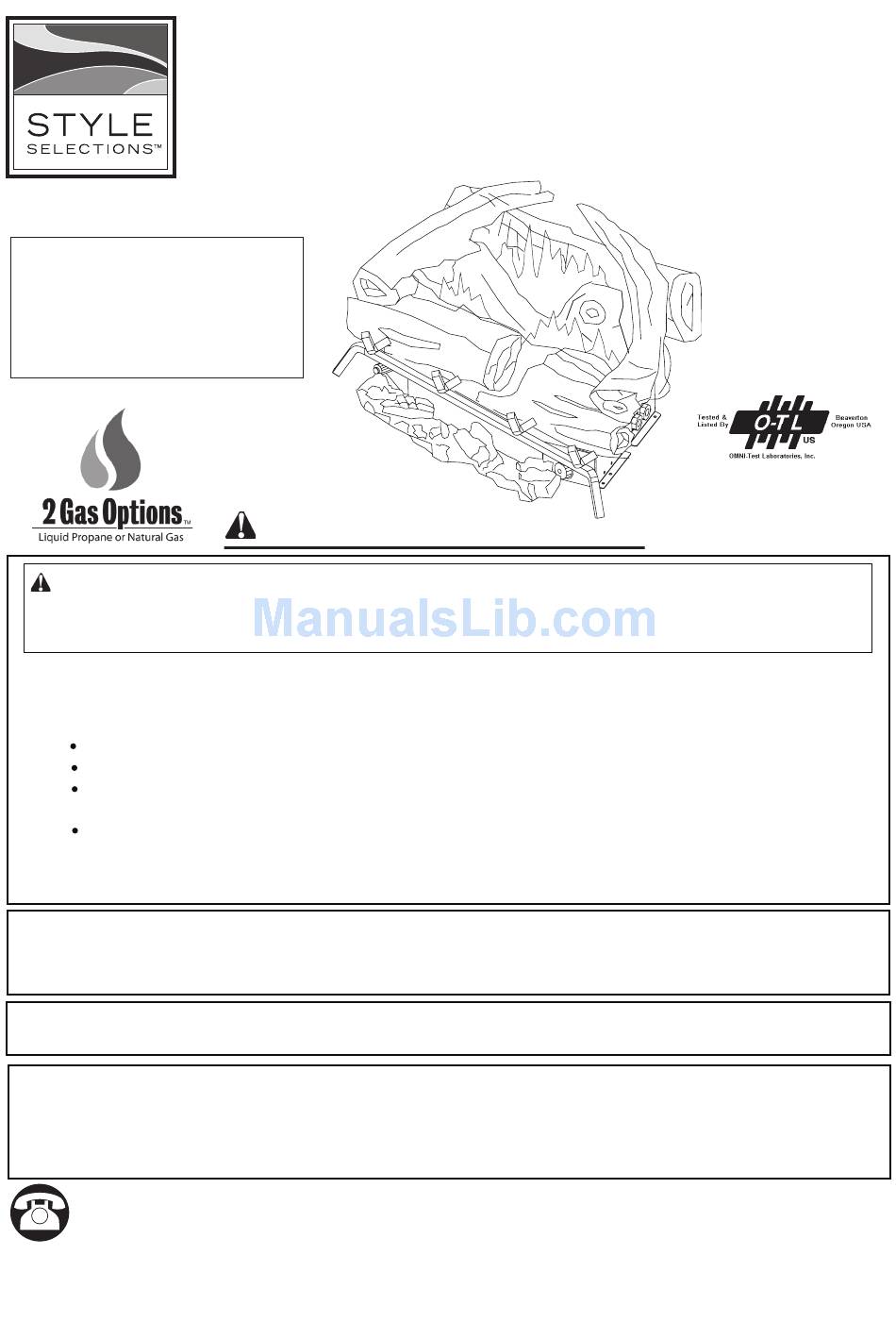

  • Page 1 VENT-FREE GAS LOG MODEL NO. ITEM NO. SSD18TB 049699 SSD24TA 049801 SSD24TR 050092 SSD30TR 050409 WARNING: This appliance is equipped for (Natural and Propane) gas. Field conver- sion is not permitted other than between natural or pro- pane gases. CAUTION - FOR YOUR SAFETY...
