Summary of Contents for W Audio RM 05 MKII

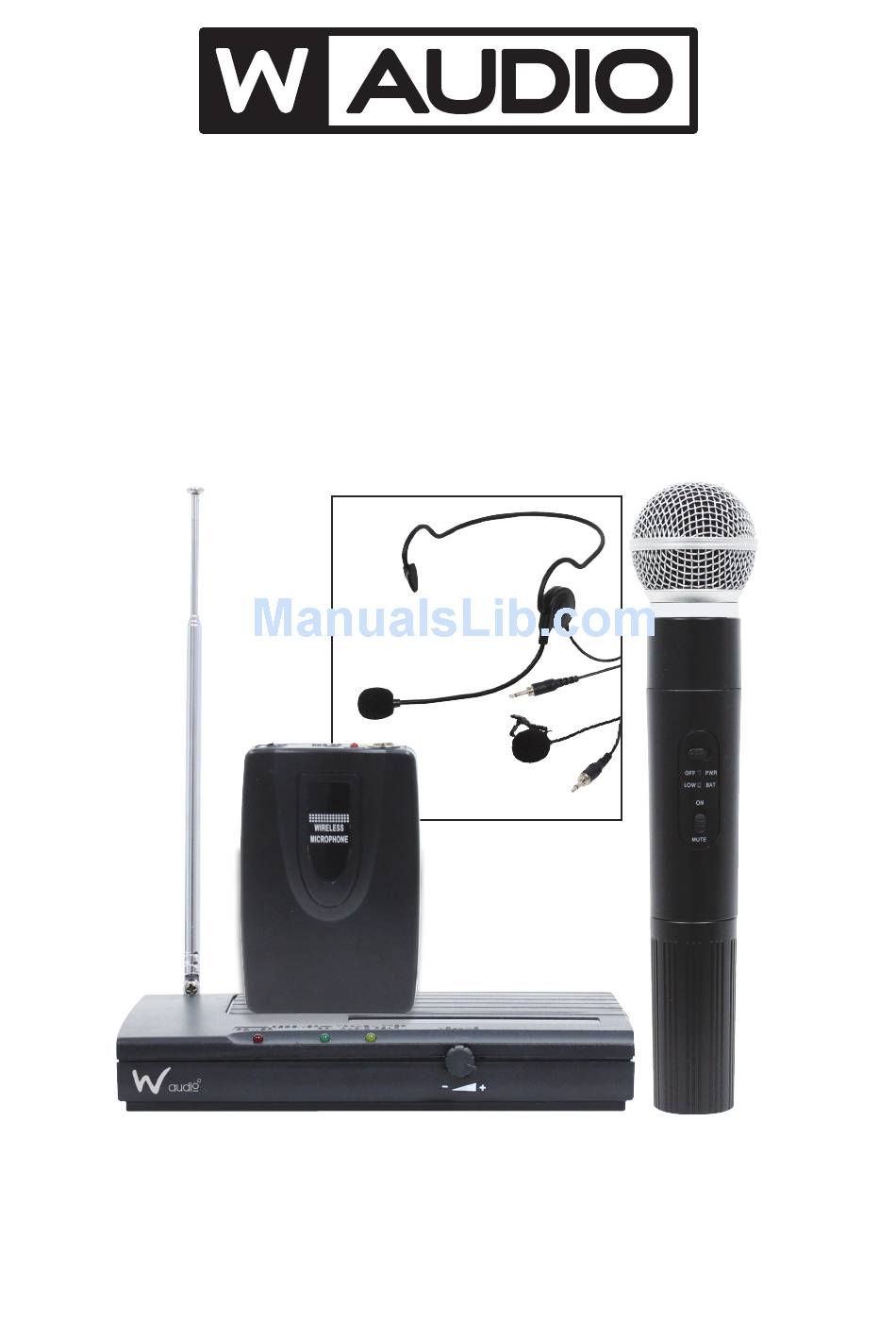

- Page 1 RM 05 VHF Radio Microphone System MKII User Manual Order codes: MIC60 - 173.8Mhz MIC61 - 175.0Mhz...
- Page 2 • Repairs, servicing and power connection must only be equipment is not in use or before cleaning! Only handle carried out by a qualified technician. THIS UNIT CONTAINS the power-cable by the plug. Never pull out the plug by NO USER SERVICEABLE PARTS. pulling the power-cable. • This fixture is for professional use only - it is not designed • Make sure that the available voltage 9-15V DC, 300mA. for or suitable for household use. The product must be (240V AC~50Hz power supply included) installed by a qualified technician in accordance with local territory regulations. The safety of the installation is the • Make sure that the power cable is never crimped or responsibility of the installer. The fixture presents risks of damaged. Check the equipment and the power cable severe injury or death due to fire hazards, electric shock periodically. and falls. • If the equipment is dropped or damaged, disconnect the • WARRANTY: One year from date of purchase. mains power supply immediately and have a qualified engineer inspect the equipment before operating again. OPERATING DETERMINATIONS If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. In case of malfunction this unit should be returned for service or inspection. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk RM 05 MKII User Manual...
- Page 3 1 x headset microphone Operating frequency 173.8Mhz 175.0Mhz 1 x lavalier microphone, Power supply DC 12-15V, 500mA (adaptor supplied) 1 x PSU, 1 x audio lead, System in case dimensions 310 x 430 x 100mm 1 x carry case System in case weight 1.4kg & 1 x user manual Order code MIC60 MIC61 www.prolight.co.uk RM 05 MKII User Manual...
-
Page 4: Operating Instructions
Operating instructions Receiver panel identification: 1. Telescopic antenna: The telescopic antenna receives the RF radio signal from the transmitter unit. For optimum reception, extend the antenna fully and orientate vertically. Reception maybe impaired by obstacles between the transmitter and receiver. High power electrical equipment can cause unwanted interference. 2. DC power input: The receiver is powered by a standard DC power input 9-15V DC, 300mA regulated voltage supply. 3. Audio output: 6.35mm (1/4”) jack socket outputting an unbalanced, 400mV line level audio output. 4. Power indicator: The LED power indicator will illuminate red when the receiver is powered on. 5. RF signal indicator: The LED RF Signal indicator will illuminate green when the receiver unit receives a valid RF radio signal 6. Audio peak indicator: The LED Audio Peak indicator will illuminate amber to show when the audio signal received by the receiver is reaching the maximum level. Use the volume controls on the transmitter and receiver to reduce the audio signal level. 7. Volume control: The receivers output volume is adjustable. Turn the level control anti clockwise to the lowest setting, or turn clockwise to adjust to the highest setting. www.prolight.co.uk RM 05 MKII User Manual... - Page 5 Operating instructions Handheld transmitter Beltpack transmitter identification: identification: 1. Audio input connector 1. Grille 2. Low power indicator 2. Power switch 3. Power switch 3. Power indicator 4. Volume knob 4. Battery status indicator 5. Battery house 5. Mute switch 6. Belt clip 6. Battery cover www.prolight.co.uk RM 05 MKII User Manual...
- Page 6 Operating instructions Operation: • Carefully, lift the antenna into the vertical position and extend fully. • Connect the included power supply to a suitable 240V AC~ 50Hz mains voltage outlet and plug the DC connector into the DC Power Input on the rear panel of the receiver (9-15V DC, 300mA minimum) • Using the supplied audio cable, connect the Audio Out on the rear panel of the receiver to the mixer’s audio line input. • Switch on the power, checking the red power LED illuminates. • Open the battery compartment on the transmitter (Beltpack – slide downwards away from the belt clip. Handheld - unscrew the lower portion). Install the appropriate batteries into the transmitter, taking care to observe the orientation and polarity. Only use high quality, alkaline type batteries. Refit the battery compartment cover carefully. • Switch on the transmitter, during switch on the battery light on the transmitter should come on. If the transmitter is low on battery the green light illuminates permanently and the battery will require replacement. • Adjust the volume on the front panel of the receiver and if required also adjust the volume on the belt pack. NOTE: The RM 05 MKII system is shipped with two transmitters (one handheld and one beltpack). The receiver in this system may only be used with one transmitter at any one time. If the user attempts to power on, and use two transmitters with one receiver the system will malfunction and not operate correctly as one transmitter will cut out the RF Radio signal to the second transmitter. www.prolight.co.uk RM 05 MKII User Manual...
- Page 7 WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk RM 05 MKII User Manual...
- Page 8 RM 05 MKII User Manual...
