  • Page 1 Release Date:2008/06/05 (Draft Only)

  • Page 2: Main Menu Operation

    MAIN MENU Operation BUTTON FUNCTION DESCRIPTION When the XM2000 Module is connected to the head unit, pressing will go into XM mode ， When the Sirius SC-C1 Module is connected to the Head Unit ， then pressing will go into SIRIUS mode. Pressing will go into NAVI mode.
  • Page 3 Pressing will go into iPod mode Bluetooth menu 10. Pressing will open 11. Pressing will view the Camera imag 12. Pressing will go into AUX IN 1 mode 13. Pressing will go into AUX IN 2 mode 14. Pressing will go into System Setup menu...
  • Page 4 HDRadio (FM/AM) Operation BUTTON FUNCTION DESCRIPTION Current Source information. Touch to return to MAIN menu. Radio Frequency Indicator HD Radio Logo: Show this Logo when find HD Radio Signal. Touch to change among AM/FM. Auto Store/Preset Scan. Scan all channel. HD seek down.
  • Page 5 11. Information of the channel the playing back currently .You can touch to change their items among ROGRAM ,TITLE ,ARTIST ,GENRE and COMMENT. 12. Touch to show function button. 13. Touch to seek backward 14. Touch to seek forward. 15. Touch to tune backward one step. 16.
  • Page 6 Using Preset Stations 15 numbered preset buttons store and recall stations for each band. First 5 stored stations (P1-P5) for the current band appear on the screen, touch the channel directly to select. You can touch the arrow buttons on the screen to see the other 10 preset stations.

  • Page 7: Dvd Player Operation

    DVD Player Operation DVD Mode The Unit will auto switch to DVD mode when a disc is inserted. Or press the DVD button on the front panel or DVD ICON on the MAIN MENU BUTTON FUNCTION DESCRIPTION Touch to access Main Menu. Touch to switch among LEFT, RIGHT, STEREO.
  • Page 8 Controlling Playback Stopping Playback Touch the stop button on the screen or press the ( ) button on the remote control to stop DVD play and touch the play/pause button on the screen or the (OK) button on the remote control to resume disc play. Pausing Playback Touch the play/pause button on the screen to suspend or resume disc play.
  • Page 9 • For DVD mode, you can choose Time or Title/ Chapter search. • For CD mode, press the“-/--”button to choose between Track Search ,Disc Search and Exit. DVD Search Time --- Go to specific time in current title Title/Chapter ----Go to specific chapter in a title. --- / --- 3.
  • Page 10 If you are watching a disc recorded in multiple languages, press the (AUDIO) button on the remote control to choose a language. You also can touch the area E, and then touch the button. NOTE: During CD playback, press the (AUDIO) button on the remote control to choose between Left Channel, Right Channel, and Stereo.
  • Page 11 General Disc Information Symbol 12cm Disc Properties Max Play Time (MPEG 2 Method) Single side single layer (DVD-5) 133 minutes Single side double layer (DVD-9) 242 minutes Double side single layer (DVD-10) 266 minutes Double side double layer (DVD-18) 484 minutes (MPEG 1 Method) Single side single layer (VCD) 74 minutes...

  • Page 12: Cd/Mp3/Wma Operation

    CD/MP3/WMA Operation BUTTON FUNCTION DESCRIPTION 16. Touch to display the numeric keypad on the screen, and then you can use the numeric keypad to access a track directly. 17. Touch to repeat playback. 18. Touch to activate/deactivate Random Mode. 19. previous Page 20.
  • Page 13 P3/WMA Discs Press Button on the right Playing MP3/WMA Files After inserting a MP3/WMA disc, files will play in the sequence of the all directory. In playing back, you can press the numeric button on the remote control or touch a track directly to play.
  • Page 14 1. Touch to access Main Menu. 2. Current channel label. 3. Current source name. 4. Information of the channel the playing back currently .You can touch to change their items among CH NAME, CATEGORY , CHAN/CAT. 5. Title of the channel the playing back currently. 6.
  • Page 15 Back Button Press will go back to Main menu, and XM is still running until you select a new source. View all channels available In XM screen press “ALL CHANNEL” will list out all available channels. View all categories available In XM screen press “CATEGORY”...
  • Page 16 SIRUS Operation This function is available when a Sirius Satellite Radio Receiver is connected through the dedicated connection. This unit requires the following receiver: ● SIRIUS Satellite Radio Receiver: SC-C1 Note: SIRIUS satellite radio is a subscription service. Please contact Sirius Radio to begin or alter your subscription: Internet: www.sirius.com Telephone: 888-539-SIRIUS (747487) BUTTON FUNCTION DESCRIPTION...
  • Page 17 1. Touch to access Main Menu. 2. Signal Indicator. 3. SID or Information of the channel the playing back currently .You can touch to change their items among CHAN./CATE , CATEGORY , CHAN.NAME ,ARTIST , TITLE. 4. Previous available channel. 5.
  • Page 18 11. Press “TIME”, and you can select different TIME ZONE and the time will be synchronized from the satellite. PARENT LOCK MODE(NEED INPUT PASSWORD): 12. Previous page. 13. Next page. 14. Lock list. Touch to lock the channel. 15. Touch to go into PARENT LOCK mode, you need to input a correct password.
  • Page 19 16. Press to set the PASSWORD or remove the PASSWORD 17. Set Password 18. Remove password...
  • Page 20 19. Press to display Sirius ID. View all channels available In SIRIUS screen press “ALL CHANNEL” will list out all available channels. View all categories available In SIRIUS screen press “CATEGORY” will list out all available categories. Select a channel directly Press and input the channel number you want and press “OK”.

  • Page 21: Ipod Operation

    3. In Preset list and select the channel you want to delete，then press this channel will be deleted from the Preset List. 4. If you want to replace a current new channel to one of the used Preset List space, you can hold the List and then the old one will be replaced by the new one, and old one will be deleted.
  • Page 22 12. Hide the tool bar. 13. previous Page 14. Volume control 15. Next Page 16. Touch to play previous song. 17. Touch to Play or Pause. 18. Touch to play Next song. 19. Touch to stop playing Accessing the iPod Mode In MAIN MENU and press button on the screen or press “iPod’...

  • Page 23: Bluetooth Operation

    Select the song directly with the Number Key Pad Press and input the song number and press OK. Repeat Play Mode Pressing one time can repeat playing current song ， and pressing twice can repeat playing the songs in current directory. Random Play Mode Pressing can random play the songs in current directory.
  • Page 24 Accessing the Bluetooth Mode In MAIN MENU and press button on the screen to go into Bluetooth mode. Bluetooth User Interface Dial Interface 1. Touch to access Main Menu. 2. Bluetooth Signal Indicator 3. Touch the number to initiate the phone call. 4.
  • Page 25 You can see phone book list, dialed call list, received call list, missed call list. If the number has been stored in the Calling Log， touch the number to initiate the phone call NOTE: Not all Bluetooth supported phones support this feature Answering an incoming call You can answer an incoming call in any source mode.
  • Page 26 1. Touch to play/pause. 2. Touch to play previous. 3. Touch to play Next. NOTE: Not all of the phones support this function。 SD Operation Please insert a SD CARD with songs to the slot of the front panel。 BUTTON FUNCTION DESCRIPTION 1.

  • Page 27: Usb Operation

    9. Show current folder, touch to come back superior folder. 10. Touch to stop 11. Touch to play Next. 12. Touch to play/pause. 13. Touch to play Previous.. USB Operation Please plug in an USB Storage device with songs to the USB port BUTTON FUNCTION DESCRIPTION 1.

  • Page 28: Camera Operation

    6. Touch to activate/deactivate Random Mode. 7. Touch to repeat playback. 8. Touch to display the numeric keypad on the screen, and then you can use the numeric keypad to access a track directly. Select folder and Paly 9. Show current folder, touch to come back superior folder. 10.

  • Page 29: Aux In Operation

    Accessing Camera mode: Press to access Camera mode. Or the car shift is in R state. 1、 Touch to access Main Menu. AUX IN Operation Switching to the AUX IN mode: For your safety,the unit has a safety function which turns off the picture when the Note: car is moving,so only the audio can be heard.The picture can only be watched when the car is stopped and the parking brake is applied.

  • Page 30: Navi Operation

    NAVI Operation Accessing NAVI mode: Press the icon to access NAVI mode. Setup Accessing Setup Mode: Access the MAIN MENU first and then touch the button on the screen to access Setup mode. Setup Interface:...

  • Page 31: Front Panel Button Operation

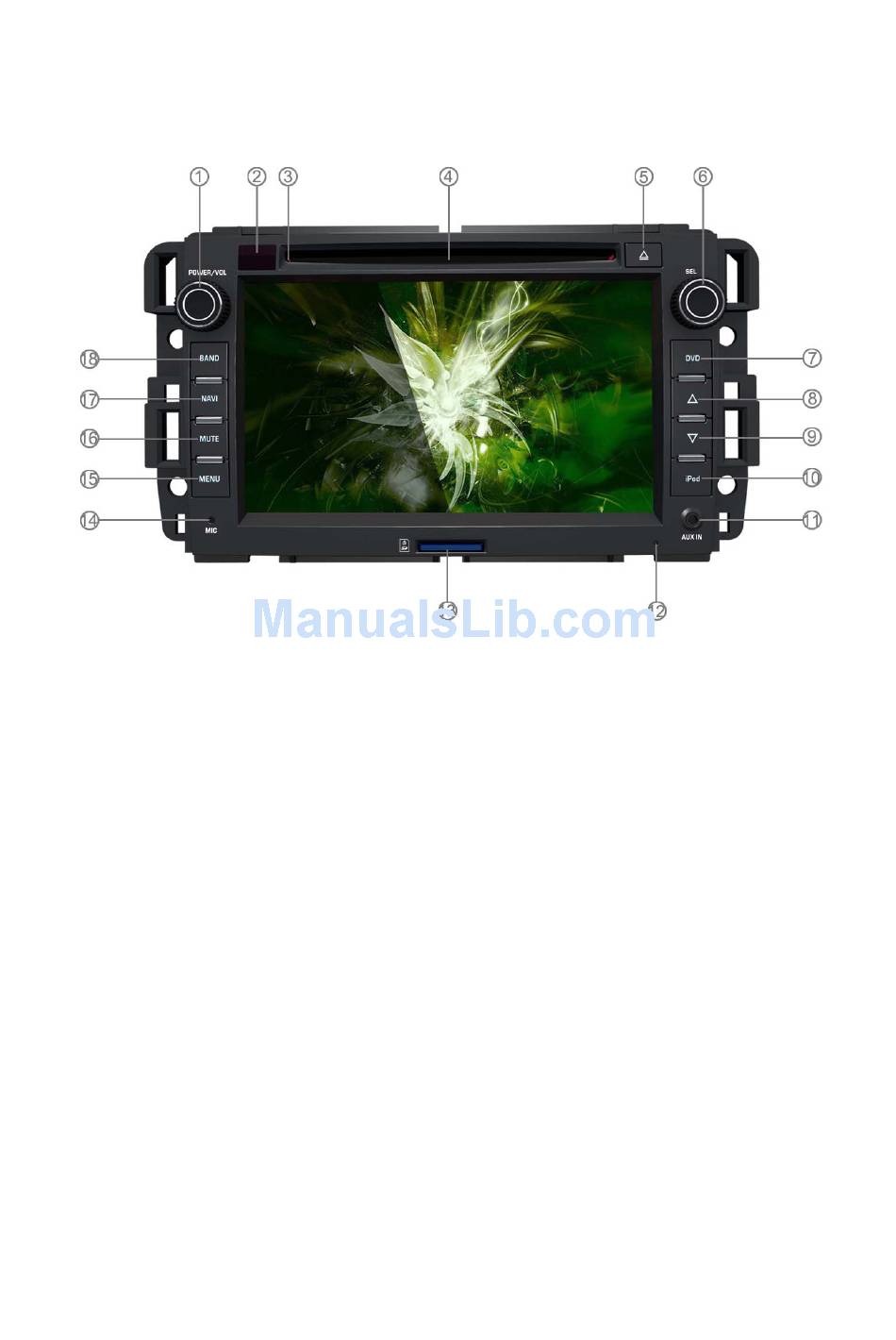

    1. Touch to go back MAIN MENU. 2. Setup category list, touch to show relevant setup items. 3. Setup option touch to select . 4. Touch to show Next Page . 5. Setup Item，touch to show it’s option. Front Panel Button Operation BUTTON FUNCTION DESCRIPTION...
  • Page 32 FCC NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
