Summary of Contents for Ovizee WVS1000
-

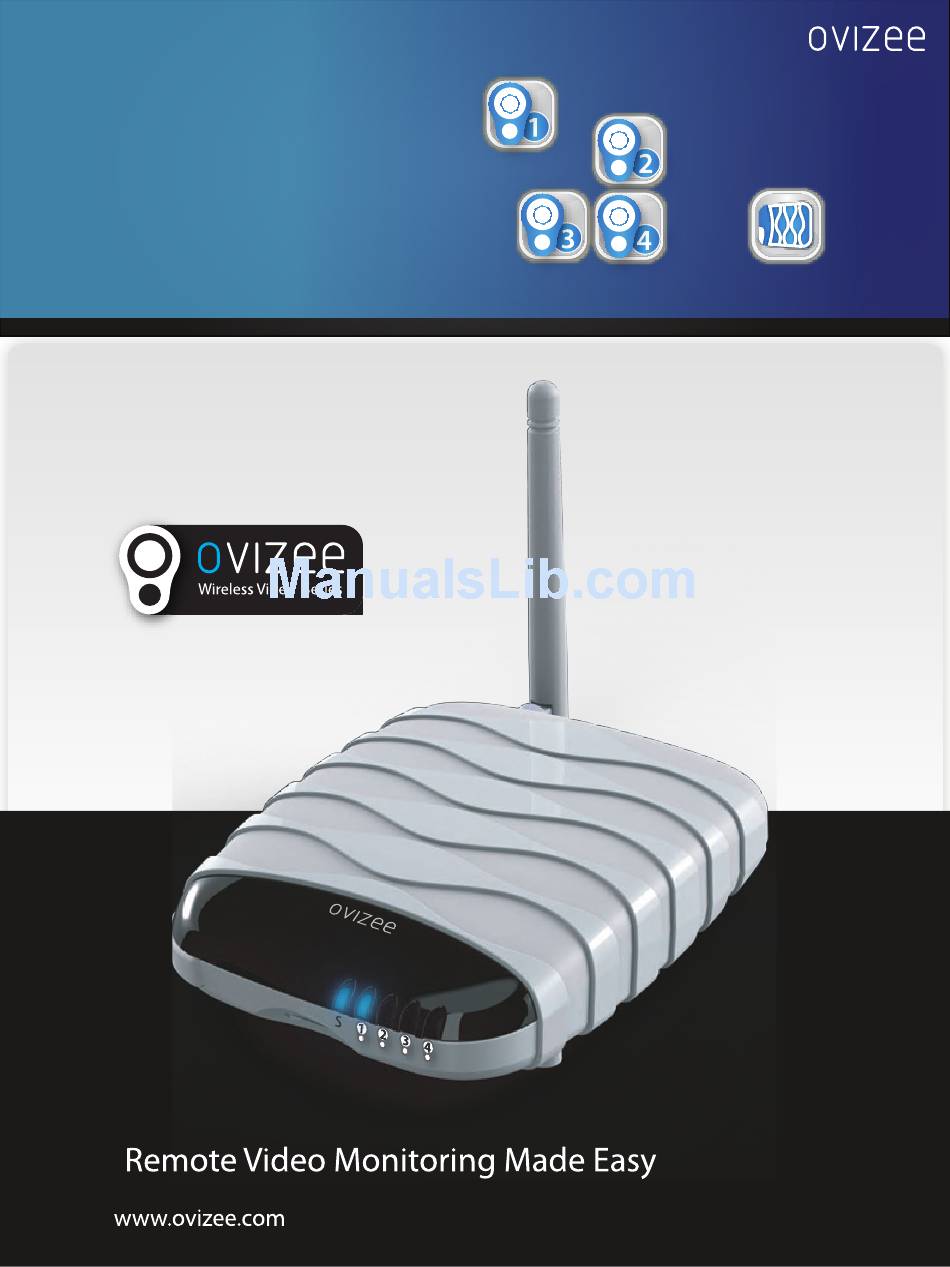

Page 1: User Manual
A dd-on Camer a WVS1000 Camera User manual WVS1000... -
Page 2: Charging The Camera
Ad d-o n Cam era WVS1000 Camera User manual Skypegateway Before you install the camera, carefully plan where and how it will be positioned, and where you will route the cable that connects the camera to the power adaptor. Avoid installing in a location which requires the wireless signal to pass through cement, concrete and metal structures. -
Page 3: Hardware Setup Procedure
If the device is setup properly, all the LED's in the front panel will light up; and the two LED's at the RJ45 socket will flash. WVS1000 will get an IP address from the connected network and will connect to Skype automatically (if default account is set for the device) . -
Page 4: Software Setup Procedure
A dd-o n Camera WVS1000 User manual 2. Software Setup Procedure Install the PC application for the WVS1000 (support Windows XP, Vista, 7) 2.1.1 Insert the install disk and double-click the setup.exe. Follow all the instruction in the installation procedure. - Page 5 A dd-o n Camera WVS1000 User manual 2. Software Setup Procedure The following shows completion of installation.
- Page 6 WVS1000 2. Software Setup Procedure 2.2 Skype 2.2.1 Create a default skype account for WVS1000 (assume “WVS1000username” as the skype name for this guide) Run local Skype application, logout any existing account if it is online. Click to create account 2.2.2 Login with “WVS1000username”...
- Page 7 2.2.3 Add a contact to the default skype account. you can add your personal Skype account into the contact list The added users will be able to connect to the WVS1000 for video stream! User manual After adding user contact,...
- Page 8 Windows, please go to Appendix A. Check if Upnp is running before proceeding) In Windows XP Double-click the icons to go into configuration website. Ovizee In Windows Vista Ovizee In Windows 7 Ovizee Double-click the “WVS1000” icon to pop up an internal webpage. Ovizee...
- Page 9 2.3.2 During the initial setup, select an appropriate time zone and click Next. Double-click the icons to go into configuration website. 2.3.3 If you have an existing Skype account for WVS1000, (following the steps in section 2.2.1), enter the corresponding information here, then click Next.
- Page 10 2. Software Setup Procedure 2.3 OVIZEE WVS1000 2.3.4 Fill in all the information to create a new Skype account for WVS1000. 2.3.5 When a valid Skype account was assigned to WVS1000, you may now check and adjust its online status.
-
Page 11: General Operations
3.1 Connect to WVS1000 a. Start Skype in your PC/notebook; b. If your WVS1000 is powered up and connected to the Internet properly, you should be able to your WVS1000 online with its assigned skype name; c. As making a normal skype voice/video call, click your WVS1000 on the left to select it and click the Call button or the Video Call button to make a skype call to WVS1000 as below;... - Page 12 Click “Allow access” to grant the access right to PandaVideo and it then minimizes in the system tray as below: i. Whenever your PC/notebook is powered up, PandaVideo will automatically start; j. Double-click the PandaVideo icon to maximize it as shown below: Right now, you are ready to use WVS1000.
- Page 13 A dd-o n Camera WVS1000 User manual Camera Skypegateway 3. General Operations 3.1.1 Status of button when a Skype Call is made to WVS1000 Cam 1 is active (current live video is streaming from camera1) Online status: GREEN Cams 2, 3, & 4 online;...
- Page 14 RED circle. The checkboxes are for selecting/unselecting the user’s WVS1000 accounts in his/her contact list. (It supports at most 4 WVS1000 accounts.) For those WVS1000 that are not selected in the list, the button in the application will be disabled automatically.
- Page 15 Cam1,2,3 are online here. Cam2 or Cam3 can be selected to be active for receiving its stream live video. The user’s WVS1000 will automatically switch to stream live video from Cam 2 or Cam3 if its button is pressed. Click the button in...
- Page 16 Add-on Camera Skypegateway User manual Camera Skypegateway 3. General Operations 3.4 How to pair a camera Turn off the camera and turn on again. After 3 seconds, After Click the Click the button pairing is button in in the RED circle done, to select Cam4 Cam4 will...
- Page 17 A dd-on Ca mera WVS1000 User manual Camera Skypegateway 3. General Operations 3.5 How to access the mute function Click the button in the RED circle to toggle the mute state ON/OFF.
- Page 18 WVS1000 User manual Appendix A. If Ovizee WVS1000 is connected to the internet, Ovizee device icon will show up in the My Network Place. If this icon is not existed, please enable the Upnp service in the following: Enable UPnP service in windows XP.
- Page 19 A dd-o n Camera WVS1000 User manual • Follow the instructions that appear on the screen to complete the installation. Or, if you did not make any changes, close the Add or Remove Programs windows and Control Panel. • Start the Services MMC snap-in. To do this, click Start, click Run, type services.msc, and then click OK.
-
Page 20: Basic Setup
Ad d-on Camera WVS1000 User manual Basic Setup I. Hardware Specification This section provides information of the specification for the product: WVS1000 1. RJ45 10/100 Mbps Ethernet port for internet connection a) Support DHCP client and statics IP 2. Power On and Reset buttons 3. - Page 21 Ad d-on Camera WVS1000 User manual Software Features Summary Item Description Skype Clients Skype 5.1 for Windows or later, Skype 5.0 Beta for Mac OS X or later Cameras Support up to 4 Wireless Cameras Video Resolutions VGA (640x480), QVGA (320x480),...
-
Page 22: Disposal Of The Device (Environment)
Ad d-on Camera WVS1000 User manual WARNING Disposal of the device (Environment) by the party responsible for compliance could void the user’s authority At the end of the product lifecycle, you should not to operate the equipment. dispose of this product with normal household waste, but... - Page 23 A d d-on Ca m er a version 1.1 WVS1000...
