Precision Lighting Domino Recessed 2 Instruction Manual

instruction manual
Domino Recessed
The Domino Recessed family are recessed
95CRI architectural luminaires that offer a
wide range of optical distributions.
Domino Recessed 1 - 2.2W, 178lm
Domino Recessed 2 - 4.4W, 356lm
Domino Recessed 4 - 8.8W, 712lm
These instructions are
applicable for Domino Recessed 1, 2 and 4
variations.
These luminaires are constant current and
must be connected to an appropriate driver
as recommended by Precision Lighting.

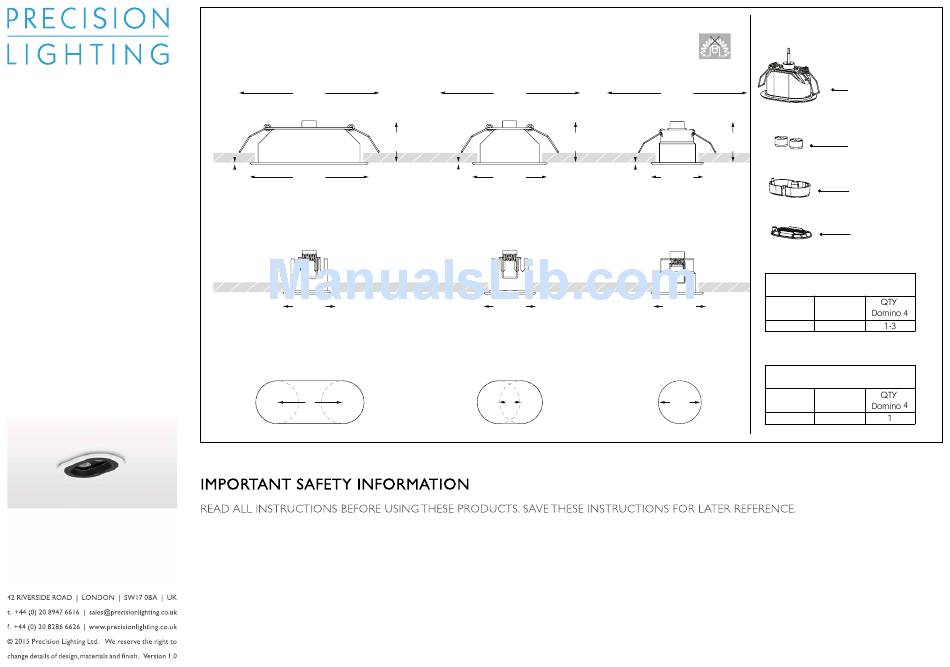

Domino Recessed
Springs parallel
TX-654 Recess Domino 4
Spring maximum extension
165mm
6 1/2"
2mm 119mm
1/16" 4 11/16"
Springs perpendicular
53mm
2 1/16"
Cutout
66 ø44
1. All systems must be installed by a suitably qualified professional only. Installations must conform
to national installation and accident prevention regulations.
2. Do not install any fixture closer than 150mm (6 inches) from any combustible material. Do not
install these products in a damp or wet location.
3. To reduce the risk of fire and burns, do not install these products where exposed bare
conductors can be shorted or contact any conductive materials. Do not conceal or extend
exposed conductors through a building wall.
4. Ensure all connections are tight. Bad connections can cause overheating, arcing and a potential
fire risk.
5. This luminaire must be wired and grounded in accordance with standard accepted electrical
installation practices, local codes and ordinances.
6. Wire supply connections must be made with UL or compatible testing agency approved
TX-652 Recess Domino 2
Spring maximum extension
120mm
4 3/4"
42mm
1 5/8"
2mm 75mm
1/16" 2 15/16"
53mm
2 1/16"
22 ø44
Minimum ceiling void:
20mm / 3/4" above luminaire
TX-651 Recess Domino 1
Spring maximum extension
90mm
3 1/2"
42mm 42mm
1 5/8" 1 5/8"
2mm ø53mm
1/16" 2 1/6"
ø53mm
2 1/6"
REMOTE DRIVER ONLY
ø44
connectors.
7. Ensure the luminaire's Jack Plug is correctly inserted into the selected power system. The Jack Plug
should not be cross threaded and should be fully tightened.
8. Always use appropriate optics and ensure they are fitted securely.
9. Use only as described in this Precision Lighting manual.
10. Use only Precision Lighting recommended accessories.
11. Ensure that the luminaire is switched off at mains supply before installing or removing.
12. Luminaires may be extremely hot, allow to cool before touching.
13. These are 700mA constant current luminaires and must be connected to an appropriate PSU as
recommended by Precision Lighting.
14. Regular cleaning of these products is important. Switch off at mains supply and allow to cool
before cleaning fittings with a microfibre cloth. Then reconnect the power supply.
Component List
Luminaire Module
Optics
Optic Holder
Accessory holder
Relco 30W 700mA 1-10V Dim
PSCC-30-700-A-RE
QTY
QTY
Domino 1 Domino 2
1-12 1-6
Harvard 700mA 14W DALI dim
PSCC-14-700-D-HA
QTY
QTY
Domino 2
Domino 1
3-6 2-3
