User Manual eSkan250

Getting Started

iPulse Department of Development

2013-08-19

Table of Contents

Need help?

Do you have a question about the eSkan250 and is the answer not in the manual?

Questions and answers

Summary of Contents for iPulse eSkan250

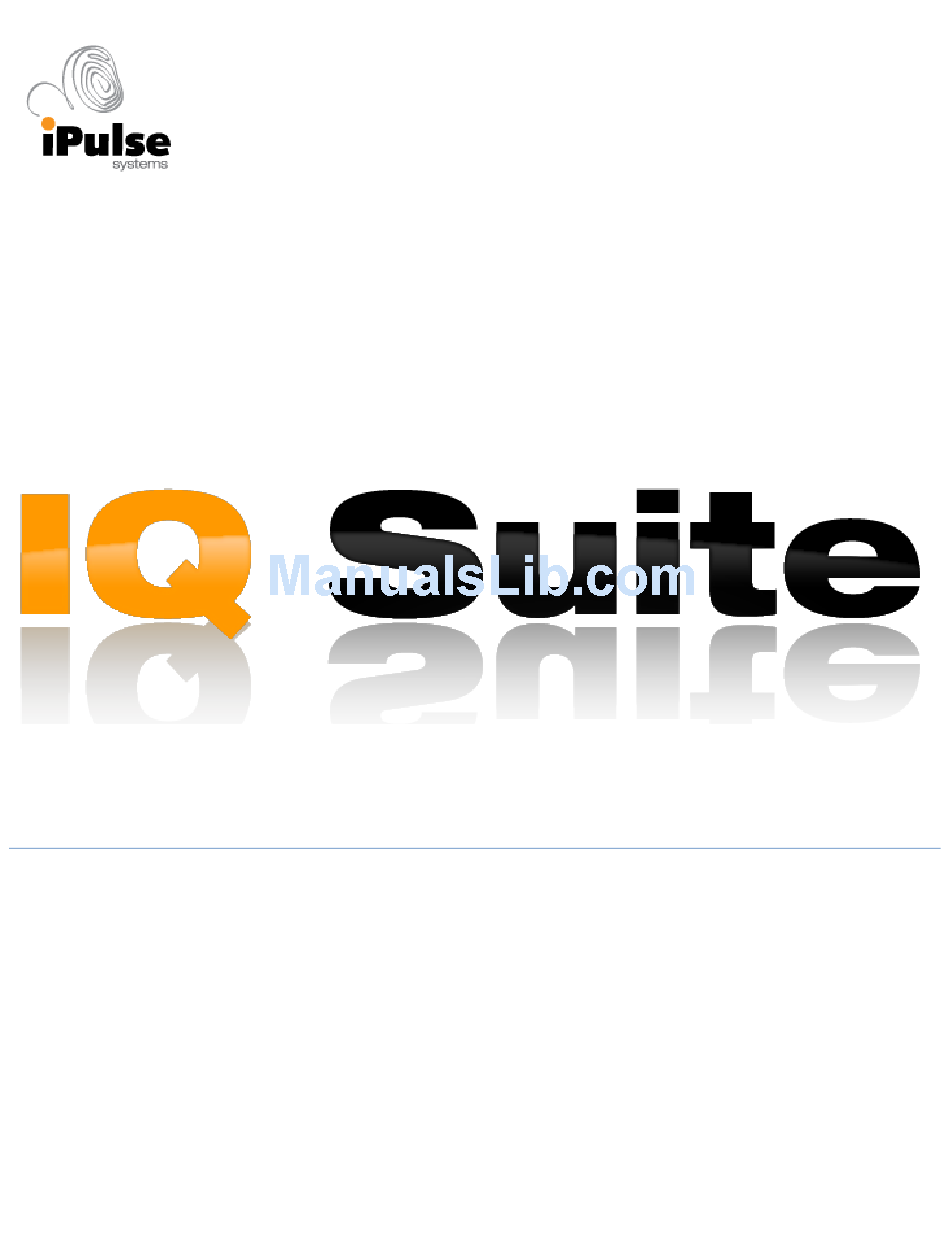

Page 1 User Manual eSkan250 Getting Started iPulse Department of Development 2013-08-19...
Page 2: Table Of Contents
Suite getting started guide Only applicable to eSkan250 - later versions may differ and render this guide inaccurate. For updates, please visit www.ipulse.co.za or mail us: iqsuite@ipulse.co.za Contents UNPACKING AND CHECKING EQUIPMENT ....................3 PC SETUP SOFTWARE ........................... 3 ORIENTATION ..............................4 Top view ................................
Page 3: Unpacking And Checking Equipment
PC is available. You will require a 1A, 5V DC (± 0.2V) charger to charge your eSkan device. PC SETUP SOFTWARE Setting up the PC software falls outside the scope of this document. Please refer to the installation manual on how to install and configure the eSkan and PC software. © 2013 iPulse Systems Page 3...
Page 4: Orientation
This button is used to indicate the end of a transaction. Typically when you have finished scanning a vehicle (and its occupants) you would press the finish button and proceed to the next vehicle. © 2013 iPulse Systems Page 4...
Page 5 Right scan button (scroll up button) Momentarily press and release this button to scan a barcode. Release the button when an audible beep is heard. In scan mode this button has the same function as the left scan key. © 2013 iPulse Systems Page 5...
Page 6: Bottom View
Bottom view Unit serial number Each scanner has a unique serial number. The first number after the eID indicate USB(1) or WI-FI(2) © 2013 iPulse Systems Page 6...
Page 7: Display
- Small square colon: WI-FI radio found router and is searching for an IP address. - Antenna: WI-FI radio is connected to router and IP address was allocated. - Lightning: Scanner is connected to the server and is uploading data. © 2013 iPulse Systems Page 7...
Page 8 The scanner clock is synchronized with the server every time it connects to the server via USB or when uploading data over the Wi-Fi network. An internal battery will keep the scanner’s clock up to date for months without the need to be connected to the server. © 2013 iPulse Systems Page 8...
Page 9: Basic Operations
BASIC OPERATIONS The primary function of the eSkan250 is to decode and decrypt the South African drivers and vehicle license in an off-line mode without the need to be connected to a remote database. The decoded and decrypted information obtained from the scanned barcode will then briefly be displayed on the scanner display.
Page 10: Barcode Scanning
The minimum distance to decode a barcode is when the license is inserted in the magnetic stripe slot. The maximum distance is 5cm from the scanner. Minimum scan distance Maximum scan distance © 2013 iPulse Systems Page...
Page 11: Procedure
At any time press the yellow button to continue scanning, no need to be in the main menu. Data uploading With an eSkan250, as soon as data is stored in memory the WIFI will start uploading files to the server in the back ground. No user intervention required to start the upload process. The eSkan250 will also upload data via USB if it is connected to a PC.
Page 12: Uploading Data
Note that the scanner will switch off the WI-FI after 30 seconds if no files need to be uploaded. On the next scan, the Wi-Fi will immediately turned on again. This is to preserve the battery life. © 2013 iPulse Systems Page...
Page 13: Pop-Ups
The operator can move or resize the popup and the settings will be stored once closing the popup. The next popup will be the size and location of the last popup that was closed by the operator. © 2013 iPulse Systems Page...
