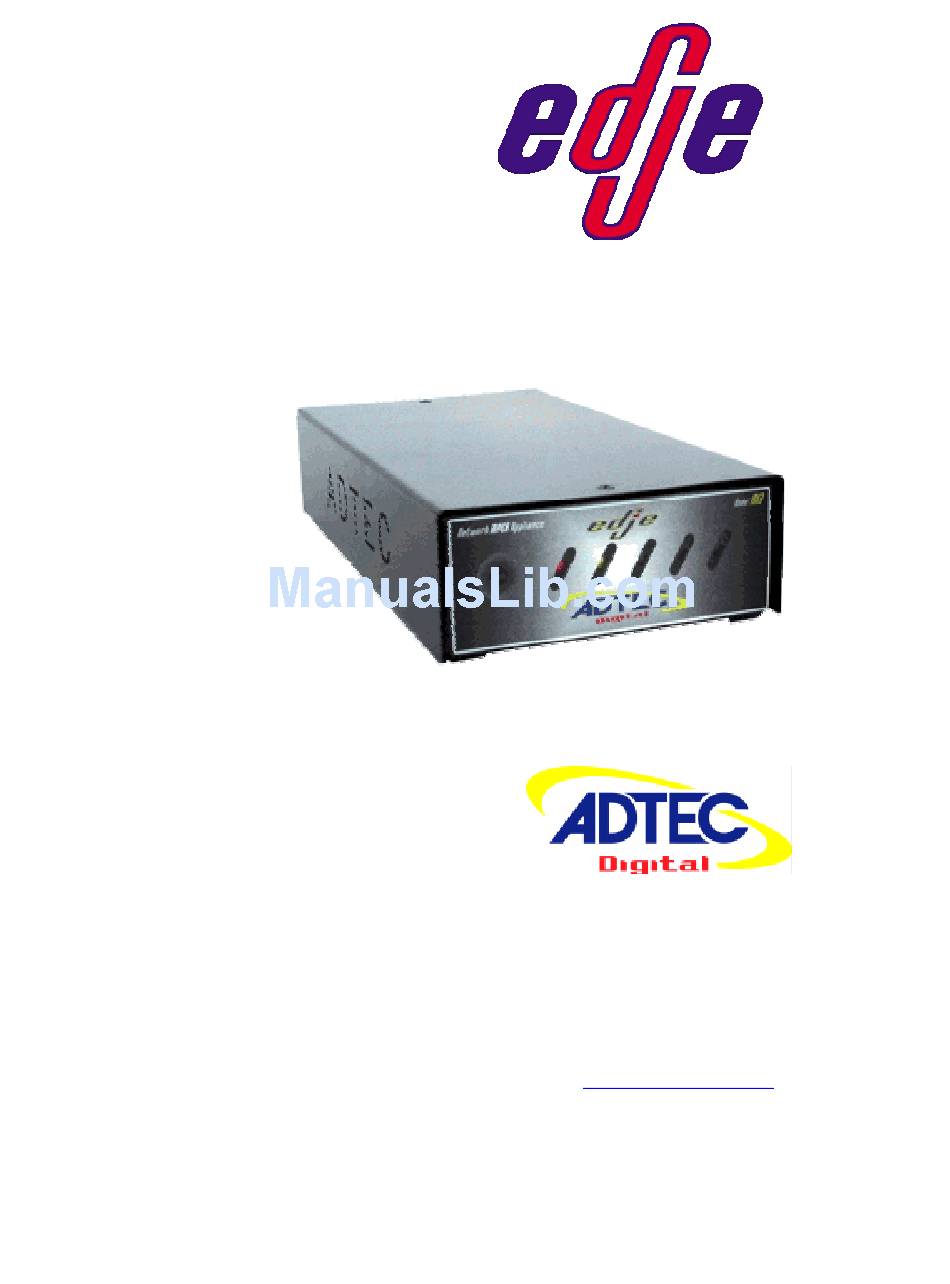

- Page 1 MPEG Player and Network Appliance CAT-005-H1.1 Adtec Digital 408 Russell Street Nashville, TN 37206 www.adtecinc.com 615-256-6619 615-256-7593 Fax...
- Page 2 IP based streams. The analog outputs are intended to feed video monitors, plasma screens, projectors or any other analog display device. The IP streams are intended to be Uni-cast or Multi-cast to additional Edje devices or PC client software across a LAN or WAN.
- Page 3 Version 1.0 Edje rear view Ethernet YC (Video) Parallel Control IO RS232 OUT RS232 IN Table 1.1 Edje Rear View Connector Description Ethernet RJ-45 10 Base T YC Video Output Parallel control port. RS-232 communications port THRU. (Unlimited loop-through capabilities) RS-232 communications port IN.
- Page 4 Version 1.0 Physical Concerns Non Rack Mount Applications: There are no physical orientation concerns when placing the Edje on a desk or tabletop. The edje is designed to run in 90-degree Fahrenheit (32 Celsius) Non- condensing 70% relative humidity ambient conditions.
- Page 5 Hard Drive Concerns Internal Drive(s): The Edje ships with a 10 GB internal shock mounted hard drive. Optionally, the Edje can be ordered without the hard drive for IP stream decoding applications. Do not replace the factory installed hard drive. Its design is specific to the factory provided drive;...
