Summary of Contents for SLaudiolab SRS-200BD

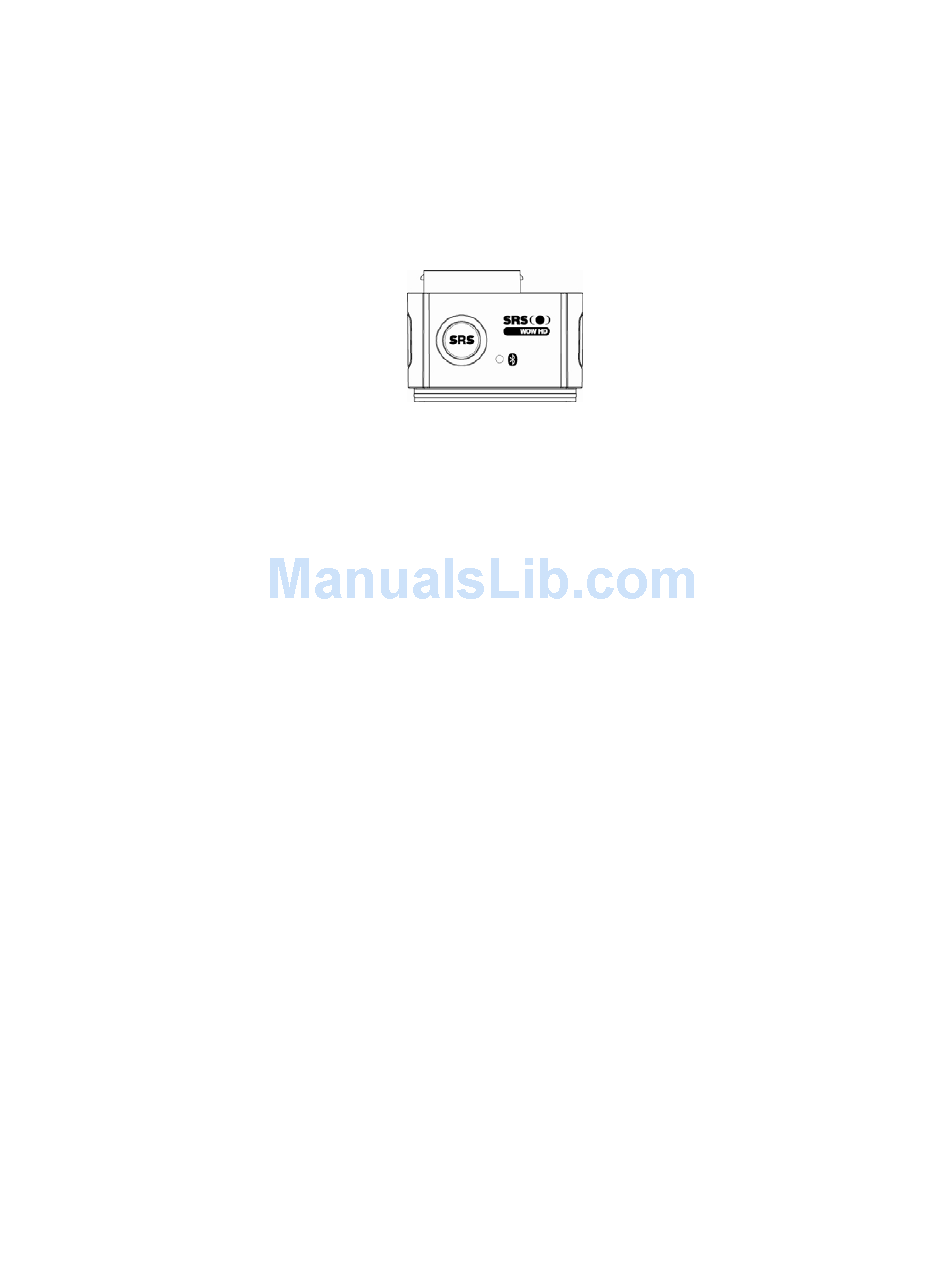

- Page 1 SRS-200BD User’s Manual (Bluetooth iPod dongle)
-
Page 2: Safety Notices
Safety Notices Prior to use, please read iPod dongle user’s manual carefully for their instructions and notices and use it appropriately. Please follow the instructions faithfully since they are to prevent user’s risks and property damages. Warnings Please don’t damage the headset with a sharp object (such as nail, knife and scissors). - Page 3 Please don’t use iPod dongle headset while you are driving. If its use is inevitable, please follow the related laws and regulations and make your conversation as short as possible. If you listen to music with a high volume for a long period of time, it may damage your hearing.
-
Page 4: Table Of Contents
Table of Contents Safety Notices .............2 Warnings .............. 2 Cautions ............... 2 Introduction............5 Package ..............5 Features ..............6 Before Starting to Use ......... 7 Preparations ............7 Attaching / Detaching iPod dongle ....... 7 Attaching / Detaching the Dongle cover of iPod nano ............. -
Page 5: Introduction
Introduction iPod dongle, as an iPod dongle developed while using the Bluetooth technology, has the following primary features. Transmission of wireless stereo sound Support Wireless remote control function SRS sound effect Package Body Dongle cover for 1G/ 2G iPod nano A part or whole of components shall be changed without notice for performance and... -
Page 6: Features
Features iPod Connector Release Button SRS Sound Effect Button SRS Operation Indicator LED Bluetooth Operation Status LED Dongle cover for 1G/2G iPod nano... -
Page 7: Before Starting To Use
Before Starting to Use Preparations Please read usage instructions and notices carefully and then, proceed with its use. iPod dongle may be used commonly for iPod 3G, 4G, 5G, 5.5G, iPod mini/ 1G/2G and nano 1G/2G. Attaching / Detaching iPod dongle Connect iPod body and dongle as shown on the figure. -
Page 8: Usage
Usage 1. Attach or detach the dongle cover whether or not to use on iPod mini or iPod nano. 2. Please switch the Bluetooth stereo headset/speaker to the registration standby status. (Please refer to the user’s manual for the Bluetooth stereo headset/speaker.) 3. -
Page 9: Using Srs 3D Sound Effect
Using SRS 3D Sound Effect iPod dongle facilitates the function of SRS 3D sound effect. You can use the SRS 3D sound effect to enjoy a high quality 3D sound. Please push the SRS button. At this time, the SRS operation indication LED will be turned red and you can enjoy SRS 3D sound effect. - Page 10 Re-connection Function * Since iPod dongle saves the device information that has been connected previously, it can automatically connect the device connected just before. * When headset and iPod dongle are disconnected, push the SRS button for 2 seconds or more to make an automatic connection with the previously connected headset.
-
Page 11: Specifications
Specifications Specification Description Product Name Radio Device for Radio data communication System (SRS-200BD) Authentication Number FCC ID : U6KSRS200BDA MIC : SLA-SRS-200BD CE0678 Bluetooth Specification Version 2.0 Supported Bluetooth Audio transmission profile(A2DP), Profile Remote control profile(AVRCP) Frequency Range 2.402 ~ 2.480 GHz Transmission Output 0.1mW ~ 2.5mW... -
Page 12: Troubleshooting
Troubleshooting Problem Action The operation status If the operation status LED is not LED is not turned on. responding even after connecting iPod and iPod dongle, it may be due to the discharge of battery. Use iPod after fully charging it. Device registration Set the Bluetooth headset or speaker to can not be done. -
Page 13: Led Status Indication
LED Status Indication Bluetooth Status LED Indication Connection Standby The Blue LED blinks every 3 second. Pairing Mode The Blue LED blinks every 0.2 second. Connecting The Blue LED blinks every 5 second. Successful Connection, The Blue LED blinks every 5 seconds. Connection Maintenance SRS Sound Effect Off The Red LED is turned off. -
Page 14: Quality Warranty
SLaudiolab assures this product as shown below according to the following compensation rules and regulations. - Page 15 (within the parts retention period) 10% to the amount. When replacement is not possible. Refund Product Bluetooth iPod dongle Model SRS-200BS Serial No Date of Purchase Name Customer Name Agent SLaudiolab Co., Ltd. 6F Won-il Bldg, #57-30 Nonhyun-Dong, Gangnam-Gu, Seoul...
-
Page 16: For Ce Marking
For CE Marking Declaration of conformity We, SLaudiolab Of 6F Won-il Bldg, #57-30 Nonhyun-Dong Gangnam-Gu, Seoul, Korea Declare under our sole responsibility that our product SLaudiolab type SRS-200BD To which this declaration relates is in conformity with the Appropriate standards EN 300 328, EN 301 489-1,... -
Page 17: For Fcc
Caution: Changes or modifications not expressly approved by SLaudiolab could avoid the user’s authority to operate the equipment. NOTE: FCC Radiation Exposure Statement: This Equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. - Page 18 SLaudiolab Co., Ltd. 6F Won-il Bldg, #57-30 Nonhyun-Dong, Gangnam-Gu, Seoul, Korea TEL: +822-3438-8300, FAX: +822-3438-8400...
