GE Security SuperBus 2000 Installation Instructions

'
*( 6HFXULW\
*(6HFXULW\FRP
Product
Summary
3DUW 1R
Preliminary 3/1/04
The SuperBus 2000 900 MHz RF Transceiver Module is a UL listed device that adds or expands
panel wireless zone capacity. See the specific panel Installation Instructions for complete UL
requirements for the system you are installing.
The transceiver is compatible with all GE Security 900 MHz wireless sensors and touchpads,
and can be located up to 2,800 feet away from the panel (see Table 2). It receives information
from wireless sensors and touchpads then sends the data to the panel via the SuperBus 2000 dig-
ital data bus. It also transmits information to other transceivers. Power for the module is pro-
vided by the panel.
Transceivers are available in 16-zone (-16Z), 32-zone (-32Z), or panel maximum (-MAX) capac-
ities.
The SuperBus 2000 RF Transceiver Module features:
• Compatibility with all GE Security 900 MHz wireless sensors, touchpads, and sirens.
• Backward compatibility with SuperBus panels.
• 1,500 feet nominal, open air receiving range.

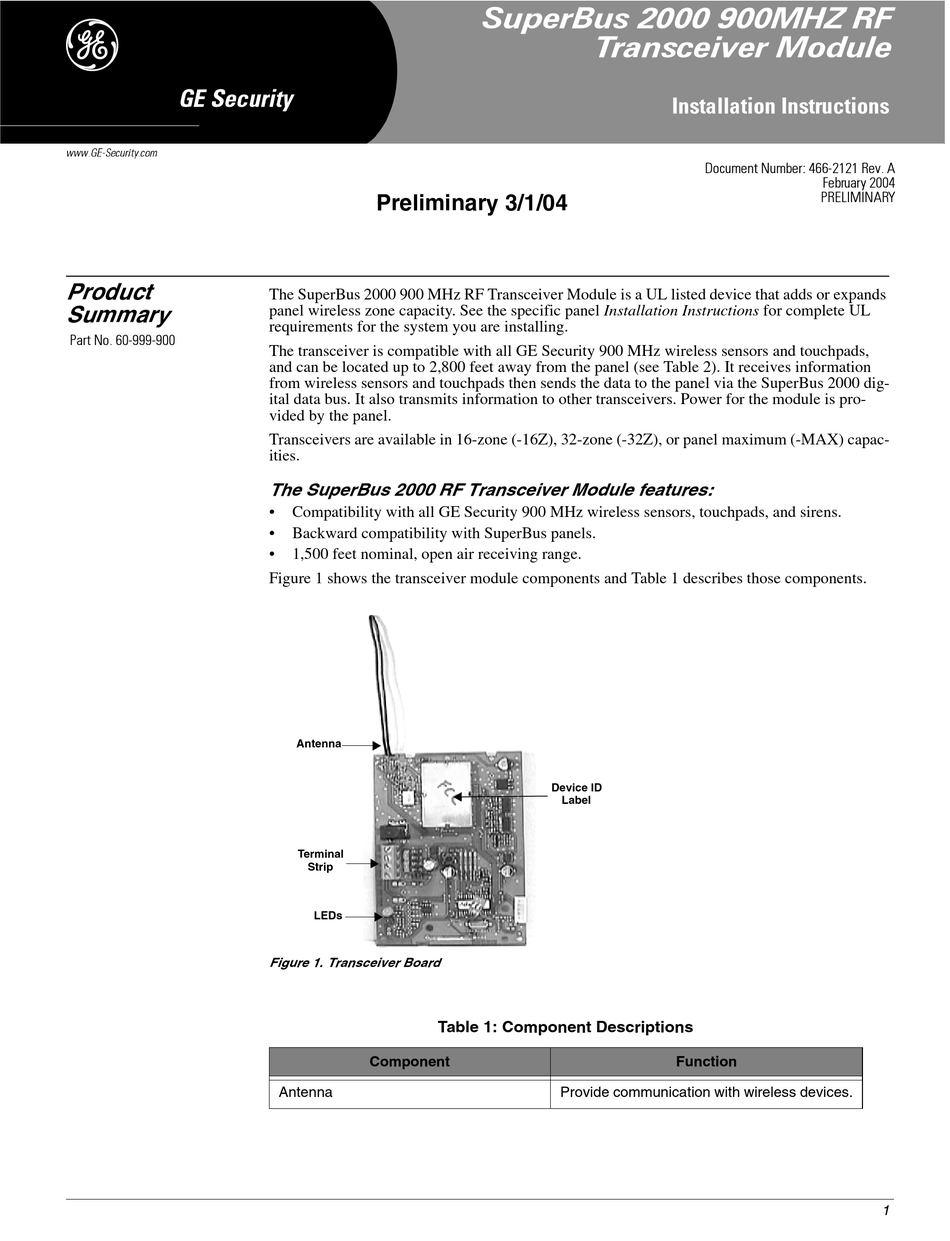

Figure 1 shows the transceiver module components and Table 1 describes those components.
Antenna
Terminal
Strip
LEDs
Figure 1. Transceiver Board
Table 1: Component Descriptions
Component
Antenna
6XSHU%XV  0+= 5)
7UDQVFHLYHU 0RGXOH
Device ID
Label
Provide communication with wireless devices.
,QVWDOODWLRQ ,QVWUXFWLRQV
'RFXPHQW 1XPEHU  5HY $
)HEUXDU\
35(/,0,1$5<
Function
1
