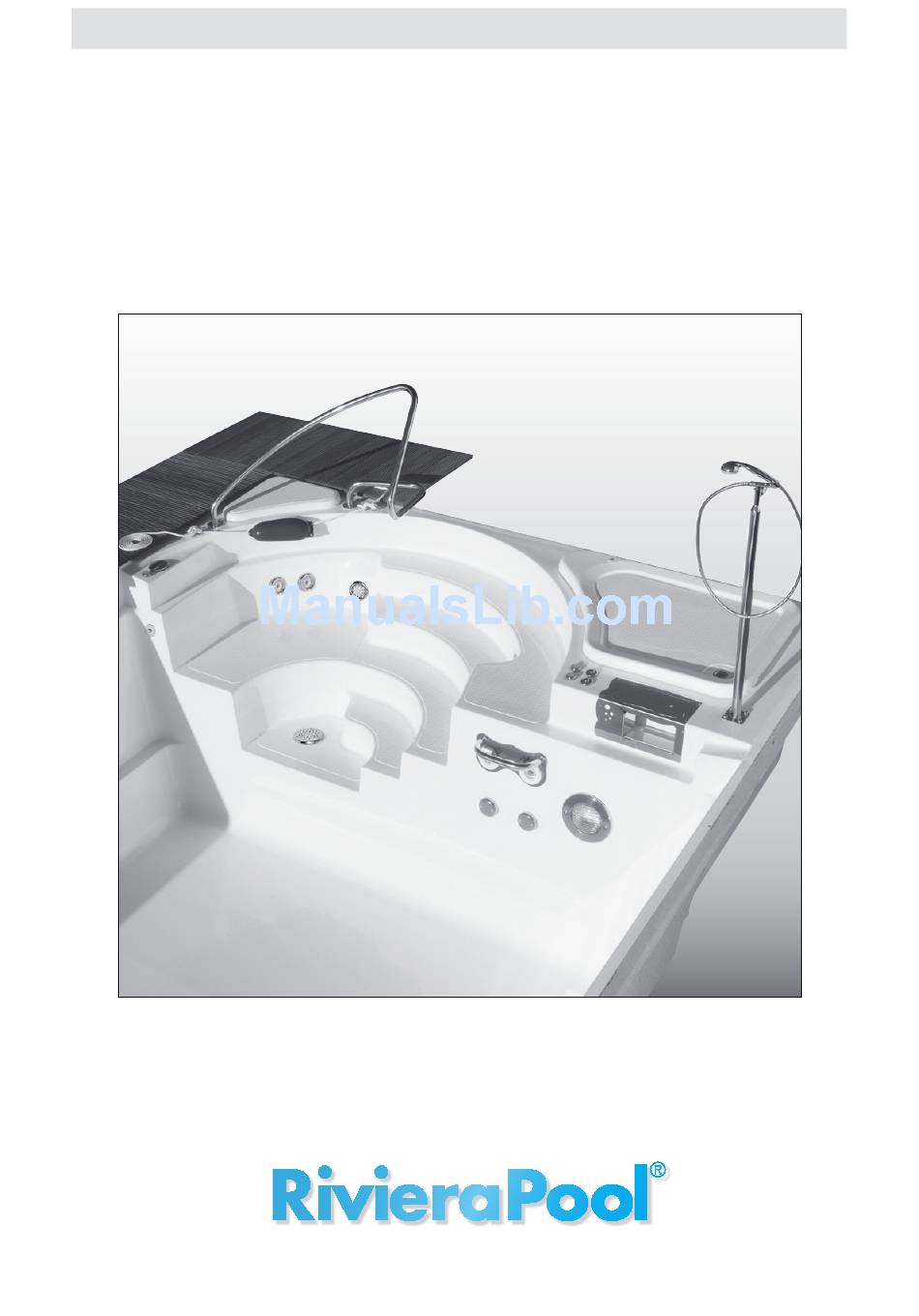

- Page 1 Technical Information SB 13 09/09 Operating instructions F u n Pa k F 4 Counter-Current and massage equiPment...
-
Page 2: Table Of Contents
Contents 1. General 1.1.1 description of the equipment page ................................................ intended use page ............................................................delivery page ................................................................on site connections page ....................................................... 2. Installation and commissioning installation page ..............................................................Final assembly of the equipment page ............................................Commissioning page ..........................................................3. Description of the step equipment Fun Pak "royal“/attractions and Functional overview page ............................ -
Page 3: General
For this the rivieraPool foundation shaft is required for the corresponding steps. if, due to lack of space or building reasons, a rivieraPool foundation shaft can not be used, the pumps can be installed when all the equip- ment is onsite. -
Page 4: Delivery
General the Fun Pak, as a standard feature, is delivered completely pre-assembled in Delivery the pool. For shipping reasons the visual shield, the jet inserts and the handles are delivered loose, ready to be assembled onsite. Onsite connections 1.4.1 Electrical connection 2 separate connections 230 V pre-fuse: 16 amps 1.4.2 Sewer connection our foundation shafts are fitted, as standard, with a shaft drain (bonded... -
Page 5: Installation And Commissioning
Installation and commissioning 2. Installation and commissioning Installation 8 8 5 1 5 0 0 drip plate 1. Foundation shafts from serial production are not water proof. if ground-water could rise above the level of the shaft floor, please request a ground-water proof version from the factor (at additional cost). -
Page 6: Final Assembly Of The Equipment
Installation and commissioning Final assembly of the equipment - Check for threaded screw and pipe connectors on the suction and pressure sides, between pumps and jets and tighten as necessary, as they could have loosened during transport. - mount handles. - Plug in jet inserts and lock them in. -
Page 7: Description Of The Step Equipment
Description of the step equipment 3. Description of the step equipment the Fun Pak "royal" is a complete counter-current and massage system, : Fun Pak "Royal“ consisting of: Attractions and Functional overview a double stream counter-current system with air regulator, adjusta- ble-power jets and handle. -
Page 8: Fun Pak "Capri"/Attractions And Functional Overview
Description of the step equipment the Fun Pak "Capri" is a complete counter-current and massage Fun Pak "Capri“ system, consisting of: Attractions and Functional overview a double stream counter-current system with air regulator, adjusta- ble-power jets and handle. the jets can be manually switched to 2 microjet massage jets and a master jet in the seating area, a floor geyser in the foot area (optional) around the seating step and a water torrent in the pool wall. -
Page 9: Fun Pak "Rimini"/Attractions And Functional Overview
Description of the step equipment the Fun Pak "rimini" is a complete counter-current and massage Fun Pak "Rimini" system, consisting of: Attractions and Functional overview a double stream counter-current system with air regulator, adjusta- ble-power jets and handle. the jets can be manually switched to 2 microjet massage jets and a master jet in the seating area, a floor geyser in the foot area (optional) around the seating step and a water torrent in the pool wall. -
Page 10: Fun Pak "Modena 370"/Attractions And Functional Overview
Description of the step equipment the Fun Pak "modena 370" is a complete counter-current and massage system Fun Pak "Modena 370“ which consists of:: Attractions and Functional overview a double stream counter-current system with air regulator, adjusta- ble-power jets and handle. the jets can be manually switched to 2 microjet massage jets and a master jet in the seating area, a floor geyser in the foot area (optional) around the seating step and a water torrent in the pool wall. -
Page 11: Fun Pak "Modena 660"/Attractions And Functional Overview
Description of the step equipment the Fun Pak "modena 660" is a complete counter-current and massage system Fun Pak "Modena 660“ which consists of:: Attractions and Functional overview a double stream counter-current system with air regulator, adjusta- ble-power jets and handle. the jets can be manually switched to 10 microjet massage jets and a master jet in the seating area, a floor gey- ser in the foot area (optional) around the seating step and a water tor- rent in the pool wall. -
Page 12: Fun Pak "Modena 520"/Attractions And Functional Overview
Description of the step equipment the Fun Pak "modena 520" is a complete counter-current and massage system Fun Pak "Modena 520“ which consists of:: Attractions and Functional overview a double stream counter-current system with air regulator, adjusta- ble-power jets and handle. the jets can be manually switched to 10 microjet massage jets and a master jet in the seating area, a floor gey- ser in the foot area (optional) around the seating step and a water tor- rent in the pool wall. -
Page 13: Fun Pak "Royal With Overflow"/Attractions And Functional Overview
Description of the step equipment the Fun Pak "royal" is a complete counter-current and massage Fun Pak "Royal“ system, consisting of: with overflow Attractions and a double stream counter-current system with air regulator, adjusta- Functional overview ble-power jets and handle. the jets can be manually switched to 2 microjet massage jets and a master jet in the seating area, a floor geyser in the foot area (optional) around the seating step and a water torrent in the pool wall. -
Page 14: Overwinterung
Overwintering 5. Overwintering the Fun Pak F 4 must be overwintered empty. Overwintering Fun Pak to do this: unscrew the hair trap cover of the suction fittings. unscrew the bezels of the jets and the floor geyser. release the jet inserts in the massage jets by turning them anticlockwise and withdrawing them from the jet element. -
Page 15: Assembly Notes For The Diverter Valve In The Jet Insert
Assembly notes for the diverter in the jet insert Loosen the Z-bracket and withdraw the jet insert from the jet bushing. Assembly note for the diverter of the jet insert Place the locking ring on the diverter and push them, together, into the jet bushing, ensuring that the cranked diverter opening is centralised to the middle outlet opening of the jet bushing. - Page 16 www.pools.de One of the leading German manufacturers of prefabricated swimming pools, swimming pool technology and whirlpools. Member of BSW.
