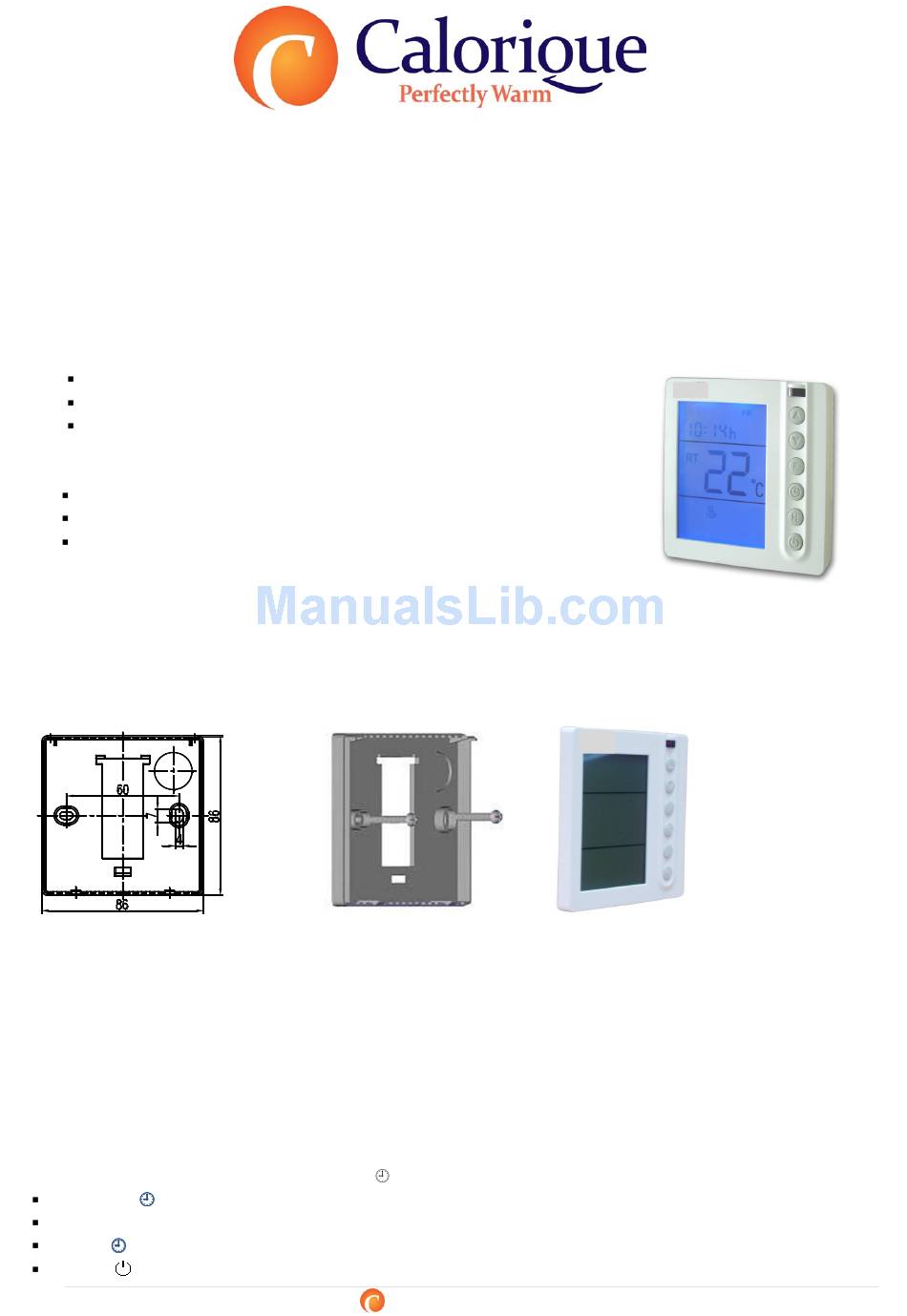

CALORIQUE BEL100 Installation Manual

BEL100 THERMOSTAT
Features:
The Calorique Bel 100 is a Programmable Room Thermostat that includes the following features: -
Blue backlight.
Internal sensor & 3M Remote Floor Sensor.
Infrared Remote Control (Optional).
System Description:
The Calorique Bel 100 thermostat can be operated in three different ways: -
Using the Internal sensor & 3M Remote Floor Sensor (air and floor temperatures).
Using the Internal sensor only (air temperature).
Using the 3M Remote Floor Sensor only (floor temperature).
Technical Specification:
Set-point range: 5°C to 70°C (mode 0)
5°C to 35°C (mode 1)
Operating difference: ± 1°C
Switching Voltage: 230Vac
Switch current rating: < 16A
Mounting:
The mounting instructions are as follows: -
1. Open the main control panel by putting the screwdriver (3.5mm) into the 4 mm block along the bevel. Prize up
and open the clips.
2. Remove the wire connection.
3. Connect up the terminals as per the wiring diagram.
4. Put the connected thermostat onto the back panel in the wall and fix it with the two screws in the backing box.
5. Reconnect the cover with a 30 degree angle and then fix the two up clips.
6. Push into place the two down clips, fix the cover, and finish the installation.
Choose Mode Setting:
Mode 01 - Air & Floor temperature setting
With the Bel 100 thermostat turned off, press
Press the button until the small number (menu setting) in the top left hand corner is set to 09.
Use the Up/Down arrow key to change the large number (parameter setting) to 01 (default = 01).
Press to accept and proceed to the next menu.
Press to store and exit.

INSTALLATION MANUAL

Display: LCD
Power supply: 230Vac ±10%
Sensing element: 2 * NTC
Housing: ABS Flame Retardant
Dimensions: 86 × 86 × 13 mm
for 3 seconds.
www.calorique.com 1 | P a g e
