Summary of Contents for Star Vent-Max CV1R

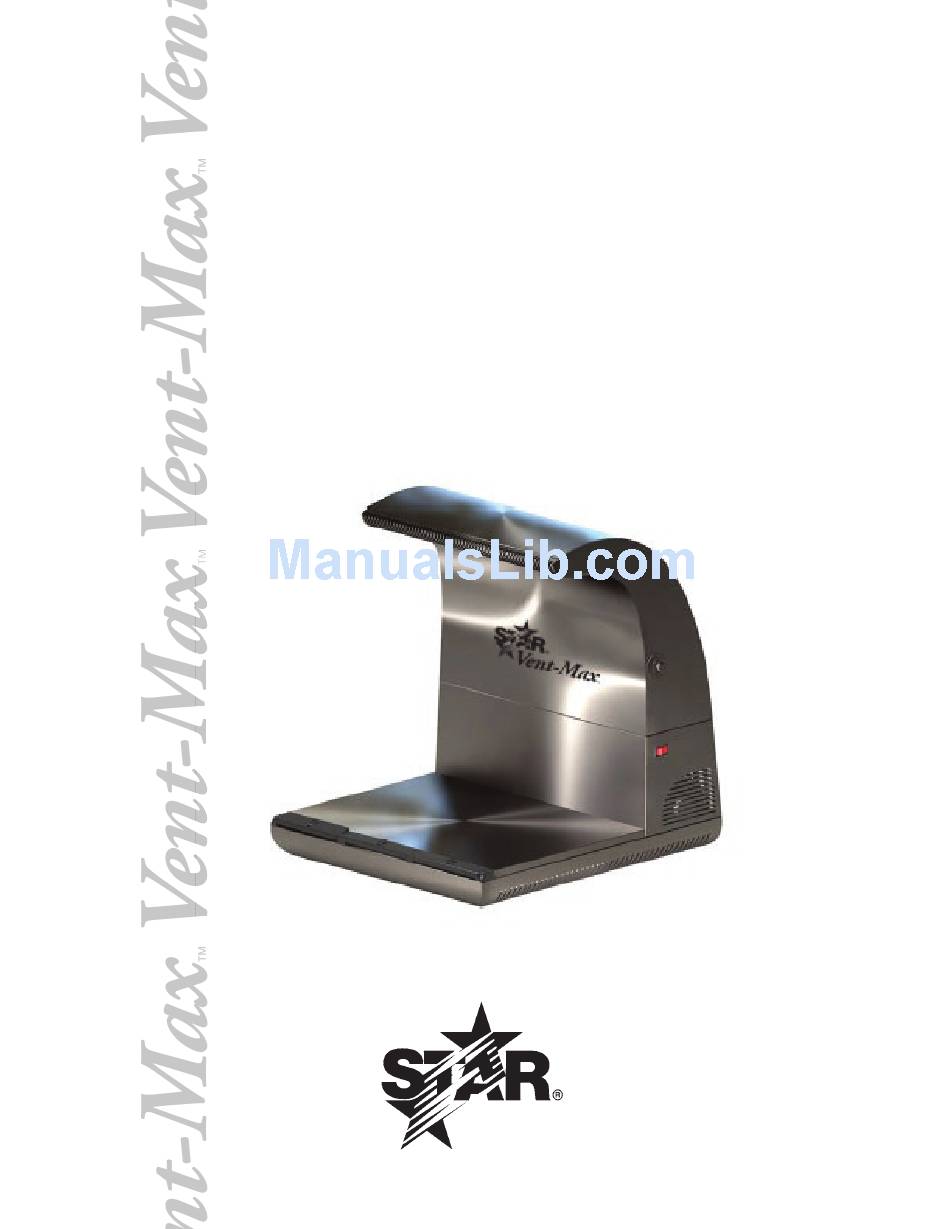

- Page 1 Vent-Max ™ COUNTERTOP VENTILATION SYSTEM MODEL CV1R, CV1L Installation and Operation Instructions 2M-Z16152 Rev. - 7/17/12 CV1R...
- Page 2 RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. Star reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
- Page 3 Specifications Model Voltage Amps Watts Plug Type Width (cm) Depth (cm) Height (cm) Appox Shipping Weight CV1L 120V NEMA 5-15P 29.75” (74.5) 31” (78.7) 180 lbs (81.6 kg) CV1R 26” (66.1) Base 20.25” (51.4) GENERAL INSTALLATION INSTRUCTIONS This equipment is designed and sold for commercial use only by personnel trained and experienced in its operation and is not sold for consumer use in and around the home nor for use directly by the general public in food service locations.
-
Page 4: Filter Cleaning
Features & Benifits The CV Vent is designed to improve the environment for kitchen staff and patrons by removing smoke, odors, moisture and grease laden vapors from the ambient air. It works with compact countertop cooking appliances such as convection ovens, toasters, Panini grills and griddles. The SA Vent unit operates from a standard 120V outlet, and draws .5A. -
Page 5: Daily Maintenance
Cleaning Procedure Daily Maintenance: Inspect grease drawer; empty and wash with soap and water as necessary; reinstall. Clean exterior of Vent with soap and water or equivalent. Weekly: Remove front panel by grasping the two knobs on the front and pushing up until the bottom of the panel disengages from the frame. - Page 6 LIMITED EQUIPMENT WARRANTY All workmanship and material in Star products have a one (1) year limited warranty on parts & labor in the United States and Canada. Such warranty is limited to the original purchaser only and shall be effective from the date the equipment is placed in service. Star's obligation under this warranty is limited to the repair of defects without charge, by the factory authorized service agency or one of its sub-agencies.
-
Page 7: Parts List
Deck F Deck Front Assy 2V-Z109 Trunk Front Lower Assy 2V-Z1095 Tray G Grease Tray 2V-Z109 Filter Panel 2V-Z1099 Motor Mount Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc. - Page 8 STAR INTERNATIONAL HOLDINGS INC. COMPANY Star - Holman - Lang - Wells - Bloomfield - Toastmaster 10 Sunnen Drive, St. Louis, MO 63143 U.S.A. (314) 678-6303 www.star-mfg.com...
