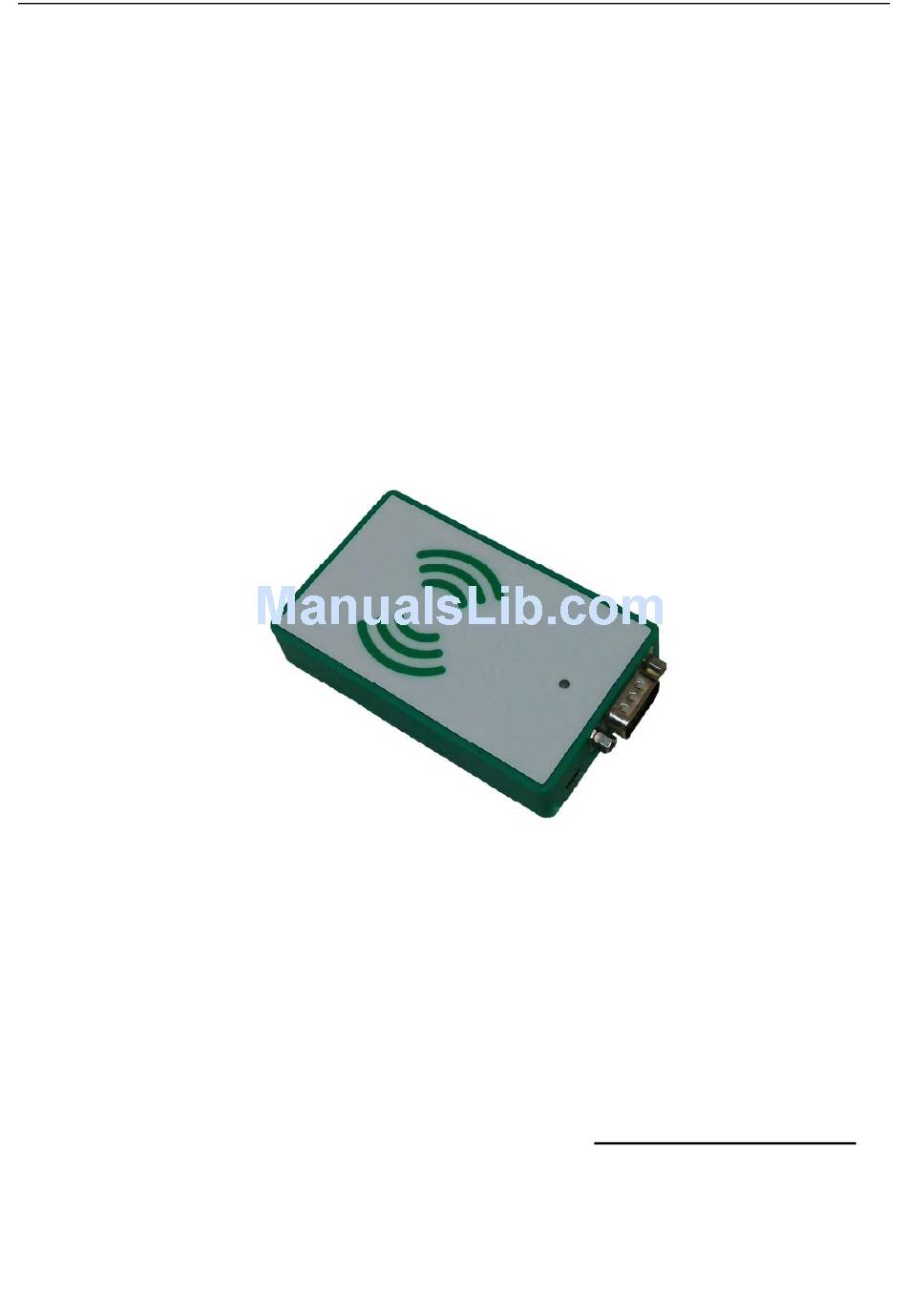

- Page 1 UHF Card Issuer User Manual Before using this product, please read the instruction manual carefully. Please keep this instruction manual. If you need more detailed information please log in http://www.cmcrfid.com to download.
- Page 2 The first chapter Quick guide 1.1 Product overview UHF Card Issuer is a small volume of UHF desktop, support ISO18000-6C protocol, has advantages of low power consumption, easy to embed, high performance antenna, with built-in support USB and RS232 communication mode. Product application: ...
- Page 3 1.2 UHF Card Issuer section function: Card Issuer positive schematic diagram: Here is a label that: 1. The antenna inductive zone 2. Power light Card Issuer profile schematic diagram: Here is a label that: 1. USB interface 2. Serial port interface(RS232) 1.3 Product size chart (mm) 1.4 Standard accessories Project...
- Page 4 The second chapter Use of RFID demonstration 2.1 UHF Card Issuer System architecture: UHF Card Issuer via USB/RS232 Serial interface is connected to a PC, UHF Card Issuer using a USB power supply directly; With the corresponding Demo software can operate to read labels and so on; If you need more detailed UHF issuing organ and the PC communication protocols, please refer the documentation “communication protocols”, System architecture signal as shown in the below:...
- Page 5 Figure 2.2 2.4 Supporting PC software instructions: UHF Card Issuer can use the USB interface communication, “URAT serial communication methods” two kinds of communication methods; “USB cable and RS232 serial port connected to the computer ”; 1. Open the computer，ultra-high frequency card through USB cable and RS232 serial port connected to the computer(only use “URAT”...
- Page 6 3. See computer port number :right-click on the “my computer” icon to click to choose “management” option, →click select “device manager” options→ click “port (COM and LPT)”option drop-down box view of “communication port(COM)”;In order to enter 2.4 as shown in the following interface: Figure 2.4 4.
- Page 7 Language settings: English/simplified Chinese/traditional Find card display area Figure 2.6 Icon shows Open: Open card of card function Closed: Close the issuing organ for card function Version: The issuing of the firmware version number PWM: Set card issuer’s duty ratio of output power (including duty than to have two options “0-2”optional； “0”...
- Page 8 6. Click “Open” button, open the card for card function; After the open success, the system will automatically obtain the card device firmware version number, he lower left corner will be prompted to “Host To MAC Interface: …”(when for “USB Interface communication”, indicates that “Host To MAC Interface：USB”; As for “UART serial interface communication mode”, suggests “Host To MAC Interface：UART”;...
- Page 9 Icon shows Password： Tag password (The default is“00 00 00 00”) Bank： Tag storage areas (including RESERVED, EPC, TID, USER; general user operations for the EPC area) Begin： To the starting address of operation area, the unit of word (2 bytes) (include “0-15”16 numerical EPC operation area will this value is set to 2) Length: To read and write tags information length, the unit for word (2bytes) (include“1-15”15 numerical;...
- Page 10 Appendix 一 UHF Card issuer common troubleshooting 1. Unable to open the UHF issuing organ for card function: A. Please check whether the equipment and computer lines to connect USB and serial port; If not connected， please connect the USB cable and the serial port. B.
- Page 11 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
