Summary of Contents for Elumen8 Windstorm DMX Fan

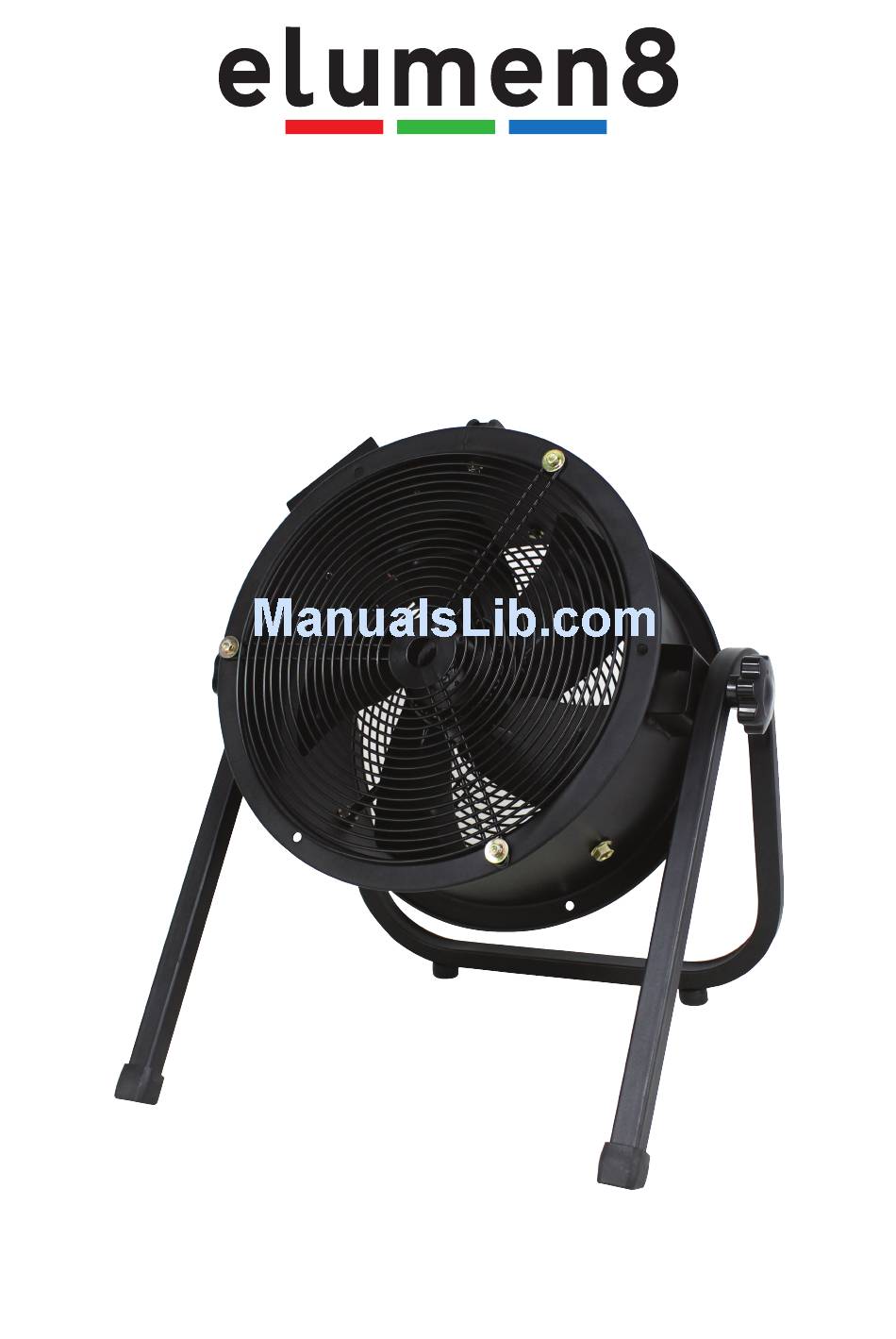

- Page 1 Windstorm DMX Fan User Manual Order code: ELUM077...
- Page 2 • This fixture is for professional use only - it is not designed • Make sure that the available mains supply voltage is for or suitable for household use. The product must be between 100~240V AC, 50/60Hz. installed by a qualified technician in accordance with local territory regulations. The safety of the installation is the • Make sure that the power cable is never crimped or responsibility of the installer. The fixture presents risks of damaged. Check the equipment and the power cable severe injury or death due to fire hazards, electric shock periodically. and falls. • If the equipment is dropped or damaged, disconnect the • Caution! Never put hands or objects through the protective mains power supply immediately and have a qualified grille, this can cause a risk of injury! People with long hair engineer inspect the equipment before operating again. should take special care as long hair can get caught in the fan and result in serious injury! Please ensure that air can be sucked in freely. Make sure that no dirt, sand, clothing or similar can get sucked in. • WARRANTY: Two years from date of purchase. OPERATING DETERMINATIONS If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Windstorm DMX Fan User Manual...

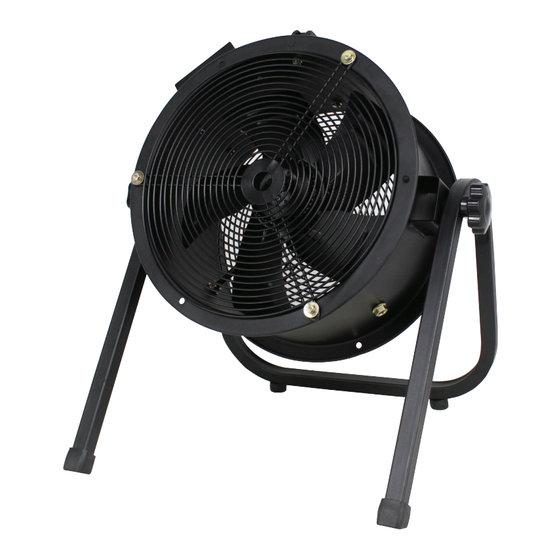

- Page 3 Windstorm DMX Fan High output wind machine for use in clubs, concert venues and on stages. The wind output can be adjusted from a light breeze to a strong gale at one percent increments via the on-board controls or DMX. The machine is supplied with 2 brackets for either truss hanging or free standing applications. • Fan diameter: 310mm • Max. air flow 55m³/min • Noise: 83dB @ 2m (full output) • DMX channels: 1 • Manual mode adjustable in 1% increments via menu system or potentiometer • Tilt: 360° • Brackets allow for multiple rigging or floor standing applications • 4 push button menu with LED display • PowerCON input/output • 5-Pin XLR input/output Specifications Windstorm DMX Fan Power consumption 185W Power supply 240V, 50Hz Fuse F2A 250V Dimensions 505 x 472 x 425mm Weight 7.8kg Order code ELUM077 472mm 425mm www.prolight.co.uk Windstorm DMX Fan User Manual...
-
Page 4: Technical Specifications
F2A 250V 240V~50Hz ADJUSTMENT HIGH In the box: 1 x fixture, 1 x power cable, 1 x user manual, 01 - Earth point 04 - 5-Pin DMX input 1 x floor standing bracket 02 - LED display 05 - 5-Pin DMX output 07 - Fuse F2A 250V & 1 x truss mount bracket 03 - Function buttons 06 - PowerCON input 08 - Rotary speed control www.prolight.co.uk Windstorm DMX Fan User Manual... -
Page 5: Operating Instructions
0 0 1 Software version DMX mode: Operating in a DMX control mode environment gives the user the greatest flexibility when it comes to customising or creating a show. In this mode you will be able to control each individual trait of the fixture and each fixture independently. Addr To access the DMX address mode, press the “MENU” button on the front of the unit to show on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to set the required DMX address. Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. 1 channel mode: Channel Value Function 000-255 Fan speed (slow-fast) Manual fan speed mode: To access the manual fan speed mode, press the “MENU” button on the front of the unit to show SPed on the LED display. Press the “ENTER” button and use the rotary control to adjust the fan speed from from To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk Windstorm DMX Fan User Manual... - Page 6 DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. Please quote: CABL10 – 2m CABL11 – 5m CABL12 – 10m Note: DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Windstorm DMX Fan User Manual...
- Page 7 5-pin XLR (socket) 3-pin XLR (socket) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Windstorm DMX Fan User Manual...
- Page 8 WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Windstorm DMX Fan User Manual...
