Summary of Contents for enervent Neo series

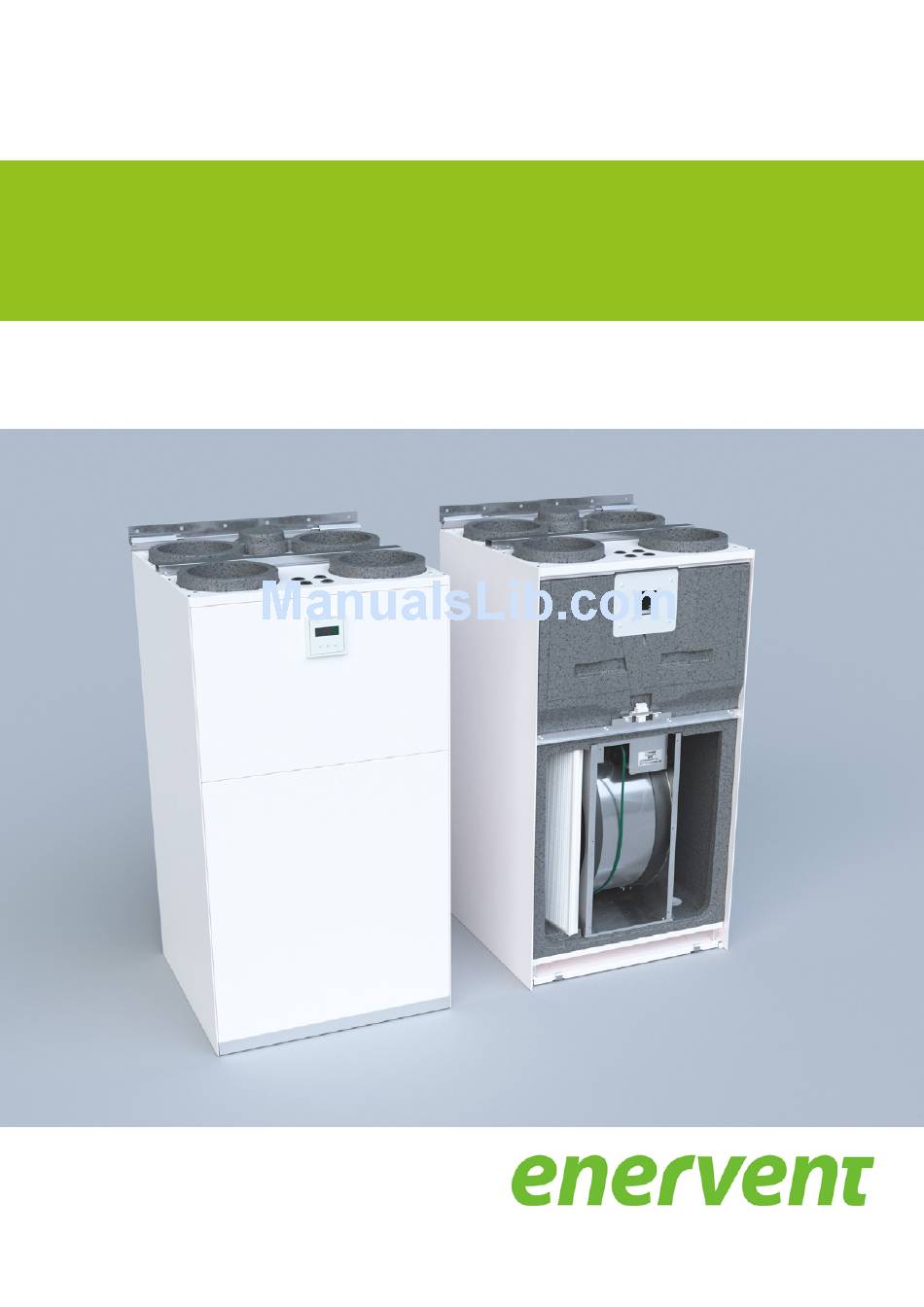

- Page 1 23 October 2017 Enervent Neo Ventilation unit installation instructions...
- Page 2 Copyright © Enervent 2017. Unauthorised copying and distribution is forbidden.
-
Page 3: Table Of Contents
CONTENTS READ FIRST ....................... . 4 Type plate . -
Page 4: Read First
READ FIRST This instruction manual is intended for all people involved in the installation of the Enervent ventilation units. Only professionally skilled persons may install the equipment described in this manual, according to the instructions provided in this manual and to the local laws and regulations. -
Page 5: Type Plate
TYPE PLATE ilmanvaihtolaite ventilation unit TYYPPI/TYPE: W/ V/ HZ / A: SRJ. NRO/SERIAL NO: IP 20 www.enervent.com Should you need any technical support, refer to the type plate for the equipment type and serial number. Professional installation instructions... -
Page 6: Safety
SAFETY General Electrical safety DANGER DANGER Always check that the equipment supply voltage Only an authorised electrician may open the is switched off before opening the service hatch. electrical box. DANGER WARNING Follow the local regulations on electrical In case of malfunction, always find out the reason installations. -
Page 7: Contents Of The Delivery
CONTENTS OF THE DELIVERY power cable unit installation and operating instructions anti-vibration rubber mounts warranty and maintenance manual Available accessories Product number Product name K580040001 eWind controller. The package contains a controller, surface mounting box and a 10-metre cable K930030004 carbon dioxide transmitter to room 0-10 V / 24 V K930030006 %RH humidity transmitter 0-10 V / 24 V... -
Page 8: Technical Specifications Of The Unit
TECHNICAL SPECIFICATIONS OF THE UNIT left-handed inlets for external sensors connection cable with plug control panel extract fan motherboard supply filter F7 flow screen supply fan electric after-heating coil extract filter M5 heat exchanger heat exchanger’s drive belt heat exchanger’s spare belt type plate condensate connection G 1/4"... -
Page 9: Duct Connections
TYYPPI/TYPE: TYYPPI/TYPE: NEO EWIND E RIGHT NEO EWIND E LEFT W/ V/ HZ / A: W/ V/ HZ / A: SRJ. NRO/SERIAL NO: SRJ. NRO/SERIAL NO: IP 20 IP 20 www.enervent.com www.enervent.com Left-handed Right-handed Professional installation instructions... -
Page 10: Before Installation
DO YOU WANT MORE INFORMATION? If you want more information on building of ventilation systems and insulation of ventilation ducts, read more on our website at www.enervent.com. -
Page 11: Installation
FOR YOUR INFORMATION INSTALLATION Check before installation of the ventilation unit that there are no foreign objects in the ventilation unit or in the duct system. 58kg A = min. 25 mm, B = min. 75 mm anti-vibration rubber mounts condensate connection G 1/4"... -
Page 13: Commissioning
COMMISSIONING Adjustment of air flow Requirements After starting the unit, the air flows must be adjusted to Operational requirements for the ventilation unit: the designed values. • Supply and extract air temperature below +55 °C. • The air flows are adjusted during commissioning of •... -
Page 14: The Control System And The Ewind Operation Panel
The control system and the eWind operation panel Mode (in standard Temperature (in standard Mode button display) display) Eco button Temperature button Cable connection Important information on the control Setting the operational parameters system The fan speed settings for various operation modes must The factory settings are suitable for most installations. - Page 15 Parameter list Factory Modbus Field Description Note Parameter setting register setting Extract fan speed, mode 1, 36 % Away mode Control range: 20–100 %, step: 1 % Supply fan speed, mode 1, 35 % Away mode control range: 20–100 %, step: 1 % Extract fan speed, mode 2, 56 % Home mode...
- Page 16 Parameter list Factory Modbus Field Description Note Parameter setting register setting Threshold value for humidity removal, 45 % In winter mode, the boosted operation for humidity removal is started when the control range 10…100 %RH, step 5 % humidity value exceeds the threshold value. Threshold value for humidity removal, control 15 % In summer mode, the boosted operation...
-
Page 17: Data Screen
Data screen You can view the available functions in the eWind info list displayed on the data screen. eWind info list eWind info list Marking Definition Opening: Standard mode is on Boosted ventilation to remove humidity. Simultaneously press buttons once. Boosted ventilation to remove carbon dioxide. -
Page 18: Measurement Display
eWind measurement list Measurement display Opening: You can monitor temperature, humidity, heat recovery Simultaneously press buttons efficiency and other measurement values in the eWind times. measurement list, displayed in the measurement display. • Parameter (r1..rn) and the parameter values are displayed. Browse the parameter list up or down, by pressing button Return to the standard view:... -
Page 19: Installation To The Modbus Network
• No parity or parity. The order of the poles in the Freeway connector is marked on the controller board. The Modbus registers are available on the Enervent web- site www.enervent.com. CAUTION Do not connect any external network to the motherboard before programming the route so that it is compatible with the device control. -
Page 20: Troubleshooting
Troubleshooting Alarm Alarm Description Symptoms Possible cause Measure Notes limit FILS Service 4 or 6 It is time for regular maintenance. Replace the filters. Acknowledge by reminder. pressing any button months Inspect the ventilation unit. for 5 seconds. Clean as necessary. See if there are any dam- ages visible. - Page 21 Alarm Alarm Description Symptoms Possible cause Measure Notes limit Cold extract +10 °C Cold supply air. Low indoor temperature. Raise the indoor The ventilation air. temperature. unit switches to malfunction mode, Insufficient heat insulation of the Check the insulation of the in which the fans extract air duct.
-
Page 22: Appendices
APPENDICES DIMENSIONAL DRAWINGS Dimensional drawing, lefthand... -
Page 23: Right-Handed
Dimensional drawing, righthand Professional installation instructions... -
Page 24: Electrical Diagram
Electrical Diagram External connections... - Page 25 Professional installation instructions...
-
Page 26: Electrical After Heater
Electrical after heater... -
Page 27: Eu-Declaration Of Conformity
EMC 2014/30/EU, machine directive MD 2006/42/EC, radio equipment directive RED 2014/53/EU, ROHS II directive 2011/65/EU, battery directive 2013/56/EU and waste electrical and electronic equipment directive WEEE 2012/19/EU. Manufacturer: Enervent Oy Manufacturer´s contact: Kipinätie 1, 06150 Porvoo, FINLAND, tel. +358 207 528 800, fax +358 207 528 844 enervent@enervent.com,... -
Page 28: Quick Guide
10 min 2=19200, (0...15 min) 3=115200) ˚C TE32 RH30 η% ˚C TE30 ˚C TE01 ˚C TE10 η% ˚C ˚C TE02 TE05 Enervent Oy Kipinätie 1 FIN-06150 Porvoo, Finland Tel. +358 207 528 800 Fax. +358 207 528 844 enervent@enervent.com www.enervent.com...
