Summary of Contents for Sun Flux SEI 02

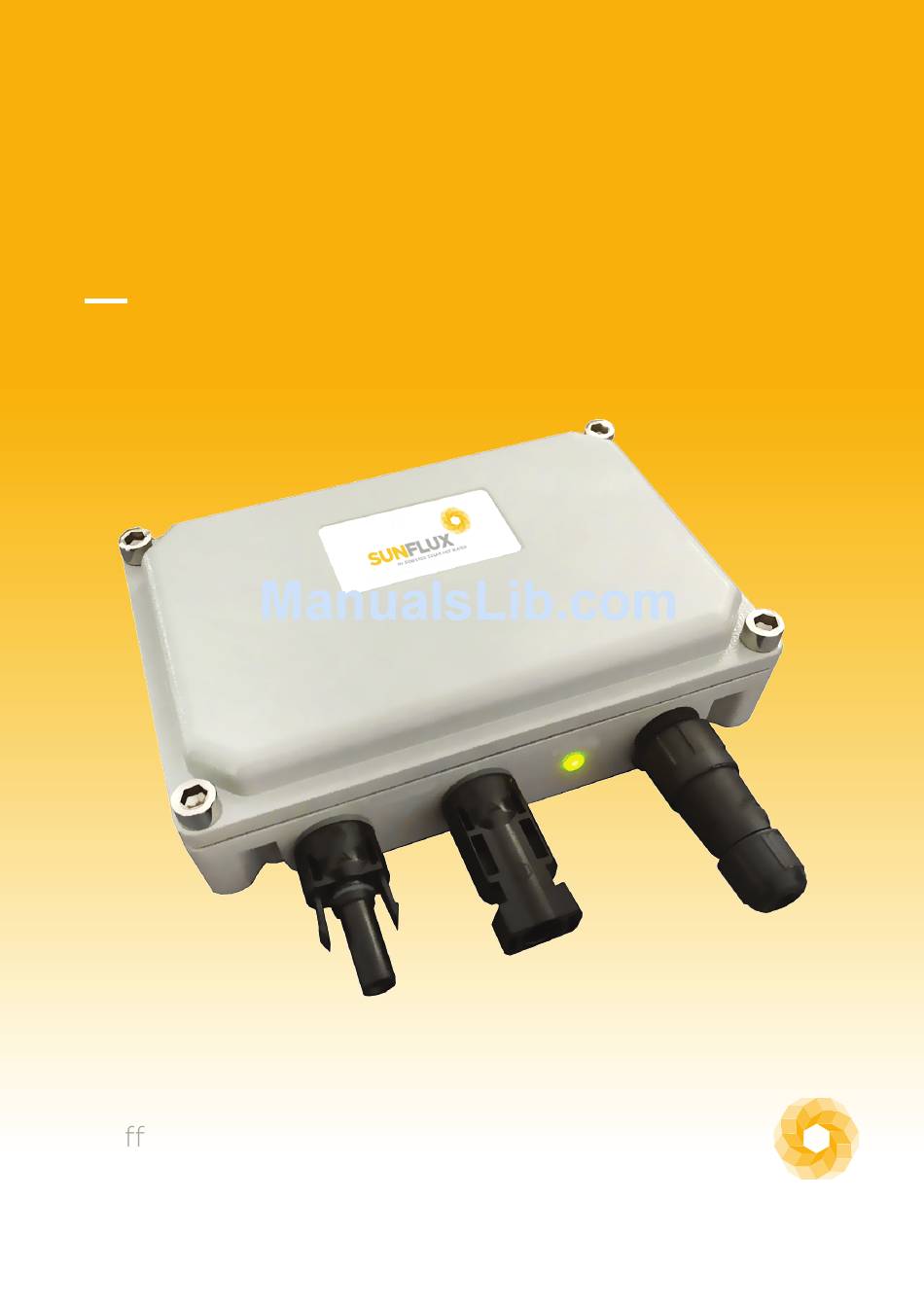

- Page 1 USER MANUAL SUN FLUX II Hot Water Controller Model SEI 02 O Grid/Hybrid PV Solar Hot Water SUNFLUX Controller PV POWERED SOLAR HOT WATER...
- Page 2 4: Do not operate the unit if it has received a sharp blow, been dropped, or otherwise damaged in any way. Sun Flux II Hot Water Controller works with *All types of PV solar panels. *All types of electric hot water tanks.
- Page 3 Model SEI 02 How it works The Sun Flux II Hot Water Controller is a PV solar based system that uses a standard electric hot water tank with a standard element and thermostat. The Sun Flux II Hot Water Controller is comprised of a PV solar input and a single output that...
- Page 4 SUN FLUX II Hot Water Controller Model SEI 02 The Mechanical Drawing of the Sun Flux II Hot Water Controller ① Waterproof MC4: For negative connection to PV solar panels. ② Waterproof MC4: For positive connection to PV solar panels.
- Page 5 MANUAL SUN FLUX II Hot Water Controller Model SEI 02 Installation 1: Check and make sure the unit is not damaged in any way before beginning installation. 2: Turn off all PV solar power and AC grid power then test to confirm isolation before installing.
- Page 6 DC output much like AC without the loss in efficiency. The Sun Flux II Hot Water Controller is one of the most efficient ways of harnessing and storing solar energy with up to 96% peak efficiency.
- Page 7 USER MANUAL SUN FLUX II Hot Water Controller Model SEI 02 Recommended Installation components *2 to 6 solar panels in series, 35 to 65volts open circuit and 5 to 15amps *2400/3600watt 240volt AC element and standard thermostat. *Standard 80 to 320litres electric hot water tank.
