Toec OEP103 Operation Manual

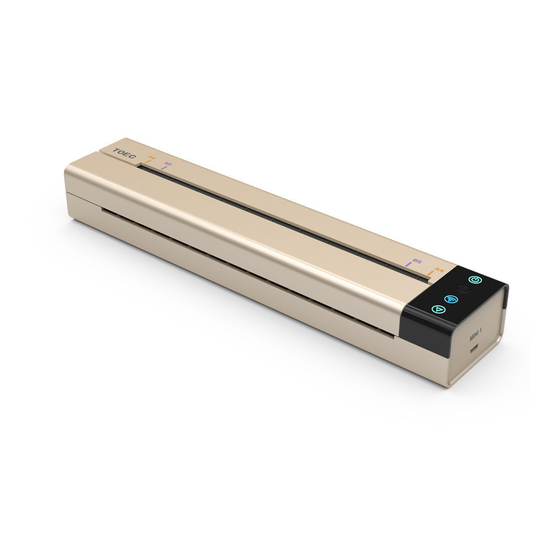

Portable printer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Portable Printer
Operation Manual
(Full Version)
Please read this operation manual carefully before installing
and using this product

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OEP103 and is the answer not in the manual?

Questions and answers

Mr Cassidy Schoeffel
February 20, 2025

Hi, I’ve purchased a Toec OEP103W stencil printer in 2023. It has worked great until now. The Toec printer app doesn’t work properly. The picture disappears in the preview and it only ghost prints. I lost a client because of that, please can you fix this bug ? Thank you in advance. Cassidy Schoeffel

0

Summary of Contents for Toec OEP103

  • Page 1 Portable Printer Operation Manual (Full Version) Please read this operation manual carefully before installing and using this product...
  • Page 2 Thank you for choosing TOEC products. Please read the information included in the product package thoroughly and carefully before using. TOEC will not be liable for any damages caused by your failure to follow the instructions herein or by any...

  • Page 3: Table Of Contents

    Contents Safety Guide ..................1 NOTE ....................3 Brief Introduction ..............5 1.1. Packing List ..............5 1.2. Printer Appearance ............6 1.3. Buttons ................. 7 1.4. Indicator Lights ............8 1.5. USB Connection ............8 1.6. WIFI Connection ............9 1.7.
  • Page 4 Specifications ................. 30...

  • Page 5: Safety Guide

    Safety Guide Please read all the instructions and keep this operation manual in a handy place for future reference. Before cleaning the printer, please unplug the power adaptor, take out the battery and cut off the power. Do not use the printer near the water. Do not place the printer in the unstable vehicle, on the unstable table or desk.
  • Page 6 total ampere rating of the devices plugged into the extension cord does not exceed the cord's ampere rating. Do not spill any liquid on the printer. Do not insert anything into the printer through the groove of the printer shell. Otherwise, these things may drop onto the circuit board and cause short-circuits.

  • Page 7: Note

    NOTE 1. This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received,14 including interference that may cause undesired operation. 2.
  • Page 8 ‐‐ Consult the dealer or an experienced radio/TV technician for help. Marking and instructions We declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Opeation temperature -10°C and 40°C...

  • Page 9: Brief Introduction

    1. Brief Introduction This section will give you a brief introduction of the printer appearance and the functions of every part. 1.1. Packing List When you open the box, please make sure that it contains all the following items. Printer Installation CD Operation manual Li-ion Battery （...

  • Page 10: Printer Appearance

    1.2. Printer Appearance Operation Panel Paper Input Slot Paper Output Slot Flip Cover USB Port Power Interface...

  • Page 11: Buttons

    Operation Panel Cancel Button (Indicator) Feed Button (Indicator) WIFI Button (Indicator) Power Button (Indicator) 1.3. Buttons The operation panel consists of four touch buttons (they are also indicator lights). Please operate this printer according to the following button functions. Symbol Function Cancel the print job in printing mode Clear the stored documents in standby mode Press and hold the button, and the printer will keep...

  • Page 12: Indicator Lights

    Press and hold the button to turn on /turn off the printer 1.4. Indicator Lights The indicators light and flash to indicate the status of the printer. Please see the table below to recognize the status of printer according to the indicator lights.

  • Page 13: Wifi Connection

    USB Port of Printer USB Cable Connect to Computer 1.6. WIFI Connection Please read Section 5 to find more details about WIFI connection settings. 1.7. Connect the Printer to External Power Using the power adapter provided with the printer to connect the printer to a nearby electrical outlet, you can charge the printer or its battery.

  • Page 14: Load Paper

    2. Load Paper This section will introduce the paper type and method of loading paper. 2.1. Paper Size and Type Note: using unsuitable paper will cause problems like poor print quality, paper jam or over wearing of the printer, even will damage the printer. However, our warranty or service agreement doesn't cover damage like this.
  • Page 15 Note: When storing paper, avoid high temperatures and humidity. Before loading the paper, do not fold, crease or wrinkle it. Before putting the tattoo transfer printing paper into the printer, please reserve the adhesive tape on the top of the paper, and remove the cover sheet below the adhesive tape (Do not tear the adhesive part on the top.

  • Page 16: Install And Uninstall The Printer Driver

    3. Install and Uninstall the Printer Driver This section will take Win10 as an example to introduce how to install and uninstall the printer driver, and how to change the IP address. Installing the printer driver needs the administrator account. Please log on as a user who has the administrator account.

  • Page 17: Install Wifi Printer Driver

    3. Check “Install the local printer driver ” , and then click “Next”. 4. Click “Next” after the sucessful installation. Click “Finish”, installation is completed. (We suggest restart computer. ) 3.2. Install WIFI Printer Driver 1.Insert the installation CD into the CD-ROM drive.

  • Page 18: Change Wifi Print Ip Address

    3. Choose “Install ” , and then click “Next”. If this window does not appear, skip this step . 4. Choose “Install WIFI printer driver ” , and click “Next”. Click “Finish”, installation is completed. (We suggest restart computer.) 3.3. Change WIFI Print IP Address If you want to change the IP address of the printer, please use the IP_SET tool in the installation CD.

  • Page 19: Uninstall The Printer Driver

    3.The WIFI printing supports two connecting modes: client mode and Hotspot mode (see Section 5 for details). Click client mode or Hotspot mode, and the corresponding informations will be shown. If you have already installed WIFI driver and used WIFI printing, the informations of user name, password, authentication mode and IP address will be shown .
  • Page 20 running applications, and we suggest you to close the antivirus software. 1. Read the files in the CD . Double click “Setup.exe”. When “Install/uninstall wizard” window pops up, click “Next”. 2.Chosee “Uninstall local printer driver”and “Uninstall WIFI print driver”, and click “Next”. 3.When uninstallation completed, click “Next”...

  • Page 21: Print From Mobile Device

    For Android operating system User needs to download the corresponding mobile printing application “TOEC Printer” from the mobile device first. By connecting the printer to the mobile device through WIFI, the documents, pictures and other contents can be printed directly from the mobile device. Open “TOEC Printer”...
  • Page 22 Figure a Main interface Figure b Printing parameters settings Figure c Print preview Figure d Printing When select the hotspot mode, “TOEC Printer” will automatically...
  • Page 23 display the IP settings and WIFI hotspot settings of the selected printer. Figure e Hotspot mode settings Figure f Client-side mode settings When select the client-side mode, select the WIFI and then enter the password. If the name of network can’t be found or want to set the WIFI configuration manually, click the button of the advanced settings and select the dynamic allocation IP and static allocation IP to do the suitable setting.
  • Page 24 Figure g Dynamic allocation IP Figure h Static allocation IP...

  • Page 25: Use The Printer

    4. Use the Printer Before using this product to print the document, please read the Section One to Section Four carefully and install the driver of the printer. Taking the Word under Win10 operating system as an example, we will introduce how to use the printer to print the document.

  • Page 26: Print Via Usb

    4.2. Print via USB Open the document needed to print, and select “Print” in the “File” menu. 2. In the “Print” dialog box, click the “Name” in drop-down list box and select “OEP103W”. Click “Properties”, select advanced option “Paper/Quality” tab in the dialog box, and select the brightness to change the light or dark effect of the printed document.

  • Page 27: Print Via Wifi

    up on the computer. 5. If need to cancel the current print job, you can press the “Clear” button on the printer or click “Cancel printing” to stop the current print job in the window of “OEP103W Status Monitor”. 4.3. Print via WIFI When print via WIFI, please make sure the printer has already been connected successfully.

  • Page 28: Brief Description Of Wifi Function

    WIFI signal of printer. To switch between the client-side mode and the hotspot mode, it can be set by the IP_SET tool in the installation CD or the options in the TOEC Printer.
  • Page 29 connect to the other equipment when two equipments are connected, the error will occur. For turning on or turning off WIFI function or configuring WIFI information, it needs 5 seconds. At this moment, the WIFI indicator light will go out, and WIFI-connect interface or IP_SET interface will be in the waiting state.

  • Page 30: Brief Introduction Of Sleep Function

    6. Brief Introduction of Sleep Function When there is no paper feeding, no data received and no operation in three minutes, the printer will be in sleep mode to reduce the power consumption. At this moment, only the indicator light of the power will blink and other indicator lights will go out.

  • Page 31: Troubleshooting

    7. Troubleshooting This section will introduce the printer alarm information and the help information for the troubleshooting. 7.1. Printer Alarm Information Information on Reason Troubleshooting Method - The battery level is too Low battery The battery level is low to print. Please too low recharge it as soon as level...

  • Page 32: Troubleshooting Guide

    7.2. Troubleshooting Guide Trouble Troubleshooting methods - Check that whether the power cord of the printer is connected or not; - Check that whether the power switch of the Breakdown of printer is turned on or not; machine and failure - Restart the printer after power off for 30 of keys seconds...
  • Page 33 off-line The showing of the - Cut off the power and restart the printer. indicator light is - Please contact the serviceman if the problem abnormal still exists. - Reinsert the paper, and insert the paper to the bottom; The paper can’t be - Check the size or thickness of paper is led to the right place suitable or not;...
  • Page 34 8. Specifications Item Description Print method Thermal printing Print speed 2ppm Resolution 200dpi×200dpi Printer port USB2.0 Control language of printing Paper feeding method Manual feeding Paper size A4 and B5 Tattoo transfer printing paper and Paper type thermal paper Consumables None WinXP, Vista, Win7, Win8, Win10, Operating system...
  • Page 35 Address: No.6 Taishan Road Hexi District Tianjin China P.O. Box: 300211 Hotline of Sales: 022-28268291/28262631 Hotline of After-sales Service: 022-28268471/28268478 Free Service Hotline: 800-818-8080 Fax: 022-28268440 E-mail Address of Sales: e100@toec.com E-mail Address of After Sales Service: service@toecfax.com Website: www.toec.com Version: March of 2016, First Edition...
