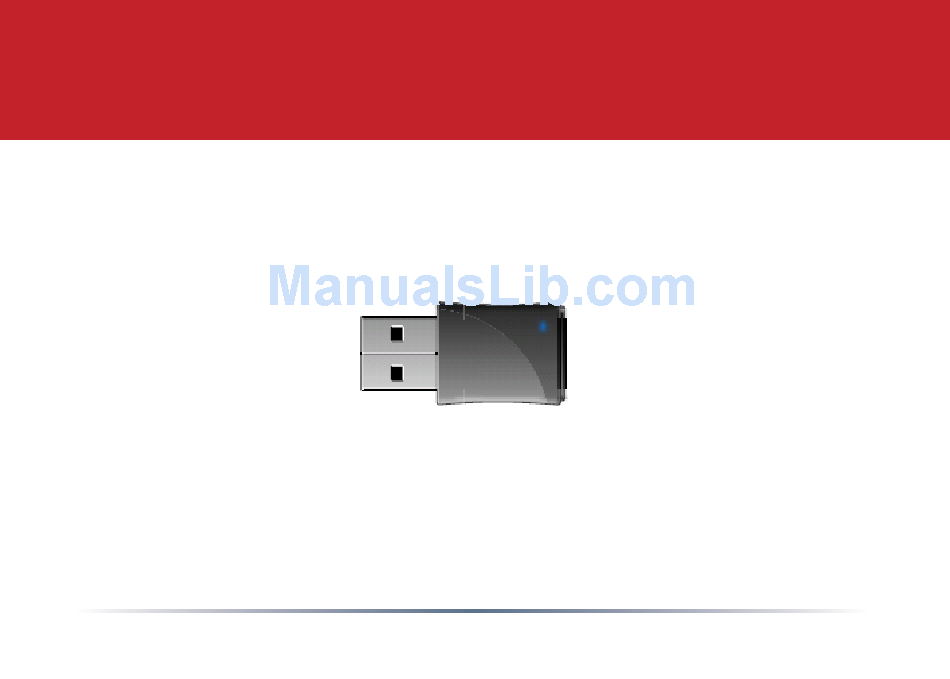

- Page 1 User Manual - AirStation WLI-UC-GN Wireless N USB Adapter/Router www.buffalotech.com v1.0...
-
Page 2: Table Of Contents
Table of Contents Introduction ..............3 Installation ...............4 Using Windows Zero Config ..........7 Using Client Manager 3 .............8 Using AOSS ..............9 Router Mode ..............12 Connecting Your Nintendo DS® ........14 Connecting Your Nintendo Wii® ........16 Connecting Your Sony PSP® ........... 19 Connecting Your Sony Playstation 3®... -
Page 3: Introduction
Introduction Congratulations on your purchase! The AirStation WLI-UC-GN Turbo G wireless USB Adapter connects your notebook computer or desktop PC to a 2.4 GHz 802.11g or b network. It can also serve as an access point for connecting AOSS compatable wireless devices to your existing network. -
Page 4: Installation
Installation Insert the AirNavigator CD into the CD-ROM drive of your computer. Do not insert the USB key into a USB port yet. This window will open on your desktop. Select Begin Installation. - Page 5 Installation The WLI-UC-GN may be installed as either a wireless client or a wireless router. Choose Client Mode Installation if you want to add a wireless client to your computer, allowing it to connect to existing wireless networks. Turn to the next page for instructions on Client Mode Installation.
- Page 6 Click Next to step through the installation wizards. When the wizard asks you to insert your device, plug the AirStation WLI-UC-GN in to a USB port on your computer. Drivers will install automatically, and if you checked its box, Client Manager 3 will install as...
-
Page 7: Using Windows Zero Config
Using Windows Zero Config ® To use Windows’ built-in wireless utility, click on its icon in the systray. Zero Config will open. All available wireless networks will be listed. Click on your network to highlight it and then click Connect. If your network requires a network key or password to connect, enter it twice. -
Page 8: Using Client Manager 3
Using Client Manager 3 If you installed Buffalo’s Client Manager 3 software, then you will use it to connect instead of Windows Zero Config. Click on its icon in the systray to open Client Manager. Click on one of the three buttons up top to navigate to the three different sections of Client Manager. -
Page 9: Using Aoss
Using AOSS AOSS (AirStation One-Touch Secure System) is a simple system for connecting wireless clients to an access point while enforcing the most secure possible connection encryption type. Users no longer need to worry about choosing the proper security protocols, IP addresses, or SSID. - Page 10 Using AOSS • From the Status Screen, select the Profiles tab. • Initiate AOSS by clicking the blue AOSS button on the Client Manager’s screen. The AOSS wizard will appear. • Now, press the AOSS button on your access point. Hold it down until the AOSS LED on the access point begins to flash (1-3 seconds).
- Page 11 Using AOSS Once AOSS is complete (about 30 seconds), the connection is archived as a profile for later use. To minimize Client Manager to the system tray, click the ‘X’ in the top right corner. Notes: AOSS will scan for an AOSS partner for about two minutes. If it times out before finding one, just press the AOSS buttons again.
-
Page 12: Router Mode
Access Point Mode Installation Besides its wireless client capability, the WLI-UC-GN can function as a wireless access point. If your computer already has a connection to the internet, and you want to connect AOSS-compatable devices wirelessly, then choose Access Point Mode during installation. Note: If you have firewall or antivirus software running on the computer, temporarily disable it before continuing. - Page 13 Using Your AirStation as an Access Point AOSS Many kinds of AOSS devices can be connected to the AirStation WLI-UC-GN in access point mode. Right click on the icon to open the window shown at left. Click or push the AOSS button for the device you want to connect to start AOSS.
-
Page 14: Connecting Your Nintendo Ds
Connecting Your Nintendo DS ® The DS uses seperate wireless connections for each game. You will ® need to do these steps for each game that you play wirelessly. . Click on Wi-Fi Settings. The location of this may vary Turn on your DS ®... - Page 15 Connecting Your Nintendo DS ® Click on AOSS. You'll see this screen. Now, click the AOSS button on your desktop (see page 13). is now connected to the network. Click OK to run a connection Your DS ® test.
-
Page 16: Connecting Your Nintendo Wii
Connecting Your Nintendo Wii ® Turn on your Wii . Click on Wii Options, in the bottom left corner of the ® main menu. Click on Wii Settings. Click on the right arrow for more options. - Page 17 Connecting Your Nintendo Wii ® Click on Internet. Click on Connection Settings. Click on any of the three available connections. If the coonection you're using has settings already saved, clear them.
- Page 18 Connecting Your Nintendo Wii ® Click on AOSS. When you see this screen, click the AOSS button on your PC's desktop (page 13 for more info). Your Wii is now connected to the network. Click OK to run a ® connection test.
-
Page 19: Connecting Your Sony Psp
Connecting Your Sony PSP ® Turn on your PSP ® PSP firmware version 2.0 or later is required to use AOSS. Update your PSP firmware if necessary. Select Network Settings. - Page 20 Connecting Your Sony PSP ® Choose Infrastructure Mode. Choose New Connection. Choose Automatic. Select AOSS. Click the AOSS button on your PC's desktop (see page 13 for more info). In about a minute, the devices will form a secure connection.
-
Page 21: Connecting Your Sony Playstation 3
Connecting Your Sony Playstation 3 ® Turn on your Playstation 3 without a game inserted and navigate to ® Network Settings. Open Internet Connection Settings. Select Yes to continue. - Page 22 Connecting Your Sony Playstation 3 ® Choose Wireless. Choose Automatic. Press the "X" button on your controller to initiate AOSS. Then, click the AOSS button on your PC's desktop (page 13 for more info on this). In about a minute, the devices will form a secure connection.
-
Page 23: Specifications
Specifications Standards Compliance: IEEE802.11g/IEEE802.11b/IEEE802.11nDraft2.0 Access Modes: Infrastructure (Client Mode/AP Mode) Ad-hoc (Client Mode) Communication Protocol: OFDM, DSSS, CCK Frequency Range: 2412 - 2464MHz (Channels 1 - 11) Security: WPA-PSK (TKIP,AES), WPA2-PSK (TKIP, AES)*, 128/64-bit WEP *Software Access Point mode does not support WPA2-PSK. -
Page 24: Fcc/Ce Information
FCC/CE & Other Standard Information Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 25 IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. To maintain compliance with FCC RF exposure compliance requirements, please follow operation instructions as documented in this manual.
- Page 27 Taiwan: SAR compliance has been established in typical laptop computer(s) with CardBus slot, and product could be used in typical laptop computer with CardBus slot. Other application like handheld PC or similar device has not been verified, may not comply with related RF exposure rules, and such use shall be prohibited.
- Page 28 • EN 301 489-1 V1.8.1: (2008-04) Electromagnetic compatibility and Radio spectrum Matters (ERM) — ElectroMagnetic Compatibility (EMC) standard for radio equipment and services — Part 1: Common technical requirements. • EN 301 489-17 V1.3.2: (2008-04) Electromagnetic compatibility and Radio spectrum Matters (ERM) — ElectroMagnetic Compatibility (EMC) standard for radio equipment —...
- Page 32 Tested to comply With FCC Standards CCAxxxLPxxxxT1 xxxxx / POSTEL / xxxx xxxx FCC ID:FDI-09102006-0 Complies with IDA Standards DA10.412 BUF-WLIUCGN01 ETA-xxx/xxxx No.ESD-xxxxxxxx CMII:xxxxxxxxxx...
- Page 33 Logos and Trademarks © Buffalo Technology (USA), Inc. Buffalo Technology, Buffalo Technology logo and AOSS logo are registered trademarks of Buffalo Technology (USA), Inc. The names and logos of other companies mentioned herein belong to their respective owners. “Nintendo” is a registered trademark of Nintendo of America Inc.
-
Page 34: Contact Information
Contact Information (North America) ADDRESS Buffalo Technology (USA), Inc. 11100 Metric Blvd, Suite 750 Austin, TX 78758 GENERAL INQUIRIES Email: sales@buffalotech.com TECHNICAL SUPPORT North American Technical Support by phone is available 24 hours a day, 7 days a week. (USA and Canada). - Page 35 Contact Information (Europe) ADDRESS Buffalo Technology UK Ltd. 2 Bracknell Beeches, Old Bracknell Lane Bracknell, Berkshire, RG12 7BW United Kingdom GENERAL INQUIRIES Email: sales@buffalo-technology.com TECHNICAL SUPPORT Buffalo Technology provides technical support in English, German, French, Italian, and Spanish. For opening hours and relevant telephone numbers, please go to www.buffalo-technology.com/contact...
- Page 36 NCC Annoucement (Taiwan)
