Westell Verizon One User Manual

5.8 ghz digital cordless speakerphone
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

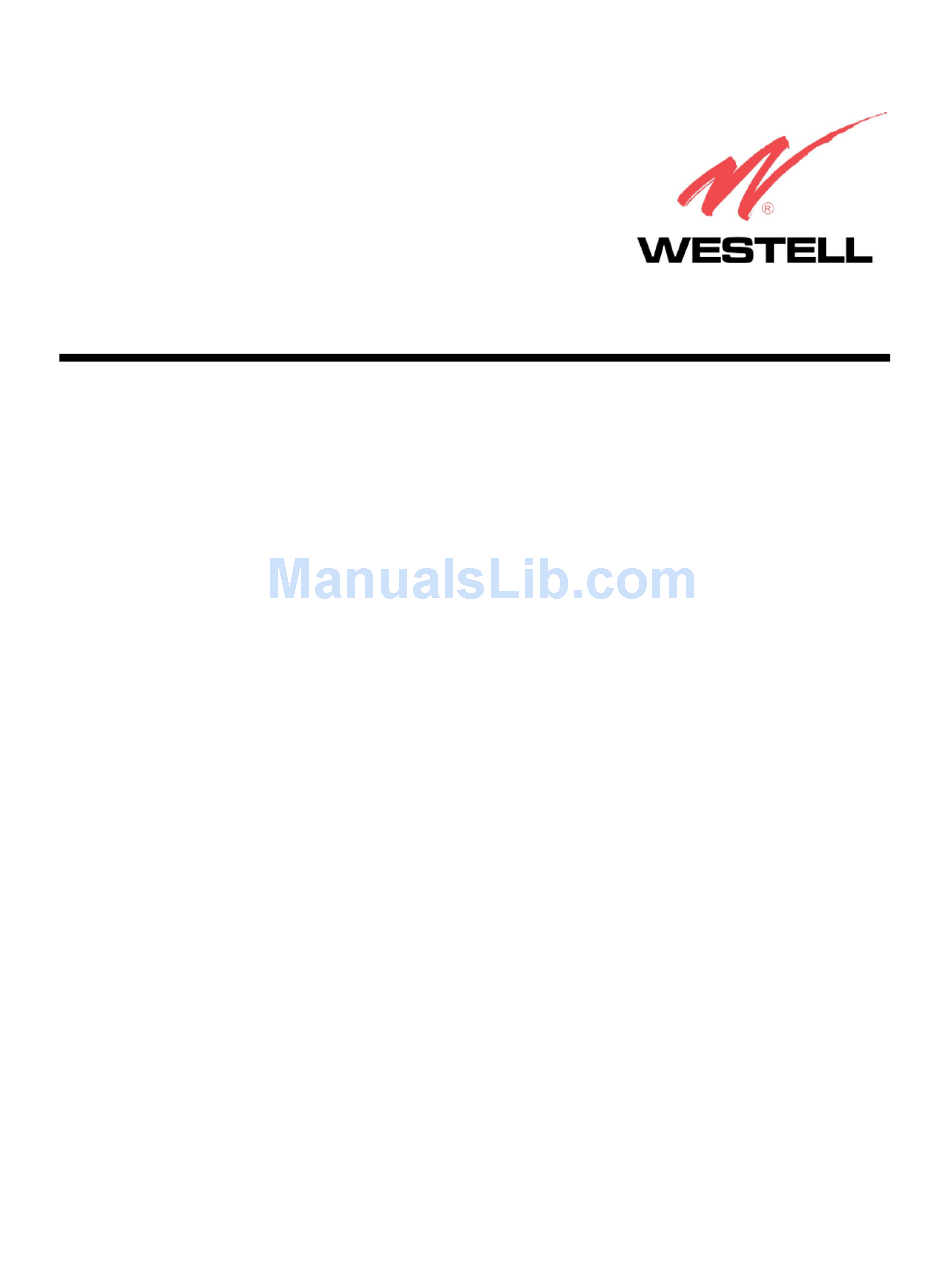

030-300419 Rev. A
Draft 8 – 11/30/04
Draft 7 Changed power to AC 12V
Draft 8 Updates section 3.1 Telephone Safety Instructions per Joe Gage
V
O
T
S
ERIZON
NE
ELEPHONE
UBSYSTEM
5.8 G
D
C
S
HZ
IGITAL
ORDLESS
PEAKERPHONE
U
G
SER
UIDE
© Copyright 2004 Westell, Inc.
030-300419 Rev. A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Verizon One and is the answer not in the manual?

Questions and answers

Summary of Contents for Westell Verizon One

  • Page 1 030-300419 Rev. A Draft 8 – 11/30/04 Draft 7 Changed power to AC 12V Draft 8 Updates section 3.1 Telephone Safety Instructions per Joe Gage ERIZON ELEPHONE UBSYSTEM 5.8 G IGITAL ORDLESS PEAKERPHONE UIDE © Copyright 2004 Westell, Inc. 030-300419 Rev. A...

  • Page 2: Table Of Contents

    Battery Charge Indication.........................14 Turning On the Handset ...........................15 Parking the Handset on the Base ......................16 Using the Handset Belt Clip ........................16 REGISTERING THE HANDSET TO THE Verizon One BASE ..............17 10. VERIZON ONE HANDSET CONTROLS ......................18 10.1 Handset Control Buttons ..........................18 10.2...
  • Page 3 17.1 Base Unit Speakerphone Control Buttons ....................55 17.2 Base Unit Activity LED ...........................56 17.3 Backlighting .............................57 18. VERIZON ONE BASE UNIT OPERATIONS ....................57 18.1 Base Unit, Stylus and LCD........................57 18.2 Making and Ending Calls .........................57 18.3 Answering Incoming Calls ........................57 18.4...

  • Page 4: Product Description

    This User’s Guide explains how to use the telephone features of your new Verizon One when operating the telephone in what is called “Stand Alone” mode. Your Verizon One has been designed to operate in two different modes: Stand Alone and iobi.

  • Page 5: Safety Instructions

    Use caution when installing or modifying telephone lines. IMPORTANT: In the event of a loss of electricity to your home/office, your Verizon One telephone system will not operate. For this reason, it is recommended that you have at least one standard telephone in your home/office for use in case of an emergency.

  • Page 7: Getting To Know Your Verizon One System

    LCD screen and navigate to various Iobi features. The Stylus, which is included with your Verizon One kit, is stored in the stylus holder located on the right side of the Verizon One base. The default mode of operation is iobi. When iobi services are not available because either your DSL Line has not been provisioned or for other network reasons, your Verizon One will revert to Stand Alone mode.

  • Page 8: Cordless Handset Telephone Features

    Stylus Pen functions as a detachable, pen-like, plastic tool for selecting items on the Base Unit’s LCD screen (primarily used with iobi services) 5.3 Cordless Handset Telephone Features The following features are provided in the Verizon One Cordless Telephone Handset. An in-depth discussion of functions will be discussed later in this document. •...

  • Page 9: Telephone Subsystem Quick Startup

    030-300419 Rev. A Draft 8– 11/30/04 Verizon One Telephone Subsystem User Guide 6. TELEPHONE SUBSYSTEM QUICK STARTUP Checking Package Contents Item Quantity Verizon One Base Unit Stylus Power Supply RJ-45 Ethernet cable (straight- through) (yellow) RJ-11 Phone cable Verizon One Cordless Handset...

  • Page 10: Installing The Verizon One Base Unit

    Verizon One Base Unit. Plug the other end of the power supply into an AC wall socket, and then turn on the power switch (if it is not already on). 5. Check the Base to see if the Power LED is solid green. If the Power LED is solid green, the Verizon One Base is powered up.
  • Page 11 Verizon One Base Unit. Plug the other end of the power supply into an AC wall socket, and then turn on the power switch (if it is not already on). 7. Check the Base to see if the Power LED is solid green. If the Power LED is solid green, the Verizon One Base is powered up.

  • Page 12: Installing The Verizon One Handset

    To install the Handset, please follow the instructions provided in this section. NOTE: The Verizon One kit includes a battery that provides power to the Handset when the Handset is not cradled in the Base Unit. When the Handset is cradled in the Base Unit, the Base Unit will automatically begin charging the handset battery.

  • Page 13: Charging The Handset (Battery)

    8.2 Charging the Handset (Battery) Prior to using your Verizon One Handset for the first time, the Handset Battery must be fully charged. To charge the Handset, place the Handset into the cradle with the keypad facedown so that the contacts on the Handset touch the contacts on the Base Unit.

  • Page 14: Battery Charge Indication

    030-300419 Rev. A Draft 8– 11/30/04 Verizon One Telephone Subsystem User Guide 8.3 Battery Charge Indication The Handset provides indication of 4 levels of battery charge state. (Full, High, Medium, Low). It takes approximately 2 seconds for the Handset to detect the battery charge level after it has been removed from the cradle.

  • Page 15: Turning On The Handset

    030-300419 Rev. A Draft 8– 11/30/04 Verizon One Telephone Subsystem User Guide 8.3.3 Battery Level (High Charge) When the Handset is at High battery level, the battery icon is not displayed. High battery level indication (battery icon is not displayed) 8.3.4 Battery Level (Full Charge)

  • Page 16: Parking The Handset On The Base

    030-300419 Rev. A Draft 8– 11/30/04 Verizon One Telephone Subsystem User Guide 8.5 Parking the Handset on the Base To park the Handset, slide the Handset (face down) into the cradle of the Base Unit. Be sure the contacts on the Handset touch the contacts on the Base.

  • Page 17: Registering The Handset To The Verizon One Base

    9. REGISTERING THE HANDSET TO THE VERIZON ONE BASE Registration Procedure After successfully charging your Verizon One Handset, you must perform a registration procedure to allow the Handset to communicate with the base. To register the handset to the Base Unit perform the following...

  • Page 18: Verizon One Handset Controls

    10. VERIZON ONE HANDSET CONTROLS 10.1 Handset Control Buttons The following control buttons are provided on the Verizon One Handset. NOTE: “Off-hook” refers to the condition when either the Base Unit or Handset is active in requesting a dial tone or is engaged in a call. “On-hook” refers to the condition when either the Base Unit or a Handset is not active in requesting a dial tone or placing a call.

  • Page 19: Handset Activity Led

    030-300419 Rev. A Draft 8– 11/30/04 Verizon One Telephone Subsystem User Guide 10.2 Handset Activity LED The Handset includes an Activity LED, also referred to as the “Voice Message Waiting LED,” which performs the following functions: • Incoming Ring: Activity LED is flashing at a cadence in accordance to an incoming ring pattern. When ring cadence is ON, the LED blinks.

  • Page 20: Verizon One Handset Screens

    Draft 8– 11/30/04 Verizon One Telephone Subsystem User Guide 11. VERIZON ONE HANDSET SCREENS 11.1 Standby After you have charged and registered the Handset to the Base, the Standby screen will be displayed on the Handset’s LCD screen. The Standby screen provides information such as: •...

  • Page 21: Twelve New Calls

    030-300419 Rev. A Draft 8– 11/30/04 Verizon One Telephone Subsystem User Guide 11.3 Twelve New Calls For example, when there are 12 new calls, no messages waiting, and the line is not in use, the Handset will display the following screen.

  • Page 22: Using The Verizon One Main Menu

    Draft 8– 11/30/04 Verizon One Telephone Subsystem User Guide 12. USING THE VERIZON ONE MAIN MENU 12.1 Accessing Handset Main Menu NOTE: To select soft key functions displayed on the left side of the LCD screen, press the key in the top left corner key of the Handset.

  • Page 23: Registration Menu

    030-300419 Rev. A Draft 8– 11/30/04 Verizon One Telephone Subsystem User Guide The following chart displays Main Manu and Submenu options available to the Handset. Main Menu Option Submenu Option(s) Save – Selecting this option enables you to save incoming calls.

  • Page 24: Date And Time Menu

    030-300419 Rev. A Draft 8– 11/30/04 Verizon One Telephone Subsystem User Guide If the registration is unsuccessful, the Handset will emit an “error tone,” and the screen will display a “Registration Failed” message for 2 seconds before returning to the initial Handset registration screen.

  • Page 25: Handset Name Menu

    When the [Handset Name] menu is selected from the main menu screen, the following screen will be displayed. This feature enables you to assign names to the handsets that are registered to Verizon One. NOTE: “Verizon-One” is the default Handset name.
  • Page 26 030-300419 Rev. A Draft 8– 11/30/04 Verizon One Telephone Subsystem User Guide • Select [Change] to change settings. (Note: for the Ringer volume, Ringer Tone menus, selecting the [Change] soft key will also play the selected settings.) • Select [Save] to stop playing the test Melody, save all settings, and to return to the Main Menu screen. The pointer will be at the last selected menu item.
  • Page 27 030-300419 Rev. A Draft 8– 11/30/04 Verizon One Telephone Subsystem User Guide Keypad Tone If you select [Keypad Tone] the following screen will be displayed. “On” is the default keypad tone. Select [Change] if you want to change the keypad tone to “Off.” After you have modified this setting, select [Save] to save your settings.
  • Page 28 030-300419 Rev. A Draft 8– 11/30/04 Verizon One Telephone Subsystem User Guide 12.6.1 Saving Incoming Calls to the Phonebook To save a call from the Incoming Calls log to the phonebook, first select [Incoming Calls] at the main menu screen.
  • Page 29 030-300419 Rev. A Draft 8– 11/30/04 Verizon One Telephone Subsystem User Guide Name Screen The caller’s name from the entry you selected at the Incoming Calls log will be displayed in the “Name” field. Select from the following options, and then select [Save] to save the entry to the phonebook.
  • Page 30 030-300419 Rev. A Draft 8– 11/30/04 Verizon One Telephone Subsystem User Guide Number Screen If you press the <Up/Down> button in the “Name” screen, the following “Number” screen will be displayed. The caller’s phone number from the entry you selected at the Incoming Calls log will be displayed in the “Number”...
