Summary of Contents for GSS PHIS 1000

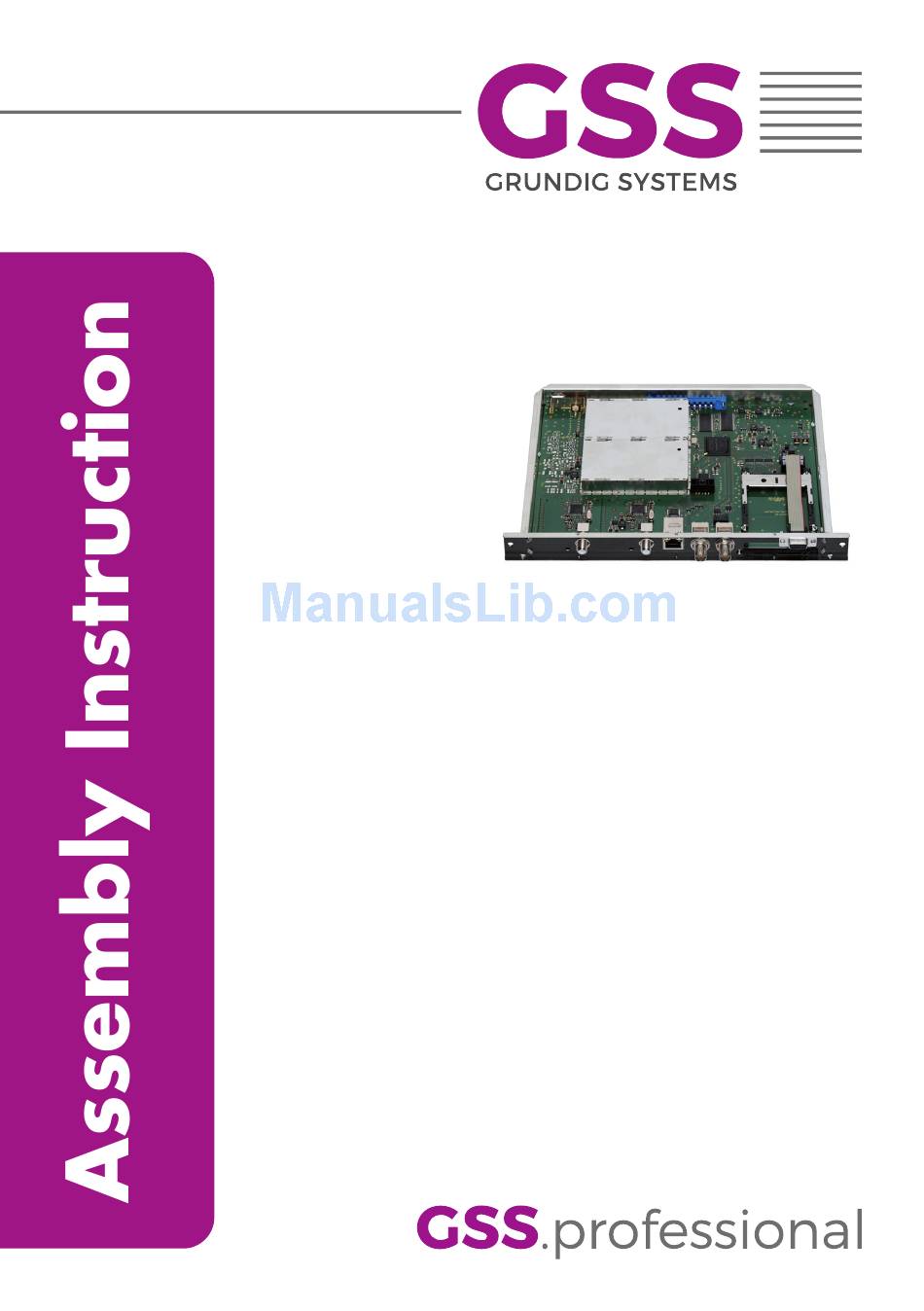

- Page 1 PHIS 1000...
-
Page 2: Table Of Contents
o n t e n t s 1 Safety regulations and notes ................ 4 2 General information ..................5 Packing contents ................5 Meaning of the symbols used ............5 Technical data ................5 Description ...................7 Software query................8 3 Assembly ....................9 Installing the cassette..............9 EMC regulations ................10 Cassette overview................11 Connecting the cassette ..............11 Retrofitting a CA module ..............12... - Page 3 Transmission channel ..............25 IP addresses for services ............26 Allocating services manually ............27 Sound options of the service ............28 DVB service information ............29 Output data rate ................30 Factory reset ................30 Saving settings ................31 Operation with a CA module ............32 PID monitoring ...............32 Configuring the CA module .............32 Descrambling services .............34 6 Final procedures .
-
Page 4: Safety Regulations And Notes
a f e t y r e g u l a t i o n s a n d n o t e s • Assembly, installation and servicing should be carried out by authorised electricians. • Switch off the operating voltage of the system before beginning with assem- bly or service work or pull out the mains plug. -
Page 5: General Information
2.1 P aC k i n g C o n t e n t s 1 Cassette PHIS 1000 2 RF cables 1 Brief assembly instructions 1 Measuring log 2.2 m... - Page 6 ASI interfaces Standard: ..............DIN EN 50083-9 Format: ..............MPEG ISO IEC 13818-1 User data rate: ..............2 … 90 Mbit/s Impedance: ..................75 Ω Level (input / output): ............. 800 mV ± 10% Return loss (input):..........> 17 dB (5 … 270 MHz) Connections SAT inputs: ................
-
Page 7: Description
2.4 d es C r i P t i o n The cassette is a DVB-S2 / SPTS converter which combines modulated serv- ices (programmes) in accordance with the DVB-S-/DVB-S2 standard and data streams supplied via the ASI interface into one data stream in the TPS module. This is emitted via the LAN interface and can contain up to 16 services. -
Page 8: Software Query
SDT (Service Description Table): Information relating to the scrambling is also sent with the name of each serv- ice. The LEDs for the LAN interface show whether a network connection exists and whether a data transfer is in progress. When the head-end station is switched on, the two-line LC display shows the software version of the control unit. -
Page 9: Assembly
s s e m b l y 3.1 i n s ta l l i n g t h e C a s s e t t e – Ensure the head-end station is mounted so it will not be able to vibrate. Avoid, for example, mounting the head-end station onto a lift shaft or any other wall or floor construction that vibrates in a similar way. -
Page 10: Emc Regulations
3.2 emC r e g u l at i o n s To comply with the current EMC regulations, it is necessary to connect the lines leading in and out of the head-end station using cable terminals. When mounting the cassette in a head-end station which is installed in a 19" cabinet, make sure the connections leading in and out for the 19" cabinet are made using cable terminals. The attenuation of shielding of the connection lines for ASI and antenna must meet the requirements for "Class A". CLASS • Insert the required number of cable terminals in the openings provided in the head-end station or in the 19" cabinet. Tighten the nuts on the cable terminals until the teeth on the lock washer have pen- etrated the exterior coating and a good connection is made between the housing and cable terminals. -
Page 11: Cassette Overview
3.3 C a s s e t t e ov e rv i e w Status LED of channel strip "B" SAT IF input of channel strip "B" Status LED of channel strip "A" SAT IF input of channel strip "A" Status LED of the LAN interface (data transfer) LAN socket Status LED of the LAN interface (network connection) -
Page 12: Retrofitting A Ca Module
3.5 r Ca e t r o f i t t i n g m o d u l e The cassette is equipped with a common interface. It allows you to connect a CA module for various scrambling systems and service providers. Scrambled channels can only be descrambled with a CA module suitable for the scram- bling system and the corresponding smart card. -
Page 13: The Control Panel At A Glance
C o n t r o l P a n e l g l a n C e 4.1 m e n u i t e m s Programme the cassette using the buttons on the control unit of the head-end station. -
Page 14: Programming
r o g r a m m i n g 5.1 P ro g r a m m i n g Pro C e d u r e Ein / On Bedienhinweise Operating Hints BE–Remote V 45 "blättert" Menüs vorwärts. scrolls forward through the menu. - Page 15 on / off PID Check Bx 1A Menu <= => Edit ◀ ▶ Bx 1A TV 04/09 X / 0 ..X – entschlüsseln descrambling 0 – nicht entschlüsseln no descrambling ◀ ▶ nächster Service next service Bx 1A 01/03 MENU Information *)
-
Page 16: Programming The Cassette
5.2 P r o g r a m m i n g t h e C a s s e t t e —> Pressing the button for longer than 2 seconds cancels the programming procedure. This takes you back to the program item "Selecting the cassette"... -
Page 17: Ethernet Parameters
• Press the button. —> The "Ethernet parameters" – "ETHERNET" menu is activated. t h e r n e t Pa r a m e t e rs In this menu you specify whether the Ethernet parameters for the cassette are entered automatically by a connected server ("DHCP"), or whether you want to enter them manually ("stat"). -
Page 18: Address Range
• Use the buttons to place the cursor under the digit of the IP address displayed to be set and use to set the IP address wished. • Press the button. —> The "Address range" – "IP-MASK" menu is activated. d d r es s r a n g e In this menu you define the address range for the cassettes connected to the... -
Page 19: Udp Port
udP P o r t The UDP port setting is required if the cassette needs to be reached externally to make the setting, such as from another input frequency. This setting is in- tended for future functions and can be skipped for this cassette. Bx 4 UDP-PORT 60000... -
Page 20: Lnb Oscillator Frequency
lnb os C i l l ato r f r e q u e n C y Set the oscillator frequency of the LNB used in this menu. Bx 4A 10600 MHz • Using the button the oscillator frequencies "10600" or "9750" can be selected directly. -
Page 21: Input Frequency
Setting the DVB mode • Use the button to place the cursor under "DVB-S" and set the required DVB-S2-mode with the buttons. • Press the button. —> The "Input frequency" – "FREQ" menu is activated. n P u t f r e q u e n C y If three dots "... -
Page 22: Testing The Signal To Noise Ratio
es t i n g t h e s i g n a l n o i s e r at i o In this menu you can estimate the quality of the input signal. Bx 4A (+ 9.6) OK 12.0 dB Current signal to noise ratio This value shows the difference between the quality of the input signal... -
Page 23: Allocating The Ip Addresses
—> The "Input data stream" – "INPUT" menu is activated when the input signal source "Tuner A" without a CA module installed and "Tuner B" are programmed (page 19). Programming the input signal source "Tuner A" with a CA module installed the "PID monitoring" – "CA" menu is activated (page 32). •... -
Page 24: Switching The Ip Address Off Or On
iP w i tC h i n g t h e a d d r es s o f f r a n s m i s s i o n P r oto C o l o r t n u m b e r In this menu you can switch off the IP address displayed, and define the trans- mission protocol and the port number. -
Page 25: Quantity Of Data Packets
—> The display shows "copy" for a short time. • Press the button. —> The "Quantity of data packets, Forward error correction, Transmis- sion channel" – "PKTS / FEC" menu is activated. ua n t i t y data PaC k e t s o rwa r d e r r o r C o r r e C t i o n... -
Page 26: Ip Addresses For Services
Copying the settings to all IP addresses • Pressing the button the settings "Quantity of the data packets", Forward error correction" and "Transmission channel" can be copied to all IP addresses. —> The display shows "copy" for a short time. • Press the button. —> The "IP addresses for services" – "OUT-IP" menu is activated. a d d r es s es f o r s e rv i C es... -
Page 27: Allocating Services Manually
Allocating IP addresses to services automatically • Pressing the button the first 16 of the present services are occu- pied with IP addresses in ascending order, starting from the IP address set. —> The display shows "auto" for a short time. • Press the button. —>... -
Page 28: Sound Options Of The Service
—> If a service number (e.g. "131") appears instead of "TV" or "RA", this indicates that an unnamed station or an undefined data stream is being received. If the service selected is already allocated to an IP address, in the first line of the display an exclamation mark "... -
Page 29: Dvb Service Information
dvb s e rv i C e i n f o r m at i o n In this menu the transmission of the DVB servic (EIT – Event Information Table, TDT – Time Date Table, TXT – Teletext, SDT – Service Description Table) can be activated or deactivated. -
Page 30: Output Data Rate
u t P u t data r at e In this menu the current data rate is displayed. Bx 4 DATARATE 72.956 Mbps • Press the button. —> The "Factory reset" – "FACTORY Defaults" menu is activated. aC to ry r es e t In this menu you can reset all settings to the factory defaults. -
Page 31: Saving Settings
av i n g s e t t i n gs • Press the button. —> Back to "Selecting the cassette" (page 16). —> The settings are saved. - 31 - PHIS 1000... -
Page 32: Operation With A Ca Module
Ca P e r at i o n w i t h m o d u l e In order for this function of the CA module to be possible, in the "Input data stream" – "INPUT" menu (page 19) an input signal source must be selected whose data stream contains services which can be descrambled by the CA module you are using and your smart card. - Page 33 —> By pressing the button you can skip the "Configuring the CA module" – "CA" menu and activate the "Input data stream" – "INPUT" menu (page 19). • Press the button to activate the menu of the CA module. —> The display shows e.g.: Bx 4A 01/03 MENU Information Meaning of the indicators: "Bx 4A"...
-
Page 34: Descrambling Services
es C r a m b l i n g s e rv i C es In this menu you select the services wished from the scrambled data stream, which are to be descrambled. Bx 4A Menu <= => Edit Bx 4A TV Bx 4A 01/03 Bx 4A 01/03... -
Page 35: Final Procedures
i n a l Pro C e d u res After installing the head-end station, upgrading accessories or installing cas- settes it is necessary to tighten all cable connections, cable terminals and cover screws in order to maintain compliance with current EMC regulations securely. • Securely tighten the cable bolted connections using an appropriate open- ended spanner. • Mount the front cover (see assembly instructions of the head-end station). - 35 - PHIS 1000... - Page 36 Phone: +49 (0) 911 / 703 8877 • Fax: +49 (0) 911 / 703 9210 www.gss.de/en • info@gss.de CLASS CLASS Service: Phone: +49 (0) 911/703 2221; Fax: +49 (0) 911/703 2326; service@gss.de Alterations reserved. Technical data E. & O.E. © by GSS Grundig Systems GmbH V38/001/2017...
