Summary of Contents for AEMC 1950

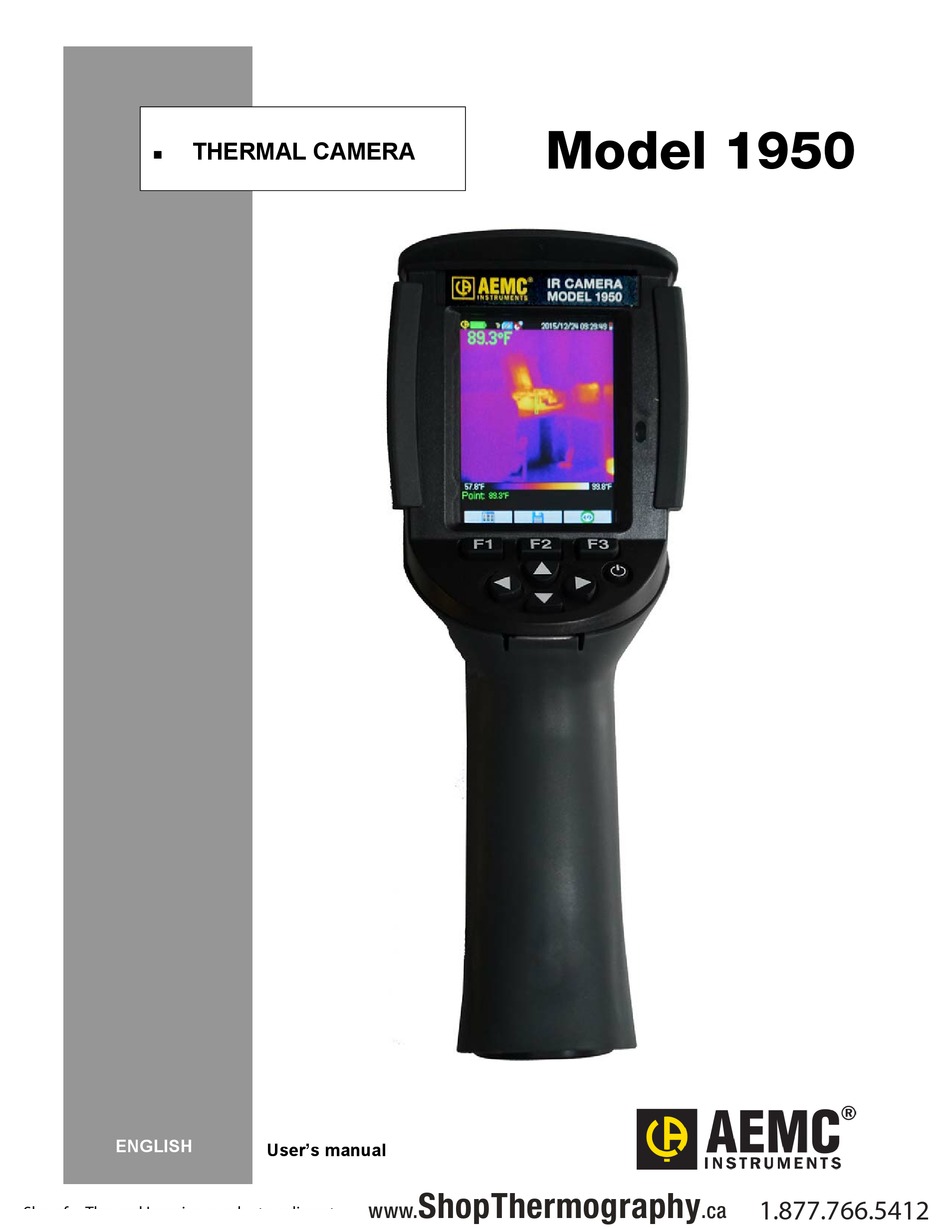

- Page 1 Model 1950 THERMAL CAMERA ENGLISH User’s manual ShopThermography 1.877.766.5412 www. Shop for Thermal Imaging products online at:...
- Page 2 If parts of the camera are damaged or present problems following failure to heed the preceding warning, neither the manufacturer nor the distributor shall be held liable, and all costs incurred shall be borne solely by the operator. INTRODUCTION Thank you for purchasing a Model 1950 thermal camera. For best results with your device: ...
-
Page 3: Ordering Information
Ordering Information Thermal Imaging IR Camera Model 1950 .................... Cat. #2121.40 Includes carrying case, external battery charger, USB cable, two NiMh rechargeable batteries, SD card, Bluetooth headphone, quick start guide, and a USB stick containing the user manual, analysis software and software manual. -
Page 4: Table Of Contents
CONTENTS ORDERING INFORMATION ....................4 Receiving Your Shipment ...................... 4 CONTENTS ........................... 5 1. GETTING STARTED ......................7 1.1. Safety Precautions ..................... 7 1.1.1. Never aim the camera at the sun, a laser welding, or other source of powerful thermal radiation ..........7 1.1.2. - Page 5 4.9.2. Via USB cable ....................24 4.10 Image post-processing and report generation ............24 5. SETUP FILES ......................... 25 5.1. Storing configuration files ..................25 5.2. Saving the current setup ..................25 5.3. Recalling a saved setup ................... 25 5.4. Deleting a saved setup .................... 26 5.5.
-
Page 6: Getting Started
1. GETTING STARTED 1.1. Safety Precautions 1.1.1. Never aim the camera at the sun, a laser welding, or other source of powerful thermal radiation Direct exposure to sunlight or other strong thermal radiation can impair the operation of the camera and make the infrared sensor partially or totally inoperative for as long as several months. -
Page 7: Installing The Batteries
1.2. Installing the Batteries The camera accepts AA batteries of two types: - alkaline - Ni-MH rechargeable The latter must be recharged with an external charger. When the batteries are removed, the internal clock has enough power for 15 hours. ... -
Page 8: Camera Display
1.4. Camera display In normal operation, the camera starts up: in its main display in continuous acquisition mode with the setup loaded when it was last switched off However, if the batteries have been removed and then replace, the Battery management appears when the camera starts up. This menu can also be displayed by pressing and holding down the F2 button when the camera is started up. -
Page 9: Main Screen
1.4.2. Main screen The screen is divided into 4 zones: Status bar Image and palette of colors Display of measurements Functions of the F1, F2, and F3 buttons ShopThermography 1.877.766.5412 www. Shop for Thermal Imaging products online at:... - Page 10 1.4.2.1. Status bar This bar displays the current operating mode of the camera. In normal operation, it contains the following information: no display Batteries OK Default management Batteries discharged Batteries OK Advanced management Batteries low Batteries discharged Bluetooth function activated no display Bluetooth not activated Function of the trigger ...
- Page 11 1.4.2.3. Display of measurements This area of the Main screen displays measurements of the various cursors, along with the Bluetooth measurements when a peripheral measurement device is connected and enough space is available on the screen. Measurement of the point cursor Bluetooth measurements (only one has been validated for display) See §...
-
Page 12: Displaying Menus
1.4.3. Displaying menus Configuration menus are accessed by pressing the F1 button when the icon is displayed. When a menu is displayed, new functions are assigned to the F1, F2 and F3 buttons. Select an item in the menu using the arrow buttons. The selected items appear in yellow. -
Page 13: Changing The Units For Temperature And Distance
1.5.3. Changing the units for temperature and distance From the Main/Parameters/Adjustments menu, select to choose the unit in which temperature or distance is displayed: temperature is displayed in degrees Fahrenheit (°F) or Celsius (°C) distance is displayed in feet (ft) or meters (m) 1.5.4. -
Page 14: Changing The Image Storage Location
1.5.7. Changing the image storage location To specify the working directory to which images are stored, select the icon from the Main/Files menu. The working directory must be located on the micro SD card, which must be present in the device. By default this is "1:/images."... -
Page 15: Basic Operation
2. BASIC OPERATION By default, no measurement cursor is selected (the icon in the Main/Display/Cursor menu is highlighted), and the camera produces only infrared images. 2.1. Estimating the temperature of an object without a cursor It is possible to evaluate a temperature from the color palette. The distribution of the colors between the minimum and maximum temperatures displayed at the ends of the palette is linear, so simply interpolating based on the position of the color in the palette provides an estimate of the temperature. -
Page 16: Freezing The Colors Representing The Temperatures
2.7. Freezing the colors representing the temperatures By default, assignment of colors is automatic and is recalculated for each image as a function of the temperatures of the hot and cold spots in the image. As a result, a given color does not necessarily represent the same temperature from one image to another, if the hot and/or cold spots change. -
Page 17: Advanced Operation
3. ADVANCED OPERATION 3.1. Good practices Make the measurement in the central zone of the screen. Aim head on, not at an angle. Measure scenes that are as large as possible. Avoid point-like scenes. If the ambient temperature changes significantly, allow the camera to stabilize. ... -
Page 18: Using Custom Compensation Settings
3.2.2. Using custom compensation settings This calculation mode is necessary when the measurement conditions are significantly different from the calibration conditions (emissivity, relative humidity) and the application requires high accuracy. To use custom settings, select Influence in the Main/Target menu and change the setting to User. When user compensation is selected, these parameters can be adjusted: ... -
Page 19: Saving And Recalling Images
4. SAVING AND RECALLING IMAGES If the micro SD memory card is inserted into the camera, you can store and later recall the current image and measurements displayed. 4.1. Image file naming conventions The camera has two objectives, one for infrared images and the other for visible light images. When an image is saved, two files created. -
Page 20: Image File Directories
Depending on the situation, 1, 2, or 3 files are saved: 1 file For a derived image (same date of acquisition) with no headset connected (the visible image already exists; only the IR file is created). 2 files For the creation of an image from a new acquisition (new date of acquisition) with no headset connected (the IR and visible image files are created). -
Page 21: Recalling An Image
4.6. Recalling an image An image is recalled from the Main/Files/Images menu, provided that the micro SD card is installed in the camera. The Images menu lists only infrared images generated by the camera bearing a name in the form yyyymmdd_hhmmssX_IR.BMP, along with the folders, to allow browsing in the SD card directory tree. -
Page 22: Playing Back A Voice Recording
4.7. Playing back a voice recording A voice recording is played back using the Bluetooth headset, which must be connected to the camera (see § 6.2.2 Connecting a headset). To play back the recording associated with an image, the image must be recalled (see § 4.6 Recalling an image) and the button pressed to open the About file…... -
Page 23: Via Usb Cable
4.9.2. Via USB cable Connect one end of a USB cable to the camera and the other to a computer. The USB slot on the camera is next to the SD card slot. If this is the first time you have connected the camera to the computer, wait until the drivers load (a message appears on the screen informing you when the drivers are loaded). -
Page 24: Setup Files
5. SETUP FILES Camera configuration settings can be saved to a setup file. The file can later be opened and its settings used to configure the camera. This enables you to create and re-use custom configurations, for example for specific targets and environments. You can also reset the camera to its original “factory”... -
Page 25: Deleting A Saved Setup
5.4. Deleting a saved setup To delete a setup file, select it in the Main/Setup/User/Files menu. Use the Up and Down buttons to navigate to the desired file. Then press F1 . A message appears asking you to confirm the deletion. 5.5. -
Page 26: Bluetooth
6. BLUETOOTH 6.1. Activating/Deactivating Bluetooth 6.1.1. Activating Bluetooth By default, Bluetooth is deactivated on the camera to prolong battery life. To activate Bluetooth, open the Main/Parameters/Bluetooth menu and select the Activation icon. Press F2 use the Up or Down button to change the setting to On. Press F2 to save the setting. -
Page 27: Changing Headsets
Open the Main/Parameters/Bluetooth menu and select the Headset icon. Press F2 and use the Up/Down buttons to change the setting to New (if it is not already displayed). Press F2 . The pairing starts; after a few seconds, the connection is made. icon changes;... -
Page 28: Connecting A Bluetooth Measurement Peripheral
6.3.1. Connecting a Bluetooth measurement peripheral To connect a measurement peripheral, Bluetooth must be activated on the camera (see § 6.1 Activating and deactivating Bluetooth) and the peripheral must be powered on and Bluetooth enabled. Then open the Main/Parameters/BT/Peripheral menu: Bluetooth address of the F607_ANNECY clamp Polling period of this peripheral This screen lists all previously and currently connected... -
Page 29: Using A Measurement To Compensate For Environmental Factors
Name of the peripheral making the measurement Type of measurement Use made of the measurement This menu displays measurements received from the connected peripherals during the last acquisition. When a measurement is selected (via Up/Down buttons), the image identifies the peripheral that made the measurement, the type of measurement (in this example current), and the use made of this measurement (see below). -
Page 30: Displaying Bluetooth Measurements On The Main Screen
For the measurement to be used as a compensation factor, the option “Influence" must be selected in the Main/Parameters/Bluetooth/Measurements menu. To do this: Use the Up/Down buttons to select the measurement. If the measurement is for temperature, humidity, or distance, you can select the option “Influence”... -
Page 31: Updating Firmware
The version number appears on the "Soft version:" line. To check whether a more recent version of the camera firmware is available, go to the AEMC web site at http://www.aemc.com and open the Software and Firmware Updates link. This lists products for which firmware is available, including the camera. -
Page 32: Troubleshooting
8. TROUBLESHOOTING 8.1. IR image is solid-color 8.1.1. The palette of colors is frozen Make sure that the low and high temperature limits of your palette are consistent with the temperature range in your environment. To check this, unlock the palette (see § 2.7 Freezing the colors representing the temperatures). -
Page 33: Bluetooth Measurements Are Not Displayed/Refreshed
8.7. Bluetooth measurements are not displayed/refreshed Ensure data acquisition on the peripheral has not been stopped. To preserve consistency between the image displayed and the Bluetooth measurements read on the peripherals at the time of acquisition, the measurements are refreshed only when there is a new acquisition. -
Page 34: Maintenance
9. MAINTENANCE 9.1 Cleaning the camera WARNING! The camera is not waterproof. Housing: To avoid any spattering on the lens, you must close the camera's lens protection flap. Use a cloth moistened with soapy water or with alcohol. Screen: To avoid scratching, use a soft, lint-free cloth. ... -
Page 35: Appendix A: Menu Tree
APPENDIX A: MENU TREE Menu Tree Part 1: Display, Files, and Setup menus ShopThermography 1.877.766.5412 www. Shop for Thermal Imaging products online at:... - Page 36 Menu Tree Part 2: Target, Parameters, and About menus ShopThermography 1.877.766.5412 www. Shop for Thermal Imaging products online at:...
- Page 37 Menu Tree Part 3: Recall menu ShopThermography 1.877.766.5412 www. Shop for Thermal Imaging products online at:...
-
Page 38: Appendix B: Emissivity Table
APPENDIX B: EMISSIVITY TABLE Material Specification Temp. °C Spectrum Emissivity Ref. Stainless steel 18-8 0.16 Stainless steel 304(8Cr, 18Ni) 215～490 0.44～0.36 Stainless steel 310(25Cr, 20Ni) 215～520 0.90～0.97 Nickel alloys Nickel-chromium alloy wire (shiny) (refractory) 50～1000 0.65～0.79 Nickel alloys Nickel-chromium alloy 50～1040 0.64～0.76 Nickel alloys... -
Page 39: Appendix C: Technical Specifications
APPENDIX C: TECHNICAL SPECIFICATIONS Description Characteristics Value Type UFPA microbolometer Spectral range 8~14µm IR detector Resolution 80x80 NETD 100mK at 30°C Frequency IR imaging Objective 20°x20° performance IFOV (spatial resolution) 4.4mrad Min. focal distance 0.4m Adjustment Fixed focus Focusing Built-in digital video 240x240 Illuminator Visual image...
