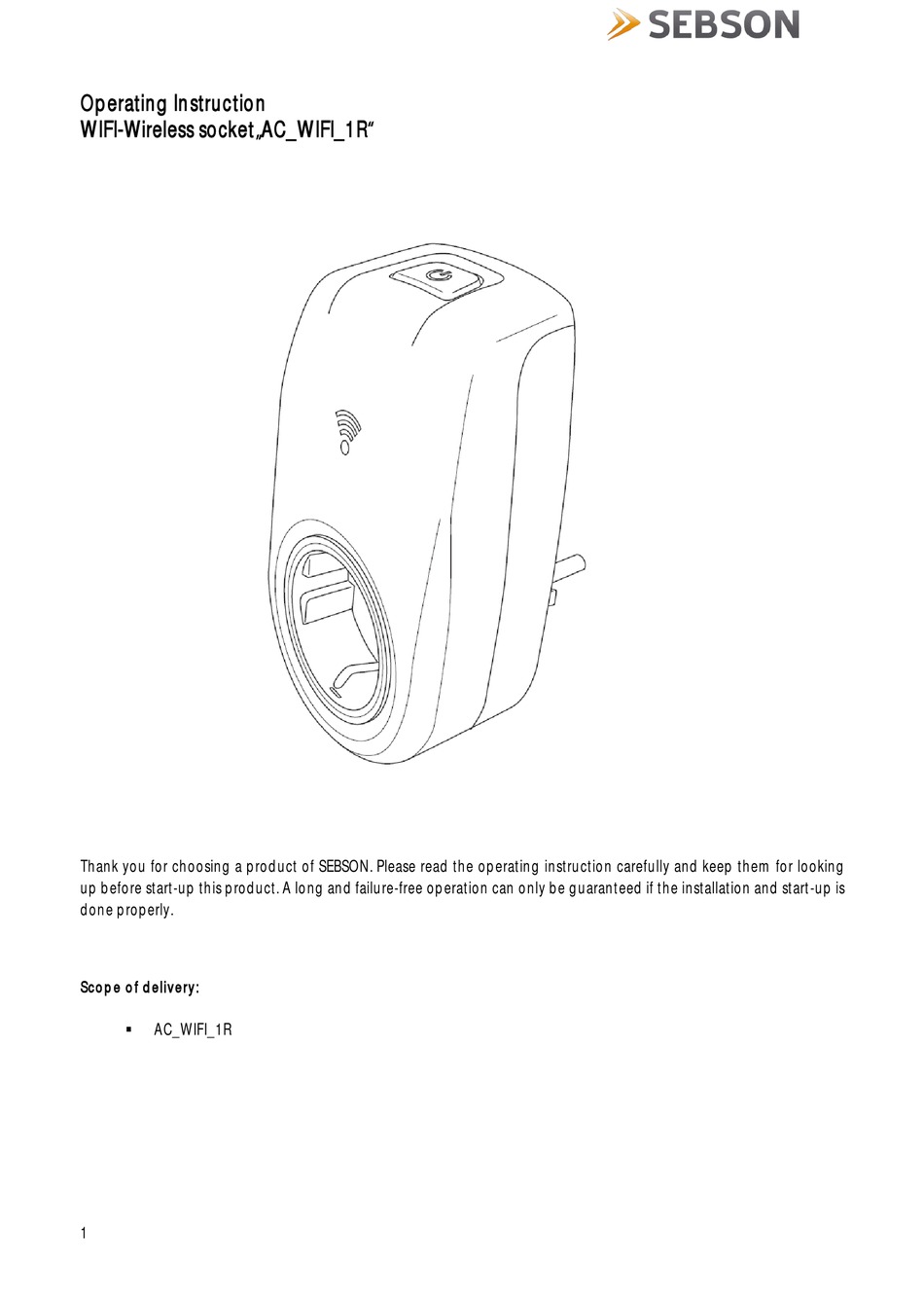

Operating Instruction
WIFI-Wireless socket AC_WIFI_1R
Thank you for choosing a product of SEBSON. Please read the operating instruction carefully and keep them for looking
up before start-up this product. A long and failure-free operation can only be guaranteed if the installation and start-up is
done properly.
Scope of delivery:
AC_WIFI_1R
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AC_WIFI_1R and is the answer not in the manual?

Questions and answers

Related Manuals for SEBSON AC_WIFI_1R

Summary of Contents for SEBSON AC_WIFI_1R

  • Page 1 WIFI-Wireless socket AC_WIFI_1R Thank you for choosing a product of SEBSON. Please read the operating instruction carefully and keep them for looking up before start-up this product. A long and failure-free operation can only be guaranteed if the installation and start-up is done properly.

  • Page 2: Table Of Contents

    Index General safety information ......................................3 Technical Data ............................................3 Gerneral information about the product ................................4 Product overview............................................4 Start up ................................................5 Switch the WIFI wireless socket ON and OFF ..............................10 Set of time ..............................................10 Save individual times ........................................13 Save countdown times ........................................14 10.

  • Page 3: General Safety Information

    General safety information  Operate this product at a suitable power outlet (230V AC 50Hz). Note: Do not connect devices to this product with a power of more than 3.600W and a current of more than 16A!  Take the product out of the socket if you do not use the product for an extended period of time! ...

  • Page 4: Gerneral Information About The Product

    Gerneral information about the product  The WIFI wireless socket can be controlled from any location via the smartphone or tablet (provided you have WLAN).  The used smartphone or tablet must have at least Android 4.0 or IOS 8.0 as operating system. Smartphones or tablets with Windows operating systems are unfortunately not suitable for this.

  • Page 5: Start Up

    Start up Before start-up the product, please check this for external damage. In case of visible external damage, we immediately dis-advise the start-up of the product. Please inform the manufacture immediately! Caution: A damaged product can operate for example electric shock, short circuit or cause a fire! Please remove all packaging material of this product before the first start up! Please follow strictly the safety and technical information! 5 .
  • Page 6 5.2 Connect the Smartphone / Tablet to the WIFI wireless socket Step 1: Add the WIFI wireless socket by pressing the + symbol.
  • Page 7 Step 2: Select WIFI wireless socket. WFG-1, which want connect your smartphone. B: Press and hold the WIFI switch on/ off for 6 seconds until the indicator light starts to flash. Then select "Next". Note: Depending on the device and version, proceed to step 3 or 4. Step 3:...
  • Page 8 C: In the WIFI settings of your smartphone or tablet, select "HomeMate_AP" as WLAN network. Then follow the menu by clicking the "To connect Wi-Fi" button. D: Select "HomeMate_AP". A message appears indicating that no Internet connection has been detected and that a connection cannot be established automatically.
  • Page 9 5 . 3 C on n e ct a d di t i on al WI F I wi r el es s s o ck e t s t o y o ur sm ar t ph on e or t abl et Note: By pressing the "+"...

  • Page 10: Switch The Wifi Wireless Socket On And Off

    Switch the WIFI wireless socket ON and OFF In the main menu "My devices" you have an overview of the functions of the connected WIFI wireless socket. The connected devices can be switched on and off by means of the on and off button (a). The connected WIFI wireless sockets can be individually selected via the main menu.
  • Page 11 A: If you want to set the time periods during which the WIFI wireless socket is to be switched on and off, select "Mode" from the main menu. B: To add a period, select "Add Mode". Up to 5 different periods can be defined. Important: Please ensure that the set periods do not overlap! This prevents the WIFI wireless socket from turning on unplanned.
  • Page 12 A) Enter a name for the period. B) Start Time: Select a start time. C) End Time: Select an end time. D) Time Repeat: Select one or more weekdays for the specified time period. After making all the entries, save them by pressing the "Save" button. To enable the stored time, slide the slider to the right.

  • Page 13: Save Individual Times

    Save individual times A: If you only want to set a time at which the WIFI wireless socket is to be switched on or off, select "Timer" from the main menu. B: To set a time, select "Add a Timer". Up to 15 different times can be stored. Important: Please ensure that the set times do not overlap! This prevents the WIFI radio plug from turning on unplanned.

  • Page 14: Save Countdown Times

    c) Repeat: Select one or more weekdays for the time saved. After making all the entries, save them by pressing the "Save" button. To enable the stored time, slide the slider to the right. To deactivate, slide the knob to the left. Save countdown times...
  • Page 15 A: By pressing the "Countdown" button in the main menu, countdown times can be stored. In this app, a total of 20 different countdown times can be stored. B: To add a countdown, select "Add countdown". a) Select a time. When the set time has elapsed, the WIFI radio socket is switched on or off. b) On: WIFI radio plug will turn on after the time has elapsed.

  • Page 16: Delete Stored Times

    10. Delete stored times A: In the Timer menu, select the time that you want to delete. B: Select the "Delete" button. The stored time is then immediately deleted.

  • Page 17: Invite Other Users To Operate The Wifi Wireless Socket

    11. Invite other users to operate the WIFI wireless socket...
  • Page 18 A: In order to invite additional users who want to control the WIFI wireless socket via their smartphone, click the "More" button in "My devices" main menu at the bottom right. Then select "Device Sharing". Note: Please note that other users has download and install the app on their smartphone. In addition, users must first register with "YD Home"...

  • Page 19: Turn The Reminder Function On And Off And Update The Software

    12. Turn the reminder function on and off and update the software a: When you press the "Bell" icon, the past and currently active actions are displayed, such as an expired or active countdown. b: In the "Alert Setting" menu, you can select whether you want to be reminded acoustically when a stored action is activated.

  • Page 20: Disconnect The Wifi Radio Outlet And The Connected Device And Read The Mac Address

    Disconnect the WIFI radio outlet and the connected device and read the MAC address...

  • Page 21: Explanation Of The Blue Led Indicator (Wifi Indicator Light)

    A: At the "My devices" menu, select the WIFI wireless socket you want to disconnect. "Smart plug" B: Pressing the 3 dots at the top right of the screen opens a small menu window. Select "Settings". C: Press the "Delete" button to disconnect the selected WIFI wireless socket from your device. If you want to know the device's MAC address, select "Device information".

  • Page 22: Cleaning

    CE Declaration of Conformity This product has been prepared according to the listed below guidelines:  LVD 2014/35/EU  EMV 2014/30/EU  RoHS 2011/65/EU  R&TTE 1999/05/EC SEBSON - Inh.: Sebastian Sonntag - Gernotstr.17 - 44319 Dortmund Germany - www.sebson.de...
