Summary of Contents for Deister electronic LogIdent UDL500

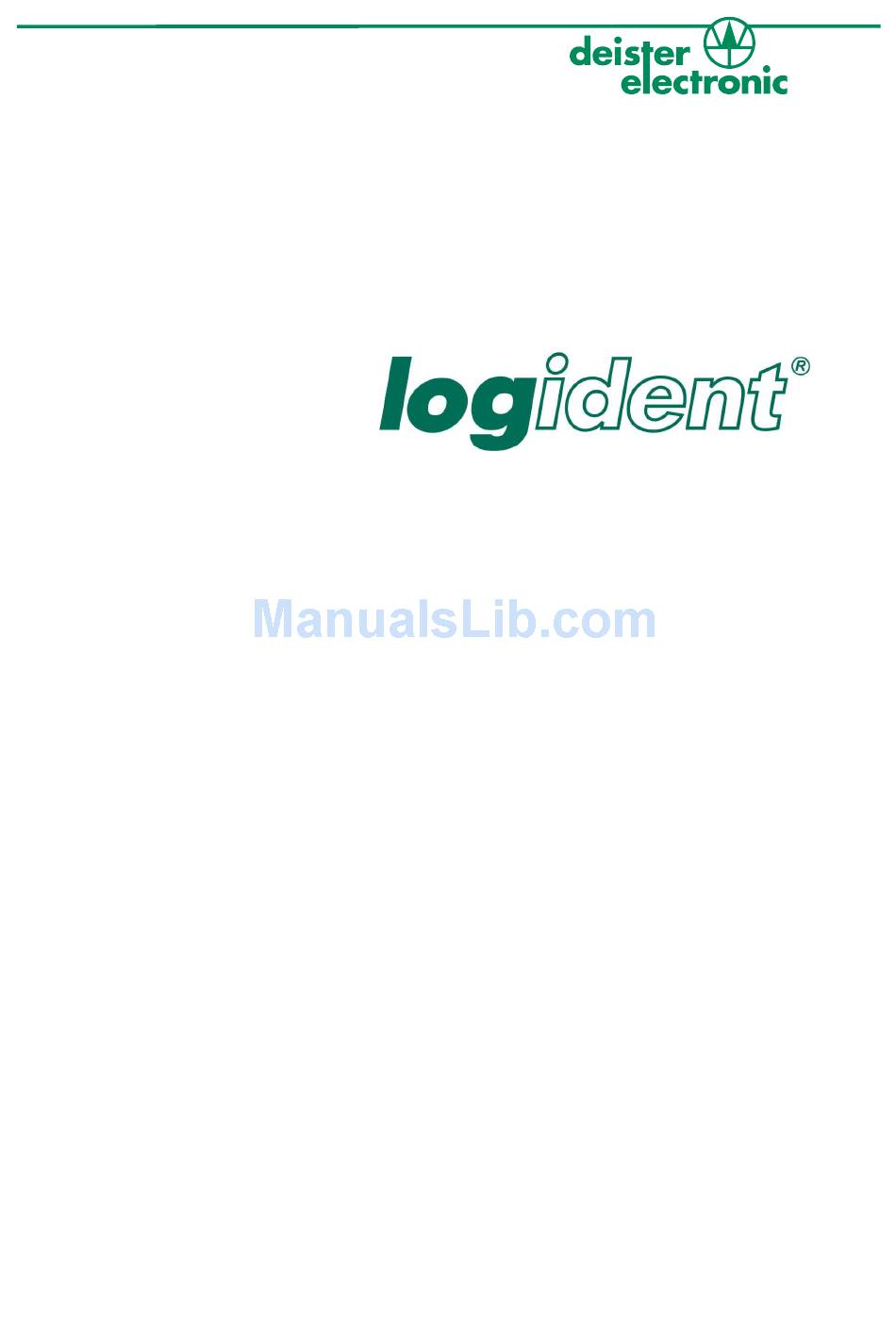

- Page 1 UDL500 Wiring & Installation Instructions V17/01/08...
- Page 2 GmbH. deister electronic GmbH reserves the right to make changes to any and all parts of this documentation without obligation to notify any person or entity of such changes.
-
Page 3: Table Of Contents
8. Portal application with DCU1 Data Control Unit..31 9. Accessories of the UHF product family......32 10. Regulatory Notices..........33 10.1 Europe......................33 10.2 FCC Digital Device Limitations.................33 10.3 FCC Notice....................34 10.4 FCC Radiation Exposure Statement..............34 10.5 Industry Canada.....................34 V17/01/08 deister electronic GmbH 30890 Barsinghausen Germany... -
Page 4: Technical Data
DCU1) Acoustical indicator: beeper Optical indicator: 3 LEDs (yellow, green, red) Conformity: Human exposure EN 50364 EN 301 489 air interface (EU) EN 302 208 (listen before talk) deister electronic GmbH 30890 Barsinghausen Germany V17/01/08... -
Page 5: Connectors
It is important to take care that the marked tab connector is connected to the supplied cable plug. The device always needs to be professionally grounded using a yellow/green flexible line with a minimum profile of 0.75mm². V17/01/08 deister electronic GmbH 30890 Barsinghausen Germany... -
Page 6: Pin Assignment Udl500
IN + external voltage supply for trigger input, max. +36V/DC Table 1: pin assingment UDL500 UDL500: RS485 interface Installation note: We recommend professional grounding of the device (see 2.1 Installation note). UDL500 housing deister electronic GmbH 30890 Barsinghausen Germany V17/01/08... -
Page 7: Udl500: Control Digital Output Via Hardware Trigger
The control of the potential-free output OUT can be configured within the software. For this the reader has to be operated in trigger mode. In the following example of circuits, the output OUT has not been potential isolated: UDL500 housing V17/01/08 deister electronic GmbH 30890 Barsinghausen Germany... -
Page 8: Udl500: Control Digital Output Via Software Trigger
IN. The control of the potential-free OUT can be configured within the software. For this the reader has to be operated in trigger mode. In the following example of circuits the output has not been potential isolated: UDL500 housing deister electronic GmbH 30890 Barsinghausen Germany V17/01/08... -
Page 9: Rs485 Interface
5m (16 feet) Recommendation for the cable: twisted pair, cable-cross section at least 0.22mm (AWG 24) differential-mode characteristic impedance 100 ... 120Ω V17/01/08 deister electronic GmbH 30890 Barsinghausen Germany... -
Page 10: Mechanical Dimensions
Wiring & Installation Instructions UDL500 4. Mechanical dimensions UDL500 housing All dimensions in mm: deister electronic GmbH 30890 Barsinghausen Germany V17/01/08... -
Page 11: Transmission Protocol
Protocol”. 6. Mounting The back of the reader is prepared for mounting on masts and tubes. For mounting on masts or ceilings,deister electronic provides the link holder LRM1 as an ideal supplement (optional, art. nr. 6103.000). Mast/Tube mounting For mounting on masts/tubes the back of the reader is prepared in the way, that alignment of the reader around its vertical or horizontal axis is possible. - Page 12 Wiring & Installation Instructions UDL500 All dimensions in mm: cable outlets mounting holes for wall mounting = Ø 5mm deister electronic GmbH 30890 Barsinghausen Germany V17/01/08...
-
Page 13: Extended Mast Holding Device Lrm2
For even more flexibility in mounting and alignment on the mast we recommend the use of the extended mast holding device LRM2. This will give you the possibility to change the angle of vertical inclination up to ±25°. ± 25° 360° V17/01/08 deister electronic GmbH 30890 Barsinghausen Germany... -
Page 14: Wall Mounting With Link Holder Lrm1
LRM1. With the LRM1 the reader can be positioned in many directions. Both mounting plates of this device are connected ball-beared to a rotatable axis. Fixing the correct position is carried out with a hexagon spanner. Fixing link holder LRM1 (optional, art. nr. 6103.000) deister electronic GmbH 30890 Barsinghausen Germany V17/01/08... -
Page 15: Function Principle And Environmental Influences
4. Reflexions within the surrounding of the reader can influence the reading result in a negative way. Therefore the reader should be mounted as free-standing as possible. We strictly discourage from sunk-in installations. V17/01/08 deister electronic GmbH 30890 Barsinghausen Germany... -
Page 16: Radiation Pattern Of The Transmitting Antenna
= 866.8MHz 0d B -3 dB -1 0 dB 1 20 1 35 1 50 -20 dB -30 dB -1 65 -1 50 -1 35 -1 20 -1 05 reader horizontal, polarization horizontal deister electronic GmbH 30890 Barsinghausen Germany V17/01/08... - Page 17 Wiring & Installation Instructions UDL500 0d B -3 dB -1 0 dB 1 20 1 35 1 50 -20 dB -30 dB -1 65 -1 50 -1 35 -1 20 -1 05 reader horizontal, polarization vertical V17/01/08 deister electronic GmbH 30890 Barsinghausen Germany...
- Page 18 Wiring & Installation Instructions UDL500 0d B -3 dB -1 0 dB 1 20 1 35 1 50 -20 dB -30 dB -1 65 -1 50 -1 35 -1 20 -1 05 reader vertical, polarization horizontal deister electronic GmbH 30890 Barsinghausen Germany V17/01/08...
- Page 19 Wiring & Installation Instructions UDL500 0d B -3 dB -1 0 dB 1 20 1 35 1 50 -20 dB -30 dB -1 65 -1 50 -1 35 -1 20 -1 05 reader vertical, polarization vertical V17/01/08 deister electronic GmbH 30890 Barsinghausen Germany...
-
Page 20: Configuration Software
RS 485 - A RS 485 interface, data line A Pin 3 Pin 10 RS 485 - B RS 485 interface, data line B Pin 4 Table 2: connection cable UDL500 to SNG3 deister electronic GmbH 30890 Barsinghausen Germany V17/01/08... -
Page 21: Configuration
“Apply Changes” reader will store the new configuration within its internal non-volatile memory end connection by click on “Offline” program will be closed by „File“ - „Exit“ Table 3: configuration V17/01/08 deister electronic GmbH 30890 Barsinghausen Germany... -
Page 22: Parameters
FCC Part 15 (US), optional Transponder Type selection of transponder type, which has to be read/written Read content Serial number reading the EPC Read mode for reading transponder data Write mode for writing a transponder deister electronic GmbH 30890 Barsinghausen Germany V17/01/08... - Page 23 Execute selftest after reset executing a self test after reset Temperature protection level protection against overheating of the reading/writing device. In case of exceeding the adjusted temperature the field will be switched off. V17/01/08 deister electronic GmbH 30890 Barsinghausen Germany...
-
Page 24: Frequency Setup
866.3MHz ≤ 2,00W 866.5MHz ≤ 2,00W 866.7MHz ≤ 2,00W 866.9MHz ≤ 2,00W 867.1MHz ≤ 2,00W 867.3MHz ≤ 2,00W 867.5MHz ≤ 2,00W 867.7MHz ≤ 500mW 867.9MHz ≤ 500mW Table 4: ETSI 302 208 (EU) deister electronic GmbH 30890 Barsinghausen Germany V17/01/08... -
Page 25: Mode Control
READING beeper sounds, while transponder is being read LEDs green, yellow, red always OFF LED off flash on READING LED active, while transponder is being read always ON LED permanently active V17/01/08 deister electronic GmbH 30890 Barsinghausen Germany... - Page 26 RS485 interface polling mode transponder data read will be stored within the reader memory and will only be transmitted via RS485 interface after a poll command is been received. deister electronic GmbH 30890 Barsinghausen Germany V17/01/08...
-
Page 27: Trigger
„high“ Output pulse time depending on the set output polarity, the digital output is set to ”low” or “high” for the time set (6,5ms steps), if a trigger condition is met V17/01/08 deister electronic GmbH 30890 Barsinghausen Germany... -
Page 28: Selection Settings
Selection register (as bit pattern) deBus selection register byte (hexadecimal) Miller coding level setting of the Miller coding level used Required SL flag condition required SL flag condition to let these tags participate in the anticollision round deister electronic GmbH 30890 Barsinghausen Germany V17/01/08... -
Page 29: Selection Mask
(hexadecimal) PC Word (only with “Truncate”) length of PC + EPC bits (decimal) and PC bits as bit pattern (hexadecimal) Selection Mask Prefix (only with “Truncate”) prefix mask for truncate function V17/01/08 deister electronic GmbH 30890 Barsinghausen Germany... -
Page 30: Prog Data
5: reader status indication UDL500 deister electronic GmbH 30890 Barsinghausen Germany V17/01/08... -
Page 31: Portal Application With Dcu1 Data Control Unit
In case of multiple reading of transponder data, the data can be filtered first and will then be transmitted to the host system. Portal/Gate application with UDL500 readers For a detailed description of the portal installation please refer to the document „Application Note UHF Portal“. V17/01/08 deister electronic GmbH 30890 Barsinghausen Germany... -
Page 32: Accessories Of The Uhf Product Family
Interface converter Ethernet/RS485/RS232, incl. wall 8783.000 power supply and driver software DCU1 Data Control Unit for operation with up to four 9240.100 UDL500 readers, interfaces: RS232, RS485, Ethernet, 4 trigger inputs, 4 switch outputs, rail mounting deister electronic GmbH 30890 Barsinghausen Germany V17/01/08... -
Page 33: Regulatory Notices
10. Regulatory Notices 10.1 Europe Hereby, deister electronic GmbH declares, that this equipment - if used according to the instructions - is in compliance with the essential requirements and other relevant provisions of the RTTE Directive 1999/5/EG. A full declaration of conformity can be requested at: info@deister-gmbh.de... -
Page 34: Fcc Notice
20 cm between the radiator and the human body. 10.5 Industry Canada This Class A digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada. deister electronic GmbH 30890 Barsinghausen Germany V17/01/08... - Page 35 Wiring & Installation Instructions UDL500 Notes: V17/01/08 deister electronic GmbH 30890 Barsinghausen Germany...
- Page 36 Tel.: +49 (0) 51 05 - 51 61 11 Fax: +49 (0) 51 05 - 51 62 17 info@deister-gmbh.de www.deister.com Great Britain: Belgium & Luxemburg: deister electronic (UK) Ltd. deister electronic office Stapleton Way, Enterprise Park Business Park E 19 Spalding, Lincolnshire PE11 3YQ Battelsesteenweg 455/A Tel.: +44 (0) 1775 - 717100...
