DANGER.
Prior to use, please read and understand product Safety information. Failure to
follow the instructions may result in ELECTRICAL SHOCK, EXPLOSION, or FIRE,
which may result in serious INJURY, DEATH, DAMAGE to device or PROPERTY!
DO NOT discard this INFORMATION!
What's in the BOX
- N02 Lithium Jump Starter (Built-in Anti-reverse Protection)
- 12V/1A portable car charger (DC 3.5*1.35mn, cable length 100cm)
- jumper clamps
- 16.8V cigarette lighter car battery charger (for charging a car battery with N02)
(DC 5.5*2.1mm, cable length 230mm)
- Micro USB cable
- 12V/1A wall charger (DC 3.5*1.35mm, cable length 100cm)
- User guide & information guide and Warranty

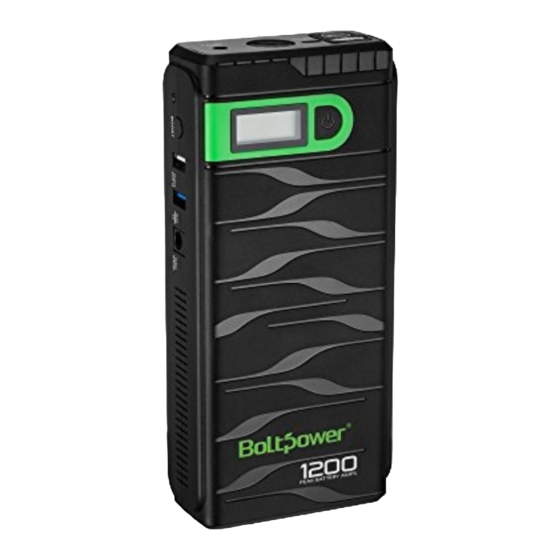

N02 Introduction
The N02 is an ultra-compact and portable Lithium-Polymer used jump starter for
cars, motorcycles, boats, RVs, lawn mowers, ATVs, tractors, trucks and more. It's
extremely safe for anyone to use. The N02 can instantly jump start most
single-battery devices, up to 20 times with a single charge. The N02 is also
equipped with a USB power bank function and LED flashlight, making it the
ultimate emergency tool.
Before Started
The N02 come partially charged and needs to be fully charged before use.
Carefully read and understand the vehicle owner's manual on precautions
and recommended methods for jump-starting the vehicle. Make sure to
determine the voltage and chemistry of the battery by referring to your battery
owner's manual prior to using this product. The N02 is for jump starting
12-volt lead-acid batteries only.
-1-
EN
Advertisement
Table of Contents
Related Manuals for Bolt Power N02
Summary of Contents for Bolt Power N02
- Page 1 - N02 Lithium Jump Starter (Built-in Anti-reverse Protection) - 12V/1A portable car charger (DC 3.5*1.35mn, cable length 100cm) - jumper clamps - 16.8V cigarette lighter car battery charger (for charging a car battery with N02) (DC 5.5*2.1mm, cable length 230mm) - Micro USB cable - 12V/1A wall charger (DC 3.5*1.35mm, cable length 100cm)
- Page 2 5} If the battery clamps are connected correctly, but the boost LED is still flashing red and green, press the BOOST button for 3 seconds, then the Boost LED will turn into solid green, the N02 is ready to jump start your vehicle.
- Page 3 2-volts, the boost LED will flash in red. This is an indication that the N02 can not detect a battery. If you need to jump start a battery 2-volts there is a Manual Override Feature, which allows you to force “on the jump start function.
- Page 4 Before using the manual override feature, Make sure the battery clamps are connected to the correct polarity battery terminals and the clamp connect is connected to the N02. To use the manual override feature, press and hold the BOOST button for {3} seconds The Green Boost LED will be green indicating you have successfully entered into Manual Override and it is ready to jump start your vehicle.
- Page 5 Boost LED Understanding Error Conditions The N02 shall display and error condition when you reverse polarity condition is present, a battery below two (2) volts, or internal battery overheating. When one of these error conditions are present, the following will happen...
- Page 6 Charging the N02 Connect the N02 using the included USB charge cable to the USB in port and the USB car charger. It can be recharged from any USB powered port like an AC adapter, Car charger. laptop and more. The USB In port is rated at 5V/2.1 Amps...
-
Page 7: Technical Specifications
Technical Specifications Internal Battery: Lithium Polymer Peak Current Rating 1200A º º C to +50 Operating Temperature -4.0 F to + 122 F Capacity: 44.4Wh -20 º C to +50 º C Storage Temperature -4.0 F to + 122 F (Avg. Temp) Input 5V/2A 15V/1A USB 1 (output)
