DVI EDID Reader / Writer
Model #: C-EDID-RW
© 2010 Avenview Inc. All rights reserved.
The contents of this document are provided in connection with Avenview Inc. ("Avenview") products. Avenview makes no
representations or warranties with respect to the accuracy or completeness of the contents of this publication and reserves the
right to make changes to specifications and product descriptions at any time without notice. No license, whether express, implied,
or otherwise, to any intellectual property rights is granted by this publication. Except as set forth in Avenview Standard Terms and
Conditions of Sale, Avenview assumes no liability whatsoever, and disclaims any express or implied warranty, relating to its
products of Avenview Inc. is strictly prohibited.
Advertisement
Table of Contents
Summary of Contents for Avenview EDID Reader / Writer C-EDID-RW
- Page 1 No license, whether express, implied, or otherwise, to any intellectual property rights is granted by this publication. Except as set forth in Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and disclaims any express or implied warranty, relating to its products of Avenview Inc.
-
Page 2: Table Of Contents
Section 1: Getting Started ... 1 Important Safeguards ... 1 Safety Instructions ... 1 Regulatory Notices Federal Communications Commission (FCC) ... 2 Introduction ... 2 Package Contents ... 2 Before Installation ... 2 Panel Description ... 3 DIP Switch Configuration ... 4 Hardware Installation ... -
Page 4: Section 1: Getting Started
Removal, installation, and set-up service charges. Safety Instructions The Avenview C-EDID-RW, DVI EDID Reader/Writer has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipments, the C-EDID-RW should be used with care. Read the following safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 5: Regulatory Notices Federal Communications Commission (Fcc)
Introduction Avenview C-EDID-RW can emulate the EDID (Extended Display Identification Data) information. It stores and recalls a default EDID setting in non-volatile memory allowing your computer boot directly from EDID Reader/Writer. It can also read and store the EDID of your display and even let you modify the EDID and upload the modified EDID to displays. -
Page 6: Panel Description

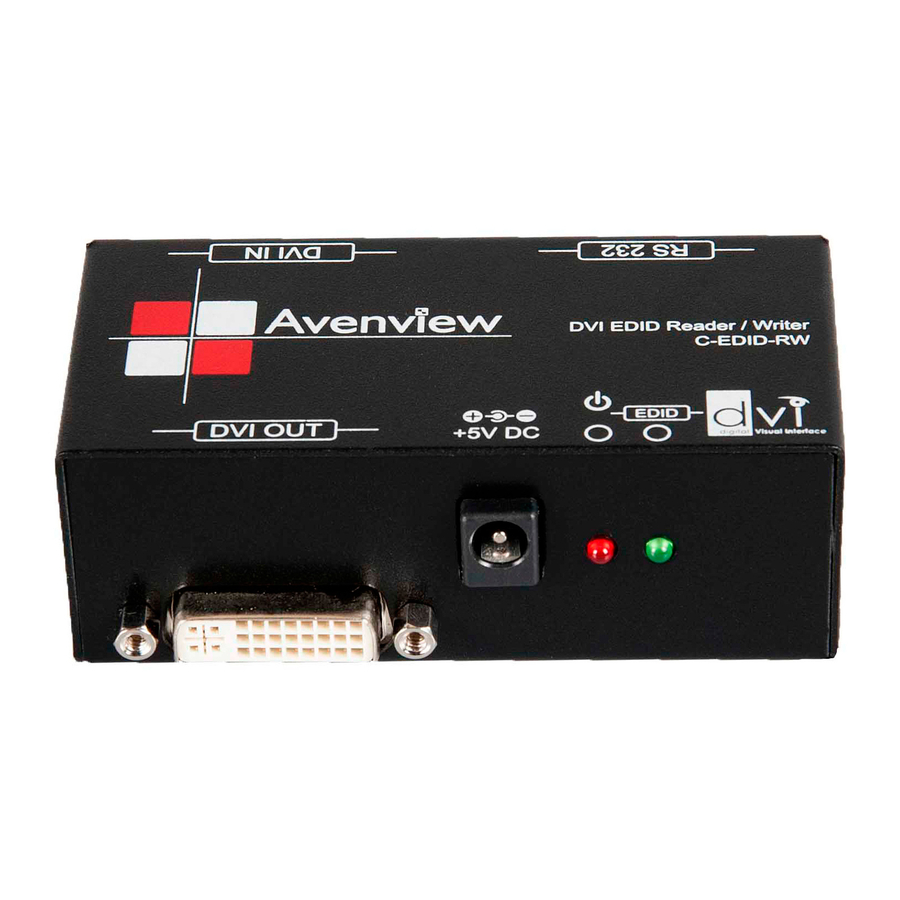

Panel Description FRONT PANEL 1. DVI Port for Display 3. Red LED: Power indicator REAR PANEL 5. RS232 Port 2. Power Connector 4. Green LED: Indicates EDID’s writing 6. DVI Port for connecting the PC www.avenview.com... -
Page 7: Dip Switch Configuration
DIP Switch. DO NOT plug DVDI cable into PC DVI connector when you are changing from one mode to another. The C-EDID-RW may not work on the monitors with EDID write protection. www.avenview.com... -
Page 8: Hardware Installation
Hardware Installation To setup Avenview C-EDID-RW follow these steps for connecting to a device: 1.9.1 Read the EDID from a DVI Display or Projector 1. Before connecting the Power and other devices to C-EDID-RW, set the DIP switches at the bottom of C-EDID-RW at 1-OFF 2-ON () -
Page 9: Software Installation
You can modify EDID content in the pop-up after clicking Analyze button. Also, you can load the previously saved EDID information in the analysis window by clicking on “Load File” button While finish editing EDID content, you can click on “Write EDID” button to write the EDID information to DVI EDID Reader/Writer. www.avenview.com... -
Page 10: Dvi Monitor Writer
“Load File” button Click on “DVI Monitor Writer” button, wait for “Finish writing EDID data from PC to Monitor” to display. Always make a backup copy of monitor’s EDID before proceeding. Therefore, “DVI Monitor Writer” is not www.avenview.com... -
Page 11: Section 2: Specifications
Communication EEPROM Power Supply Dimension (L x W x H) Weight Environmental Operation Description 1.65 Gbps 1 x DVI-I female (digital only) RS232 256 bytes 5V DC, 2Amp 3.3” x 1.6” x 1.1” 180g (6.3oz) 0˚ to 50˚C Degree www.avenview.com... - Page 12 Avenview hardware, software, or other products and documentation provided herein. Avenview Inc. reserves the right to make changes without further notice to a product or system described herein to improve reliability, function or design. With respect to Avenview products which this document relates, Avenview disclaims all express or implied warranties regarding such products, including but not limited to, the implied warranties of merchantability, fitness for a particular purpose, and non-infringement.
