AllisCom MG700 User Manual

Wifi gateway/router
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

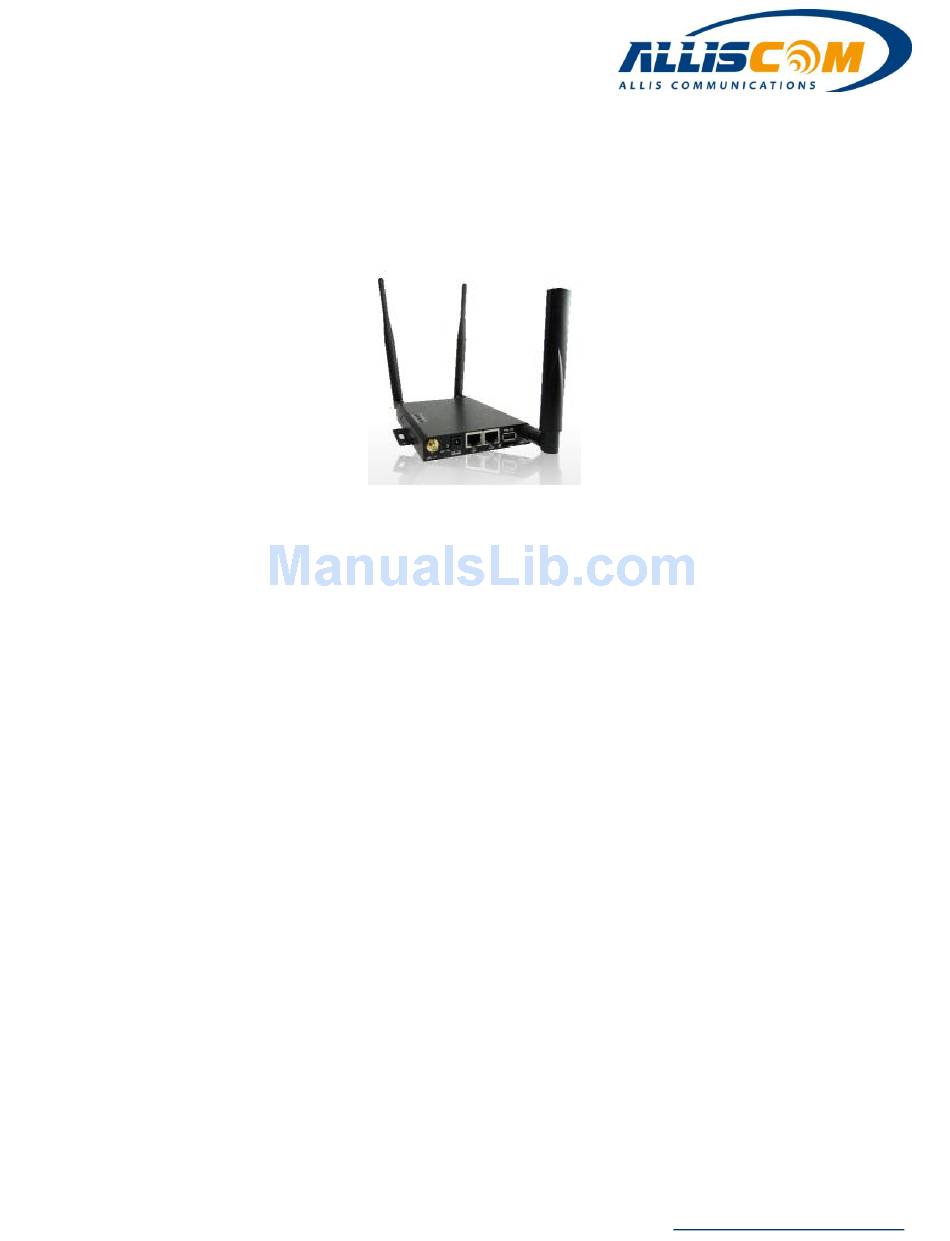

MG700 WiFi Gateway/Router
User's Manual
Features
Supports WiFi 802.11 b/g/n
Optional internal battery
Micro SD Card/SIM Card Slot
Description
The MG700 is a high performance global router for
M2M applications. It is WiFi gateway which supports
three serial ports and functions to expand a user's
M2M application. A user can easily configure settings
from the GUI interface and record data on a micro SD
card or USB storage device. An optional internal
battery provides backup power which allows for an
alert to be sent in the event of a power failure.
ALLIS COMMUNICATIONS
Page 1 of 58
MG700 Specifications Rev:1.5.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MG700 and is the answer not in the manual?

Questions and answers

Summary of Contents for AllisCom MG700

  • Page 1 Optional internal battery Micro SD Card/SIM Card Slot Description The MG700 is a high performance global router for M2M applications. It is WiFi gateway which supports three serial ports and functions to expand a user’s M2M application. A user can easily configure settings from the GUI interface and record data on a micro SD card or USB storage device.

  • Page 2: Table Of Contents

    9.1 Port Range Forward ....................37 9.2 Streaming/VPN ....................... 39 9.3 UPnP ........................39 Bandwidth Page ....................40 10.1 Throughput Optimize .................... 40 10.2 TurboNAT ......................40 10.3 Session Manager ..................... 41 ALLIS COMMUNICATIONS Page 2 of 58 MG700 Specifications Rev:1.5.2...
  • Page 3 13.1 Management ......................50 13.2 System Utilities ....................... 51 13.3 Log ........................... 52 13 MG700 M2M Application ................54 14 Hardware Specifications .................. 55 15 Application Note – ATM remote control Application ....... 56 Application Note – AMBULANCE Application ..........57 Application Note –...

  • Page 4: Introduction

    1 Introduction The MG700 is a mobile router. MG700 has a built-in 802.11 b/g/n WiFi radio that functions as both an access point and a WAN bridge. This allows WiFi devices to securely communicate with the MG700 and access a wired network or the internet. It also enables the MG700 to use available WiFi networks for even higher speed internet access.
  • Page 5 Back Panel Back side Item Description Optional GPS antenna connector. On/Off Switch 12VDC power input LAN Port WAN Port External USB device, only for USB storage. Cellular antenna connector SIM card slot ALLIS COMMUNICATIONS Page 5 of 58 MG700 Specifications Rev:1.5.2...

  • Page 6: Installation Guide

    2 Installation Guide Open the MG700’s Box, there are include MG700 body、AC adapter box and accessory box on MG700’s Box. User can login the MG700’s web GUI by three steps. Accessory MG700 adapter Step 1: Install the WiFi Antenna、SD card、Micro Fit Cable and RJ45 to DB9 Cable.
  • Page 7 Note: 1. SD card、SIM card、Micro Fit Cable、Cellular Antenna、GPS Antenna、 RJ45 to DB9 Cable depend on different MG700’s model. 2. WiFi Antenna and Adaptor are necessary. 3. If user uses the ADSL or Static IP, please connect the WAN port.

  • Page 8: Login Page

    3 Login Page For the initial setup of a MG700, a user will use an Ethernet cable to connect to a computer. Using a web browser, enter the default IP address and port (192.168.60.1:8080) into the address bar. The Login page will appear.

  • Page 9: Status Page

    LAN 1, and Wireless Network 1. Router Information includes model name, firmware version, license, and current and running times. The WAN 1 information shows MAC address, connection type, IP address, subnet mask, and gateway. ALLIS COMMUNICATIONS Page 9 of 58 MG700 Specifications Rev:1.5.2...

  • Page 10: User / Dhcp

    The LAN 1 page shows MAC address, IP address, subnet mask, DHCP service, DHCP start IP address, DHCP end IP address, and max DHCP clients. The Wireless Network 1 includes the wireless channel, wireless SSIDs, and MAC addresses. 4.2 User / DHCP ALLIS COMMUNICATIONS Page 10 of 58 MG700 Specifications Rev:1.5.2...

  • Page 11: Setup Page

    Verizon and T-Mobile network. If Service Provider is selected Verizon, the MG700 will select Verizon network to be the main Service Provider. MG700 will connect internet by Verizon network first. If Verizon network cannot connect internet, MG700 will change to T-mobile network automatically.
  • Page 12  DHCP mode If DHCP is selected, then the MG700 will be assigned an IP address from the server. The IP address is automatically assigned to you by your ISP (most common Ethernet WAN option).  PPPoE mode In PPPoE mode, a user needs to key in the User Name and Password.
  • Page 13 Ethernet WAN interface, but the MG700 can still function as a local WiFi access point while connected to the remote WiFi network. A user can also set the MG700 to connect to other WiFi AP. In the WISP mode, press the Survey button and the MG700 will search for WiFi AP.
  • Page 14 A site survey list will appear. After selecting the proper WiFi AP, the target SSID and MAC address will fill in automatically. ALLIS COMMUNICATIONS Page 14 of 58 MG700 Specifications Rev:1.5.2...

  • Page 15: Vpn Client

     VPN Client The MG700 support act as PPTP “client”, it will enable to allow the WAN to make a client connection to a remote PPTP server. If enabled, enter the PPTP username, password, VPN host IP address an MPPE128 parameters required for the PPTP VPN connect.

  • Page 16: Lan

    6 LAN If a user needs to change the MG700 default LAN subnet, then go to the Setup - LAN page and enter the IP address assigned to the MG700 and select the desired subnet mask from the drop-down list. The MG700 DHCP server will automatically adjust to serve addresses from the new subnet.

  • Page 17: Ddns

    As a service to its customers, MGDDNS operates a Dynamic DNS service which is automatically updated each time a MG700 IP changes. The DDNS host name is the MAC address of the MG700 in the “mgddns.com” domain. For example: 5CB8CB000500.mgddns.com. This “permanent” DDNS names is always available but cannot be changed.

  • Page 18: Time

    Remote Management need to Enable 9 Time The MG700 supports NTP client to update the time. A user can set up the Time Server Area, Time Zone and synchronization interval. A user can also set up the automatic reboot time on this page.

  • Page 19: Relay

    10 Relay MG700 support the 2 channel GPIO Relay Function. User can see and control the Relay status on this page. ALLIS COMMUNICATIONS Page 19 of 58 MG700 Specifications Rev:1.5.2...
  • Page 20 Relay Schedule setting In control block, MG700 support Schedule and Manually mode. If User select Manually mode, user can setting the Relay is On or Off immediately. If User select Schedule mode, MG700 will set Relay On/Off by schedule. As the control mode change to Schedule, user can setting the Relay1/Relay2 Schedule time is on or off status.

  • Page 21: Alert

    As Schedule selected on Control block, the Relay schedule table will be enabled. User can select the Relay on or off time, the MG700 will turn relay on or off by schedule table automatically. There are 2 tabs in an hour row. After setup done, press “Save settings” button to update the newest configuration.
  • Page 22 SMTP mail server : Port, such as smtp.gmail.com:465 Send Mail User e-mail address name SMTP Account SMTP user’s account name SMTP Password SMTP user’s password Note: The Battery notice low event is for option. ALLIS COMMUNICATIONS Page 22 of 58 MG700 Specifications Rev:1.5.2...

  • Page 23: Wireless Page

    The Wireless Page has the WiFi Basic and WDS settings. The MG700’s internal 802.11 b/g/n WiFi radio is disabled by default as a security precaution. To provide laptops, tablets and other WiFi devices with internet connectivity through the MG700, go to the Wireless - Basic page and enable the wireless connection.
  • Page 24 LAN. Enter the Guest LAN starting IP Address which will be assigned to the MG700, and the corresponding subnet mark. Guest WiFi devices will be assigned a DHCP address in this subnet. For more flexibility in controlling guest WiFi access.
  • Page 25 Users can setup the WEP key index indicates which WEP key is used for data encryption. The WEP Key(1~4), for 64-bit WEP mode, type 10 hexadecimal digits or 5 ASCII characters. For 128-bit WEP, type 26 hexadecimal digits or 13 ASCII characters. ALLIS COMMUNICATIONS Page 25 of 58 MG700 Specifications Rev:1.5.2...
  • Page 26 Select method for determining when new key is required. Rekey Time Interval Input the frequency of key renewals in seconds. Rekey Packet Interval Input the frequency of key renewals in number of packets. ALLIS COMMUNICATIONS Page 26 of 58 MG700 Specifications Rev:1.5.2...

  • Page 27: Advanced

    12.2 Advanced On the Advanced Page, a user can set the Region and other WLAN settings. ALLIS COMMUNICATIONS Page 27 of 58 MG700 Specifications Rev:1.5.2...

  • Page 28: Wds

    Region Choose the region in which the MG700 is currently operating (sets channels). Fragmentation Enter the fragmentation bytes. The default value is 2346 bytes. Enter the RTS seconds. The default value is 2347 seconds. DTim Enter the DTim seconds. The default value is 1.
  • Page 29 Repeater mode, then the WiFi AP function still support and a user can still connect to the MG700’s AP. If a user selects Bridge mode, then the MG700 will only be in bridge mode and the WiFi AP function will be disabled.
  • Page 30 Press Survey button, it shows the wireless AP. Then, click the SSID that user want to connect and press “Select” button. Choose the WiFi AP and press the Select button. The WDS MAC Address will fill in automatically. ALLIS COMMUNICATIONS Page 30 of 58 MG700 Specifications Rev:1.5.2...
  • Page 31 Important: 12.3.1.1 If WDS mode is Bridge mode, user cannot see the SSID 12.3.1.2 Setup WDS system suggest use the same devices (MG700 series). ALLIS COMMUNICATIONS Page 31 of 58 MG700 Specifications Rev:1.5.2...

  • Page 32: Security Page

    The Firewall page allows the enabling/disabling of SPI Firewall protection, TCP SYN DoS Protection, ICMP Broadcasting Protection, ICMP Redirect Protection and Broadcast Storming method. 13.2 IP Access Control The IP Access Control page lets a user control access to the MG700 from a specific IP address. ALLIS COMMUNICATIONS Page 32 of 58...

  • Page 33: Outbound Mac Acl

    ALLOW 13.3 Outbound MAC ACL The MG700 can allow a specific MAC address to log in. The MAC Access Control of MG700 is used to either allow or deny specific devices identified by their MAC address from making “outbound” ALLIS COMMUNICATIONS Page 33 of 58 MG700 Specifications Rev:1.5.2...
  • Page 34 The MAC rules also enable you to “statically” assign an IP address from MG700’s DHCP pool to a specific MAC address. For example, user press “Add” and set the specific MAC address to assign IP address. Name of the MAC access rule. Spaces are not allowed. For Rule Name example :“Rule1”...

  • Page 35: Web Filtering

    The MG700 can set web filtering, include ActiveX, Java Scripting and Proxy filtering. 13.5 VPN/PPTP Page The MG700 supports VPN server. Add rule enable, if VPN PPTP enable. User can set rule to connect MG700 by VPN and VPN start IP address. The Point-to-Point Tunneling Protocol (PPTP) is a method for implementing virtual private networks.
  • Page 36 Press “Add”, setup the rule enable, User Name and password. ALLIS COMMUNICATIONS Page 36 of 58 MG700 Specifications Rev:1.5.2...

  • Page 37: Applications Page

    Furthermore, users can specify a different internal port range to be associated with external ports in a port forwarding rule. When the MG700 receives an external request to access any one of the configured external ports, it will redirect the request to the corresponding internal server and change its destination port to one of the internal ports specified.
  • Page 38 Choose USB or Ethernet WAN as the External port forwarding interface. Each WAN interface must have its External Interface own port forwarding rules, so duplicate rules if using the MG700 in a WAN fail-over configuration. Choose TCP, UDP or TCP/UDP for the rule to be Protocol applied.

  • Page 39: Streaming/Vpn

    MG700 can enhance media streaming quality by enabling RTSP, MSS and H.323 protocols. Also, the MG700’s VPN Pass-through functionality can also be enabled on this page. All of these features are enabled by default. User could set the Streaming/Video and VPN enable or disable.

  • Page 40: Bandwidth Page

    TurboNAT is designed to solve this problem by accelerating NAT performance allowing the MG700 to maximize the higher speed networks and to reserve system performance for other features such as ACL and VPN servers.

  • Page 41: Session Manager

    Session manager will automatically recycle old/dead sessions to get better connection efficiency. Users can choose the re-cycle rate to optimize the connection efficiency especially for applications which rapidly open and close many ports. ALLIS COMMUNICATIONS Page 41 of 58 MG700 Specifications Rev:1.5.2...

  • Page 42: Serial Setting Page

    The operation mode could be set to TCP Server Mode, TCP Client mode and UDP mode. The TCP Server Mode allow user login the MG700’s specific port to get the serial port 1 data. The specific port set into ALLIS COMMUNICATIONS Page 42 of 58 MG700 Specifications Rev:1.5.2...
  • Page 43 In TCP Server mode, user MG700 will keep listening for TCP connection. Operation Mode TCP Server Mode Packing length (Byte) MG700 will force out as data length meet the parameter. Force transmit (ms) MG700 will Force transmit serial data to the Ethernet port.

  • Page 44: File Mode Page

    It is because of the FAT/FAT32 format. If the SD/USB is EXT3/EXT4 format, the data will be performance and reliability. Please see the Appendix II: Ext3/Ext4 Format. Important: Select File mode to disable before remove the SD card or USB storage. ALLIS COMMUNICATIONS Page 44 of 58 MG700 Specifications Rev:1.5.2...
  • Page 45 The record method means if the storage space is full, the serial data will be re-cycle record or stop record. User can login MG700 to download the record data. In the windows system, user input the “\\192.168.60.1” to login. In the Linux system, user input the “SMB://192.168.60.1/” to login.
  • Page 46 2. SAMBA port will be locked by Firewall. If user use SAMBA File mode, the SAMBA port need to unlocked. The SAMBA port is from 135 ~ 139 and port 445. ALLIS COMMUNICATIONS Page 46 of 58 MG700 Specifications Rev:1.5.2...

  • Page 47: Gps/Gnss Application

    17 GPS/GNSS Application The GNSS default port of MG700 is on Port103, user could get the GNSS data by IP address and port, such as “192.168.60.1:103”. On Web GUI, user will see the GNSS data is increase on Port3. ALLIS COMMUNICATIONS Page 47 of 58 MG700 Specifications Rev:1.5.2...

  • Page 48: Gps/Gnss Nmea Data

    17.1 GPS/GNSS NMEA data MG700 support NMEA data, user can get the GPS data by IP address and Port, such as 192.168.60.1:103. $GPGGA,084155.00,2504.18507,N,12137.31827,E,1,10,0.95,94.0,M,15.3,M,,*67 $GPGSA,A,3,32,06,23,17,30,11,10,01,03,28,,,1.71,0.95,1.42*04 $GPGSV,3,1,12,32,11,041,44,06,35,265,46,23,10,115,43,17,44,335,48*72 $GPGSV,3,2,12,30,14,203,44,11,15,063,44,09,08,149,,10,21,199,43*74 $GPGSV,3,3,12,01,21,044,43,02,03,249,38,03,49,061,48,28,81,224,48*74 $GPGLL,2504.18507,N,12137.31827,E,084155.00,A,A*65 $GPGGA,084156.00,2504.18509,N,12137.31828,E,1,10,0.95,93.9,M,15.3,M,,*6B $GPGSA,A,3,32,06,23,17,30,11,10,01,03,28,,,1.71,0.95,1.42*04 $GPGSV,3,1,12,32,11,041,44,06,35,265,46,23,10,115,43,17,44,335,48*72 $GPGSV,3,2,12,30,14,203,44,11,15,063,44,09,08,149,,10,22,199,43*77 $GPGSV,3,3,12,01,21,044,43,02,03,249,38,03,49,061,49,28,81,224,48*75 $GPGLL,2504.18509,N,12137.31828,E,084156.00,A,A*67 $GPGGA,084157.00,2504.18510,N,12137.31830,E,1,10,0.95,93.9,M,15.3,M,,*6B $GPGSA,A,3,32,06,23,17,30,11,10,01,03,28,,,1.71,0.95,1.42*04 $GPGSV,3,1,12,32,11,041,44,06,35,265,46,23,10,115,44,17,44,335,48*75 $GPGSV,3,2,12,30,14,203,45,11,14,063,44,09,08,149,,10,22,199,43*77 $GPGSV,3,3,12,01,21,044,44,02,03,249,38,03,49,061,49,28,81,224,48*72 $GPGLL,2504.18510,N,12137.31830,E,084157.00,A,A*67 $GPGGA,084158.00,2504.18510,N,12137.31832,E,1,10,0.95,93.9,M,15.3,M,,*66...

  • Page 49: Gps/Gnss Raw Data

    17.2 GPS/GNSS RAW Data MG700 support GNSS data, user can get the GNSS data by IP address and Port, such as 192.168.60.1:103. Important: GPS NMEA /GNSS RAW data depend on GPS Module type. ALLIS COMMUNICATIONS Page 49 of 58 MG700 Specifications Rev:1.5.2...

  • Page 50: Admin Application

    18 Admin Application The management screen is used to perform various administrative task on the MG700 such as changing the login password, saving and restoring system settings, scheduling a reboot, and performing firmware upgrade. 18.1 Management User can set the login password in this page.

  • Page 51: System Utilities

    18.2 System Utilities The System Utilities screen provides several useful tools for network and device diagnostics. MG700 include Ping, ARP tracing and Trace Route function The Ping utility sends a series of ICMP packets to a designated IP address to test communications with that IP.

  • Page 52: Log

    The system log records various events that have occurred during the MG700 operation. Events are divided into classes to make it easier to review specific event chains. The MG700 has a limited amount of space available for log events the oldest events are overwritten when the log is full.
  • Page 53 ALLIS COMMUNICATIONS Page 53 of 58 MG700 Specifications Rev:1.5.2...

  • Page 54: Mg700 M2M Application

    19 MG700 M2M Application ALLIS COMMUNICATIONS Page 54 of 58 MG700 Specifications Rev:1.5.2...

  • Page 55: Hardware Specifications

    90 x 130 x 20mm DC Power Power In Power consumption Max. 2A AC Adaptor Input : 110~260VAC Power In Output : 12VDC Power consumption Max. 2A Temperature 0℃ ~ 40℃ ALLIS COMMUNICATIONS Page 55 of 58 MG700 Specifications Rev:1.5.2...

  • Page 56: Application Note - Atm Remote Control Application

    21 Application Note – ATM remote control Application In the ATM remote control power application, If ATM occur the shutdown or stop, the Service Center could reset the ATM’s power by MG700 through Manually control or Schedule mode. Cloud MG700...

  • Page 57: Application Note - Ambulance Application

    When someone with accident, the ambulance arrived at the scene. The MG700 could send the patient's physiological data, heart rate, blood pressure and other information sent to the hospital immediately. Then, the emergency center will provide the best solution for patient quickly . Also, if MG700 with GPS, Hospital will show the ambulance’s position.

  • Page 58: Application Note - Tracker/Car Management Application

    Application Note – Tracker/Car Management Application User can the temperature sensor(RS232 interface) connect with the MG700, then, the Server center will receive the temperature data and monitoring the temperature with Tracker. If MG700 with GPS, the Server can also monitor the Tracker Position.
