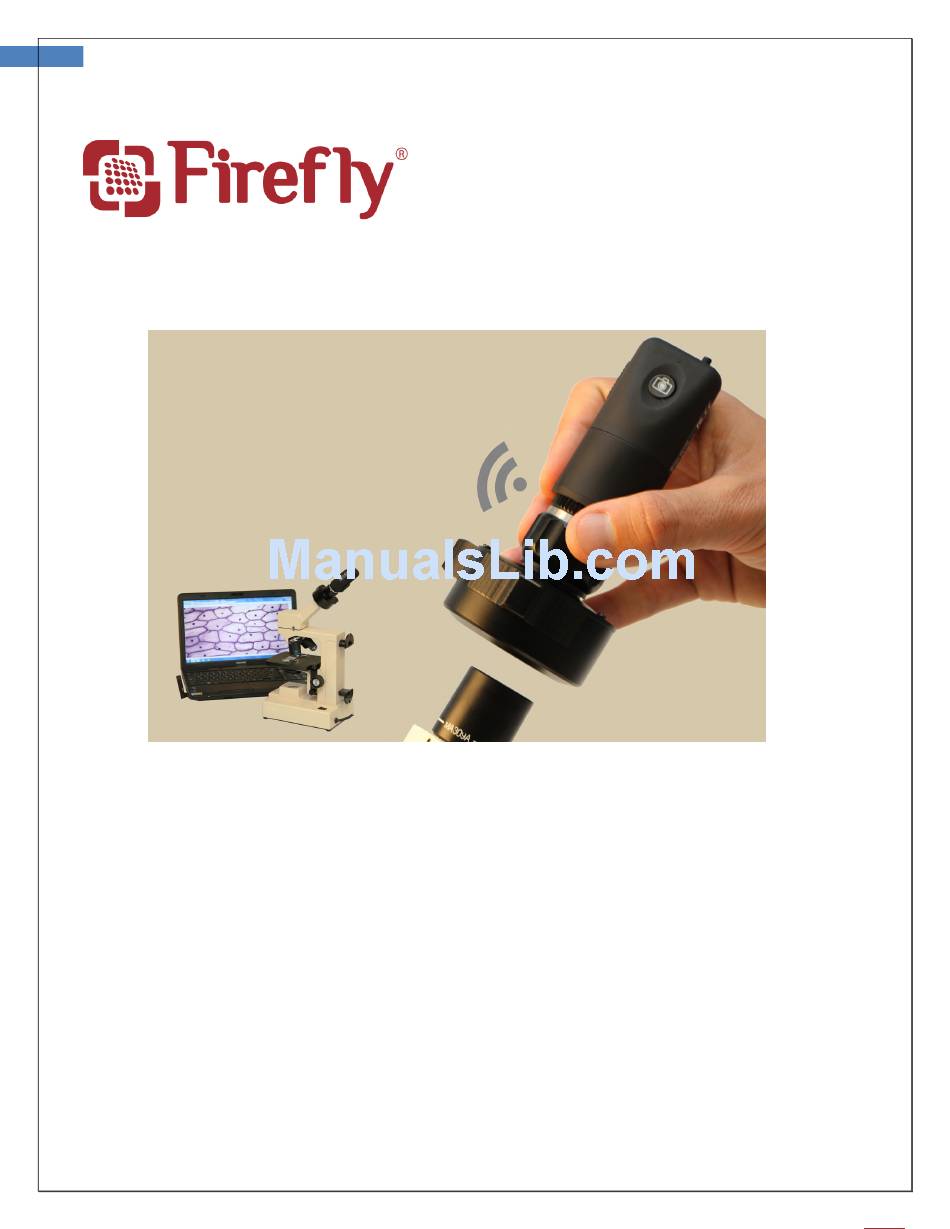

Firefly GT470 Manual
Version: 1.2
1
GT470 User
Manual
W
E
C
IRELESS
YEPIECE
AMERA
THANKS FOR SELECTING
A FIREFLY WIRELESS DIGITAL EYEPIECE CAMERA
To take full advantage of this product's advanced capabilities, and to
properly and safely use this product, please read the manual carefully.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GT470 and is the answer not in the manual?

Questions and answers

Summary of Contents for Firefly GT470

  • Page 1 Firefly GT470 Manual Version: 1.2 GT470 User Manual IRELESS YEPIECE AMERA THANKS FOR SELECTING A FIREFLY WIRELESS DIGITAL EYEPIECE CAMERA To take full advantage of this product’s advanced capabilities, and to properly and safely use this product, please read the manual carefully.
  • Page 2 Firefly Global (www.fireflyglobal.com). Firefly Global assumes no responsibility for any injury, or for any illegal or improper use of the product, that may result from failure to use this product in accordance with the instructions, cautions, warnings, or indications for use published in this manual.

  • Page 3: Table Of Contents

    Power the Device On： ......................10 Charging the Battery: ......................11 Channel Mapping: ........................11 Using the Firefly GT470: ......................12 Using the Image Capture Control: ................... 12 Standby and Remove device: ....................12 Launch the Software Application: .................... 13 Viewing the Images: ......................

  • Page 4: Introduction

    Version: 1.2 NTRODUCTION The Wireless Firefly digital eyepiece camera consists of a wireless digital eyepiece camera, a compact USB receiver, software application and a charge cable. Only a computer equipped with a free USB port is needed to use the system.

  • Page 5: Warnings & Cautions

    In order to obtain optimum performance and ensure patient safety, thoroughly  read this manual. Do not use the Firefly GT470 if you notice any signs of damage to the  components of the system. Contact customer service for immediate assistance.
  • Page 6 Firefly GT470 Manual Version: 1.2 This product complies with current required standards for electromagnetic  interference and should not present problems to other equipment or be affected by other devices. As a precaution, avoid using this device in close proximity to other equipment.

  • Page 7: Check List

    Firefly GT470 Manual Version: 1.2 HECK Before starting, check that all the following items have been included with your product. If anything is missing, contact your dealer. Microscope Eyepiece Camera x 1pc Receiver x 1 pc 100-240V AC to 5V USB DC Notice: Actual Shape may vary.

  • Page 8: Nomenclature

    Firefly GT470 Manual Version: 1.2 OMENCLATURE...
  • Page 9 Firefly GT470 Manual Version: 1.2 PERATION...

  • Page 10: Connect To Pc

    Connect to PC： Connect the compact receiver to the PC’s USB port Power the Device On： Push the “Power Button” at the rear of the GT470 to activate the device. An indicator light will turn on to confirm the power status.

  • Page 11: Charging The Battery

     Charging the Battery: Through the mini-USB port at the rear of the GT470, the embedded battery can be charged with the provided USB DC cable. The cable must be connected to the USB port of a PC or to the “USB Power Adapter”, which can charge directly from a wall outlet.

  • Page 12: Using The Firefly Gt470

    Firefly GT470 Manual Version: 1.2 Using the Firefly GT470: Using the Image Capture Control: Press and release the Capture button to capture image frames. The system will generate a shutter sound from the PC speaker as confirmation. Standby and Remove device: temporarily turn off or remove the device, push and release the power button to the “OFF”...

  • Page 13: Launch The Software Application

    Double-click the FireflyPro.exe icon on your computer desktop: Viewing the Images: FireflyPro software controls your Firefly GT470. The GT470 communicates with the PC through the USB compact receiver. The user can configure the video properties, review live images, capture images, record video clips and perform a variety of powerful measurement and documentation functions.
  • Page 14 Firefly GT470 Manual Version: 1.2 Tool bars The Tools bars enable quick access to the functions of FireflyPro software. The tool bars can be grouped into Control, Images and Device tool bar sets. Control Tool bar: Icon Icon Name Function Description...
  • Page 15 Firefly GT470 Manual Version: 1.2 Image tool bar: Icon Icon Name Function Description Save Image Store frozen image Image Capture Capture and store instant image from live video Image Browsing Browse images in working directory Working Pop-up to select working directory path...

  • Page 16: Maintenance And Service

    Firefly GT470 Manual Version: 1.2 AINTENANCE AND SERVICE Cleaning Recommendation CAUTION Do not apply alcohol, chemicals, or water to the lens. Any liquids entering the optical assembly will damage internal components. Recycling the System Components Within the EU Do not dispose of this product as unsorted municipal refuse. Submit for separate...

  • Page 17: Service Policy

    Version: 1.2 Service Policy All repairs on products under warranty must be performed or approved by Firefly or its authorized resellers. Unauthorized repairs will void the warranty. In addition, whether or not covered under warranty, any product repair shall exclusively be performed by Firefly-certified service personnel.

  • Page 18: Specifications

    Firefly GT470 Manual Version: 1.2 PECIFICATIONS Item Specification Weight Approximately 280 g (0.62 lb) Length: 14.2 cm (6.5 inches) Dimensions (approximate) Height: 6.7. cm (2.65 inches) Width: 6.7 cm (2.65 inches) Power USB 5 VDC, 150mA Protection against ingress of water IPXØ...

  • Page 19: Limited Warranty

    ARRANTY Limited Hardware Warranty (through distributors & resellers) Firefly Global hardware products come with a 1-year limited hardware warranty. The warranty is extended through Firefly Global authorized representatives and resellers. If you have a warranty claim, please contact the store, distributor, or website through which the product was purchased.
  • Page 20 How long does this limited hardware warranty last? The limited hardware warranty on all Firefly Global products begins on the date of the packing slip, invoice, or receipt. The warranty period is not extended if a warranted product or any parts are repaired or replaced.
  • Page 21 Refurbished parts and systems are parts or systems that have been returned to Firefly Global, some of which were never used by a customer. All parts and systems are inspected and tested for quality. Replacement parts and systems are covered for the remaining period of the limited hardware warranty for the product you bought.

  • Page 22: Troubleshooting

    Shutdown the Firefly GT470 and disconnect the USB wireless receiver from the computer. b. Close the FireflyPro software. c. Wait for one minute, reconnect the wireless receiver to system and switch the GT470 on. d. Double-click the FireflyPro icon on desktop to launch the software application again.
  • Page 23 Look for a wireless band with less interference by switching the wireless channel both on the GT470 and wireless receiver b. Do not cover the back of the GT470 with your hand. This is where the antenna is located c. Move any cordless phones away from the GT470 as they may cause interference d.
