Automotive components since 1963
ELECTRICAL TEsTER

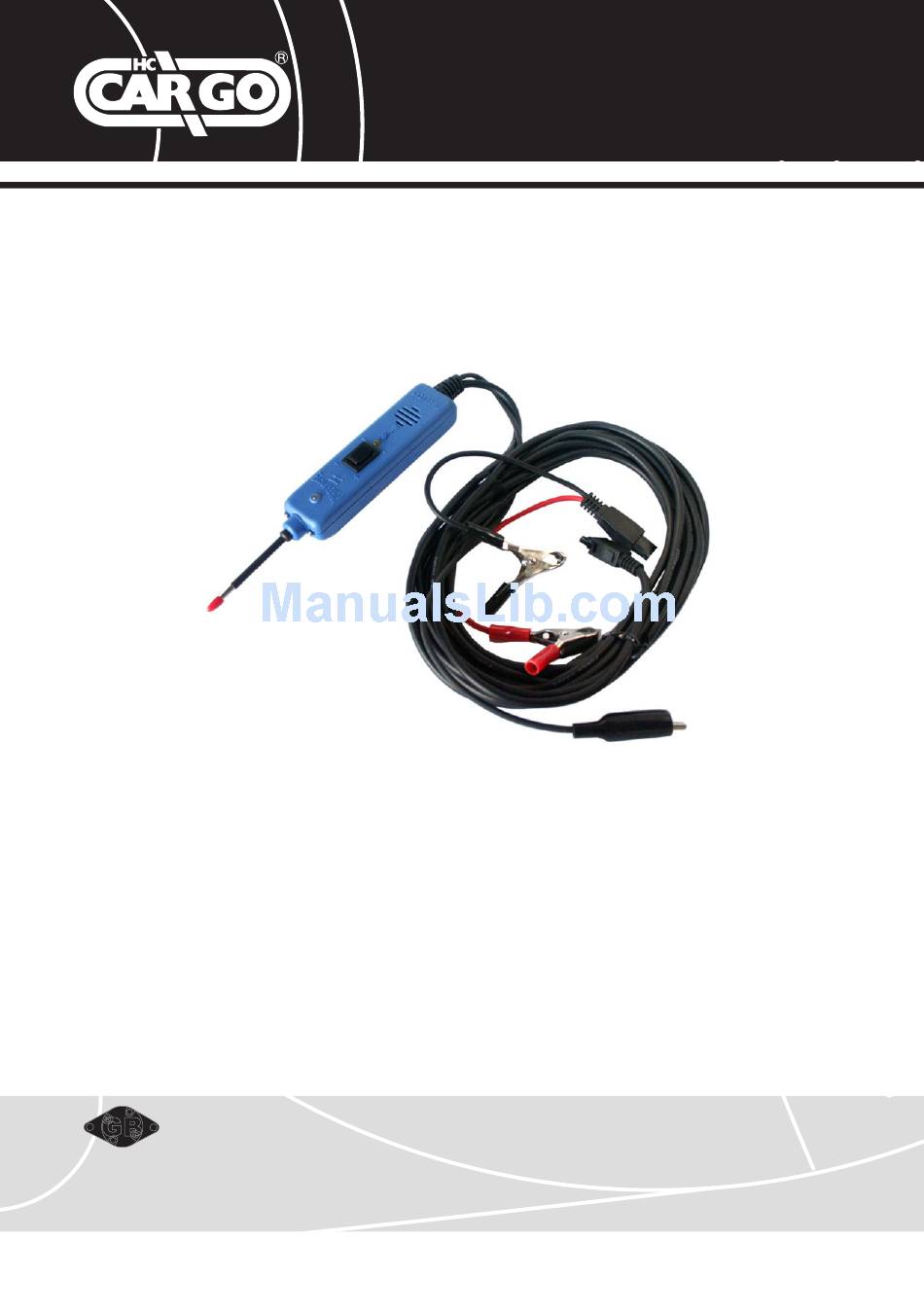

When you connect your Cargo 211083 to
the car battery you will have a multitude of
testers at your finger tips. With the press of
a switch you'll have an instant hot lead or
ground lead. Use the hot and ground lead
simultaneously to activate componenets right
in your hand. Instantly check components
for continuity as well as identify positive,
negative and open circuits without
re-polarizing hook-up clips. Follow and locate
shorts without wasting fuses. The 19ft lead
will allow you to test bumper to bumper
without jumper leads.
GB
User Manual
211083
New features:
• New louder, easier to hear audio signal.
• Audio tone indicates positives by a higher
pitched tone and negative by a lower
pitched tone.
• Cargo 211083 now has 2 bright white
headlights instead of one.
• The new headlights are long life LEDS
assurring years of replacement free service.
Vedpak 104GB_Version 2_040909

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 211083 and is the answer not in the manual?

Questions and answers

Summary of Contents for Cargo 211083

  • Page 1: Cargo 211083 Instructions

    Use the hot and ground lead pitched tone. simultaneously to activate componenets right • Cargo 211083 now has 2 bright white in your hand. Instantly check components headlights instead of one. for continuity as well as identify positive, •...

  • Page 2: Table Of Contents

    IMPORTANT TIP: When powering-up components, you can increase the life of your Cargo 211083 switch, if you first press the switch, then contact the tip to the component. The arcing will take place at the tip instead of the contacts of the switch.

  • Page 3: Hook-Up And Quick Self-Test

    211083 HOOk-UP QUICk self-TesT Unroll the cable. Rock the power switch forward (+), Clamp the RED battery hook-up clip to the the LED indicator should light RED. POSITIVE (+) terminal of the vehicle’s battery. Rock the power switch rearward (-), Clamp the BLACK battery hook-up clip to the the LED indicator should light GREEN.

  • Page 4: Polarity Testing

    POlARITy TesTINg Contacting the tip to a POSITIVE (+) circuit will light the LED indicator RED. (The Cargo 211083 audio feature will sound a high pitched tone when contacting positive). Contacting the tip to a NEGATIVE (-) circuit will light the LED indicator GREEN.

  • Page 5: Continuity Testing

    211083 CONTINUITy TesTINg By using the tip together with the auxiliary ground test lead, continuity can be tested on wires and components that are disconnected from the vehicle’s electrical system. When continuity is present, the LED indicator will light GREEN.

  • Page 6: Activating Components Out Of Vehicle's Electrical System

    If the green indicator went veHICle’s eleCTRICAl sysTeM off at that instant or if the circuit breaker tripped, the Cargo 211083 has been overloaded. This By using the tip together with the auxiliary ground could happen for the following reasons: lead, components can be activated, thereby testing their function.

  • Page 7: Testing Trailer Lights And Connections

    211083 TesTINg TRAIleR lIgHTs AND CONNeCTIONs 1. Connect the tester to a good battery. 2. Clip the auxiliary ground clip to the trailer ground. 3. Probe the contacts at the jack and apply voltage to them. This lets you check the function and orientation of the trailer lights.

  • Page 8: Activating Electrical Components With Positive (+) Voltage

    211083 TO ACTIvATe COMPONeNTs WITH If the circuit breaker tripped, reset it by POsITIve (+) vOlTAge depressing the reset button. Contact the probe tip to the positive terminal of WARNINg: Haphazardly applying voltage to the component, the LED indicator should light certain circuits can cause damage to a vehicle’s...

  • Page 9: Activating Electrical Components With Negative (-) Voltage

    211083 ACTIvATINg eleCTRICAl COMPONeNTs If the circuit breaker tripped, reset it by WITH NegATIve (-) vOlTAge depressing the reset button. Contact the probe tip to the negative terminal of WARNINg: With this function a vehicle’s fuse the component, the LED indicator should light can be blown or tripped if grounding the contact RED.

  • Page 10: Jumper Lead Feature

    211083 JUMPeR leAD feATURe Be careful to avoid short circuits and overloading The testers positive battery hook-up lead and when using this jumper function. The leads, in auxiliary ground lead are connected directly this configuration, are NOT protected by the through the tester.

  • Page 11: Checking For Bad Ground Contacts

    211083 HeCkINg fOR bAD gROUND CONTACTs circuit breaker is the shorted circuit. Take note of this wire’s identification code or color. Follow the Probe the suspected ground wire or contact with wire as far as you can along the wiring harness, the probe tip.

  • Page 12: Using The Light And Tone

    UsINg THe lIgHT AND TONe The tone feature enhances the polarity signal. The Cargo 211083 has the option of a light and When the tip is contacted to a positive circuit, tone. Once connected to a good battery, the light a high pitch tone will sound off.
